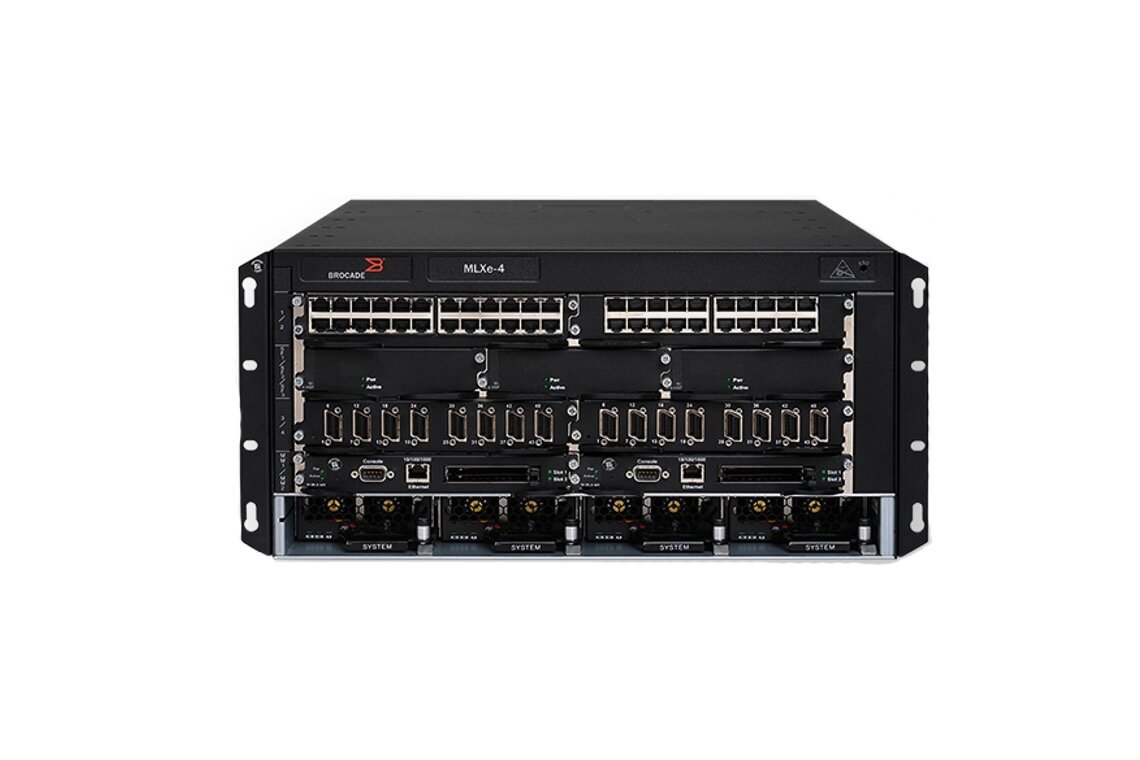

Brocade MLXe Router
The Brocade® MLX Series of high- performance routers, which includes existing Brocade MLX Routers and new Brocade MLXe Core Routers, is designed to meet these today’s rigorous networking requirements. Built with a state-of-the-art, sixth-generation, network processor-based architecture and terabit-scale switch fabrics, the Brocade MLX Series provides a rich set of high- performance IPv4, IPv6, and Multiprotocol Label Switching (MPLS) capabilities as well as advanced Layer 2 switching capabilities. As a result, these routers address the diverse needs in environments that include service provider backbones, Metro Ethernet networks, transit/wholesale networks, Internet Service Providers (ISPs), Content Delivery Networks (CDNs), Internet Exchange Points (IXPs), data centers,and distributed enterprises.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MXLXe routers and MLXe parts & licenses.
The Brocade® MLX Series of high- performance routers, which includes existing Brocade MLX Routers and new Brocade MLXe Core Routers, is designed to meet these today’s rigorous networking requirements. Built with a state-of-the-art, sixth-generation, network processor-based architecture and terabit-scale switch fabrics, the Brocade MLX Series provides a rich set of high- performance IPv4, IPv6, and Multiprotocol Label Switching (MPLS) capabilities as well as advanced Layer 2 switching capabilities. As a result, these routers address the diverse needs in environments that include service provider backbones, Metro Ethernet networks, transit/wholesale networks, Internet Service Providers (ISPs), Content Delivery Networks (CDNs), Internet Exchange Points (IXPs), data centers,and distributed enterprises.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MXLXe routers and MLXe parts & licenses.
The Brocade® MLX Series of high- performance routers, which includes existing Brocade MLX Routers and new Brocade MLXe Core Routers, is designed to meet these today’s rigorous networking requirements. Built with a state-of-the-art, sixth-generation, network processor-based architecture and terabit-scale switch fabrics, the Brocade MLX Series provides a rich set of high- performance IPv4, IPv6, and Multiprotocol Label Switching (MPLS) capabilities as well as advanced Layer 2 switching capabilities. As a result, these routers address the diverse needs in environments that include service provider backbones, Metro Ethernet networks, transit/wholesale networks, Internet Service Providers (ISPs), Content Delivery Networks (CDNs), Internet Exchange Points (IXPs), data centers,and distributed enterprises.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MXLXe routers and MLXe parts & licenses.
Product Information
The way organizations communicate and conduct business has changed dramatically in the past decade. Services such as high-definition video streaming, cloud services, and anytime/anywhere mobile connectivity not only consume an enormous amount of network capacity, but also create a greater degree of complexity for network operations. As a result, today's network planners are seeking solutions that provide the right mix of scalability, performance, programmability, and operational simplicity.
The Brocade MLX Series of high-performance routers, which includes Brocade MLXe Core Routers, is designed to meet these requirements and many others. Built with a state-of-the-art, sixth-generation, network processor-based architecture and terabit-scale switch fabrics, the Brocade MLX Series provides a rich set of high-performance Layer 2/3, IPv4, IPv6, Multiprotocol Label Switching (MPLS), wire-speed encryption, and Software-Defined Networking (SDN). As a result, these routers address the diverse needs in environments that include the data centers of service provider, enterprise, and public sector organizations; service provider transit and Internet Exchange Points (IXPs); research and education networks; enterprise and public sector campuses; and mobile 4G/LTE service providers.
‣ Scalable multiservice IP/MPLS, SDN-enabled routers in 4-, 8-, 16-, and 32-slot chassis options
‣ Fully distributed, non-blocking, and programmable architecture with up to 15.36 Tbps fabric capacity
for maximum performance and investment protection
‣ 64 100 GbE, 128 40 GbE, 768 10 GbE, and 1,536 1 GbE ports in a single router
‣ Wire-speed forwarding performance for all software features, including Ethernet, VLAN, IPv4, IPv6,
MPLS, VPLS, IPsec, MACsec, and OpenFlow capabilities
‣ High-availability design with redundant management modules, switch fabrics, power supplies, and
fans; hitless failover; hitless software upgrades; and non-stop routing
‣ Delivers integrated hardware support for OpenFlow 1.3 in the industry's only true hybrid port mode,
enabling SDN to seamlessly interwork with existing network forwarding
‣ Ideal for applications in data center core and interconnects, Wide Area Networks (WANs), and
campus cores
Specs
‣ System capacity: 1.6 Tbps to 12.8 Tbps
‣ Switch fabric capacity per slot: Up to 15.36 Tbps
‣ Interface Cards: 4 Up to 32 Per Chassis
‣ Dimensions (W x H x D):
— 17.20 in. W × 8.71 in. H × 23.0 in. D(43.69 cm × 22.12 cm × x 58.42 cm)
— Up to 17.45 in. W × 57.75 in. H × 26.88 in. D (44.32 cm × 146.69 cm × 68.28 cm)
‣ Maximum weight: 117 Up to 505 lbs.
‣ Mounting: Two Post Rack
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
‣ Humidity: 5 to 90 percent noncondensing
‣ Altitude: No performance degradation to 13,000 ft/4000 m
Variant Product Details
Lightwire Systems offers the MLXe variants:
BR-MLXE-4-MR2-M-AC
Brocade MLXe-4 AC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-4-MR2-M-DC
Brocade MLXe-4 DC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-4-MR2-X-AC
Brocade MLXe-4 AC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-4-MR2-X- DC
Brocade MLXe-4 DC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-8-MR2-M-AC
Brocade MLXe-8 AC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-8-MR2-M-DC
Brocade MLXe-8 DC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-8-MR2-X-AC
Brocade MLXe-8 AC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-8-MR2-X-DC
Brocade MLXe-8 DC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-16-MR2-M-AC
Brocade MLXe-16 AC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-16-MR2-M-DC
Brocade MLXe-16 DC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-16-MR2-X-AC
Brocade MLXe-16 AC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-16-MR2-X-DC
Brocade MLXe-16 DC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-32-MR2-M-AC
Brocade MLXe-32 AC system with one MR2 (M) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-32-MR2-M-DC
Brocade MLXe-32 DC system with one MR2 (M) management module, two high-speed switch fabric modules,
one 1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-32-MR2-X-AC
Brocade MLXe-32 AC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W AC power supply, four exhaust fan assembly kits, and air filter. Power cord not included.
BR-MLXE-32-MR2-X-DC
Brocade MLXe-32 DC system with one MR2 (X) management module, two high-speed switch fabric modules, one
1,800 W DC power supply, four exhaust fan assembly kits, and air filter. Power cord not included
Part Numbers & Descriptions
Lightwire Systems offers the following MLXe parts::
BR-MLX-100GX1-2PUPG
100-GbE 1-port module license upgrade TO 2-ports ON a MLXe. TAA Compliant.
BR-MLX-100GX2-CFP2-M
MLXe two (2)-port 100GbE (M) module with IPv4/IPv6/MPLS hardware support. Requires CFP2 optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-100GX2-CFP2-X2
MLXe two (2)-port 100GbE (X2) module with IPv4/IPv6/MPLS hardware support. Requires CFP2 optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or simultaneous 1.5M IPv4 and 1M IPv6 routes in FIB. Requires high speed switch fabric module. TAA Compliant.
BR-MLX-10GX10-20PUPG
MLX SOFTWARE LICENSE TO UPGRADE FROM 10 PORT (X2) TO 20 PORT 10G/1G COMBO MODULE. TAA Compliant.
BR-MLX-10GX10-X2
MLX 10-PORT 10-GBE/1GBE (X2) SFP+ AND SFP COMBO MODULE WITH EXTENDED ROUTE TABLE SUPPORT UP TO 2M IPV4 AND 800K IPV6 ROUTES IN HARDWARE. MACSEC ENABLED. UPGRADEABLE TO 20X10G-X2 USING ADDITIONAL SOFTWARE LICENSE. TAA Compliant.
BR-MLX-10GX20-M
MLXe twenty (20)-port 10-GBE/1-GBE (M) combo module with IPv4/IPv6/MPLS hardware support. Requires SFP+ and SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-10GX20-X2
MLXe twenty (20)-port 10-GBE/1-GBE (X2) combo module with IPv4/IPv6/MPLS hardware support. Requires SFP+ and SFP optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or simultaneous 1.5M IPv4 and 1M IPv6 routes in FIB. Requires hSFM. TAA Compliant.
BR-MLX-10GX24-DM
MLXe twenty four (24)-port 10-GbE (DM) module with IPv4/IPv6/MPLS capabilities. Requires SFPP optics. Supports 256K IPv4 routes in FIB. TAA Compliant.
BR-MLX-10GX4-IPSEC-M
MLXe eight port (4-port 10-GBE and 4-port 1-GBE) (M) IP Security (IPSEC) module with IPv4/IPv6/VRF hardware support. Requires SFP+ and SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-10GX4-X
XMR/MLXe four (4)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support-requires XFP optics. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-10GX4-X-ML
MLX/MLXe four (4)-port 10-GbE (ML) module with IPv4/IPv6/MPLS hardware support-requires XFP optics. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-10GX4-XUPG
MLX 4-PORT 10-GBE LICENSE UPGD TO (X). TAA Compliant.
BR-MLX-10GX8-X
MLXe/XMR eight (8)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support-requires SFPP optics. Supports 1M IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-1GCX24-X
XMR/MLXE 24-port 1-GbE (X) Copper (RJ-45) Module. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-1GCX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Copper (RJ-45) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-1GFX24-X
XMR/MLXE 24-port 1-GbE (X) Fiber (SFP) Module. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-1GFX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Fiber (SFP) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-100GX1-2PUPG
100-GbE 1-port module license upgrade TO 2-ports ON a MLXe. TAA Compliant.
BR-MLX-100GX2-CFP2-M
MLXe two (2)-port 100GbE (M) module with IPv4/IPv6/MPLS hardware support. Requires CFP2 optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-100GX2-CFP2-X2
MLXe two (2)-port 100GbE (X2) module with IPv4/IPv6/MPLS hardware support. Requires CFP2 optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or simultaneous 1.5M IPv4 and 1M IPv6 routes in FIB. Requires high speed switch fabric module. TAA Compliant.
BR-MLX-10GX10-20PUPG
MLX SOFTWARE LICENSE TO UPGRADE FROM 10 PORT (X2) TO 20 PORT 10G/1G COMBO MODULE. TAA Compliant.
BR-MLX-10GX10-X2
MLX 10-PORT 10-GBE/1GBE (X2) SFP+ AND SFP COMBO MODULE WITH EXTENDED ROUTE TABLE SUPPORT UP TO 2M IPV4 AND 800K IPV6 ROUTES IN HARDWARE. MACSEC ENABLED. UPGRADEABLE TO 20X10G-X2 USING ADDITIONAL SOFTWARE LICENSE. TAA Compliant.
BR-MLX-10GX20-M
MLXe twenty (20)-port 10-GBE/1-GBE (M) combo module with IPv4/IPv6/MPLS hardware support. Requires SFP+ and SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-10GX20-X2
MLXe twenty (20)-port 10-GBE/1-GBE (X2) combo module with IPv4/IPv6/MPLS hardware support. Requires SFP+ and SFP optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or simultaneous 1.5M IPv4 and 1M IPv6 routes in FIB. Requires hSFM. TAA Compliant.
BR-MLX-10GX24-DM
MLXe twenty four (24)-port 10-GbE (DM) module with IPv4/IPv6/MPLS capabilities. Requires SFPP optics. Supports 256K IPv4 routes in FIB. TAA Compliant.
BR-MLX-10GX4-IPSEC-M
MLXe eight port (4-port 10-GBE and 4-port 1-GBE) (M) IP Security (IPSEC) module with IPv4/IPv6/VRF hardware support. Requires SFP+ and SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-10GX4-X
XMR/MLXe four (4)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support-requires XFP optics. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-10GX4-X-ML
MLX/MLXe four (4)-port 10-GbE (ML) module with IPv4/IPv6/MPLS hardware support-requires XFP optics. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-10GX8-X
MLXe/XMR eight (8)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support-requires SFPP optics. Supports 1M IPv4 routes in FIB. Requires high speed switch fabric modules. TAA Compliant.
BR-MLX-1GCX24-X
XMR/MLXE 24-port 1-GbE (X) Copper (RJ-45) Module. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-1GCX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Copper (RJ-45) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-1GFX24-X
XMR/MLXE 24-port 1-GbE (X) Fiber (SFP) Module. Supports 1M IPv4 routes in FIB. TAA Compliant.
BR-MLX-1GFX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Fiber (SFP) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB). TAA Compliant.
BR-MLX-1GX20-U10G-M
MLXe twenty (20)-port 1-GBE/1-GBE (M) module with IPv4/IPv6/MPLS hardware support. Requires SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. Upgradeable to 10G, with BR-MLX-1GX20-U10G-MUPG license. TAA Compliant.
BR-MLX-1GX20-U10G-MUPG
MLXe 20-PORT (M) 10 Gigabit Ethernet license to upgrade from 1GBE TO 1-GBE/10-GBE combo port. TAA Compliant.
BR-MLX-1GX20-U10G-X2
MLXe twenty (20)-port 1-GBE (X2) module with IPv4/IPv6/MPLS hardware support. Requires SFP optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or 1.5M IPv4 and 1M IPv6 routes in FIB. Requires hSFM. Upgradeable to 10G with extra license. TAA Compliant.
BR-MLX-1GX20-U10G-X2UPG
MLXe 20-PORT (X2) 10 Gigabit Ethernet license to upgrade from 1GBE TO 1-GBE/10-GBE combo port. TAA Compliant.
BR-MLX-1GX20-U10G-M
MLXe twenty (20)-port 1-GBE/1-GBE (M) module with IPv4/IPv6/MPLS hardware support. Requires SFP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules. Upgradeable to 10G, with BR-MLX-1GX20-U10G-MUPG license. TAA Compliant.
BR-MLX-1GX20-U10G-MUPG
MLXe 20-PORT (M) 10 Gigabit Ethernet license to upgrade from 1GBE TO 1-GBE/10-GBE combo port. TAA Compliant.
BR-MLX-1GX20-U10G-X2
MLXe twenty (20)-port 1-GBE (X2) module with IPv4/IPv6/MPLS hardware support. Requires SFP optics. Supports simultaneous 2M IPv4 and 0.8M IPv6, or 1.5M IPv4 and 1M IPv6 routes in FIB. Requires hSFM. Upgradeable to 10G with extra license. TAA Compliant.
BR-MLX-1GX20-U10G-X2UPG
MLXe 20-PORT (X2) 10 Gigabit Ethernet license to upgrade from 1GBE TO 1-GBE/10-GBE combo port. TAA Compliant.
BR-MLX-100Gx1-2PUPG
100-GbE 1-port module license upgrade to 2-ports on a MLXe
BR-MLX-100Gx1-X
MLXE/XMR/MLX 1-port 100-GbE (X) Module with IPv4/IPv6/MPLS hardware support - requires CFP optics. Supports 1M IPv4 routes in FIB in XMR mode and 512K IPv4 routes in MLX mode. Requires high speed switch fabric modules. License upgradeable to 2-ports on a MLXe.
BR-MLX-100Gx2-X
MLXE 2-port 100-GbE (X) Module with IPv4/IPv6/MPLS hardware support - requires CFP optics. Supports 1M IPv4 routes in FIB in XMR mode and 512K IPv4 routes in MLX mode. Requires high speed switch fabric modules.
BR-MLX-10GX24-DM
Brocade MLX Series twenty four (24)-port 10-GbE (DM) module with IPv4/IPv6/MPLS capabilities. Requires SFPP optics. Supports 256K IPv4 routes in FIB. Requires high speed switch fabric modules
BR-MLX-10GX4-X
XMR/MLXe four (4)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support - requires XFP optics. Supports 1M IPv4 routes in FIB.
BR-MLX-10GX4-X-ML
MLX/MLXe four (4)-port 10-GbE (ML) module with IPv4/IPv6/MPLS hardware support-requires XFP optics. Supports 512K IPv4 routes in FIB. License Upgradeable to "X" scalability (1M IPv4 routes in FIB).
BR-MLX-10GX4-XUPG
MLX 4-PORT 10-GBE LICENSE UPGD TO (X)
BR-MLX-10GX8-X
MLXe/XMR eight (8)-port 10-GbE (X) module with IPv4/IPv6/MPLS hardware support-requires SFPP optics. Supports 1M IPv4 routes in FIB. Requires high speed switch fabric modules.
BR-MLX-1GCX24-X
XMR/MLXE 24-port 1-GbE (X) Copper (RJ-45) Module. Supports 1M IPv4 routes in FIB.
BR-MLX-1GCX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Copper (RJ-45) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to _X_ scalability (1M IPv4 routes in FIB).
BR-MLX-1GFX24-X
XMR/MLXE 24-port 1-GbE (X) Fiber (SFP) Module. Supports 1M IPv4 routes in FIB.
BR-MLX-1GFX24-X-ML
MLX/MLXE 24-port 1-GbE (ML) Fiber (SFP) Module. Supports 512K IPv4 routes in FIB. License Upgradeable to _X_ scalability (1M IPv4 routes in FIB).
BR-MLX-1GX24-XUPG
MLX/MLXE 24-PORT 1-GBE LICENSE UPGRADE TO (X)
BR-MLX-32-MR2-M
MLXe/MLX Gen2 management (M) module for 32-slot systems. Includes 4 GB RAM, 1 internal compact flash drive (2GB), 1 external compact flash slot with included 2GB card, RS-232 serial console port and 10/100/1000 Ethernet port for management
BR-MLX-32-MR2-X
MLXe/MLX Gen2 management (X) module for 32-slot systems. Includes 4 GB RAM, 1 internal compact flash drive (2GB), 1 external compact flash slot with included 2GB card, RS-232 serial console port and 10/100/1000 Ethernet port for management
BR-MLX-40Gx4-M
Brocade MLXe four (4)-port 40-GbE (M) module with IPv4/IPv6/MPLS hardware support - requires QSFP+ optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules
BR-MLX-MR2-M
MLXe/MLX Gen2 management (M) module for 4-, 8- and 16-slot systems. Includes 4 GB RAM, 1 internal compact flash drive (2GB), 1 external compact flash slot with included 2GB card, RS-232 serial console port and 10/100/1000 Ethernet port for management
BR-MLX-MR2-X
MLXe/XMR Gen2 management (X) module for 4-, 8- and 16-slot systems. Includes 4 GB RAM, 1 internal compact flash drive (2GB), 1 external compact flash slot with included 2GB card, RS-232 serial console port and 10/100/1000 Ethernet port for management
BR-MLXE-16-FAN
MLXe-16 exhaust fan assembly kit
BR-MLXE-16-FLTR
MLXe-16 air filter
BR-MLXE-16-MR-M-AC
Brocade MLXe-16 AC system with 3 high speed switch fabric modules, 4 1200W AC power supplies, 2 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-16-MR-M-DC
Brocade MLXe-16 DC system with 3 high speed switch fabric modules, 4 1200W DC power supplies, 2 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-16-MR-X-AC
Brocade MLXe-16 AC system with 3 high speed switch fabric modules, 4 1200W AC power supplies, 2 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-16-MR-X-DC
Brocade MLXe-16 DC system with 3 high speed switch fabric modules, 4 1200W DC power supplies, 2 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-16-MR2-M-AC
Brocade MLXe-16 AC system with 1 MR2 (M) management module, 3 high speed switch fabric modules, 4 1800W AC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-16-MR2-M-DC
Brocade MLXe-16 DC system with 1 MR2 (M) management module, 3 high speed switch fabric modules, 4 1800W DC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-16-MR2-X-AC
Brocade MLXe-16 AC system with 1 MR2 (X) management module, 3 high speed switch fabric modules, 4 1800W AC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-16-MR2-X-DC
Brocade MLXe-16 DC system with 1 MR2 (X) management module, 3 high speed switch fabric modules, 4 1800W DC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-16-S
Spare MLXe-16 chassis with 2 exhaust fan assembly kits and air filter
BR-MLXE-32-AC
Brocade MLXe-32 AC system with 7 high speed switch fabric modules, 4 2400W AC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Management module (MLX or XMR) must be ordered separately. Power cord not included
BR-MLXE-32-ACPWR-3000
32-slot NetIron MLXe/XMR/MLX AC 3000W power supply
BR-MLXE-32-DC
Brocade MLXe-32 DC system with 7 high speed switch fabric modules, 4 2400W DC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Management module (MLX or XMR) must be ordered separately. Power cord not included
BR-MLXE-32-DCPWR-3000
32-slot NetIron MLXe/XMR/MLX DC 3000W power supply
BR-MLXE-32-FAN
MLXe-32 exhaust fan
BR-MLXE-32-FAN-DEFLECTOR
MLXe-32 / MLX-32/ XMR32000 upward fan deflector for 32-slot chassis exhaust fans. Directs air exhaust upwards. 1 deflector per exhaust fan.
BR-MLXE-32-FLTR
MLXe-32 air filters, 2 filter kit
BR-MLXE-32-MR-M-AC
Brocade MLXe-32 AC system with 7 high speed switch fabric modules, 4 2400W AC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. MLX management module included. Power cord not included
BR-MLXE-32-MR-M-DC
Brocade MLXe-32 DC system with 7 high speed switch fabric modules, 4 2400W DC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. MLX management module included. Power cord not included
BR-MLXE-32-MR-X-AC
Brocade MLXe-32 AC system with 7 high speed switch fabric modules, 4 2400W AC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. XMR management module included. Power cord not included
BR-MLXE-32-MR-X-DC
Brocade MLXe-32 DC system with 7 high speed switch fabric modules, 4 2400W DC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. XMR management module included. Power cord not included
BR-MLXE-32-MR2-M-AC
Brocade MLXe-32 AC system with 1 MR2 (M) management module, 7 high speed switch fabric modules, 4 3000W AC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Power cord not included
BR-MLXE-32-MR2-M-DC
Brocade MLXe-32 DC system with 1 MR2 (M) management module, 7 high speed switch fabric modules, 4 3000W DC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Power cord not included
BR-MLXE-32-MR2-X-AC
Brocade MLXe-32 AC system with 1 MR2 (X) management module, 7 high speed switch fabric modules, 4 3000W AC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Power cord not included
BR-MLXE-32-MR2-X-DC
Brocade MLXe-32 DC system with 1 MR2 (X) management module, 7 high speed switch fabric modules, 4 3000W DC power supplies, 2 power supply fans, 8 exhaust fans, 2 air filters and cable management system. Power cord not included
BR-MLXE-32-S
Spare MLXe-32 chassis with 2 power supply fans, 8 exhaust fans and 2 air filters.
BR-MLXE-4-FAN
MLXe-4 exhaust fan assembly kit
BR-MLXE-4-FLTR
MLXe-4 air filter
BR-MLXE-4-MR-M-AC
Brocade MLXe-4 AC system with 2 high speed switch fabric modules, 1 1200W AC power supply, 4 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-4-MR-M-DC
Brocade MLXe-4 DC system with 2 high speed switch fabric modules, 1 1200W DC power supply, 4 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-4-MR-X-AC
Brocade MLXe-4 AC system with 2 high speed switch fabric modules, 1 1200W AC power supply, 4 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-4-MR-X-DC
Brocade MLXe-4 DC system with 2 high speed switch fabric modules, 1 1200W DC power supply, 4 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-4-MR2-M-AC
Brocade MLXe-4 AC system with 1 MR2 (M) management module, 2 high speed switch fabric modules, 1 1800W AC power supply, 4 exhaust fan assembly kits and air filter. Power cord not included.
BR-MLXE-4-MR2-M-DC
Brocade MLXe-4 DC system with 1 MR2 (M) management module, 2 high speed switch fabric modules, 1 1800W DC power supply, 4 exhaust fan assembly kits and air filter. Power cord not included.
BR-MLXE-4-MR2-X-AC
Brocade MLXe-4 AC system with 1 MR2 (X) management module, 2 high speed switch fabric modules, 1 1800W AC power supply, 4 exhaust fan assembly kits and air filter. Power cord not included.
BR-MLXE-4-MR2-X-DC
Brocade MLXe-4 DC system with 1 MR2 (X) management module, 2 high speed switch fabric modules, 1 1800W DC power supply, 4 exhaust fan assembly kits and air filter. Power cord not included.
BR-MLXE-4-S
Spare MLXe-4 chassis with 4 exhaust fan assembly kits and air filter
BR-MLXE-8-FAN
MLXe-8 exhaust fan assembly kit
BR-MLXE-8-FLTR
MLXe-8 air filter
BR-MLXE-8-MR-M-AC
Brocade MLXe-8 AC system with 2 high speed switch fabric modules, 2 1200W AC power supplies, 2 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-8-MR-M-DC
Brocade MLXe-8 DC system with 2 high speed switch fabric modules, 2 1200W DC power supplies, 2 exhaust fan assembly kits and air filter. MLX management module included. Power cord not included
BR-MLXE-8-MR-X-AC
Brocade MLXe-8 AC system with 2 high speed switch fabric modules, 2 1200W AC power supplies, 2 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-8-MR-X-DC
Brocade MLXe-8 DC system with 2 high speed switch fabric modules, 2 1200W DC power supplies, 2 exhaust fan assembly kits and air filter. XMR management module included. Power cord not included
BR-MLXE-8-MR2-M-AC
Brocade MLXe-8 AC system with 1 MR2 (M) management module, 2 high speed switch fabric modules, 2 1800W AC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-8-MR2-M-DC
Brocade MLXe-8 DC system with 1 MR2 (M) management module, 2 high speed switch fabric modules, 2 1800W DC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-8-MR2-X-AC
Brocade MLXe-8 AC system with 1 MR2 (X) management module, 2 high speed switch fabric modules, 2 1800W AC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-8-MR2-X-DC
Brocade MLXe-8 DC system with 1 MR2 (X) management module, 2 high speed switch fabric modules, 2 1800W DC power supplies, 2 exhaust fan assembly kits and air filter. Power cord not included
BR-MLXE-8-S
Spare MLXe-8 chassis with 2 exhaust fan assembly kits and air filter
BR-MLXE-ACPWR-1800
16-, 8- and 4-slot MLXe and 16- and 8-Slot XMR/MLX AC 1800W power supply
BR-MLXE-DCPWR-1800
16-, 8- and 4-slot MLXe and 16- and 8-Slot XMR/MLX DC 1800W power supply
CNTR-DIV-MLXE-16
CENTER SLOT DIVIDERS FOR THE MLXE-16 CHASSIS
CNTR-DIV-MLXE-32
CENTER SLOT DIVIDERS FOR THE MLXE-32 CHASSIS
CNTR-DIV-MLXE-4-8
CENTER SLOT DIVIDERS FOR THE MLXE-4 AND MLXE-8 CHASSIS
KIT-CAB-CINCH
Cable cinches for cabling mini RJ-21 or RJ-45 cables. Package contains 8 cinches.
NI-MLX-10GX8-D
Brocade MLX Series eight (8)-port 10-GbE (D) module with IPv4/IPv6 hardware support - requires SFPP optics. Supports 256K IPv4 routes in FIB. Doesn't support MPLS. Requires high speed switch fabric modules
NI-MLX-10GX8-M
Brocade MLX Series eight (8)-port 10-GbE (M) module with IPv4/IPv6/MPLS hardware support - requires SFPP optics. Supports 512K IPv4 routes in FIB. Requires high speed switch fabric modules
NI-MLX-16-AC-HSF
NetIron MLX-16 AC system with 1 management module, 4 high speed switch fabric modules, 4 1200W AC power supplies, intake and high speed exhaust fan assembly kit and air filter
NI-MLX-16-DC-HSF
NetIron MLX-16 DC system with 1 management module, 4 high speed switch fabric modules, 4 1200W DC power supplies, intake and high speed exhaust fan assembly kit and air filter
NI-MLX-1GX48-T-A
NetIron MLX Series 48-port 10/100/1000Base-T, MRJ21 module with IPv4/IPv6/MPLS hardware support. Requires high speed fans NIBI-16-FAN-EXH-A on MLX-16.
NI-MLX-32-MR
NetIron MLX 32 management module with 1 GB ECC memory, dual PCMCIA slots, EIA/TIA-232 (RS-232) serial console port and 10/100/1000 Ethernet port for out-of-band management
NI-MLX-4-AC-HSF
NetIron MLX-4 AC system with 1 management module, 3 high speed switch fabric modules, 1 1200W AC power supply, fan assembly and air filter
NI-MLX-4-DC-HSF
NetIron MLX-4 DC system with 1 management module, 3 high speed switch fabric modules, 1 1200W DC power supply, fan assembly and air filter
NI-MLX-8-AC-HSF
NetIron MLX-8 AC system with 1 management module, 3 high speed switch fabric modules, 2 1200W AC power supplies, fan assembly and air filter
NI-MLX-8-DC-HSF
NetIron MLX-8 DC system with 1 management module, 3 high speed switch fabric modules, 2 1200W DC power supplies, fan assembly and air filter
NI-X-16-HSF-UPGRADE
High speed switch fabric upgrade kit for MLX-16 and XMR16000. Includes 4 high speed switch fabric modules and high speed exhaust fan assembly kit
NI-X-32-HSF
MLXe/MLX/XMR high speed switch fabric module for 32-slot chassis
NI-X-32-HSF-UPGRADE
High speed switch fabric upgrade kit for MLX-32 and XMR32000. Includes 8 high speed switch fabric modules.
NI-X-4-HSF-UPGRADE
High speed switch fabric upgrade kit for MLX-4 and XMR4000. Includes 3 high speed switch fabric modules.
NI-X-8-HSF-UPGRADE
High speed switch fabric upgrade kit for MLX-8 and XMR8000. Includes 3 high speed switch fabric modules.
NI-X-IPNL
NetIron XMR/MLX Series interface module blank panel
NI-X-MPNL
NetIron XMR/MLX Series management module blank panel
NI-X-PWRPNL
NetIron XMR/MLX power supply blank panel for 16- and 8-slot chassis
NI-X-PWRPNL-A
NetIron XMR/MLX power supply blank panel for 4-slot chassis
NI-X-SF1PNL
NetIron XMR/MLX switch fabric module blank panel for 4-slot chassis
NI-X-SF3PNL
NetIron XMR/MLX switch fabric module blank panel for 16- and 8-slot chassis
NI-XMR-1Gx20-GC
NetIron XMR Series 20-port 10/100/1000 copper module with IPv4/IPv6/MPLS hardware support
NI-XMR-32-MR
NetIron XMR 32000 management module with 2 GB ECC memory, dual PCMCIA slots, EIA/TIA-232 (RS-232) serial console port and 10/100/1000 Ethernet port for out-of-band management
NI-XMR-MR
NetIron XMR Series management module with 2 GB ECC memory, dual PCMCIA slots, EIA/TIA-232 (RS-232) serial console port and 10/100/1000 Ethernet port for out-of-band management
RMK-4POST-MLXE-32
MLXE-32 RACK MOUNT KIT FOR A 4-POST RACK (FLUSH MOUNT INSTALLATION)
RMK-CAB-MLXE-16
MLXE-16 MOUNT KIT - For MLXe-16 installation in a Cabinet or a 4 post Rack. Includes a Cable Management Comb for cable management
RMK-CAB-MLXE-32
MLXE-32 RACK MOUNT KIT FOR INSTALLATION IN CABINET (RECESS KIT)
RMK-CAB-MLXE-4
MLXE-4 MOUNT KIT - For MLXe-4 installation in a Cabinet or a 4 post Rack
RMK-CAB-MLXE-8
MLXE-8 MOUNT KIT - For MLXe-8 installation in a Cabinet or a 4 post Rack
RMK-NI-X-32
MLXe-32 / MLX-32/ XMR32000 Rack Mount Kit for installation in a standard 2 post rack
Terms of Service
Lightwire Systems buys, sells, and trades new and used networking equipment. Customer acceptance of the equipment sold by Lightwire Systems
binds both parties to the following terms and conditions:
QUOTES
Upon request, we will provide you with an written quote. Quoted and actual price/availability/delivery on all equipment may slightly vary due to time elapsed between quote and purchase, market supply/demand conditions, inventory status. We will honor a quote for a minimum of 30 days, please discuss with your client advisor longer quote time is needed.
CANCELLATIONS
Orders once placed may not be canceled without good cause. Please contact your client advisor with any changes and we will do our best to accommodate or address any concerns.
RETURNS & EXCHANGES
If you are not 100% satisfied with your purchase and it is within 30 days of delivery, and the product was sold from existing stock, we will accept the return of the working item in the same condition and packaging it was received subject to a 20% restocking fee. If a product was purchased specifically to fill your order and was not available in our inventory at that time, it is non-returnable. Customer is responsible for any freight charges on all returns.
PACKAGING
We use foam, bubble rap, sturdy boxes and professionally pack all hardware. In the event the item arrives damaged, immediately contact your client advisor. Lightwire Systems will work with the customer to address any issues due to damage during shipping and will work diligently to make sure you have working hardware as soon as possible.
SHIPPING
UPS and FED-EX are our shipping partners of choice, however we’re happy to accommodate other shipping partners per a customer’s request.
SALES TAX
Customers are subject to the sales tax rate per their region. Tax exempt organizations must provide us with their tax number when placing an order or will be charged sales tax.
CONDITION - WARRANTY - EXCHANGE
We sell used, unused in original box, and new equipment. All used hardware is fully tested and guaranteed fully functional before sold and comes with an advanced replacement one-year warranty (advance replacement due to failure will be shipped express to ensure your downtime is minimal). New hardware will come with original manufacturer warranties. Warranty covers DOA equipment or equipment failing to perform to manufacturers specifications. Warranty does not cover misuse and/or damage due to improper installation and/or operation of the equipment. No item can be returned without prior authorization. We will repair, exchange, or refund the equipment under warranty within 5 working days after its receipt at our warehouse. All equipment is subject to prior sale.
Related Products
Call us at +1 415-800-2050 to speak with one of our client advisors, or email us to schedule a time to discuss your project.
