Product Information
The SLX 9850 is the industry’s most powerful IPv4, IPv6, MPLS/Multi-VRF and BGP-EVPN data center router, providing a cost-efficient solution that is purpose-built for the most demanding service provider and enterprise data center applications. The robust system architecture, versatile feature set, and high level of flexibility enable it to scale from the data center spine to the data center core.
Designed with state-of-the-art network processing technology, the SLX 9850 has a non-blocking switching capacity of up to 230 Tbps. An advanced distributed hardware architecture with fine-grained QoS support enables full-duplex, high-speed performance for any mix of IPv4, IPv6, MPLS and BGP-EVPN VXLAN Overlay services. This innovative system architecture offers several distinguishing characteristics:
‣ Clos-based distributed non-blocking architecture: Provides the foundation for a robust, scalable data center platform.
‣ Midplane-free design: Allows interface modules to communicate directly with switch fabric modules, enabling the chassis to have an efficient front-to-back airflow design and no signal integrity degradation.
‣ High-availability implementation: Provides a clear separation between the control plane and data plane at 10 Gigabit Ethernet (GbE) speed to enable operational performance at high loads.
‣ Distributed network processing, ultra-deep packet buffers, and advanced QoS capabilities across the system: Streamlines execution of a rich feature set at high data rates, even for bursty or long-lived traffic flows.
‣ Complete redundancy: Features a fully redundant architecture with redundant power supply modules, management modules, fan modules, and switch fabric modules to minimize single points of failure.

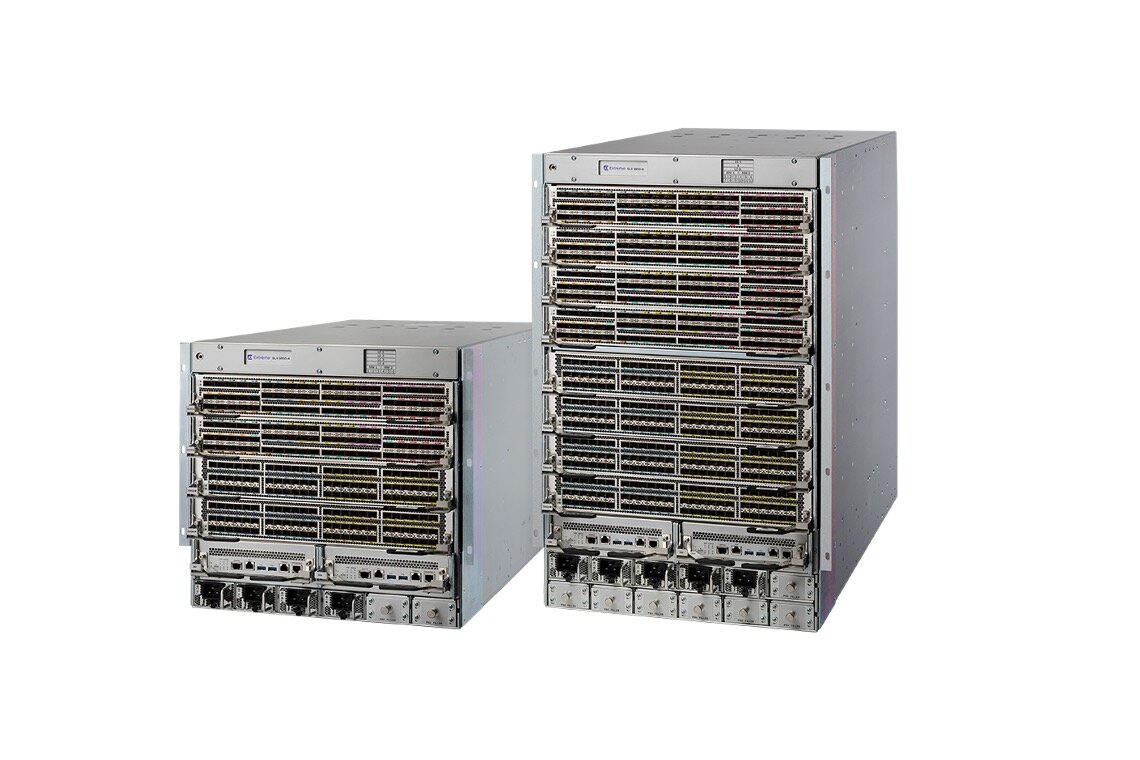

The SLX 9850 is available in two different models: the SLX 9850-4, a four interface-slot system, and the SLX 9850-8, an eight interface-slot system. Management modules, interface modules, and power supply modules are interchangeable across both the four- and eight-slot models, thereby decreasing inventory and maintenance costs. All modules are hot-pluggable, minimizing system disruption when adding or replacing a module.
Specs
— SLX9850-4: 4
— SLX9850-8: 8
‣ Maximum 100 GbE ports:
— SLX9850-4: 144
— SLX9850-8: 288
‣ Maximum 40 GbE ports:
— SLX9850-4: 240
— SLX9850-8: 480
‣ Maximum 10 GbE ports:
— SLX9850-4: 960
— SLX9850-8: 1,920
‣ Maximum 1 GbE ports:
— SLX9850-4: 288
— SLX9850-8: 576
‣ Switch fabric capacity (up to):
— SLX9850-4: 115 Tbps
— SLX9850-8: 230 Tbps
‣ Typical AC power consumption (W):
— SLX9850-4: 4,177
— SLX9850-8: 8,099
‣ Maximum AC power consumption (W):
— SLX9850-4: 5,947
— SLX9850-8: 11,492
/
Variant Product Details
Lightwire Systems offers the following SLX 9850 variant options:
BR-SLX9850-4-BND-AC
Extreme SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W AC power supplies,
three fan modules, and accessory kit. Power cord not included.
BR-SLX9850-4-BND-DC
Extreme SLX 9850 four-slot chassis with one management module, five switch fabric modules, two 3,000 W DC power supplies,
three fan modules, and accessory kit. Power cord not included.
BR-SLX9850-8-BND-AC
Extreme SLX 9850 eight-slot chassis with one management module, five switch fabric modules, four 3,000 W AC power
supplies, three fan modules, and accessory kit. Power cord not included.
BR-SLX9850-8-BND-DC
Extreme SLX 9850 eight-slot chassis with one management module, five switch fabric modules, four 3,000 W DC power
supplies, three fan modules, and accessory kit. Power cord not included.
Part Numbers & Descriptions
Lightwire Systems offers the following SLX 9850 parts & licenses:
SLX 9850 INTERFACE MODULES:
BR-SLX9850-10GX72S-D
Extreme SLX 9850 72-port 10 GbE/1 GbE dual-speed (D) interface module with IPv4/IPv6 hardware support. Requires SFP+ optics
for 10 GbE connectivity, and SFP optics for 1 GbE connectivity. Supports 750,000 MAC, 256,000 IPv4 routes, and 64,000 IPv6 routes.
BR-SLX9850-100GX36CQ-D
Extreme SLX 9850 36-port 100 GbE, 60-port 40 GbE, or 240-port 10 GbE flex-speed (D) interface module with IPv4/IPv6
hardware support. Requires QSFP28 optics for 100 GbE connectivity, QSFP+ optics for 40 GbE connectivity, and 40 GbE to 10
GbE breakout for 10 GbE connectivity. Supports 750,000 MAC, 256,000 IPv4 routes, and 64,000 IPv6 routes.
BR-SLX9850-10GX72S-M
Extreme SLX 9850 72-port 10 GbE/1 GbE dual-speed (M) interface module with IPv4/IPv6/MPLS hardware support. Requires
SFP+ optics for 10 GbE connectivity and SFP optics for 1 GbE connectivity. Supports up to 750,000 MAC. Supports up to
1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
BR-SLX9850-100GX36CQ-M
Extreme SLX 9850 36-port 100 GbE, 60-port 40 GbE, or 240-port 10 GbE flex-speed (M) interface module with IPv4/IPv6/MPLS hardware
support. Requires QSFP28 optics for 100 GbE, QSFP+ optics for 40 GbE, and 40 GbE to 10 GbE breakout for 10 GbE connectivity.
Supports up to 750,000 MAC. Supports up to 1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
BR-SLX9850-100GX12CQ-M
Extreme SLX 9850 12-port 100 GbE, 20-port 40GbE, or 80-port 10GbE flex-speed (M) interface module with IPv4/IPv6/MPLS
hardware support. Requires QSFP28, QSFP+ optics & 40GbE to 10GbE breakout (for 10 GbE) connectivity. Supports up to
750,000 MAC. Supports up to 1,500,000 IPv4 routes, 140,000 IPv6 routes with OptiScale™ Internet Routing.
SLX 9850 ACCESSORIES:
XBR-SLX9850-4-S
Extreme SLX 9850 spare four-slot chassis.
XBR-SLX9850-8-S
Extreme SLX 9850 spare eight-slot chassis.
BR-SLX9850-MM
Extreme SLX 9850 management module for four-slot and eight-slot systems. Includes 16 GB RAM, two internal Solid State
Drives, four-core Intel CPU, two USB 3.0 ports, two RJ-45 console ports, and 10 GbE services port.
BR-SLX9850-4-SFM
Extreme SLX 9850 switch fabric module for four-slot chassis.
BR-SLX9850-8-SFM
Extreme SLX 9850 switch fabric module for eight-slot chassis.
XBR-SLX9850-ACPWR-3000
Extreme SLX 9850 AC 3,000 W power supply for four- and eight-slot chassis, 90 V to 270 V AC input.
XBR-SLX9850-DCPWR-3000
Extreme SLX 9850 DC 3,000 W power supply for four- and eight-slot chassis, 48 V DC input.
XBR-SLX9850-4-FANM
Extreme SLX 9850 fan module for four-slot chassis. Fan module has two fans.
XBR-SLX9850-8-FANM
Extreme SLX 9850 fan module for eight-slot chassis. Fan module has four fans.
XBR-SLX9850-4-CAB
Extreme SLX 9850 Cable Management Kit for four-slot chassis.
XBR-SLX9850-8-CAB
Extreme SLX 9850 Cable Management Kit for eight-slot chassis.
XBR-SLX9850-4-SFMPNL
Extreme SLX 9850 switch fabric module blank panel for four-slot chassis.
XBR-SLX9850-8-SFMPNL
Extreme SLX 9850 switch fabric module blank panel for eight-slot chassis.
XBR-SLX9850-PWRPNL
Extreme SLX 9850 power supply blank panel for four-slot and eight-slot chassis.
XBR-SLX9850-IMPNL
Extreme SLX 9850 interface module blank panel for four-slot and eight-slot chassis.
XBR-SLX9850-MMPNL
Extreme SLX 9850 management module blank panel for four-slot and eight-slot chassis.
XBR-SLX9850-4-4PRM-KIT
Extreme SLX 9850 four-post rack mounting kit for four-slot chassis. Includes 27 to 31-inch flush and recessed mounting.
XBR-SLX9850-4-2PRM-KIT
Extreme SLX 9850 two-post rack mounting kit for four-slot chassis. Include telco flush and midplane mounting.
XBR-SLX9850-8-4PRM-KIT
Extreme SLX 9850 four-post rack mounting kit for eight-slot chassis. Includes flush and recessed mounting.
