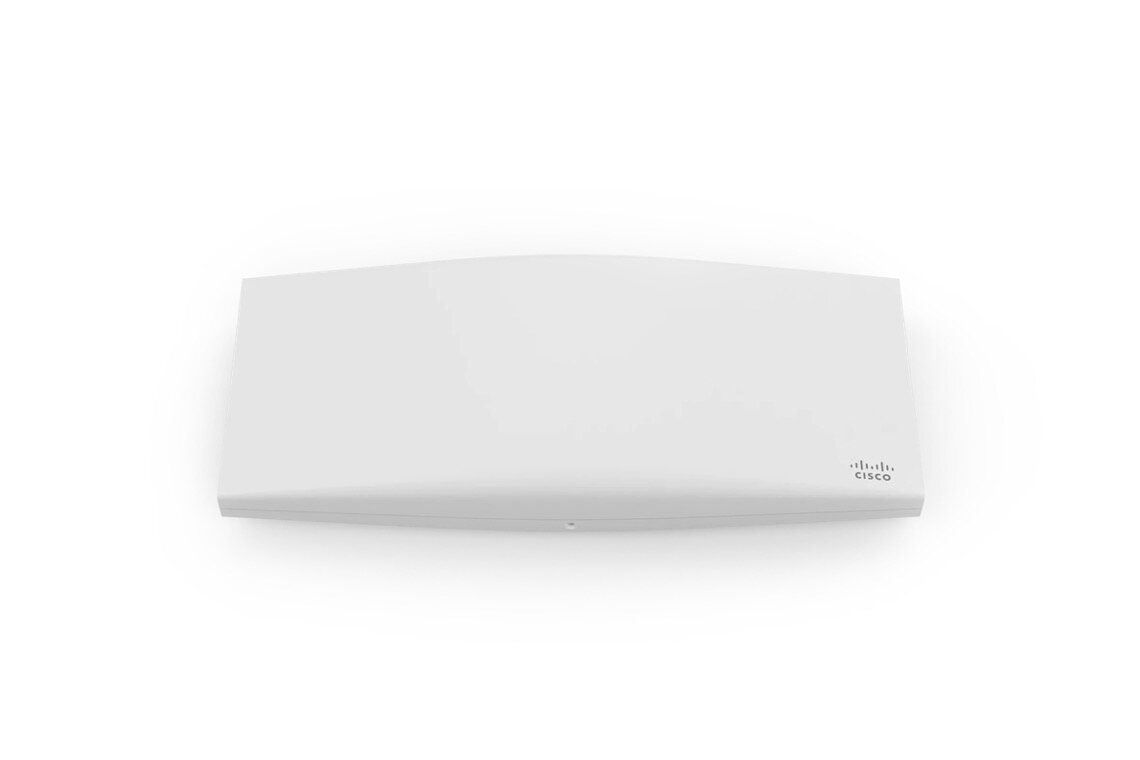

Meraki MR36
The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.
With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses —including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on the MR36 Access Point and licenses.
The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.
With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses —including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on the MR36 Access Point and licenses.
The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.
With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses —including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on the MR36 Access Point and licenses.
Product Information
Product Highlights:
‣ 2x2:2 MU-MIMO 802.11ax
‣ 1.7* Gbps dual-radio aggregate frame rate
‣ 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio
‣ Integrated Bluetooth Low Energy Beacon
‣ Integrated scanning radio
‣ Enhanced transmit power and receive sensitivity
‣ Integrated enterprise security and guest access
‣ Full-time Wi-Fi location tracking via dedicated 3rd radio
Specs
‣ Physical Dimensions:
— 9.84” x 4.72” x 1.42” (25cm x 12cm x 3.6cm), excl. desk mount feet & mount plate
— Weight: 17.35 oz (492 g)
‣ Radios:
— 2.4 GHz 802.11b/g/n/ax client access radio
— 5 GHz 802.11a/n/ac/ax client access radio
— 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics
radio
— 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
— Concurrent operation of all four radios
— Supported frequency bands (country-specific restrictions apply):
— 2.412-2.484 GHz
—5.150-5.250 GHz (UNII-1)
—5.250-5.350 GHZ (UNII-2)
—5.470-5.600, 5.660-5.725 GHz (UNII-2e)
—5.725 -5.825 GHz (UNII-3)
‣ Internal Antenna: (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
‣ 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities:
— DL-OFDMA, UL-OFDMA, TWT support**, BSS Coloring
— 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
— SU-MIMO, UL MU-MIMO and DL MU-MIMO support
— Maximal ratio combining (MRC) & beamforming
— 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac
Wave 2); 20, 40 and 80 MHz channels (802.11ax)
— Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
— Packet aggregation
‣ Power over Ethernet: 37 - 57 V (802.3af compatible)
‣ Power consumption: 15W max (802.3af). Note: actual power consumption may
vary depending on the AP usage.
‣ Interfaces:
—1x 10/100/1000 BASE-T Ethernet (RJ45)
—1x DC power connector (5.5 mm x 2.5 mm, center positive)
/
Part Numbers & Descriptions
Lightwire Systems offers the following Meraki MR36 parts & licenses:
MR36-HW
LIC-ENT-1YR
LIC-ENT-3YR
LIC-ENT-5YR
LIC-ENT-7YR
