ARISTA / Optics & Cables


High performance optical transceivers and copper cables for datacenter and campus networks.

     ▪︎   Arista optical transceivers and cables offer deployment flexibility and cost optimized network connectivity. Arista transceivers and cables are all hot-swappable pluggable devices, compliant with industry standards, and certified on all Arista platforms

View more information on the Arista Optic & Cable product lines below, or check out our Arista Transceiver and Cable products for sale.

Lightwire Systems is an independent buyer and reseller of Arista products — we help customers find the right solutions to meet any IT networking need. Reach out to us anytime +1 415-800-2050 or sales@lightwiresystems.com for more information on a specific product or part, or for a customized quote.



Arista /
Optics & Cables

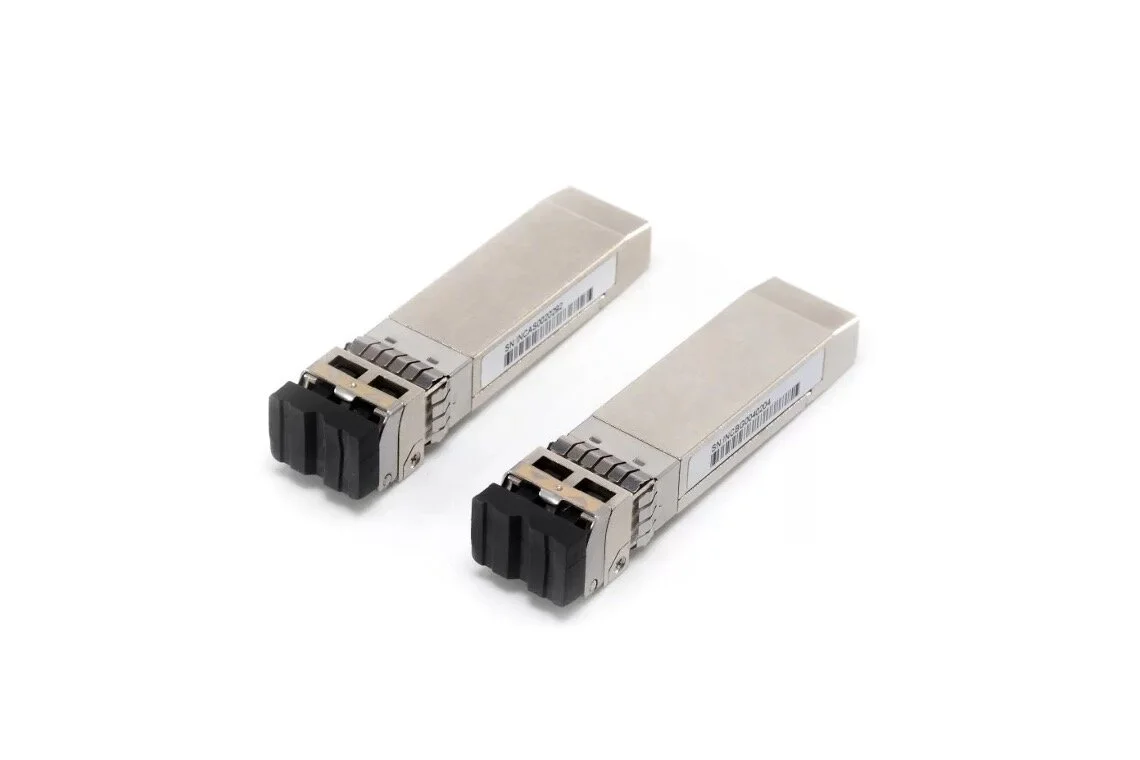

Arista's Optical Modules and Cable portfolio offer a wide variety of high-density and low-power 400G, 100G, 40G, 25G, 10G, 1G, and 100M Ethernet connectivity options over fiber or copper.

To accommodate an ever increasing spectrum of applications, Arista offers a wide choice of OSFP, QSFP-DD, QSFP and SFP transceivers that comply with industry open standards, offering a broad range of connectivity options. Each module is optimized for different media and reach (ranging from 0.5 meters to 80 kilometers).

All interface speeds, from 1G to 400GE have connectivity options that include Direct Attach copper Cables (DACs), Active Optical Cables (AOCs), multi-mode fiber and single-mode fiber transceivers.




Arista Transceivers & Cables / Parts & Descriptions:



  400 Gigabit Ethernet OSFP Options

400GBASE-CR8
Twin-ax passive copper cables with link lengths of 1m, 2m and 3m. Active copper breakout cables with link length up to 5m.

400GBASE-AOC
Active Optical Cable with link lengths of 1m to 30m pre-terminated

400GBASE-SR8
Up to 100m over parallel OM4 multi-mode fiber

400GBASE-DR4
Up to 500m over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-DR up to 500m)

400GBASE-XDR4
Up to 2km over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-FR up to 2km)

400GBASE-PLR4
Up to 10km over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-LR up to 10km)

400GBASE-FR4
Up to 2km over single-mode fiber

400GBASE-LR4
Up to 10km over single-mode fiber

400GBASE-2FR4
Up to 2km over 2 pairs of single-mode fiber (Optical interoperability with 2 x 200GBASE-FR4 up to 2km)

CAB-O-O-400G-xM
400GBASE-CR8 OSFP to OSFP Twinax Copper Cable (1 to 3 meters)

CAB-O-2Q-400G-xM
400GBASE-CR8 OSFP to 2 x 200GBASE-CR4 QSFP Twinax Copper Cable (1 to 3 meters)

CAB-O-2Q-200G-xM
200GBASE-CR8 OSFP to 2 x 100GBASE-CR4 QSFP Twinax Copper Cable (1 to 3 meters)

CAB-O-4Q-400G-xM
400GBASE-CR8 OSFP to 4 x 100GBASE-CR2 QSFP Twinax Copper Cable (1 to 3 meters)

CAB-O-4Q-200G-xM
200GBASE-CR8 OSFP to 4 x 50GBASE-CR2 QSFP Twinax Copper Cable (1 to 3 meters)

CAB-O-8S-200G-xM
200GBASE-CR8 OSFP to 8 x 25GBASE-CR SFP Twinax Copper Cable (1 to 3 meters)

H-O400-4Q100-xM
400GBASE-CR8 OSFP to 4x 100GBASE-CR4 QSFP Twinax Active Copper Cable (1 to 5 meters)

AOC-O-O-400G-xM
400GbE OSFP to OSFP Active Optical Cable (1 to 30 meters)

  400 Gigabit Ethernet QSFP-DD Options

400GBASE-CR8
Twin-ax passive copper cables with link lengths of 1m, 2m and 2.5m. Active copper breakout cables with link length up to 5m.

400GBASE-AOC
Active Optical Cable with link lengths of 1m to 30m pre-terminated

400GBASE-SR8
Up to 100m over parallel OM4 multi-mode fiber

400GBASE-DR4
Up to 500m over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-DR up to 500m)

400GBASE-XDR4
Up to 2km over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-FR up to 2km)

400GBASE-PLR4
Up to 10km over parallel single-mode fiber (Optical interoperability with 4 x 100GBASE-LR up to 10km)

400GBASE-FR4
Up to 2km over single-mode fiber

400GBASE-LR4
Up to 10km over single-mode fiber

CAB-D-D-400G-xM
400GBASE-CR8 QSFP-DD to QSFP-DD Twinax Copper Cable (1 to 2.5 meters)

CAB-D-2Q-400G-xM
400GBASE-CR8 QSFP-DD to 2 x 200GBASE-CR4 QSFP Twinax Copper Cable (1 to 2.5 meters)

CAB-D-2Q-200G-xM
200GBASE-CR8 QSFP-DD to 2 x 100GBASE-CR4 QSFP Twinax Copper Cable (1 to 2.5 meters)

CAB-D-4Q-400G-xM
400GBASE-CR8 QSFP-DD to 4 x 100GBASE-CR2 QSFP Twinax Copper Cable (1 to 2.5 meters)

CAB-D-4Q-200G-xM
200GBASE-CR8 QSFP-DD to 4 x 50GBASE-CR2 QSFP Twinax Copper Cable (1 to 2.5 meters)

CAB-D-8S-200G-xM
200GBASE-CR8 QSFP-DD to 8 x 25GBASE-CR SFP Twinax Copper Cable (1 to 2.5 meters)

H-D400-4Q100-xM
400GBASE-CR8 QSFP-DD to 4x 100GBASE-CR4 QSFP Twinax Active Copper Cable (1 to 5 meters)

AOC-O-O-400G-xM
400GbE OSFP to OSFP Active Optical Cable (1 to 30 meters)

  100 Gigabit Ethernet QSFP Options

100GBASE-CR4
Twin-ax copper cables with link lengths of 0.5m, 1m, 1.5m, 2m, 2.5m, 3m and 5m

100GBASE-AOC
Active Optical Cable with link lengths of 1m to 30m pre-terminated

100GBASE-SR4
Up to 70m over parallel OM3 multi-mode fiber or 100m over parallel OM4 multi-mode fiber

100GBASE-XSR4
Up to 150m over parallel OM3 multi-mode fiber or 300m over parallel OM4 multi-mode fiber

100GBASE-SWDM4
Up to 70m over duplex OM3 multi-mode fiber or 100m over duplex OM4 multi-mode fiber

100GBASE-BIDI
Up to 70m over duplex OM3 multi-mode fiber or 100m over duplex OM4 multi-mode fiber

100GBASE-PSM4
Up to 500m over parallel single-mode fiber, 100G/40G Dual rate

100GBASE-LR4
Up to 10km over single-mode fiber (optical interoperability with 100GBASE-LRL4 up to 2km)

100GBASE-LRL4
Up to 2km over single-mode fiber (optical interoperability with 100GBASE-LR4 up to 2km)

100GBASE-CWDM4
Up to 2km over single-mode fiber, 100G/40G Dual rate

100GBASE-XCWDM4
Up to 10km over single-mode fiber, 100G/40G Dual rate

100GBASE-ERL4
Up to 40km over single-mode fiber (optical interoperability with IEEE 100GBASE-ER4 up to 30km)

100GBASE-DR
Up to 500m over single-mode fiber (optical interoperability with 400GBASE-DR4 and XDR4 up to 500m)

100GBASE-FR
Up to 2km over single-mode fiber (optical interoperability with 400GBASE-XDR4 / DR4 up to 2km / 500m)

100GBASE-LR
Up to 10km over single-mode fiber (optical interoperability with 400GBASE-XDR4 / DR4 up to 2km / 500m)

CAB-Q-Q-100G-yM
100GBASE-CR4 QSFP to QSFP Twinax Copper Cable (y = 1 to 5 meters)

CAB-Q-4S-100G-yM
100GBASE-CR4 QSFP to 4 x 25GBASE-CR SFP Twinax Copper Cable (y = 1 to 5 meters)

CAB-Q-2Q-100G-yM
100GBASE-CR4 QSFP to 2 x 50GBASE-CR2 QSFP Twinax Copper Cable (y = 1 to 5 meters)

AOC-Q-Q-100G-yM
QSFP to QSFP 100GbE Active Optical Cable (y = 3 to 30 meters)

  40 Gigabit Ethernet QSFP+ Options

40GBASE-CR4
Twin-ax copper cables with link lengths of 0.5m, 1m, 2m, 3m and 5m

40GBASE-AOC
Active Optical Cable with link lengths of 3m to 100m pre-terminated

40GBASE-SR4
Up to 100m over parallel OM3 multi-mode fiber or 150m over parallel OM4 multi-mode fiber

40GBASE-XSR4
Up to 300m over parallel OM3 multi-mode fiber or 400m over parallel OM4 multi-mode fiber

40GBASE-BIDI
Up to 100m over duplex OM3 multi-mode fiber or 150m over duplex OM4 multi-mode fiber

40GBASE-UNIV
Up to 150m over duplex OM3/OM4 multi-mode fiber or 500m over duplex single-mode fiber

40GBASE-LR4
Up to 10km over duplex single-mode fiber (Optical interoperability with 40GBASE-LRL4 up to 1km)

40GBASE-LRL4
Up to 1km over duplex single-mode fiber (Optical interoperability with 40GBASE-LR4 up to 1km)

40GBASE-PLRL4
Up to 1km over parallel single-mode fiber (Optical interoperability with 4x10G LR/LRL up to 1km)

40GBASE-PLR4
Up to 10km over parallel single-mode fiber (Optical interoperability with 4x10G LR up to 10km and LRL up to 1km)

40GBASE-ER4
Up to 40km over duplex single-mode fiber

CAB-Q-S-yM
4 x 10GbE QSFP+ to 4 x SFP+ Twinax Copper Cable (y = 0.5 to 5 meter) All supported EOS releases

CAB-Q-Q-yM
40GBASE-CR4 QSFP+ to QSFP+ Twinax Copper Cable (y = 0.5 to 5 meters) All supported EOS releases

AOC-Q-Q-40G-yM
QSFP+ to QSFP+ 40GbE Active Optical Cable (y = 3 to 100 meters)

  25 Gigabit Ethernet SFP Options

25GBASE-CR
Twin-ax copper cables with link lengths of 1m, 2m, 3m and 5m

25GBASE-CR (QSFP)
Pre-terminated QSFP to 4 x SFP twin-ax copper cables with link lengths of 1m, 2m, 3m and 5m

25GBASE-AOC
Active Optical Cable with link lengths of 3m, 5m, 7m, 10m, 15m, 20m, 25m and 30m

25GBASE-SR
Up to 70m link length with OM3 and 100m over OM4 duplex multimode fiber

25GBASE-MR-XSR ✣
Dual rate (25G/10G) up to 200m/300m over OM3/OM4 MMF at 25G and 300m/400m over OM3/OM4 MMF at 10G

25GBASE-LR
Up to 10km link length over duplex single-mode fiber

25GBASE-MR-LR ✣
Dual rate (25G/10G) up to 10km link length over duplex single-mode fiber

CAB-S-S-25G-yM
25GBASE-CR SFP Cable (y = 1 to 5 meters)

AOC-S-S-25G-yM
SFP to SFP 25GbE Active Optical Cable (y = 3 to 30 meters)

  10 Gigabit Ethernet SFP+ Options

10GBASE-T ✣✣
Up to 30m link length over Category 6a copper cables 10GBASE-CR Twin-ax copper cables with link lengths of 0.5m, 1m, 1.5m, 2m, 2.5m, 3m and 5m

10GBASE-CR (QSFP+)
Pre-terminated QSFP+ to 4 x SFP+ twin-ax copper cables with link lengths of 0.5m, 1m, 2m, 3m and 5m

10GBASE-AOC
Active Optical Cable with link lengths of 3m, 5m, 7m, 10m, 15m, 20m, 25m and 30m

10GBASE-SR
Up to 300m link length with 2000 MHz/ km duplex MMF (OM3). Optical interoperability with 10GBASE-SRL

10GBASE-SRL
Up to 100m link length with 2000 MHz/ km duplex MMF (OM3). Optical interoperability with 10GBASE-SR

10GBASE-LR
Up to 10km link length over duplex single-mode fiber. Optical interoperability with 10GBASE-LRL

10GBASE-LRL
Up to 1km link length over duplex single-mode fiber. Optical interoperability with 10GBASE-LR

10GBASE-ER
Up to 40km link length over duplex single-mode fiber

10GBASE-ERLBD
Up to 30km link length over a single strand of single-mode fiber

10GBASE-ERBD
Up to 40km link length over a single strand of single-mode fiber

10GBASE-ZR
Up to 80km link length over duplex single-mode fiber

10GBASE-DWDM
Up to 80km link length DWDM over duplex single-mode fiber

CAB-SFP-SFP-yM
10GBASE-CR SFP+ Cable (y = 0.5 to 5 meters) All supported EOS releases

AOC-S-S-10G-yM
SFP+ to SFP+ 10GbE Active Optical Cable (y = 3 to 30 meters)

  Gigabit Ethernet SFP Options

1000BASE-SX
Up to 550m link length with 500 MHz km MMF (OM2)

1000BASE-LX
Up to 10km link length over duplex SMF and up to 550m on MMF ✣✣✣

1000BASE-T
Up to 100m link length over Category 5 copper cables, supporting both 100 Megabit and 1 Gigabit Ethernet

✣    When connecting 25G-MR optics to legacy fixed rate 10G optics, attenuation may be required to ensure the optical input power to the 10G optical module is within allowable limits. Refer to the relevant 10G-LR / SR optical specifications for requirements.
✣✣    SFP-10G-T supported on specific platforms. Refer to Arista’s Transceiver and Cable Guide for supported platforms.
✣✣✣    When 1000BASE-LX is used with FDDI grade OM1 or OM2 multi-mode fiber, a mode conditioning patch cord must be used at the transmitter to ensure specifications are met. Mode conditioning patch cord is not required for OM3 fiber.
