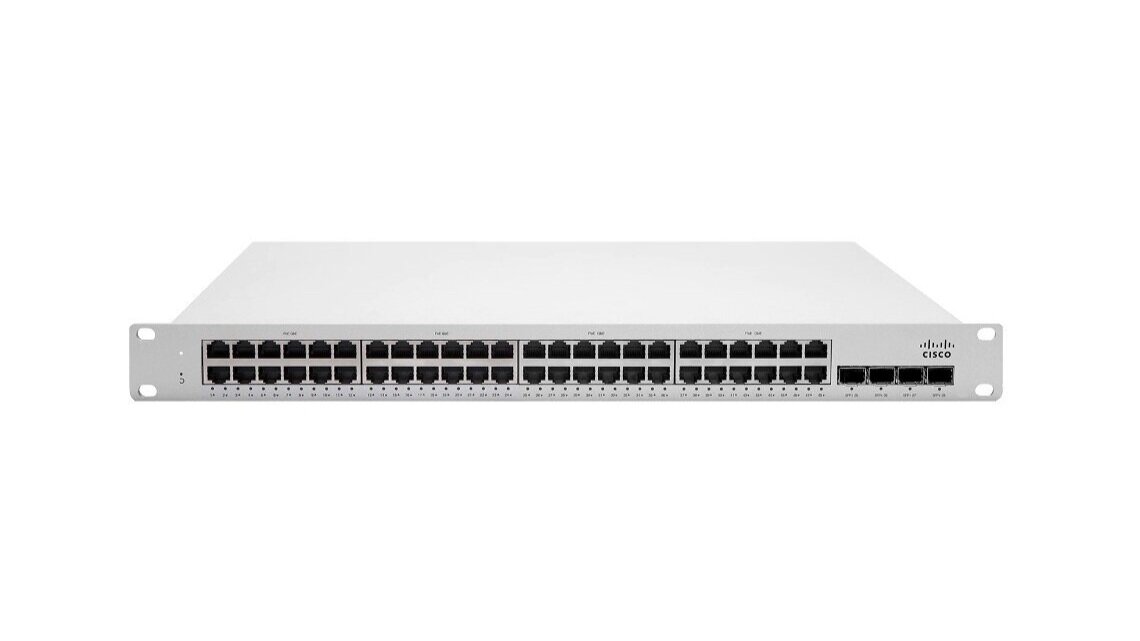

Meraki MS250
The Cisco Meraki MS250 series provides 10G SFP+ uplinks for medium-size enterprises and campus networks. The switch includes optional PoE/PoE+ support, Layer 3 routing, and modular power for mission-critical networks.
With 5 different models, capable of providing up to 740W of power over a variety of port densities, including SFP capable uplinks, the MS250 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS250 Series variants and licenses.
The Cisco Meraki MS250 series provides 10G SFP+ uplinks for medium-size enterprises and campus networks. The switch includes optional PoE/PoE+ support, Layer 3 routing, and modular power for mission-critical networks.
With 5 different models, capable of providing up to 740W of power over a variety of port densities, including SFP capable uplinks, the MS250 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS250 Series variants and licenses.
The Cisco Meraki MS250 series provides 10G SFP+ uplinks for medium-size enterprises and campus networks. The switch includes optional PoE/PoE+ support, Layer 3 routing, and modular power for mission-critical networks.
With 5 different models, capable of providing up to 740W of power over a variety of port densities, including SFP capable uplinks, the MS250 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS250 Series variants and licenses.
Product Information
Product Highlights:
‣ Gigabit access switching with 24- and 48- port models and optional PoE+ support
‣ Dual stacking interfaces with up to 80 Gbps of bandwidth
‣ 4 x 10GbE SFP+ uplink interfaces
‣ Support for field replaceable, redundant power supplies
‣ Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs,
phones,
cameras, and other PoE-enabled devices
‣ Non-blocking switch backplane with 176 Gbps of switching capacity
‣ 6 configurable QoS queues for converged voice, video, and data applications
‣ Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible
deployment in wiring closets as well as offices and classrooms
‣ Integrated mounting brackets for rack mounting
Specs
‣ Form Factor: Fixed 1 U access
‣ Port Density: 24 or 48 10/100/1000BASE-T Ethernet and 4 x 10GbE SFP+ uplinks
‣ Dimensions:
— MS250-24-HW: 1.72 x 19.08 x 14.89”
(4.38 x 48.46 x 37.8cm)
9.9 lb (4.5 kg)
— MS250-24P-HW: 1.72 x 19.08 x 14.89”
(4.38 x 48.46 x 37.8cm)
10.59 lb (4.8 kg)
— MS250-48-HW: 1.72 x 19.08 x 18.82”
(4.38 x 48.46 x 47.8cm)
11.56 lb (5.24 kg)
— MS250-48LP-HW: 1.72 x 19.08 x 18.82”
(4.38 x 48.46 x 47.8cm)
12.37 lb (5.61 kg)
— MS250-48FP-HW: 1.72 x 19.08 x 20.42”
(4.38 x 48.46 x 51.87cm)
12.83 lb (5.82 kg)
‣ Switching Capacity: 128Gbps on 24-port models, 176Gbps on 48-port models
‣ Forwarding Rate: 95.24mpps on 24-port models, 127.98mpps on 48-port models
‣ Power Options: Dual External Hot-Swappable Power supplies
‣ Power Consumption: 5-1655W
/
Variant Product Details
Lightwire Systems offers the following Meraki MS250 variants:
MS250-24-HW
24-port 10/100/1000BaseT, 4 x 10Gbe SFP uplinks and 2 x stacking ports (optics sold separately)
MS250-24P-HW
24-port 10/100/1000BaseT PoE, 4 x 10Gbe SFP uplinks and 2 x stacking ports (optics sold separately)
MS250-48-HW
48-port 10/100/1000BaseT PoE+, 4 x 10Gbe SFP uplinks and 2 x stacking ports (optics sold separately)
MS250-48LP-HW
48-port 10/100/1000BaseT, 4 x 10Gbe SFP uplinks and 2 x stacking ports (optics sold separately)
MS250-48FP-HW
48-port 10/100/1000BaseT PoE, 4 x 10Gbe SFP uplinks and 2 x stacking ports (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following Meraki MS250 parts & licenses:
MA-CBL-40G-50CM
Meraki Stacking Cable, 0.5 Meter
MA-CBL-40G-1M
Meraki Stacking Cable, 1 Meter
MA-CBL-40G-3M
Meraki Stacking Cable, 3 Meter
MA-PWR-250WAC
250W Power Supply
MA-PWR-640WAC
640W Power Supply
MA-PWR-1025WAC
1025W Power Supply
**Please Contact for Full License Options
