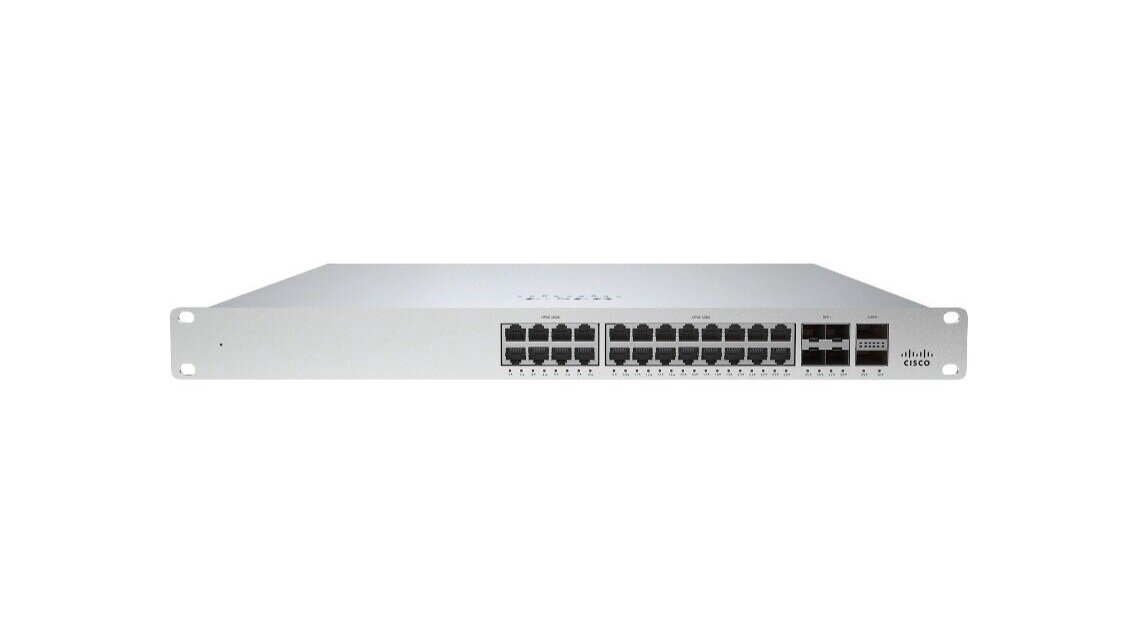

Meraki MS355
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS355 Series variants and licenses.
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS355 Series variants and licenses.
The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.
The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field replaceable power supplies/fans.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on MS355 Series variants and licenses.
Product Information
Product Highlights:
‣ Available models with up to 24 full 10G mGig ports for802.11ax access points, servers,
and workstations
‣ Multi-gigabit (mGig) ports support 100M/1/2.5/5/10G of bandwidth over copper cabling
‣ Access switching with up to 48 ports and 740W of UPoE support
‣ 40G or 10G uplink interfaces on all models
‣ Dual stacking interfaces with 400 Gbps of bandwidth
‣ Support for field replaceable, redundant power supplies
‣ Up to 688 Gbps of switching capacity
‣ 6 configurable QoS queues for converged voice, video, and data applications
‣ Integrated mounting brackets for rack mounting
Specs
‣ Form factor: Fixed 1 U access
‣ Port density: 24 or 48 10/100/1000BASE-T Ethernet and 4 x 10GbE SFP+ uplinks
‣ Dimensions:
— MS355-24X-HW: 1.72” x 19.08” x 20.34”
(4.37 x 48.46 x 51.66cm)
12.30 lb (5.58 kg
— MS355-48X: 1.74” x 19.08” x 20.4”
(4.44 x 48.46 x 51.81cm)
13.14 lb
(5.96 kg)
— MS355-24X2: 1.74” x 19.08” x 23.4”
(4.44 x 48.46 x 59.47cm)
14.48 lb
(6.6 kg)
— MS355-48-HW: 1.74” x 19.08” x 20.4”
(4.44 x 48.46 x 51.81cm)
12.85 lb
(5.83 kg)
— MS355-48X2-HW: 1.74” x 19.08” x 20.4”
(4.44 x 48.46 x 51.81cm)
13.82 lb
(6.27 kg)
‣ Switching Capacity: 128 Gbps on 24-port models, 176 Gbps on 48-port models,
272 Gbps on 24X
‣ Forwarding rate: 95.24 mpps on 24-port models, 130.95 mpps on 48-port models,
202.38 mpps on 24X
‣ Power Options: Dual External Hot-Swappable Power supplies
‣ Power consumption: 56 - 888W
/
Variant Product Details
Lightwire Systems offers the following Meraki MS355 variants:
MS355-24X-HW
8 x 100M/1G/2.5G/5/10G Ethernet RJ45 with auto negotiation and autoMDIX, 16 x 1G Ethernet RJ45, 2 x 40G QSPF+ or 4 x 10G SFP+
uplinks, 2 x 100G QSFP28 stacking ports (optics sold separately)
MS355-48X-HW
16 x 100M/1G/2.5G/5/10G Ethernet RJ45 with auto negotiation and autoMDIX, 32 x 1G Ethernet RJ45, 2 x 40G QSPF+ or 4 x 10G SFP+
uplinks, 2 x 100G QSFP28 stacking ports (optics sold separately)
MS355-24X2-HW
24 x 100M/1G/2.5G/5/10G Ethernet RJ45 with auto negotiation and autoMDIX, 2 x 40G QSPF+ or 4 x 10G SFP+ uplinks, 2 x 100G QSFP28 stacking ports (optics sold separately)
MS355-48X2-HW
24 x 100M/1G/2.5G/5/10G Ethernet RJ45 with auto negotiation and autoMDIX, 24 x 1G Ethernet RJ45, 2 x 40G QSPF+ or 4 x 10G SFP+
uplinks, 2 x 100G QSFP28 stacking ports (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following Meraki MS355 parts & licenses:
MA-PWR-1025WAC
1025W Power Supply
MA-CBL-100G-50CM
Meraki Stacking Cable, 0.5 Meter
MA-CBL-100G-1M
Meraki 100G Stacking Cable, 1 Meter
MA-CBL-100G-3M
Meraki 100G Stacking Cable, 3 Meter
MA-FAN-18K
18K System Fan, all models
