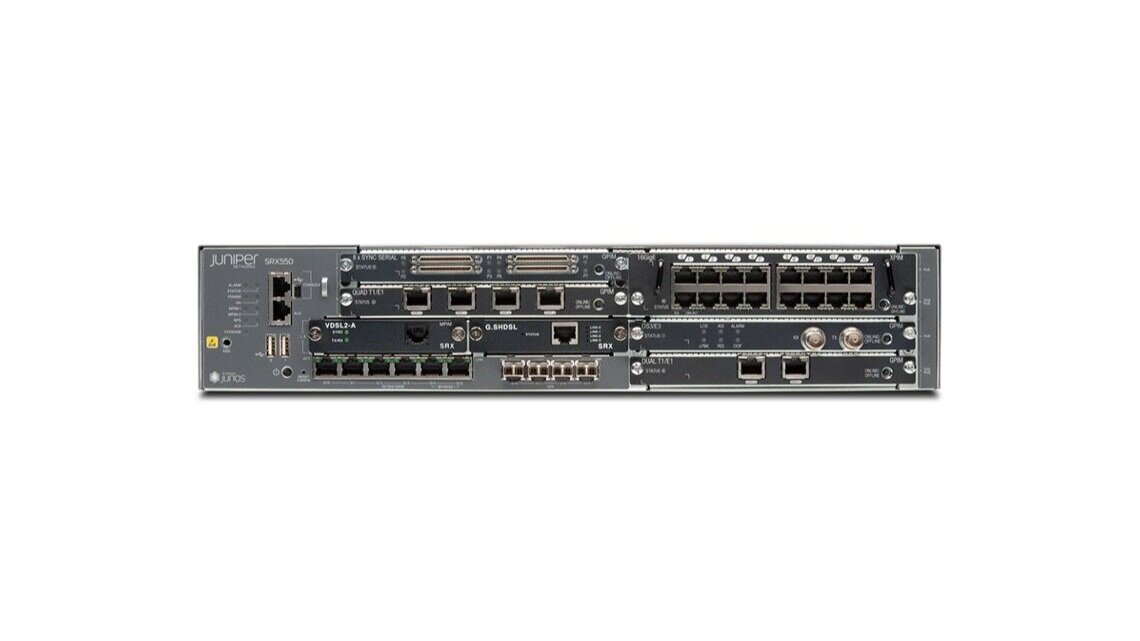

Juniper SRX550 Services Gateway
The SRX550M Services Gateway combines security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewall and advanced threat mitigation capabilities for secure, cost-effective connectivity across distributed enterprise locations.
By consolidating fast, highly available switching, routing, security, and next-generation firewall in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering total cost of ownership.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX550 variants, parts & licenses.
The SRX550M Services Gateway combines security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewall and advanced threat mitigation capabilities for secure, cost-effective connectivity across distributed enterprise locations.
By consolidating fast, highly available switching, routing, security, and next-generation firewall in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering total cost of ownership.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX550 variants, parts & licenses.
The SRX550M Services Gateway combines security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewall and advanced threat mitigation capabilities for secure, cost-effective connectivity across distributed enterprise locations.
By consolidating fast, highly available switching, routing, security, and next-generation firewall in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering total cost of ownership.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX550 variants, parts & licenses.
Product Information
Juniper Networks® SRX550M Services Gateway delivers a next-generation secure SD-WAN and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX550M helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity and advanced threat mitigation capabilities. Next-generation firewall (NGFW) and advanced security also make it easier to detect and proactively mitigate threats to improve the user and application experience.
The SRX550M Services Gateway is a secure router that brings high performance and proven deployment capabilities to enterprises building a worldwide network composed of thousands of remote sites. WAN or Internet connectivity module options include:
‣ Ethernet, serial, T1/E1, ADSL2/2+, and VDSL
‣ 3G/4G LTE wireless
‣ 802.11ac Wave 2 Wi-Fi
Industry-best, high-performance IPsec VPN solutions provide comprehensive encryption and authentication capabilities to secure intersite communications. Multiple form factors that offer Ethernet switching support on native Gigabit Ethernet ports allow cost-effective choices for mission-critical deployments.
The SRX550M Services Gateway runs Junos® operating system, a proven, carrier-hardened network OS that powers the top 100 service provider networks around the world. The rigorously tested, carrier-class, rich routing features such as IPv4/IPv6, OSPF, BGP, and multicast have been proven in over 15 years of worldwide deployments. The automation and scripting capabilities of Junos OS and Junos Space® Security Director reduce operational complexity and simplify the provisioning of new sites.
The SRX550M recognizes more than 3500 Layer 3-7 applications, including Web 2.0 and evasive peer-to-peer (P2P) applications like Skype, torrents, and others. Correlating application information with user contextual information, the SRX550M can generate bandwidth usage reports, enforce access control policies, prioritize and rate-limit traffic exiting WAN interfaces, and proactively secure remote sites. This optimizes resources in the branch office and improves the application and user experience.
Specs
‣ IPS performance: 800 Mbps
‣ VPN performance: 1 Gbps
‣ Maximum concurrent sessions: 375,000
‣ Ports:
— Fixed: 6 x 10/100/1000 BASE-T + 4 small form-factor pluggable (SFP) transceivers
— I/O slots: 2 x SRX Series Mini-PIM, 6 x Gigabit-Backplane Physical Interface Module (GPIM) or multiple GPIM and XPIM combinations
/
Variant Product Details
Lightwire Systems offers the following SRX550 variant options:
SRX550-645AP-M
SRX550M Services Gateway with 4 GB DRAM and 8 GB CF, 2 U height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4GbE SFP ports, dual PS slots, and fans; ships with one 645 W AC power supply with 247 W PoE power (power cord and rack-mount kit included)
SRX550-645DP-M
SRX550M Services Gateway with 4 GB DRAM and 8 GB CF, 2 U height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4GbE SFP ports, dual PS slots, and fans; ships with one 645 W DC power supply with 247 W PoE power (no power cord or rack-mount kit included)
Part Numbers & Descriptions
Lightwire Systems offers the following SRX550 parts & licenses:
SRX550 POWER SUPPLIES & MODULES:
SRX600-PWR-645AC-POE
Spare 645 W AC PoE power supply unit for SRX550M systems; one is included in SRX550M base system (SRX550M-645AC)
SRX600-PWR-645DC-POE
645 W DC source power supply for SRX550M provides 397 W system power @ 12 V and 248 W PoE power @ 50 VDC; works with 43-56 VDC input; no power cord
SRX550-CHAS-M
SRX550M Services Gateway, 2 U height, 6 GPIM slots, 2 Mini-PIM slots, 6 10/100/1000BASE-T ports, 4 GbE SFP ports, dual PS slots, and fans (power supply not included)
INTERFACE MODULES:
SRX-GP-16GE-POE
16-port 10/100/1000BASE-T PoE XPIM
SRX-GP-8SFP
8-port GbE copper, fiber SFP XPIM
SRX-GP-DUAL-T1-E1
Dual T1/E1 GPIM
SRX-GP-QUAD-T1-E1
Quad T1/E1 GPIM
SRX-GP-1DS3-E3
1-port clear channel DS3/E3 GPIM single GPIM slot
SRX-MP-1T1E1-R
1 port T1E1, MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-1VDSL2-R
1 port VDSL2 (backward compatible with ADSL/ADSL2+), MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-1SERIAL-R
1 port Synchronous Serial, MPIM form factor supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; ROHS compliant
SRX-MP-LTE-AA
4G/LTE MPIM support for 1, 3, 5, 7-8, 18-19, 21, 28, 38-41 LTE bands (for Asia and Australia); supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways
SRX-MP-LTE-AE
4G/LTE MPIM support for 1-5, 7-8, 12-13, 30, 25-26, 29-30, 41 LTE bands (for Americas and EMEA); supported on SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways
SRX-MP-WLAN-US
Wireless access point (Wi-Fi) MPIM for SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; supported for U.S. regulatory bands only
SRX-MP-WLAN-WW
Wireless access point (Wi-Fi) MPIM for SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; supported for worldwide regulatory bands (excluding U.S. and Israel)
SRX-MP-WLAN-IL
Wireless access point (Wi-Fi) MPIM for SRX320, SRX340, SRX345, SRX380, and SRX550M Services Gateways; supported for Israel regulatory bands only
SRX-MP-ANT-EXT
Antenna extension cable for WLAN MPIM on SRX Series platforms
