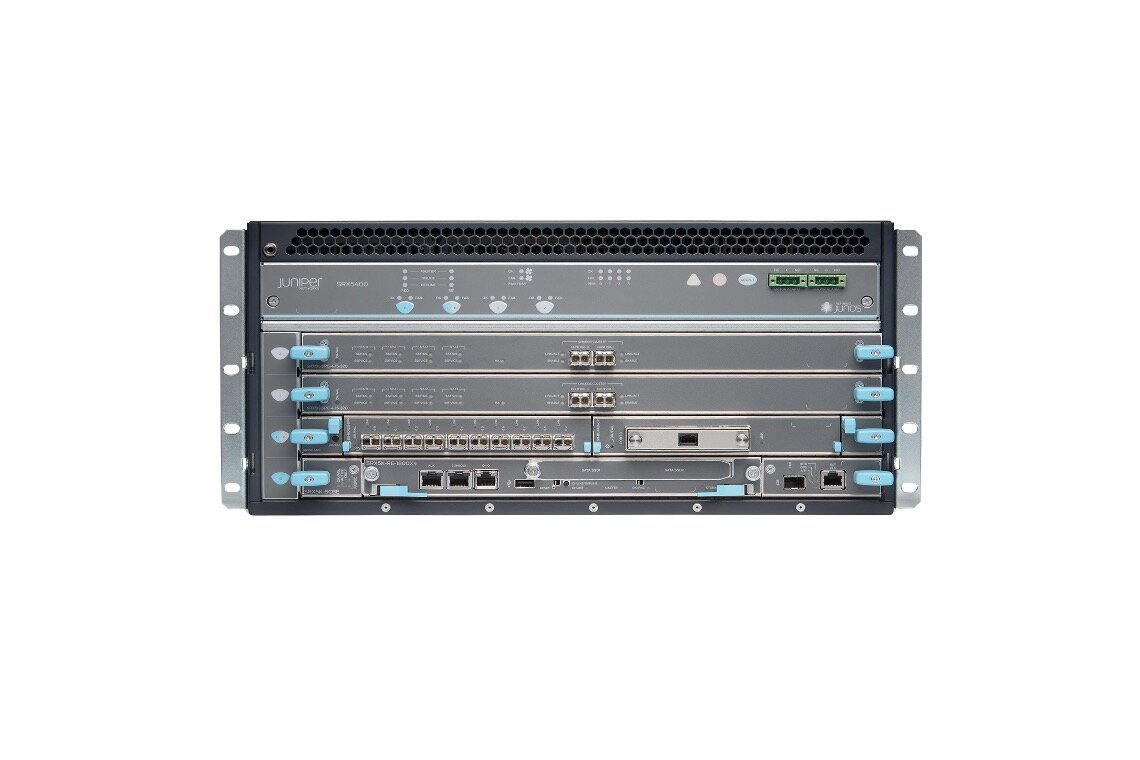

Juniper SRX5400 Services Gateway
The SRX5400 Services Gateway is built for large enterprise data centers, service provider infrastructure, and public sector networks. With a modular architecture and using high-performance line cards, the SRX5400 is an open, scalable security platform with flexible connectivity options and service integration.
A Services Processing Card 3 (SPC3) accelerates performance for the most demanding use cases, including high-end data centers, IoT, and 5G. The next-generation firewall supports intrusion prevention, application visibility and control, and content security, including anti-virus, anti-spam, and Web filtering.
Advanced Threat Prevention provides comprehensive threat defenses with dynamic malware detection, SecIntel threat feeds, Encrypted Traffic Insights, and Adaptive Threat Profiling.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX5400 variants, parts & licenses.
The SRX5400 Services Gateway is built for large enterprise data centers, service provider infrastructure, and public sector networks. With a modular architecture and using high-performance line cards, the SRX5400 is an open, scalable security platform with flexible connectivity options and service integration.
A Services Processing Card 3 (SPC3) accelerates performance for the most demanding use cases, including high-end data centers, IoT, and 5G. The next-generation firewall supports intrusion prevention, application visibility and control, and content security, including anti-virus, anti-spam, and Web filtering.
Advanced Threat Prevention provides comprehensive threat defenses with dynamic malware detection, SecIntel threat feeds, Encrypted Traffic Insights, and Adaptive Threat Profiling.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX5400 variants, parts & licenses.
The SRX5400 Services Gateway is built for large enterprise data centers, service provider infrastructure, and public sector networks. With a modular architecture and using high-performance line cards, the SRX5400 is an open, scalable security platform with flexible connectivity options and service integration.
A Services Processing Card 3 (SPC3) accelerates performance for the most demanding use cases, including high-end data centers, IoT, and 5G. The next-generation firewall supports intrusion prevention, application visibility and control, and content security, including anti-virus, anti-spam, and Web filtering.
Advanced Threat Prevention provides comprehensive threat defenses with dynamic malware detection, SecIntel threat feeds, Encrypted Traffic Insights, and Adaptive Threat Profiling.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on SRX5400 variants, parts & licenses.
Product Information
The Juniper Networks® SRX5400, SRX5600, and SRX5800 Services Gateways are next-generation firewalls (NGFWs) that deliver outstanding protection, market-leading performance, six nines reliability and availability, scalability, and services integration. These devices are ideally suited for service provider, large enterprise, and public sector networks, including:
‣ Cloud and hosting provider data centers
‣ Mobile operator environments
‣ Managed service providers
‣ Core service provider infrastructures
‣ Large enterprise data centers
The SRX5400, SRX5600, and SRX5800 are an integral part of the Juniper Connected Security framework, which is built to protect users, applications, and infrastructure from advanced threats.
Delivering the highest level of protection against exploits, malware, and command and control (C&C) communications, these platforms feature a carrier-grade next-generation firewall and advanced security services such as application security, Content Security, intrusion prevention system (IPS), and integrated threat intelligence services.
‣ SRX5400: The SRX5400 Services Gateway uses the same SPCs and IOCs as the SRX5800 and can support up to 270 Gbps IMIX firewall, 90 million concurrent sessions, and 230 Gbps IPS. The SRX5400 is a small footprint, high-performance gateway ideally suited for securing large enterprise campuses as well as data centers, either for edge or core security deployments. The ability to support unique security policies per zone and a compelling price/performance/footprint ratio make the SRX5400 an optimal solution for edge or data center services in large enterprise, service provider, or mobile operator environments.
Specs
‣ Firewall throughput (max): 270 Gbps
‣ IPS Performance: 230 Gbps
‣ VPN Performance: 60 Gbps
‣ Maximum concurrent sessions: 90 Million
‣ Ports: 2 IOC slots (see IOC options)
/
Variant Product Details
Lightwire Systems offers the following SRX5400 variant options:
SRX5400E-B1-AC*
SRX5400 configuration 1 includes chassis, standard midplane, SRX5K-RE-1800X4, SRX5K-SCBE, 2xAC HC PEM, HC fan tray, SRX5K-SPC-4-15-320, SRX5K-MPC, and SRX-MIC-10XG-SFPP.
SRX5400E-B1-DC*
SRX5400 configuration 1 includes chassis, standard midplane, SRX5K-RE-1800X4, SRX5K-SCBE, 2xDC HC PEM, HC fan tray, SRX5K-SPC-4-15-320, SRX5K-MPC, and SRX-MIC-10XG-SFPP.
SRX5400E-B2-AC*
SRX5400 configuration 2 includes chassis, standard midplane, SRX5K-RE-1800X4, SRX5K-SCBE, 2xAC HC PEM, HC fan tray, 2xSRX5K-SPC-4-15-320, SRX5K-MPC, and SRX-MIC-10XG-SFPP.
SRX5400E-B2-DC*
SRX5400 configuration 2 includes chassis, standard midplane, SRX5K-RE-1800X4, SRX5K-SCBE, 2xDC HC PEM, HC fan tray, 2xSRX5K-SPC-4-15-320, SRX5K-MPC, and SRX-MIC-10XG-SFPP.
SRX5400E-B5-AC*
SRX5400E cluster bundle includes 2xSRX5400E-B1-AC (SCB2, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xAC PEMs), 4xSRX5600-PWR-2520-AC-S (extra redundant AC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400E-B5-DC*
SRX5400E cluster bundle includes 2xSRX5400E-B1-DC (SCB2, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xDC PEMs), 4xSRX5600-PWR-2400-DC-S (extra redundant DC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B1**
SRX5400 configuration includes chassis, enhanced midplane, SRX5K-RE-1800X4, SRX5K-SCB3, 2xHC PEM, HC fan tray, SRX5K-SPC-4-15-320, SRX5K-MPC, SRX-MIC-10XG-SFPP.
SRX5400X-B2**
SRX5400 configuration includes chassis, enhanced midplane, SRX5K-RE-1800X4, SRX5K-SCB3, 2xHC PEM, HC fan tray, SRX5K-SPC-4-15-320, SRX5K-MPC3-40G10G.
SRX5400X-B3**
SRX5400 configuration includes chassis, enhanced midplane, SRX5K-RE-1800X4, SRX5K-SCB3, 2xHC PEM, HC fan tray, SRX5K-SPC-4-15-320, SRX5K-MPC3-100G10G.
SRX5400X-B5-AC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xAC PEMs), 4xSRX5600-PWR-2520-AC-S (extra redundant AC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B5-DC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xDC PEMs), 4xSRX5600-PWR-2400-DC-S (extra redundant DC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B6-AC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xAC PEMs), 4xSRX5600-PWR-2520-AC-S (extra redundant AC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B6-DC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 1xSPC2, 1xIOC2, 1x10GbE MIC, 2xDC PEMs), 4xSRX5600-PWR-2400-DC-S (extra redundant DC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B7-AC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 2xSPC2, 1xIOC2, 1x10GbE MIC, 2xAC PEMs), 4xSRX5600-PWR-2520-AC-S (extra redundant AC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
SRX5400X-B7-DC
SRX5400X cluster bundle includes 2xSRX5400X-B1 (SCB3, RE2, 2xSPC2, 1xIOC2, 1x10GbE MIC, 2xDC PEMs), 4xSRX5600-PWR-2400-DC-S (extra redundant DC PEMS), and 2xSRX5400-APPSEC-1 (1 year).
* These products require Junos OS 12.1X47-D15 or greater.
** Requires Junos OS 15.1X49-D10 or greater.
Part Numbers & Descriptions
Lightwire Systems offers the following SRX5400 parts & licenses:
ACCESSORIES:
SRX5K-SCBE
SRX5000 line enhanced Switch Control Board (SRX5400E
SRX5600E
SRX5800E)
SRX5K-SCB3
SRX5000 line SCB3 Switch Control Board (SRX5400X
SRX5600X
SRX5800X)
SRX5K-SCB4
SRX5000 line SCB4 Switch Control Board (RX5600X
SRX5800X)
SRX5K-RE-1800X4
SRX5000 line RE, 1.8 GHz quad-core Xeon, 16 GB DRAM, 128 GB SSD (SRX5400E
SRX5600E
SRX5800E
SRX5400X
SRX5600X
SRX5800X)
SRX5K-RE3-128G
SRX5000 line RE, 6 core 2.0GHz with 128G memory, secure boot (SRX5400E
SRX5600E
SRX5800E
SRX5400X
SRX5600X
SRX5800X)
SRX5K-SPC-4-15-320
SRX5000 line next-generation Services Processing Card (SCP) featuring 20 million sessions (All models)
SRX5K-SPC3
SRX5000 line latest next-generation Service Processing Card (All models)
SRX-5K-BLANK
Blank panel for SRX5000 line (All models)
SRX5K-IOC4-10G
40x10GbE SFP+ port linecard; optics sold separately (SRX5400E
SRX5600E
SRX5800E
SRX5400X
SRX5600X
SRX5800X)
SRX5K-IOC4-MRAT
12xQSFP+/QSFP28 multirate port linecard; optics sold separately (SRX5400E
SRX5600E
SRX5800E
SRX5400X
SRX5600X
SRX5800X)
SRX5K-MPC3-100G10G
SRX5000 line IOC3, 2x100GbE and 4x10GbE port (SRX5400E
SRX5600E
SRX5800E
SRX5400X
SRX5600X
SRX5800X)
SRX5K-MPC
MPC for 100GbE, 40GbE, 10GbE, and 1GbE MIC Interfaces (All models; supports 2 MIC modules)
SRX-MIC-1X100G-CFP
MIC with 1x100GbE CFP interface MIC module for SRX5K-MPC (All models)
SRX-MIC-2X40G-QSFP
MIC with 2x40GbE QSFP+ interfaces MIC module for SRX5K-MPC (All models)
SRX-MIC-10XG-SFPP
MIC with 10x10GbE SFP+ interfaces, MIC module for SRX5K-MPC (All models)
SRX-MIC-20GE-SFP
MIC with 20x1GbE SFP interfaces, MIC module for SRX5K-MPC (All models)
