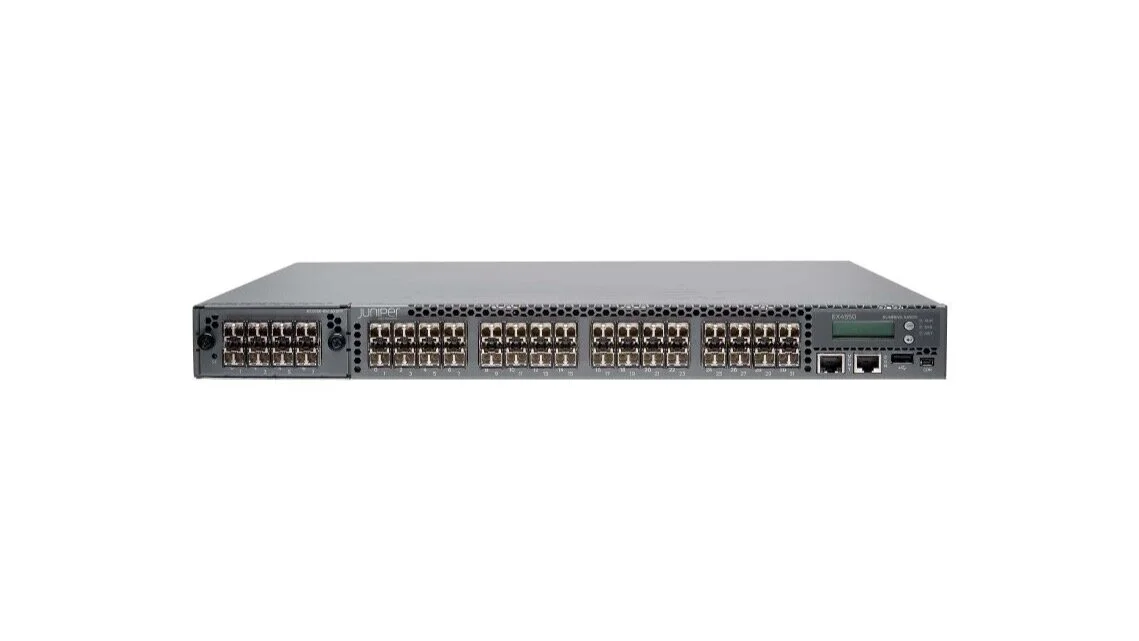

Juniper EX4550 Switch
The scalable EX4550 Ethernet switch offers an economical, power-efficient, 1/10GbE switch platform for enterprise campus and data center top-of-rack deployments, as well as for service provider environments.
The 1 U EX4550 has 32 wire-speed GbE/10GbE ports with two expansion slots for optional modules that increase port densities to 48. The EX4550 supports Layer 3 dynamic routing protocols such as RIP and OSPF, MPLS services such as Layer 2 and Layer 3 VPNs, Media Access Control Security (MACsec) on all ports, and a comprehensive quality-of-service (QoS) feature set.
The EX4550 also supports Juniper’s Virtual Chassis technology and can be deployed with EX4200 switches in the same Virtual Chassis configuration to support environments where both 1GbE and 10GbE servers are present.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4550 switches and EX4550 parts & licenses.
The scalable EX4550 Ethernet switch offers an economical, power-efficient, 1/10GbE switch platform for enterprise campus and data center top-of-rack deployments, as well as for service provider environments.
The 1 U EX4550 has 32 wire-speed GbE/10GbE ports with two expansion slots for optional modules that increase port densities to 48. The EX4550 supports Layer 3 dynamic routing protocols such as RIP and OSPF, MPLS services such as Layer 2 and Layer 3 VPNs, Media Access Control Security (MACsec) on all ports, and a comprehensive quality-of-service (QoS) feature set.
The EX4550 also supports Juniper’s Virtual Chassis technology and can be deployed with EX4200 switches in the same Virtual Chassis configuration to support environments where both 1GbE and 10GbE servers are present.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4550 switches and EX4550 parts & licenses.
The scalable EX4550 Ethernet switch offers an economical, power-efficient, 1/10GbE switch platform for enterprise campus and data center top-of-rack deployments, as well as for service provider environments.
The 1 U EX4550 has 32 wire-speed GbE/10GbE ports with two expansion slots for optional modules that increase port densities to 48. The EX4550 supports Layer 3 dynamic routing protocols such as RIP and OSPF, MPLS services such as Layer 2 and Layer 3 VPNs, Media Access Control Security (MACsec) on all ports, and a comprehensive quality-of-service (QoS) feature set.
The EX4550 also supports Juniper’s Virtual Chassis technology and can be deployed with EX4200 switches in the same Virtual Chassis configuration to support environments where both 1GbE and 10GbE servers are present.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4550 switches and EX4550 parts & licenses.
Product Information
The optional modules for an EX4550 switch are:
‣ 8-port 10-Gigabit SFP+ expansion module—Provides eight ports for eight 1-gigabit small form-factor pluggable (SFP) transceivers or eight 10-gigabit small form-factor pluggable (SFP+) transceivers. You can install a total of eight SFP and SFP+ transceivers in any combination in these eight ports.
‣ 8-port 10GBASE-T expansion module—Provides eight ports for 100-Megabit Ethernet BASE-T, 1-Gigabit Ethernet BASE-T, or 10-Gigabit Ethernet BASE-T RJ-45 connectors.
‣ 2-port 40-Gigabit QSFP+ expansion module—Provides two ports for 40-gigabit quad small form-factor pluggable (QSFP+) transceivers.
‣ 128-Gigabit Virtual Chassis module—Provides two dedicated Virtual Chassis ports (VCPs) for connecting the switch in a Virtual Chassis. You can also connect Virtual Chassis members using the SFP+ network ports, SFP+ expansion module ports, 10GBASE-T network ports, 10GBASE-T expansion module ports, and QSFP+ expansion module ports configured as VCPs.
You can expand the number of ports on an EX4550 switch by installing up to two optional expansion modules in the module slots on either side of the chassis.
Specs
‣ Connectivity: Ports: 32
‣ Layer 2 switching:
— MAC Addresses: 32,000
— Jumbo Frames: 9216 bytes
— VLANs: 4096
‣ Layer 3 features (IPv4):
— Maximum number of IPv4 Unicast Routes: 14,000
— Maximum number of IPv4 Multicast Routes: 4000
‣ Layer 3 features (IPv6):
— Maximum Number of Neighbor Discovery Protocol (NDP): 1000
— Maximum Number of IPv6 Unicast Routes: 3,400
— Maximum Number of IPv6 Multicast Routes: 1000
‣ Environmental properties:
— Operating Temperature: 32 to 104 F (0 to 40 C)
— Storage Temperature: -40 to 158 F (-40 to 70 C)
— Operating Altitude: Up to 10,000 ft. (3048 m.)
— Storage Altitude: Up to 16,000 ft. (4877 m.)
— Relative Operating Humidity: 10 to 85%, non-condensing
— Relative Non-operating Humidity: 0 to 95%, non-condensing
‣ Memory: RAM (installed): 4 GB / RAM Technology: DRAM, Flash
‣ Memory Notes 2GB DRAM / 2GB Flash memory
‣ Expansion slots: 2
‣ I/O: (32) SFP+ / (1) 1000Base-T RJ-45 management / (1) Console management /
(2) Power in
‣ Protocols: Networking Protocol: ACL, ARP, CoS, Gigabit Ethernet, ICMP, IEEE 802.1D,
IEEE 802.1w (RSTP), IEEE 802.3ad, IGMP, IGMP v2, IGMP v3, IPv4, IPv6, QOS, RADIUS, SNTP,
SSH, TACACS+, TCP, Telnet, TFTP
‣ Remote Management Protocol: CLI, HTTP, SNMP, SNMP 2, SSH-2, Telnet
‣ Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), CIDR, IGMP, IGMPv2,
IGMPv3, IS-IS, MLDv2, MSDP, OSPF, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, RIP-1, RIP-2,
RIPng, Static IPv4 routing, Static IPv6 routing, VRRP
Variant Product Details
Lightwire Systems offers the following EX4550 variants:
EX4500-40F-BF-C
EX 4500, 40-port 1/10G SFP+, Converged Switch, 1200W AC PS, back to front airflow (optics sold separately)
EX4500-40F-DC-C
EX 4500, 40-port 1/10G SFP+ Converged Switch, 1200W DC PS, front to back airflow (optics sold separately)
EX4500-40F-FB-C
EX 4500, 40-port 1/10G SFP+, Converged switch, 1200W AC PS, front to back airflow (optics sold separately)
EX4500-40F-VC1-BF
EX 4500, 40-port 1/10G SFP+ Converged switch, Interconnect module with 128G VC, 1200W AC PS, back to front airflow (optics, VC cables sold separately)
EX4500-40F-VC1-BF-TAA
EX 4500 TAA, 40-port 1/10G SFP+ Converged switch, Interconnect module with 128G VC , 1200W AC PS, back to front airflow (optics, VC cables sold separately)
EX4500-40F-VC1-DC
EX 4500, 40-port 1/10G SFP+ Converged switch, Interconnect module with 128G VC, 1200W DC PS, front to back airflow (optics, VC cables sold separately)
EX4500-40F-VC1-FB
EX 4500, 40-port 1/10G SFP+ Converged switch, Interconnect module with 128G VC , 1200W AC PS, front to back airflow (optics, VC cables sold separately)
EX4500-40F-VC1-FB-TAA
EX 4500 TAA, 40-port 1/10G SFP+ Converged switch, Interconnect module with 128G VC , 1200W AC PS, front to back airflow (optics, VC cables sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following EX4550 parts & licenses:
EX4500-4PST-RMK
4-post Rack Mount Kit for EX4500
EX4500-FANTRAY-BF
EX4500 fantray _ back to front airflow (spare)
EX4500-FANTRAY-FB
EX4500 fantray - front to back airflow (spare)
EX4500-LB
EX4500 Intraconnect module (spare)
EX4500-PWR-BLNK
Blank for EX4500 PS module (spare)
EX4500-PWR1-AC-BF
EX4500 1200W AC power supply _ back to front airflow (power cord needs to be ordered separately)
EX4500-PWR1-AC-FB
EX4500 1200W AC power supply - front to back airflow (power cord needs to be ordered separately)
EX4500-PWR1-DC
EX4500 1200W DC power supply - front to back airflow (power cord needs to be ordered separately)
EX4500-UM-4XSFP
EX 4500 4-Port 10G SFP+ Uplink Module (optics sold separately)
EX4500-UM-BLNK
Blank for EX4500 UM module (spare)
EX4500-VC1-128
EX4500, 128G Virtual Chassis module (VC Cables sold separately)
