Juniper EX9250 Switch
The EX9250 line of Ethernet switches provides compact, programmable, and scalable core and aggregation devices for enterprise environments, reducing cost and complexity while offering carrier-class reliability. The EX9250 Ethernet switches dramatically simplify campus and data center architectures by enabling Evolved Enterprise Core deployments with Ethernet VPN, creating a path to a 100GbE core.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX9250 switches and EX9250 parts & licenses.
The EX9250 line of Ethernet switches provides compact, programmable, and scalable core and aggregation devices for enterprise environments, reducing cost and complexity while offering carrier-class reliability. The EX9250 Ethernet switches dramatically simplify campus and data center architectures by enabling Evolved Enterprise Core deployments with Ethernet VPN, creating a path to a 100GbE core.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX9250 switches and EX9250 parts & licenses.
The EX9250 line of Ethernet switches provides compact, programmable, and scalable core and aggregation devices for enterprise environments, reducing cost and complexity while offering carrier-class reliability. The EX9250 Ethernet switches dramatically simplify campus and data center architectures by enabling Evolved Enterprise Core deployments with Ethernet VPN, creating a path to a 100GbE core.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX9250 switches and EX9250 parts & licenses.
Product Information
The EX9250 is also a key component of Juniper’s AI-Driven Enterprise. The switch decouples the overlay network from the underlay with technologies such as Ethernet VPN (EVPN) and Virtual Extensible LAN (VXLAN), addressing the needs of the modern enterprise network by allowing network administrators to create logical L2 networks over different L3 networks.
Two EX9250 chassis options are available, providing considerable deployment flexibility:

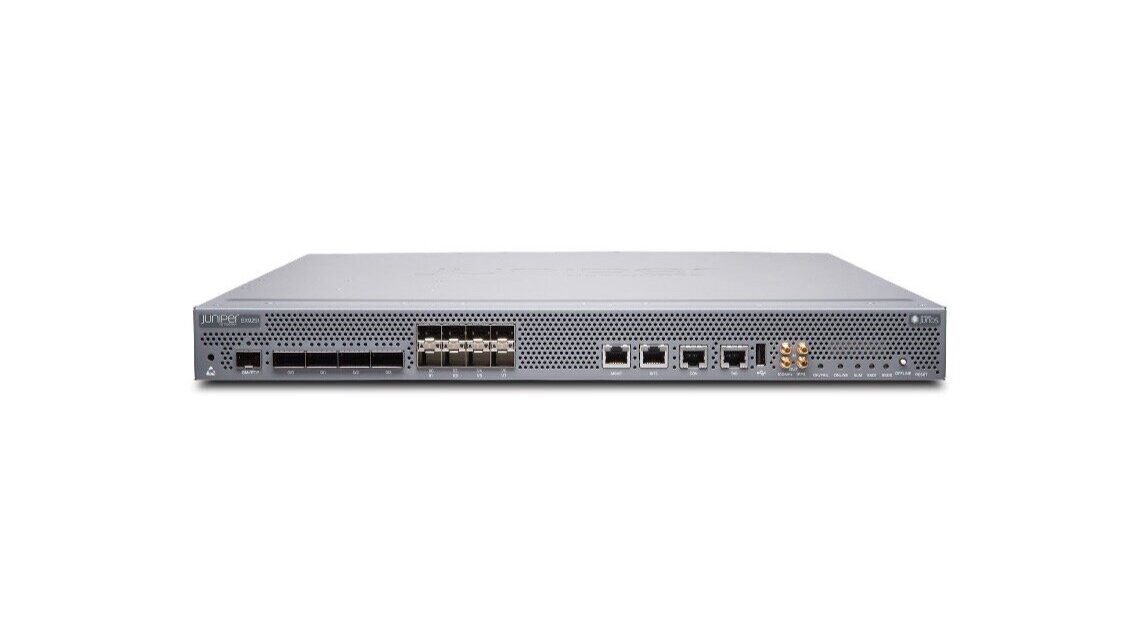

‣ EX9251 Ethernet Switch is a fixed-configuration 1 U chassis that supports 8-port 1GbE/10GbE and
4-port 40GbE/100GbE.
‣ EX9253 Ethernet Switch is a two-slot modular 3 U chassis that supports any combination of the following line cards:
— EX9253-6Q12C, a 12-port QSFP28 40GbE/100GbE and 6-port QSFP+ 40GbE line card
— EX9253-6Q12C-M, a 12-port QSFP28 40GbE/100GbE and 6-port QSFP+ 40GbE line card with
Media Access Control Security (MACsec) support
Fully configured, a single EX9253 chassis can support up to 144 10GbE ports (all at wire speed), delivering one of the industry’s densest line-rate 10GbE port densities for this class of feature-rich and programmable switch. The EX9253 switch is capable of delivering up to 2.4 Tbps per slot.
Specs
‣ Form factor: Fixed 1 or 3 U distribution/core
‣ Port density: 24 x 100GbE, 36 x 40GbE, 144 x 10GbE
‣ Wired Assurance: N/A
‣ Campus Fabrics: EVPN-VXLAN, ESI-LAG
‣ Cloud Managed: N/A
‣ Dimensions (W x H x D):
— EX9251: 17.4 x 1.75 x 18 in (44.2 x 4.4 x 45.7 cm)
— EX9253: 17.4 x 5.25 x 30 in (44.2 x 13.3 x 76.2 cm)
‣ Backplane speed:
— EX9251: 800 Gbps
— EX9253: 4.8 Tbps system capacity
‣ Data rate: EX9251: 400 Gbps EX9253: 2.4 Tbps
‣ Throughput: EX9251: 800 Gbps EX9253: 4.8 Tbps
‣ Resiliency:
— EX9251: Dual power supply, up to 5 fans
— EX9253: 6 power supplies, 4 fans, redundant Routing Engines;
graceful Routing Engine switchover (GRES)
‣ Traffic Monitoring: sFlow
‣ QoS queues / port: 8 : 1,000,000
‣ Jumbo frames: 9192 bytes
‣ IPv4 routes: 256,000
‣ IPv6 routes: 256,000
‣ Number of VLANs: 32,000
‣ ARP entries: 512,000
Variant Product Details
Lightwire Systems offers the following EX9250 variants:
EX9251-8X4C
EX9251 system with 8x10GbE SFP+ ports and 4x40GbE QSFP+/100GbE QSFP28 ports, 2x AC PSUs JNP-PWR650-AC, 3x fan tray JNP-FAN-1RU, and all necessary blank panels (optics sold separately)
EX9251-8X4C-DC
EX9251 system with 8x10GbE SFP+ ports and 4x40GbE QSFP+/100GbE QSFP28 ports, 2x DC PSUs JNP-PWR650-DC, 3x fan tray JNP-FAN-1RU, and all necessary blank panels (optics sold separately)
EX9253-BASE-AC
Base EX9253 system configuration: 3-slot EX9253-CHAS-3RU chassis with 4x fan tray JNP-C1-FAN-3RU, 1x Routing Engine EX9253-RE, 3x JNP-PWR1600-AC-BB AC PSUs, and all necessary blank panels
EX9253-BASE-DC
Base EX9253 system configuration: 3-slot EX9253-CHAS-3RU chassis with 4x fan tray JNP-C1-FAN-3RU, 1x Routing Engine EX9253-RE, 3x JNP-PWR1100-DC-BB DC PSUs, and all necessary blank panels
EX9253-RED-AC
Redundant EX9253 configuration: 3-slot EX9253-CHAS-3RU chassis with 4x fan tray JNP-C1-FAN-3RU, 2x Routing Engine EX9253-RE, 4x JNP-PWR1600-AC-BB AC PSUs, and all necessary blank panels
EX9253-RED-DC
Redundant EX9253 configuration: 3-slot EX9253-CHAS-3RU chassis with 4x fan tray JNP-C1-FAN-3RU, 2x Routing Engine EX9253-RE, 4x JNP-PWR1100-DC-BB DC PSUs, and all necessary blank panels
EX9253-BND1
Bundle comprised of EX9253-BASE-AC and EX9253-6Q12C line card, shipped separately as two items
Part Numbers & Descriptions
Lightwire offers the following EX9250 parts & licenses:
EX9253 Line Cards:
EX9253-6Q12C
EX9253 line card with 6x40GbE ports and 12x40GbE/100GbE ports
EX9253-6Q12C-M
EX9253 line card with 6x40GbE ports and 12x40GbE/100GbE MACsec AES256 ports
EX9250 Pluggable Optics:
EX-SFP-10GE-SR
Small form-factor pluggable transceiver (SFP transceiver) 10GbE (SFP+ transceiver) short reach (SR) optics
EX-SFP-10GE-LR
SFP transceiver 10GbE (SFP+ transceiver) long reach (LR) optics EX-SFP-10GE-LRM
SFP transceiver 10GbE (SFP+ transceiver) long reach multimode (LRM) optics EX-SFP-10GE-ER
SFP+ 10GBASE-ER 10GbE optics module, 1550 nm for 40 km transmission EX-SFP-10GE-ZR
SFP+ 10GBASE-ZR 10GbE optics, 1550 nm for 80 km transmission on single-mode fiber-optic (SMF) JNP-SFP-10G-BX10D
10G BX optics over SMF,1330 nm up to 10 km JNP-SFP-10G-BX10U
10G BX optics over SMF, 1270 nm up to 10 km EX-SFP-10GE-USR
SFP+ 10GbE ultra short reach; 850 nm; 10 m on OM1, 20 m on OM2, 100 m on OM3 multi-mode fiber-optic (MMF) JNP-QSFP-4X10GE-LR
Quad small form-factor pluggable transceiver plus (QSFP+ transceiver) 40GBase optics, up to 10 km transmission on parallel single mode (4X10GbE LR up to 10 km) JNP-QSFP-4X10GE-IR
QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over parallel SMF JNP-QSFP-40GE-IR4
QSFP+ 40GBASE-LR4 40 gigabit optics for up to 1 km transmission over SMF QFX-QSFP-40G-SR4
QSFP+ 40GBASE-SR4 40 gigabit optics, 850 nm for up to 150 m transmission on MMF JNP-QSFP-40G-LR4
QSFP+ 40GBASE-LR4 40 gigabit optics for up to 10 km transmission on SMF QFX-QSFP-40G-ESR4
QSFP+ 40GBASE-eSR4 40 gigabit optics, 850 nm for up to 300 m transmission on MMF JNP-QSFP-40GE-ER4
QSFP+ 40GBASE-ER4 40 gigabit optics, 1310 nm for up to 40 km transmission on SMF JNP-QSFP-40G-LX4
QSFP+ 40GBASE-LX4 40 gigabit optics for up to 150 m transmission with OM4 over duplex MMF JNP-QSFP-100G-LR4
QSFP28 100GBASE-L4 optics for up to 10 km transmission over serial SMF JNP-QSFP-100G-SR4
QSFP28 100GBASE-SR4 optics for up to 100 m transmission over parallel MMF JNP-QSFP-100G-CWDM
QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF JNP-QSFP-100G-PSM4
QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF EX-SFP-10GE-DAC-3M
SFP+ 10GbE direct attach copper (twinax copper cable), 3 M EX-SFP-10GE-DAC-1M
SFP+ 10GbE direct attach copper (twinax copper cable), 1 M EX-SFP-10GE-DAC-5M
SFP+ 10GbE direct attach copper (twinax copper cable) 5 m QFX-QSFP-DAC-1M
QSFP+ Cable Assy, 1 m, 30 AWG, passive, programmable ID JNP-QSFP-DAC-2M
QSFP+ 40GBASE direct attach copper Cable 2-meter QFX-QSFP-DAC-3M
QSFP+ Cable Assembly, 3 m, 30 AWG, passive, programmable ID JNP-QSFP-DAC-5M
QSFP+ 40GBase direct attach copper Cable 5-meter, passive EX-QSFP-40GE-DAC-50CM
QSFP+ 40GbE direct attach copper (twinax copper cable) for 50 cm transmission JNP-100G-DAC-1M
QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 1 m JNP-100G-DAC-3M
QSFP28 to QSFP28 Ethernet direct attach copper (twinax copper cable) 3 m, active QFX-QSFP-DACBO-1M
QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 1 m QFX-QSFP-DACBO-3M
QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 3 m JNP-QSFP-DACBO-10M
QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 10 m, active QFX-SFP-DAC-1MA
SFP+ 10GbE direct attach copper (active twinax copper cable) 1 m
QFX-SFP-DAC-3MA
SFP+ 10GbE direct attach copper (active twinax copper cable) 3 m
QFX-SFP-DAC-5MA
SFP+ 10GbE direct attach copper (active twinax copper cable) 5 m QFX-SFP-DAC-7MA
SFP+ 10GbE direct attach copper (active twinax copper cable) 7 m
QFX-SFP-DAC-10MA
SFP+ 10GbE direct attach copper (active twinax copper cable) 10 m
JNP-QSFP-DAC-5MA
QSFP+ 40GBASE direct attach copper cable 5 m, active
JNP-QSFP-DAC-7MA
QSFP+ 40GBASE direct attach copper cable 7 m, active JNP-QSFP-DAC-10MA
QSFP+ 40GBASE direct attach copper cable 10 m, active JNP-QSFP-DACBO-5MA
QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 5 m, active JNP-QSFP-DACBO-7MA
QSFP+ to SFP+ 10GbE direct attach breakout copper (twinax copper cable) 7 m, active
EX9250 Software Feature Licenses:
EX9251-AFL
EX9251 Advanced Feature License EX9251-ML
Mid-scale license to enable 512,000 FIB and ARP entries on EX9251 chassis (one required per chassis) EX9253-AFL
EX9253 Advanced Feature License EX9253-ML
Mid-scale license to enable 512,000 FIB and ARP entries on EX9253 EX9253-SFL
Security feature license for EX9250 to enable MACsec on EX9253-6Q12C-M
EX9250 Power Cords:
BL-M-PWR-RA-AU
AC power cord, Australia (SAA/3/15), C19, 15 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-CH
AC power cord, China (GB 2099.1-1996, Angle), C19, 16 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-EU
AC power cord, Cont. Europe (VII), C19, 16 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-IT
AC power cord, Italy (I/3/16), C19, 16 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-JP
AC power cord, Japan (NEMA LOCKING), C19, 20 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-TWLK-US
AC power cord, U.S. (NEMA LOCKING), C19, 20 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-UK
AC power cord, UK (BS89/13), C19, 13 A/250 V, 2.5 m, right angle CBL-M-PWR-RA-US
AC power cord, U.S./Canada (N6/20), C19, 20 A/250 V, 2.5 m, right angle CBL-PWR-C19S-162-JP
AC power cord, Japan, NEMA 6-20 to C19, 16 A/250 V, 2.5 m, straight CBL-PWR-C19S-162-JPL
Power cord, AC, Japan/U.S., C19 at 70-80 mm, 16 A/250 V, 2.5 m, straight, locking plug CBL-PWR-RA-JP15
AC power cable: JIS 8303 15 A/125 V 2.5 m length for Japan, right angle CBL-PWR-RA-TWLK-US15
AC power cable: NEMA L5-15P (twist lock) 15 A/125 V 2.5 m length for U.S., Canada, and Mexico, right angle CBL-PWR-RA-US15
AC power cable: NEMA 5-15 15 A/12 5 V 2.5 m length for North America, parts of South America, parts of Central America, parts of Africa, and parts of Asia, right angle
EX9253 Field Replacement Units:
EX9253-LC-BLNK
EX9253 line card blank cover panel EX9253-RE
EX9253 Routing Engine EX9253-CHAS-3RU
EX9253 chassis, 3 U JNP-FAN-3RU
Universal fan tray, 3 U JNP-PWR1600-AC
Universal AC power supply, 1600 W, spare JNP-PWR1100-DC
Universal DC power supply, 1100 W, spare EX9253-RE-BLNK
EX9253 RE blank cover panel JNP-MPC2
Modular Port Concentrator, 6xQSFP+ JNP-MIC1
12x100GbE/12x40GbE/48x10GbE Modular Interface Card (MIC) JNP-MIC1-MACSEC
12x100GbE/12x40GbE/48x10GbE MACsec MIC JNP-CM-3RU
3 U universal chassis cable manager with air filter
EX9251 Field Replacement Units:
JNP-FAN-1RU
Universal fan tray, 1 U JNP-PWR650-AC
Universal AC power supply, 650 W, spare JNP-PWR650-DC
Universal DC power supply, 650 W, spare
