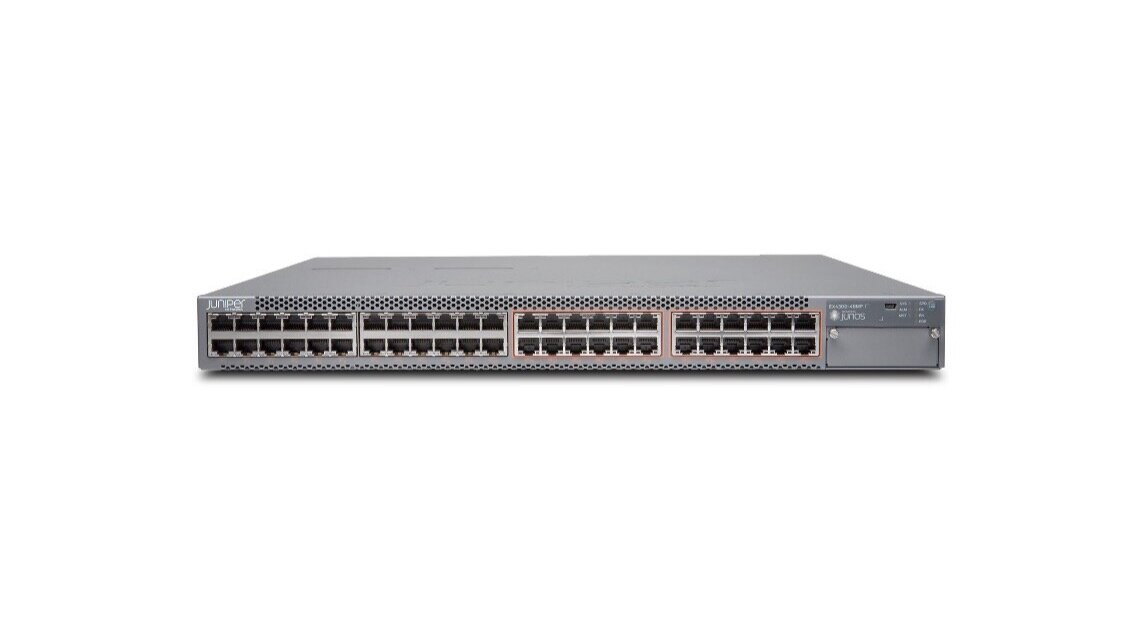

Juniper EX4300 MultiGig Switch
The EX4300 Multigigabit Ethernet Switch is a high-performance access switch for advanced branch or campus deployments. The modern campus environment must adapt to 802.11ac Wave II standards and accommodate devices that require multigigabit speeds of 1/2.5/5/10GbE and greater power connectivity (PoE++), up to 95W per port for high-density IP telephony, surveillance cameras, and/or wireless access point deployments.
The EX4300 is cloud-ready and ZTP-enabled, so it can be onboarded, provisioned and managed with Wired Assurance, to deliver better experiences for connected devices. All access and uplink ports on the EX4300 Multigigabit switch are MACsec AES256-compliant for increased network security. The EX4300 supports Juniper’s Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4300 switches and EX4300 parts & licenses.
The EX4300 Multigigabit Ethernet Switch is a high-performance access switch for advanced branch or campus deployments. The modern campus environment must adapt to 802.11ac Wave II standards and accommodate devices that require multigigabit speeds of 1/2.5/5/10GbE and greater power connectivity (PoE++), up to 95W per port for high-density IP telephony, surveillance cameras, and/or wireless access point deployments.
The EX4300 is cloud-ready and ZTP-enabled, so it can be onboarded, provisioned and managed with Wired Assurance, to deliver better experiences for connected devices. All access and uplink ports on the EX4300 Multigigabit switch are MACsec AES256-compliant for increased network security. The EX4300 supports Juniper’s Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4300 switches and EX4300 parts & licenses.
The EX4300 Multigigabit Ethernet Switch is a high-performance access switch for advanced branch or campus deployments. The modern campus environment must adapt to 802.11ac Wave II standards and accommodate devices that require multigigabit speeds of 1/2.5/5/10GbE and greater power connectivity (PoE++), up to 95W per port for high-density IP telephony, surveillance cameras, and/or wireless access point deployments.
The EX4300 is cloud-ready and ZTP-enabled, so it can be onboarded, provisioned and managed with Wired Assurance, to deliver better experiences for connected devices. All access and uplink ports on the EX4300 Multigigabit switch are MACsec AES256-compliant for increased network security. The EX4300 supports Juniper’s Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX4300 switches and EX4300 parts & licenses.
Product Information
The EX4300 Multigigabit Ethernet Switch is a high-performance access switch for advanced branch or campus deployments. The modern campus environment must adapt to 802.11ac Wave II standards and accommodate access points that require multigigabit speeds and greater power connectivity. The EX4300 Multigigabit switch is a flexible and secure offering for the ever-connected enterprise, supplying a 1680 W Power over Ethernet (PoE) power budget with two power supplies to support high-density IP telephony, surveillance cameras, and/or wireless access point deployments.
Mist Wired Assurance
Claim, configure and troubleshoot switches with a few clicks. Wired Assurance delivers better experiences for connected devices through AI-powered automation and service level expectations (SLEs) with Mist’s AI engine and microservices cloud.
The EX Switches provide rich streaming telemetry data to enable the insights for switch health metrics and anomaly detection. Streamline IT operations, reduce mean time to repair, and deliver optimized experiences across wired and wireless.
Virtual Chassis
With Virtual Chassis technology, up to ten interconnected EX4300 switches operate as a single logical device, reducing operational expenses and simplifying management.
PoE++
The EX4300 Multigigabit switch supports the 802.3bt standard for PoE, supplying up to 95 watts per port for increased requirements of devices such as Virtual Desktop Infrastructure (VDI) terminals, IP phones, and access points.
MACsec AES256 Support
Support for IEEE 802.1ae (MACsec AES256) for link-layer data confidentiality, data integrity, and data origin authentication enables 88 Gbps of near line-rate, hardware-based traffic encryption on all 1GbE and 10GbE switches.
Campus Fabric
Switches are connected as an IP fabric with EVPN-VXLAN overlay. The IP fabric can extend to connect multiple enterprise buildings, while VXLAN allows stretching Layer 2 (L2) across the network.
Specs
‣ Form factor: Fixed 1 U access
‣ Port density: 24 x 1/2.5/5/10GbE, 24 x 1GbE and 10/40/100GbE options
‣ Wired Assurance: Yes
‣ Campus Fabrics: Virtual Chassis, EVPN-VXLAN
‣ Cloud Managed: Yes
‣ PoE++: Up to 95 W PoE on all access ports
‣ Media Access Control Security: MACsec AES256 on all access and uplink ports
‣ Dimensions (W x H x D): 17.4 x 1.7 x 18.4 in (44.1 x 4.4 x 46.7 cm) 1 rack unit (1 U)
‣ Backplane speed: 320 Gbps (Virtual Chassis)
‣ Data rate: N/A
‣ Throughput: N/A
‣ Resiliency: Internal, hot swappable redundant power supply;
field-replaceable fans; field-replaceable uplink modules; graceful Routing Engine
switchover (GRES) in Virtual Chassis configuration
‣ Traffic monitoring: sFlow
‣ Quality-of-service (QoS) queues/port: 12
‣ MAC addresses: 272,000
‣ Jumbo frames: 9216 bytes
‣ Number of VLANs: 4093 ARP entries 64,000
/
Variant Product Details
Lightwire Systems offers the following EX4300 switch variants:
EX4300-24T
24-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-48T
48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-48T-AFI
48-port 10/100/1000BASE-T + 350 W AC PS (back-to-front airflow) (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-24P
24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-48P
48-port 10/100/1000BASE-T PoE-plus + 1100 W AC PS (provides 950 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-48MP
24-port 10/100/1000BASE-T, 24-port 100/1000/2500/5000/10000BASE-T, 95 W PoE + 1400 W AC PS (provides up to 1100 W PoE++ power) (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-48T-DC
48-port 10/100/1000BASE-T + 550 W DC PS (back-to-front airflow) (QSFP+ DAC for Virtual Chassis ordered separately)
EX4300-32F
32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately)
EX4300-32F-DC
32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 550 W DC PS (optics sold separately)
EX4300-24T-TAA
Trade Agreement Act-compliant EX4300, 24-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-48T-TAA
Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T + 350 W AC PS (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-48T-AFI-TAA
Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T + 350 W AC PS (back-to-front airflow) (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-48T-DC-TAA
Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T + 550 W DC PS (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-48T-DCI-TAA
Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T + 550 W DC PS (back-to-front airflow) (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-24P-TAA Trade Agreement Act-compliant EX4300, 24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power) (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-48P-TAA
Trade Agreement Act-compliant EX4300, 48-port 10/100/1000BASE-T PoE-plus + 1100 W AC PS (provides 950 W PoE+ power) (QSFP+ DAC for Virtual Chassis and optics ordered separately)
EX4300-32F-TAA
Trade Agreement Act-compliant EX4300, 32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 350 W AC PS (optics sold separately)
EX4300-32F-DC-TAA
Trade Agreement Act-compliant EX4300,32-port 100/1000BASE-X SFP, 4x10GBASE-X SFP+, 2x40GBASE-X QSFP+, and 550 W DC PS (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following EX4300 switch parts & licenses:
EX-UM-4X4SFP
4-Port 10G SFP+/4-Port 1G SFP Uplink Module
EX-UM-2QSFP
2-port 40-Gigabit Ethernet QSFP+ uplink module
EX-UM-4SFPP-MR
4-port 1-Gigabit Ethernet SFP/10-Gigabit Ethernet SFP+ uplink module
EX-UM-8X8SFP
8-port 10-Gigabit Ethernet SFP+ uplink module
EX-UM-2QSFP-MR
2-port 40-Gigabit Ethernet QSFP+/100-Gigabit Ethernet QSFP28 uplink module
EX-4PST-RMK
Adjustable 4-post rack-mount kit for EX2200, EX3200, EX3400, and EX4200
EX-RMK
Rack-mount kit for EX2200, EX3200, EX3400, and EX4200
EX-WMK
EX4200, EX3200, EX3400, and EX2200 wall-mount kit with baffle
JPSU-150-AC-AFI
EX3400 150W AC power supply, back-to-front airflow (power cord ordered separately)
JPSU-150-AC-AFO
EX3400 150W AC power supply, front-to-back airflow (power cord ordered separately)
JPSU-150-DC-AFO
EX3400 150W DC power supply, front-to-back airflow (power cord ordered separately)
JPSU-600-AC-AFO
EX3400 600W AC power supply, front-to-back airflow (power cord ordered separately)
JPSU-920-AC-AFO
EX3400 920W AC power supply, front-to-back airflow (power cord ordered separately)
EX3400-FAN-AFI
EX3400 back-to-front fan, spare
EX3400-FAN-AFO
EX3400 front-to-back fan, spare
**Please Contact for Full License Options
