Brocade ICX 6610 Switch
Today’s enterprise networks are expected to deliver services thought impossible just a few years ago. High-Definition (HD) video conferencing, real-time collaboration, Unified Communications (UC), and Virtual Desktop Infrastructure (VDI) are only a few of the applications that organizations are deploying to enhance employee productivity, improve customer service, and create a competitive advantage. These same networks must also provide anytime, anywhere mobile access and scale to meet rising user expectations. At the same time, organizations face continued pressure to reduce costs and do more with less. More than ever, campus networks need to quickly and efficiently evolve with the ever-changing business environment.
The Brocade ICX 6610 helps organizations meet this challenge by delivering wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice/video streaming and VDI. Brocade ICX 6610 Switches can be stacked using four full-duplex 40 Gbps stacking ports that provide an unprecedented 320 Gbps of backplane stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Additionally, each switch can provide up to eight 10 Gigabit Ethernet (GbE) ports for high-speed connectivity to the aggregation or core layers.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6610 switches and ICX 6610 parts & licenses.
Today’s enterprise networks are expected to deliver services thought impossible just a few years ago. High-Definition (HD) video conferencing, real-time collaboration, Unified Communications (UC), and Virtual Desktop Infrastructure (VDI) are only a few of the applications that organizations are deploying to enhance employee productivity, improve customer service, and create a competitive advantage. These same networks must also provide anytime, anywhere mobile access and scale to meet rising user expectations. At the same time, organizations face continued pressure to reduce costs and do more with less. More than ever, campus networks need to quickly and efficiently evolve with the ever-changing business environment.
The Brocade ICX 6610 helps organizations meet this challenge by delivering wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice/video streaming and VDI. Brocade ICX 6610 Switches can be stacked using four full-duplex 40 Gbps stacking ports that provide an unprecedented 320 Gbps of backplane stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Additionally, each switch can provide up to eight 10 Gigabit Ethernet (GbE) ports for high-speed connectivity to the aggregation or core layers.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6610 switches and ICX 6610 parts & licenses.
Today’s enterprise networks are expected to deliver services thought impossible just a few years ago. High-Definition (HD) video conferencing, real-time collaboration, Unified Communications (UC), and Virtual Desktop Infrastructure (VDI) are only a few of the applications that organizations are deploying to enhance employee productivity, improve customer service, and create a competitive advantage. These same networks must also provide anytime, anywhere mobile access and scale to meet rising user expectations. At the same time, organizations face continued pressure to reduce costs and do more with less. More than ever, campus networks need to quickly and efficiently evolve with the ever-changing business environment.
The Brocade ICX 6610 helps organizations meet this challenge by delivering wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice/video streaming and VDI. Brocade ICX 6610 Switches can be stacked using four full-duplex 40 Gbps stacking ports that provide an unprecedented 320 Gbps of backplane stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Additionally, each switch can provide up to eight 10 Gigabit Ethernet (GbE) ports for high-speed connectivity to the aggregation or core layers.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6610 switches and ICX 6610 parts & licenses.
Product Information
The Brocade ICX 6610 Switch redefines the economics of enterprise networking by providing unprecedented levels of performance, availability, and flexibility in a stackable form factor—delivering the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch.
The Brocade ICX 6610 helps organizations meet this challenge by delivering wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice and video streaming and VDI. Brocade ICX 6610 Switches can be stacked using four full-duplex 40 Gbps stacking ports that provide an unprecedented 320 Gbps of backplane stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks. Additionally, each switch can provide up to eight 10 Gigabit Ethernet (GbE) ports for high-speed connectivity to the aggregation or core layers.
When every second matters, Brocade ICX 6610 Switches help deliver continuous availability to optimize the user experience. Brocade stacking technology delivers high availability, performing real-time state synchronization across the stack and enabling instantaneous hitless failover to a standby controller in the unlikely event of a failure of the master stack controller. Organizations also can use hot-insertion/removal of stack members to avoid interrupting service when adding a switch to increase the capacity of a stack or replacing a switch that needs servicing.
‣ Delivers chassis-level performance and availability, providing an optimal user experience for
streaming video, VDI, UC, and other critical applications
‣ Offers unprecedented stacking performance with 320 Gbps of stacking bandwidth, eliminating
inter-switch bottlenecks
‣ Provides up to 1 Tbps of total switching capacity with up to 384 1 GbE and 64 10 GbE per stack for
campus network edge and aggregation layers
‣ Provides unmatched availability with four redundant 40 Gbps stacking ports per switch, hitless
stacking failover, hot switch replacement, and dual hot- swappable power supplies and fans
‣ Simplifies network operations and protects investments with the Brocade HyperEdge Architecture,
enabling consolidated network management and advanced services sharing across
heterogeneous switches
Specs
‣ Ports: 24 - 48 depending on variant
‣ MAC Address Table Size: 32K entries
‣ Manageable: Yes
‣ Max Units In A Stack 8
‣ Advanced Switching: Layer 3
‣ Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2),
Extensible Authentication Protocol (EAP)
‣ Encryption Algorithm: AES
‣ Routing Protocol: RIP-1, RIP-2, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, VRRPE, static IPv4 routing, static IPv6 routing, ECMP, RIPng, VRRPv3 Jumbo Frame Support 9000 bytes
‣ Weight: 14.15 - 16.45 lbs depending on variant - 1U
‣ Dimensions: 16.880 in W x 16.00 in D x 1.732 in H - 1U
‣ Features: Access Control List (ACL) support, DHCP relay, DHCP server, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic VLAN Support (GVRP), High Availability, IGMP snooping, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), MAC address filtering, MLD snooping, Metro Ring Protocol (MRP) support, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), PoE+, Quality of Service (QoS), Remote Fault Notification (RFN), SNTP support, Uni-Directional Link Detection (UDLD), VLAN support, Virtual Route Redundancy Protocol (VRRP) support, Virtual Switch Redundancy Protocol (VSRP) support, Weighted Round Robin (WRR) queuing, auto-uplink (auto MDI/MDI-X), flow control, port mirroring, power over Ethernet (PoE), sFlow
Variant Product Details
Lightwire offers the following ICX 6610 Series variant options:
ICX 6610-24F Switch
24-Port Gigabit Ethernet SFP Switch with 8-Port Dual-Mode 1 GbE/10 GbE SFP/SFP+
ICX 6610-24 Switch
24-Port Gigabit Ethernet RJ-45 Switch with 8-Port Dual-Mode 1 GbE/10 GbE SFP/SFP+
ICX 6610-24P Switch
24-Port Gigabit Ethernet RJ-45 Switch with 8-Port Dual-Mode 1 GbE/10 GbE SFP/SFP+
ICX 6610-48 Switch
48-Port Gigabit Ethernet RJ-45 Switch with 8-Port Dual-Mode 1 GbE/10 GbE SFP/SFP+

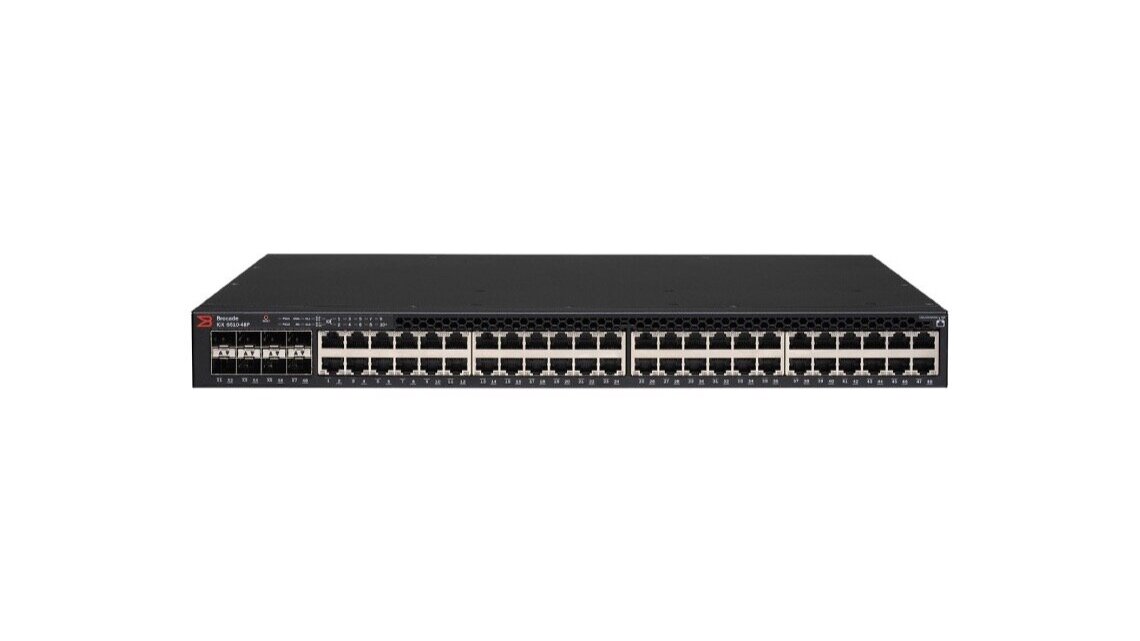

ICX 6610-48P Switch
48-Port Gigabit Ethernet RJ-45 Switch with 8-Port Dual-Mode 1 GbE/10 GbE SFP/SFP+
Part Numbers & Descriptions
Lightwire Systems offers the following ICX 6610 Series parts & licenses:
40G-QSFP-C-0101
40GE QSFP Direct Attached Copper Cable, 1m, 1-pack
40G-QSFP-C-0501
40GE QSFP Direct Attached Copper Cable, 5m, 1-pack
ICX6610-10G-LIC-POD
License to upgrade 4 ports of 1G SFPP uplink to 10G speeds
ICX6610-ADV-LIC
ICX6610 Advance software license
ICX6610-ADV-UPG-LIC
ICX6610 Premium to Advance software upgrade
ICX6610-FAN-E
Exhaust direction FAN for the ICX6610
ICX6610-FAN-I
Intake direction FAN for the ICX6610
ICX6610-PREM-LIC
ICX6610 Premium software license
ICX6610-RMK
2 Post Rack Mount Kit
ICX6610-RMK-4P
4 Post Rack Mount Kit
RPS16-E
1000W Power supply for ICX6610 PoE SKUs. Exhaust airflow
RPS16-I
1000W Power supply for ICX6610 PoE SKUs. Intake airflow
RPS16DC-E
1000W DC Power supply for ICX6610. EXHAUST AIRFLOW
RPS16DC-I
1000W DC Power supply for ICX6610. Intake airflow
