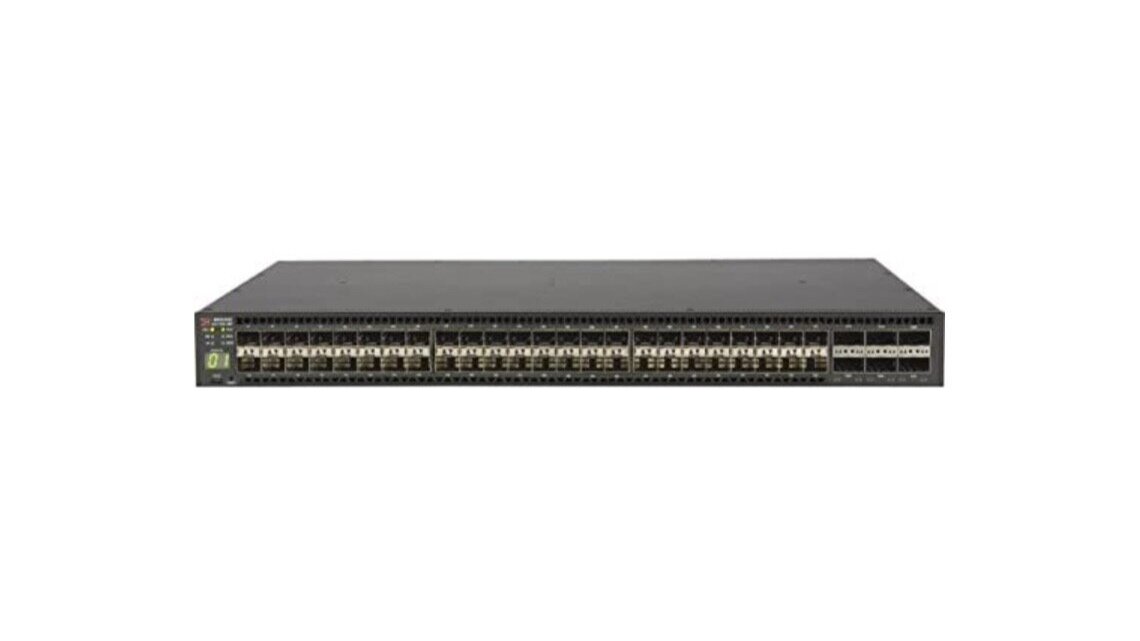

Brocade ICX 7750 Switch

Brocade Campus Fabric technology, offered for Brocade ICX 7250, 7450, and 7750 Switches, extends network options and scalability. It integrates premium Brocade ICX 7750, midrange Brocade ICX 7450, and entry-level Brocade ICX 7250 Switches, collapsing network access, aggregation, and core layers into a single logical switch. This logical device shares network services while reducing management touch points and network hops through a singlelayer design spanning the entire campus network. These powerful deployments deliver equivalent or better functionality than large, rigid modular chassis systems, but with significantly lower costs and smaller carbon footprints.

Brocade ICX switches support a Distributed Chassis deployment model that uses standards-based optics and cabling interface connections to help ensure maximum distance between campus switches—up to 80 km—and minimum cabling costs—up to 50 percent less than incumbent solutions. This gives organizations the flexibility to deliver ports wherever they are needed on campus at a fraction of the cost. The Distributed Chassis design future-proofs campus networks by allowing networks to easily and cost-effectively expand in scale and capabilities.

‣    Provides unprecedented stacking density and performance with up to 12 switches per stack and
      up to 5.76 Tbps of aggregated stacking bandwidth, limiting inter-switch bottlenecks and supporting
      large-scale distributed chassis deployments

‣    Enables single point of management across the campus through a distributed chassis architecture
      supporting longdistance stacking and new Brocade Campus Fabric technology

‣    Offers industry-leading 10/40 GbE port density and flexibility in a 1U form factor with up to 32×40 GbE
      or 96×10 GbE ports per unit, saving valuable rack space and power in wiring closets

‣    Provides chassis-class high availability with up to 12 full-duplex 40 Gbps stacking ports per switch,
      hitless stacking failover, and hot-swappable power supplies and fan assemblies

‣    Delivers superior value by incorporating enterprise-grade advanced features such as BGP,
      Multi-Chassis Trunking (MCT), and Virtual Routing and Forwarding (VRF) Provides OpenFlow support
      in true hybrid port mode, enabling SoftwareDefined Networking (SDN) for programmatic control
      of network data flows

‣    Form Factor: rack-mountable

‣    Advanced Switching: Layer 3

‣    Ports Qty: 26 QSFP+ or 48 Copper or Fiber Options

‣    Manageable: Yes

‣    Routing Protocol: RIP-1, RIP-2, VRRP, static IP routing

‣    Remote Management Protocol: CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2,
      TFTP, Telnet

‣    Performance: Switching capacity:
      — 1.92 Tbps
      — Throughput: 1.44 Bpps
      — Port-to-port latency: 550 ns

‣    Capacity:
      — Virtual interfaces (VLANs): 4095
      — ACL entries: 4000
      — Spanning Tree Protocol instances: 16
      — Rapid Spanning Tree Protocol instances: 254
      — IP hosts: 131072
      — IGMP groups: 8192
      — IPv4 routes: 131072 / IPv6 routes: 7168
      — Virtual Routing and Forwarding (VRF) entries: 64
      — QoS hardware queues per port: 8
      — Maximum aggregation groups: 128
      — IP hosts: 131072
      — Maximum frame size: 10220

‣    Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)

‣    Encryption Algorithm: MD5, AES

‣    Features: 12.2MB packet buffer, ARP support, Access Control List (ACL) support, BOOTP support, DDos attack prevention, DHCP support, IGMP proxy, IPv4 support, IPv6 support, LLDP support, Link Aggregation Control Protocol (LACP), MAC address filtering, MRP-II support, Management Information Base (MIB), Metro Ring Protocol (MRP) support, Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), RARP support, Rapid Spanning Tree Protocol (RSTP) support, SNTP support, STP PortFast, STP Root Guard, Spanning Tree Protocol (STP) support, Strict Priority (SP), Type of Service (ToS), VLAN support, Virtual Routing and Forwarding (VRF), Virtual Switch Redundancy Protocol (VSRP) support, Weighted Round Robin (WRR) queuing, flow control, port based access control, port mirroring, sFlow, tagged VLAN

‣    Weight (Approximate) 20.2 lb

‣    Dimensions: 17.3" W x 16" D x 1.7" H - 1U
