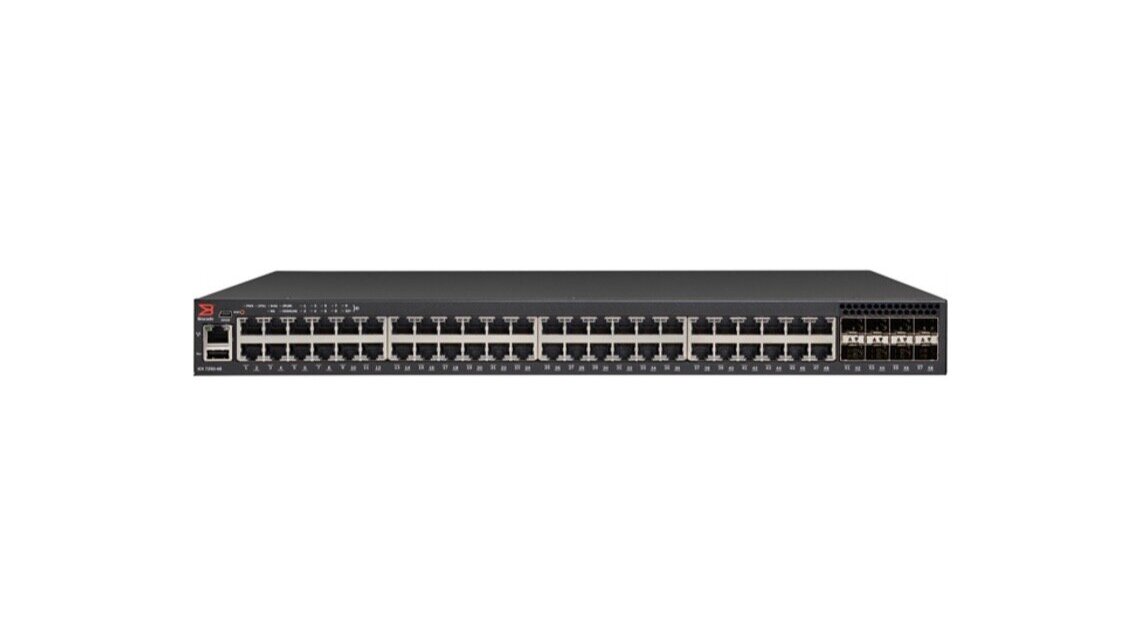

Brocade ICX 7250 Switch
Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price-without compromising performance and reliability.
The Brocade ICX 7250 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack.
In addition, the Brocade ICX 7250 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and “pay as you grow” scalability of a stackable solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 7250 switches and ICX 7250 parts & licenses.
Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price-without compromising performance and reliability.
The Brocade ICX 7250 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack.
In addition, the Brocade ICX 7250 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and “pay as you grow” scalability of a stackable solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 7250 switches and ICX 7250 parts & licenses.
Designed for small to medium-size enterprises, branch offices, and distributed campuses, these scalable edge switches deliver enterprise-class functionality at an affordable price-without compromising performance and reliability.
The Brocade ICX 7250 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack.
In addition, the Brocade ICX 7250 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and “pay as you grow” scalability of a stackable solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 7250 switches and ICX 7250 parts & licenses.
Product Information
The Brocade ICX 7250 Switch provides enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising performance and reliability.
The Brocade ICX 7250 delivers wire-speed, nonblocking performance across all ports to support latency-sensitive applications, such as real-time voice/video streaming and Virtual Desktop Infrastructure (VDI).
The Brocade ICX 7250 is available in 24- and 48-port 10/100/1000 Mbps models with 1 GbE uplink or 10 GbE dual-purpose uplink/stacking ports (see Figure 1)—with or without PoE and PoE+—to support enterprise edge networking, wireless mobility, and IP communications without the need for additional power outlets or power injectors.
The new Brocade Campus Fabric technology maximizes the value of Brocade ICX 7250 Switches. It enables the Brocade ICX 7250 to extend ports in combination with Brocade ICX 7450 and 7750 Switches, creating a complete campus network solution with consolidated management across aggregation and core layers, shared network services—adding advanced Layer 3 capabilities to all switches—and scaleout flexibility to expand port density as needed (see Figure 2). The Brocade ICX 7250 with Campus Fabric technology provides an ideal network access solution for the campus network.
‣ Offers enterprise-class stackable switching at an entry-level price, allowing organizations to buy
what they need now and easily scale as demand grows and new technologies emerge
‣ Future-proofs campus networks via flexible stacking, software licensing of 1 GbE to 10 GbE ports,
Brocade Campus Fabric technology, and future upgrades to OpenFlow support in true hybrid
port mode, enabling Software-Defined Networking (SDN) for programmatic network control
‣ Enables enterprise-class manageability with up to 8×10 GbE ports for stacking or uplinks
‣ Delivers market-leading stacking scalability with up to 12 switches per stack, 80 Gbps of stacking
bandwidth, and long-distance stacking using open standards
‣ Offers full Power over Ethernet (PoE+) to power wireless access points, video surveillance and video
conferencing equipment, VDI terminals, and HD displays directly from the switch
Specs
‣ Ports: 24 - 48 depending on variant
‣ Performance:
— Switching capacity: 256 Gbps
— Forwarding performance: 190 Mpps
— Stacking bandwidth: 80 Gbps
— Latency: 1.5 µs
‣ Capacity:
— Virtual interfaces (VLANs): 4095
— Spanning Tree Protocol instances: 254
— QoS hardware queues: 8
‣ MAC Address Table Size: 16000 entries
‣ Manageable: Yes
‣ Advanced Switching: Layer 3
‣ Max Units In A Stack: 12
‣ Authentication: Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2),
Extensible Authentication Protocol (EAP)
‣ Encryption Algorithm: AES
‣ Routing Protocol: IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing,
ECMP, MLDv2, MLD
‣ Weight: 8.29 lb - 1U
‣ Dimensions: 17.3" W x 11" D x 1.7" H - 1U
‣ Features: 802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, GARP VLAN Registration Protocol (GVRP), High Availability, IGMP proxy, IGMP snooping, IPv4 support, IPv6 support, LACP support, Link Fault Signaling (LFS), MAC address filtering, MLD snooping, Management Information Base (MIB), Metro Ring Protocol (MRP) support, Multiple Spanning Tree Protocol (MSTP) support, OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), STP Root Guard, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), VLAN Stacking, VLAN support, Virtual Switch Redundancy Protocol (VSRP) support, Weighted Round Robin (WRR) queuing, auto-uplink (auto MDI/MDI-X), flow control, port mirroring, sFlow, tagged VLAN, trunking
Variant Product Details
Lightwire Systems offers the following ICX 7250 Series variants:
ICX 7250-24
24-Port 10/100/1000 Mbps RJ-45 Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-24P
24-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-48
48-Port 10/100/1000 Mbps RJ-45 Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-48P
48-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight 1 GbE Uplink/Stacking Ports
Part Numbers & Descriptions
Lightwire Systems offers the following ICX 7250 Series parts & licenses:
ICX7250-PREM-LIC
ICX7250 L3 Premium Software License
ICX7250-2X10G-LICPOD
ICX7250 2 Port 10 GbE License
ICX7250-8X10G-LICPOD
ICX7250 2 Port to 8 Port 10GbE License
ICX7000-RMK
ICX7250 2-Post Rack Mount
