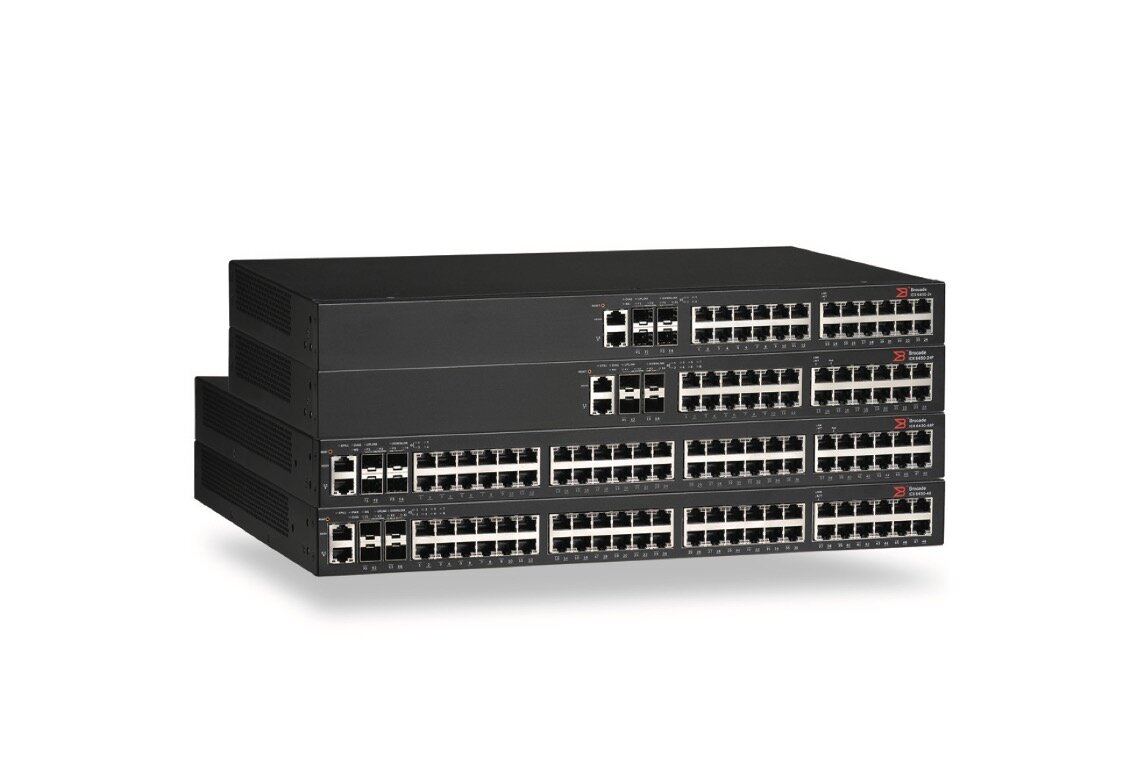

Brocade ICX 6430/6450 Switches
Today's organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks-at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports-with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+-to support enterprise edge networking, wireless mobility, and IP communications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6430/6450 switches and ICX 6430/6450 parts & licenses.
Today's organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks-at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports-with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+-to support enterprise edge networking, wireless mobility, and IP communications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6430/6450 switches and ICX 6430/6450 parts & licenses.
Today's organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade ICX 6430 and 6450 Switches provide feature-rich enterprise-class stackable LAN switching solutions to meet the scalability and reliability demands of evolving campus networks-at an affordable price. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports-with or without IEEE 802.3af and 802.3at Power over Ethernet/Power over Ethernet Plus (PoE/PoE+-to support enterprise edge networking, wireless mobility, and IP communications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant ICX 6430/6450 switches and ICX 6430/6450 parts & licenses.
Product Information
Brocade ICX 6430 and 6450 Switches provide enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising performance and reliability.
The Brocade ICX 6430 and 6450 are available in 12-, 24-, and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports (see Figures 1 and 2)—with or without IEEE 802.3af Power over Ethernet (PoE) and 802.3at Power over Ethernet Plus (PoE+)— to support enterprise edge networking, wireless mobility, and IP communications.
‣ Offers enterprise-class stackable switching at an entry-level price, allowing organizations to buy
what they need now and easily scale as demand grows and new technologies emerge
‣ Delivers unprecedented feature/price value for enterprise applications, including Unified
Communications (UC) and mobility, with 10 Gigabit Ethernet
(GbE) and PoE/PoE+
‣ Provides unmatched availability for low- cost switching with redundant uplink/ stacking ports,
hitless stacking failover, and configurable power redundancy
‣ Simplifies network operations and protects investments with the Brocade HyperEdge Architecture,
enabling consolidated network management and advanced services-sharing across
heterogeneous switches
‣ Offers attractive 12-port, compact, and enterprise-class fanless switch models for deployments
outside of the wiring closet
Specs
‣ Ports: 24 x 10/100/1000
‣ Performance:
— Switching capacity: 56 Gbps
— Forwarding: performance: 42 Mbps
‣ MAC Address Table Size: 8K entries
‣ Max Units In A Stack: 4
‣ Authentication Method: RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2),
Extensible Authentication Protocol (EAP)
‣ Encryption Algorithm: AES
‣ Jumbo Frame Support: 9216 bytes
‣ Weight: 7.5 lbs - 1U
‣ Dimensions: 17.4 in W x 9.4 in D x 1.7 in H - 1U
‣ Features: Access Control List (ACL) support, DHCP relay, DHCP server, DHCP snooping, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), High Availability, IGMP snooping, LLDP support, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), MAC address filtering, MLD snooping, Metro Ring Protocol (MRP) support, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Virtual Switch Redundancy Protocol (VSRP) support, Weighted Round Robin (WRR) queuing, auto-uplink (auto MDI/MDI-X), flow control, sFlow
Variant Product Details
Lightwire offers the following ICX 6430 & 6450 Series variants:
Brocade ICX 6430-C12 12-port 1 GbE compact switch (4 PoE+), 2×100 Mbps/1 GbE SFP and 2×100 Mbps/1 GbE copper uplinks, fanless
ICX 6430-24
Brocade ICX 6430 24-port 1 GbE switch, 4X1 GbE SFP uplink/stacking ports, fanless
ICX 6430-24P
Brocade ICX 6430 24-port 1 GbE switch PoE+ 390 W, 4X1 GbE SFP uplink/stacking ports
ICX 6430-48
Brocade ICX 6430 48-port 1 GbE switch, 4X1 GbE SFP uplink/stacking ports
ICX 6430-48P
Brocade ICX 6430 48-port 1 GbE switch PoE+ 390 W, 4X1 GbE SFP uplink/stacking ports
ICX 6450-C12-PD
12-port 1 GbE compact switch (4 PoE+), 2×100 Mbps/1 GbE SFP and 2×100 Mbps/1 GbE copper uplinks, fanless, L3 static, PoE-powered
ICX 6450-24
24-port 1G switch, 2x1G SFP+ & 2x1G/10G SFP+ uplink/stacking ports
ICX 6450-24P
24-port 1G switch PoE+ 390W, 2x1G SFP+ & 2x1G/10G SFP+ uplink/stacking ports
ICX 6450-48
48-port 1G Switch, 2x1G SFP+ & 2x1G/10G SFP+ Uplink/Stacking Ports
ICX 6450-48P
48-port 1G Switch PoE+ 780W, 2x1G SFP+ & 2x1G/10G SFP+ Uplink/Stacking Ports
Part Numbers & Descriptions
Lightwire Systems offers the following ICX 6430 & 6450 Series parts & licenses:
ICX 6430/6450 1500W External Power Supply for RPS/EPS
ICX6400-RMK
ICX 6430/6450 2 Post Rack Mount Kit, SPARE
ICX6450-2X10G-LIC-POD
ICX 6450 2X10G Capacity Based License, Upgrade 1G Uplink/Stacking Ports to 1G/10G
ICX6450-PREM-LIC
ICX 6450 Premium Software License
