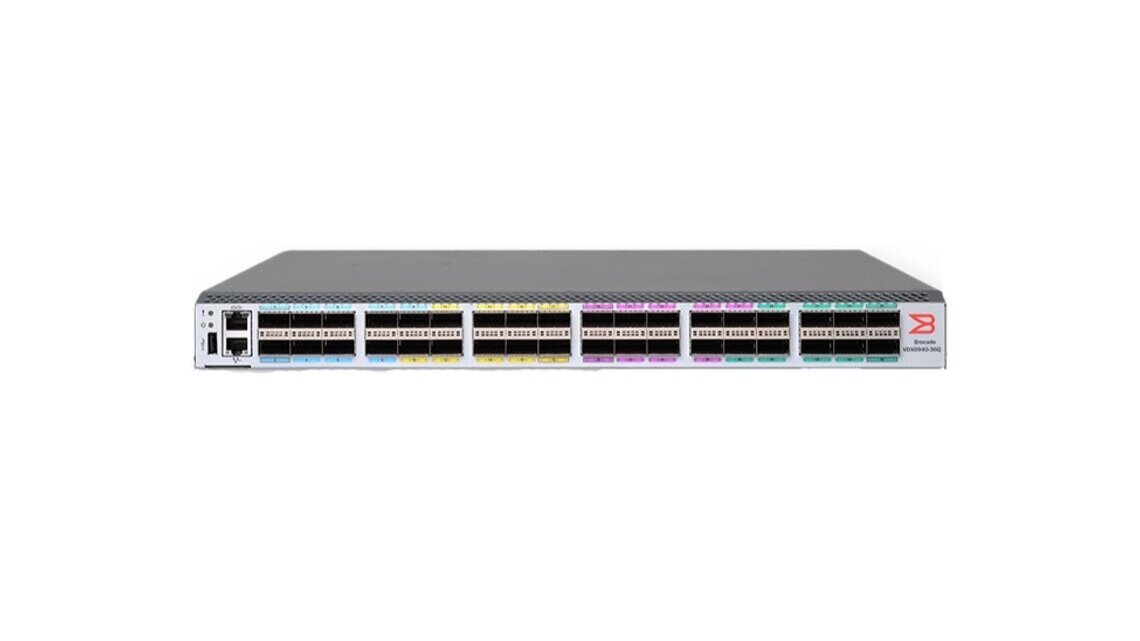

Brocade VDX 6940 Switch
VDX 6940 switches provide the advanced feature set that data centers require while delivering the high performance and low latency virtualized environments demand. Together with Extreme data center fabrics, these switches transform data center networks by enabling cloud-based architectures that deliver new levels of scale, agility, and operational efficiency.
For organizations seeking automated provisioning capabilities to improve IT agility, VDX switches, together with Extreme VCS Fabric technology, accelerate time to value through automated provisioning of network devices and network virtualization.
VDX 6940 switches deliver optimized buffer and latency and high performance to enable greater cross-sectional bandwidth for east-west traffic – exactly what cloud workloads demand. These switches offer the flexibility needed to scale out networks, deliver intelligence to more effectively manage VM mobility.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant VDX 6940 switches and VDX 6940 parts & licenses.
VDX 6940 switches provide the advanced feature set that data centers require while delivering the high performance and low latency virtualized environments demand. Together with Extreme data center fabrics, these switches transform data center networks by enabling cloud-based architectures that deliver new levels of scale, agility, and operational efficiency.
For organizations seeking automated provisioning capabilities to improve IT agility, VDX switches, together with Extreme VCS Fabric technology, accelerate time to value through automated provisioning of network devices and network virtualization.
VDX 6940 switches deliver optimized buffer and latency and high performance to enable greater cross-sectional bandwidth for east-west traffic – exactly what cloud workloads demand. These switches offer the flexibility needed to scale out networks, deliver intelligence to more effectively manage VM mobility.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant VDX 6940 switches and VDX 6940 parts & licenses.
VDX 6940 switches provide the advanced feature set that data centers require while delivering the high performance and low latency virtualized environments demand. Together with Extreme data center fabrics, these switches transform data center networks by enabling cloud-based architectures that deliver new levels of scale, agility, and operational efficiency.
For organizations seeking automated provisioning capabilities to improve IT agility, VDX switches, together with Extreme VCS Fabric technology, accelerate time to value through automated provisioning of network devices and network virtualization.
VDX 6940 switches deliver optimized buffer and latency and high performance to enable greater cross-sectional bandwidth for east-west traffic – exactly what cloud workloads demand. These switches offer the flexibility needed to scale out networks, deliver intelligence to more effectively manage VM mobility.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant VDX 6940 switches and VDX 6940 parts & licenses.
Product Information
Brocade VDX switches are designed to help organizations stay ahead of application-driven network change by enabling agile growth through a scale-out architecture. This approach offers three key benefits. First, it enables network expansion as a business grows over time. One can horizontally scale spine switches as the number of leaf switches increase. Second, scale-out architecture also enables the creation of resilient network fabrics, eliminating a single point of failure and potential downtime. Third, and most important, a scale-out network architecture delivers a compelling economic benefit. Unlike scale-up, a scale-out model lowers upfront investment. And by using high-density fixed switches, it lowers the Total Cost of Ownership (TCO), reducing power, cooling, and data center space.
The Brocade VDX 6940-144S is a 10 GbE optimized switch with 40 GbE or 100 GbE uplinks in a 2U form factor. It offers 96 native 10 GbE SFP+ ports and 12 40 GbE QSFP+ ports, or 4 100 GbE QSFP28 ports. In addition, the Brocade VDX 6940-144S provides flexibility for uplinks, 40 GbE or 100 GbE from leaf switches, and delivers greater cross-sectional bandwidth for east-west traffic. Purpose-built for scale-out data centers and service providers, it enables aggregation of multiple server racks with a single switch.
‣ Transforms networks to deliver cloud scale, agility, and operational efficiency with Extreme
data center fabrics
‣ Supports 1, 10, and 40 GbE options for optimal flexibility and scale
‣ Meets today’s application demands with high performance and low latency
‣ Delivers line-rate throughput for all ports and packet sizes
‣ Fits into any data center design by leveraging 10 GbE/40 GbE uplinks, Ports on Demand (PoD),
and Capacity on Demand (CoD)
‣ Maximizes network availability with efficiency and resiliency
‣ Supports storage environments with advanced flexibility
‣ Automates infrastructure provisioning, validation, troubleshooting, and remediation workflow
Specs
‣ Form factor: 1U
‣ Switching bandwidth (data rate, full duplex): 2.88 Tbps
‣ Switch performance: 2.16 Bpps
‣ Port-to-port latency: 800 ns
‣ 10 GbE SFP+ ports: 144 10 GbE ports using breakout cables
‣ 1 GbE SFP: 0
‣ 1/10 GBASE-T: 0
‣ 40 GbE QSFP+: 36
‣ 100 GbE QSFP28: 0
‣ 40 GbE Ports on Demand (PoD): 24, 36
‣ 10 GbE Ports on Demand (PoD): N/A
‣ Power supplies: Two internal, redundant, field-replaceable, load-sharing
AC/DC power supplies
‣ Cooling fans: 5 field-replaceable fans (FRUs); each fan FRU has 2 fans
‣ Airflow: Rear-to-front or front-to-rear airflow
‣ Dimensions: 17.32" X x 1.73" H x 17.22" D
‣ Weight: 19.6 lb - 1U without media; 22.3 lb with media
Variant Product Details
Lightwire offers the following VDX 6940 Series variant options:
VDX 6940-36Q base system with 36 40 GbE QSFP+ ports, AC power supply, non-port-side exhaust airflow
BR-VDX6940-36Q-AC-R
VDX 6940-36Q base system with 36 40 GbE QSFP+ ports, AC power supply, port-side exhaust airflow
BR-VDX6940-24Q-DC-F
VDX 6940-36Q base system with 24 40 GbE QSFP+ ports, DC power supply, non-port-side exhaust airflow
BR-VDX6940-24Q-DC-R
VDX 6940-36Q base system with 24 40 GbE QSFP+ ports, DC power supply, port-side exhaust airflow
BR-VDX6940-24Q-AC-F
VDX 6940-36Q base system with 24 40 GbE QSFP+ ports, AC power supply, non-port-side exhaust airflow
BR-VDX6940-24Q-AC-R
VDX 6940-36Q base system with 24 40 GbE QSFP+ ports, AC power supply, port-side exhaust airflow
BR-VDX6940-64S-AC-R
VDX 6940-144S base system with 64 10 GbE SFP+ ports, AC power supply, port-side exhaust airflow
BR-VDX6940-64S-AC-F
VDX 6940-144S base system with 64 10 GbE SFP+ ports, AC power supply, non-port-side exhaust airflow
BR-VDX6940-96S-AC-R
VDX 6940-144S base system with 96 10 GbE SFP+ ports, AC power supply, port-side exhaust airflow
BR-VDX6940-96S-AC-F
VDX 6940-144S base system with 96 10 GbE SFP+ ports, AC power supply, non-port-side exhaust airflow
BR-VDX6940-144S-AC-R
VDX 6940-144S base system with 96 10 GbE SFP+ ports and up to 12 40 GbE QSFP+ ports or up to 4 100 GbE QSFP28 ports, AC power supply, port-side exhaust airflow
BR-VDX6940-144S-AC-F
VDX 6940-144S base system with 96 10 GbE SFP+ ports and up to 12 40 GbE QSFP+ ports or up to 4 100 GbE QSFP28 ports, AC power supply, non-port-side exhaust airflow
BR-VDX6940-64S-DC-F
VDX 6940-144S base system with 64 10 GbE SFP+ ports, DC power supply, non-port-side exhaust airflow
BR-VDX6940-64S-DC-R
VDX 6940-144S base system with 64 10 GbE SFP+ ports, DC power supply, port-side exhaust airflow
Part Numbers & Descriptions
Lightwire Systems offers the following VDX 6940 Series parts & licenses:
FCoE software license for VDX 6940
BR-VDX6940-144S-16-10GPOD
16×10 GbE Ports on Demand (PoD) license for VDX 6940-144S
BR-VDX6940-144S-6X40G-POD
6×40 GbE or 2×100 GbE Ports on Demand (PoD) license for VDX 6940-144S
BR-VDX6940-36Q-12X40G-POD
12×40 GbE Ports on Demand (PoD) license for VDX 6940-36Q
