Product Information
The Juniper Networks PTX10000 line of Packet Transport Routers brings physical and virtual innovations to the cloud and service provider networks. These next-generation modular routers help network operators achieve their business goals while effectively handling current and future traffic demands through automation, optimization, and programmability.
The modular PTX10000 line features three models: the PTX10004, the PTX10008, and the PTX10016.

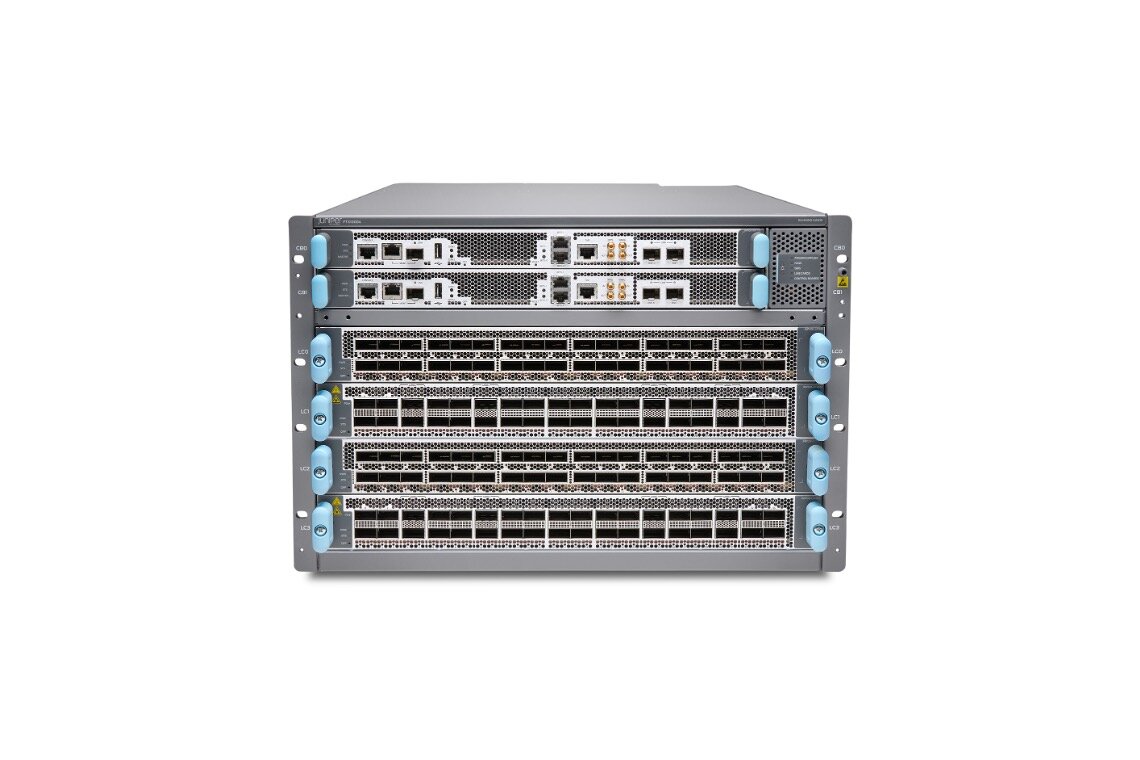

The PTX10004 Modular Router is the ultra-compact, ultra-high-density router for today’s space- and power-constrained facilities, supporting 400GbE architectures with inline Media Access Control Security (MACsec) on all ports for uncompromised security. The PTX10004 scales from 19.2 Tbps to 57.6 Tbps in a compact 7 U platform, design-optimized for data center and colocation racks.
Powered by Juniper’s custom Triton silicon, the PTX10004 delivers predictable IP/MPLS packet performance and functionality for multirate 100GbE/400GbE QSFP-DD. The PTX10004 is equipped with four slots, supporting from 4.8 Tbps to 14.4 Tbps per slot. A fully equipped PTX10004 with 4.8 Tbps line cards can support 192 100GbE and 16 400GbE ports. A fully equipped PTX10004 with 14.4 Tbps line cards can support 576 10GbE, 576 25GbE, 144 40GbE, 576 100GbE, or 144 400GbE ports.
The PTX10008 Modular Router is the perfect router for today’s space-constrained facilities, supporting 400GbE architectures with inline MACsec on all ports for uncompromised security. The PTX10008 offers unprecedented system capacity in a 13 U platform, scaling from 28.8 Tbps to 115.2 Tbps per standard 19-inch telecommunications rack—all at wire speed.
Powered by Juniper’s custom Triton silicon, the PTX10008 delivers predictable IP/MPLS packet performance and functionality, eliminating the complex packet profiles found in elaborate, over-engineered network processing units (NPUs) deployed in other core routers. The PTX10008 has eight slots, each supporting 4.8 Tbps to 14.4 Tbps. A fully equipped PTX10008 with 4.8 Tbps line cards can support 256 100GbE and 32 400GbE ports. A fully equipped PTX10008 with 14.4 Tbps line cards can support 1152 10GbE, 1152 25GbE, 288 40GbE, 1152 100GbE, or 288 400GbE interfaces in a single chassis.
The PTX10016 Modular Router offers ultra-high system capacity in a 21 U platform that supports 48 Tbps (96 Tbps half-duplex) per chassis, or 96 Tbps (192 Tbps half-duplex) per standard 19-inch telecommunications rack. The PTX10016 has 16 slots, each supporting 3 Tbps (6 Tbps half-duplex). A fully equipped PTX10016 can support 2304 10GbE, 576 40GbE, or 480 100GbE interfaces in a single chassis.
These modular routers enable network operators to build core architectures that optimize label-switching router (LSR), Internet backbone, peering, and optical convergence applications.
As a result, operators can—for the first time—match traffic demands with enhanced core router performance and flexible deployments. With its ultra-optimized and compact form factor, the PTX10000 line is ideal for peering, collocation, and central office locations where space and power are at a premium.
Specs
‣ Dimensions: (W x H x D) 17.4 x 12.2 x 32 in. (44.2 x 33 x 81.28 cm);
42.2 in. (107.7 cm) depth with EMI door
‣ Weight: 271.2 lb (116.7 kg)
‣ Mounting: Front rack mount
‣ Power system rating: 200-240 VAC/50-60 Hz -48 VDC @ 60 A
‣ Typical power consumption: 10.3 kW with Triton line cards, fully loaded
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
PTX10008
‣ Dimensions: (W x H x D) 17.4 x 22.55 x 32 in.(44.2 x 57.76 x 81.28 cm);
39.37 in. (100 cm) depth with EMI door
‣ Weight: 493 lb (223.62 kg)
‣ Mounting: Front rack mount
‣ Power system rating: 200-240 VAC / 50-60 Hz -48 VDC @ 60 A
‣ Typical power consumption: 17.3 kW with Triton line cards, fully loaded
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
PTX10016
‣ Dimensions: (W x H x D) 17.4 x 36.65 x 35 in(44.2 x 93.09 x 88.90 cm);
42.40 in (107.7 cm) depth with EMI door
‣ Weight: 596 lb (270 kg)
‣ Mounting: Front rack mount
‣ Power system rating: 200-240 VAC / 50-60 Hz -48 VDC @ 60 A
‣ Typical power consumption: 18 kW with Express line cards, fully loaded
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
/
Variant Product Details
Lightwire Systems offers the following PTX10004 / PTX10008 / PTX10016 variant options:
PTX10004-PREM2
PTX10004 redundant 4-slot chassis. Includes 2 REs, 3 AC/HVDC or DC power supplies, 2 fan trays, 2 fan tray controllers, and 4 switch fabric cards.
PTX10004-PREM3
PTX10004 redundant 4-slot chassis. Includes 2 REs, 3 AC/HVDC or DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards.
PTX10004-BASE3
PTX10004 base 4-slot chassis. Includes 1 RE, 3 AC/HVDC or DC power supplies, 2 fan trays, 2 fan tray controllers, and 3 switch fabric cards.
PTX10008 PREMIUM & BASE UNITS:
PTX10008-PREM2
PTX10008 redundant 8-slot chassis. Includes 2 REs, 6 AC/HVDC/DC power supplies, 2 fan trays, 2 fan tray controllers, and 4 switch fabric cards
PTX10008-PREM3
PTX10008 redundant 8-slot chassis [JNP10008] capable of 115.2 Tbps. Includes 2 REs, 6 power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards.
PTX10008-BASE
PTX10008 8-slot chassis [JNP10008]. Includes 1 RE, 3 power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards
PTX10008-BASE3
PTX10008 base 8-slot chassis. Includes 1 RE, 6 AC/HVDC/DC power supplies, 2 fan trays, 2 fan tray controllers, and 3 switch fabric cards
PTX10008-PREMIUM
PTX10008 redundant 8-slot chassis [JNP10008]. Includes 2 REs, 6 power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards.
PTX10008-PREM3-SON
PTX10008 8-slot chassis for 14.4T LC, including 1 RE running SONiC, 6 AC/HVDC/DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards.
PTX10008-PREM2-SON
PTX10008 8-slot chassis for 14.4T LC, including 1 RE running SONiC, 6 AC/HVDC/DC power supplies, 2 fan trays, 2 fan tray controllers, and 4 switch fabric cards.
PTX10008-BASE3-SON
PTX10008 8-slot chassis for 14.4T LC, including 1 RE running SONiC, 6 AC/HVDC/DC power supplies, 2 fan trays, 2 fan tray controllers, and 3 switch fabric cards.
PTX10016 PREMIUM & BASE UNITS:
PTX10016-BASE
PTX10016 16-slot chassis. Includes 1 RE, 5 power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards.
PTX10016-PREMIUM
PTX10016 redundant 16-slot chassis. Includes 2 REs, 10 power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards.
Part Numbers & Descriptions
Lightwire Systems offers the following PTX10004 / PTX10008 / PTX10016 parts & licenses:
JNP10K-RE0-BB
PTX10000/JNP10000 RE X4, base bundle
JNP10K-RE0-R
PTX10000/JNP10000 RE X4, redundant
JNP10K-RE0
PTX10000/JNP10000 RE X4
JNP10K-RE1-BB
PTX10000/JNP10000 RE X8, base bundle
JNP10K-RE1-R
PTX10000/JNP10000 RE X8, redundant
JNP10K-RE1
PTX10000/JNP10000 RE X8
JNP10K-RE1-E-BB
PTX10000/JNP10000 RE X8 with Junos Evolved, base bundle
JNP10K-RE1-E-R
PTX10000/JNP10000 RE X8 with Junos Evolved, redundant
JNP10K-RE1-E
PTX10000/JNP10000 RE X8 with Junos Evolved
JNP10K-RE1-S128-BB
JNP10000 RE with SONiC, base bundle
JNP10K-RE1-S128
JNP10000 RE with SONiC
PTX10004 SWITCH FABRIC:
JNP10004-SF3-BB
PTX10004/JNP10004 switch fabric card supporting up to 14.4 Tbps LC, base bundle
JNP10004-SF3-R
PTX10004/JNP10004 switch fabric card supporting up to 14.4 Tbps LC, redundant
JNP10004-SF3
PTX10004/JNP10004 switch fabric card supporting up to 14.4 Tbps LC
PTX10008 SWITCH FABRIC:
JNP10008-SF3-BB
PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC, base bundle
JNP10008-SF3-R
PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC, redundant
JNP10008-SF3
PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC
JNP10008-SF-BB
PTX10008/JNP10008 switch fabric card, base bundle
JNP10008-SF-R
PTX10008/JNP10008 switch fabric card, redundant
JNP10008-SF
PTX10008/JNP10008 switch fabric card
PTX10016 SWITCH FABRIC:
JNP10016-SF-BB
PTX10016/JNP10016 switch fabric card, base
JNP10016-SF-R
PTX10016/JNP10016 switch fabric card, redundant
JNP10016-SF
PTX10016/JNP10016 switch fabric card, base bundle
PTX10000 TRITON LINE CARDS:
PTX10K-LC1201-36CD
36x400GbE/36x200GbE/36x100GbE/36x40GbE line card [JNP10K-LC1201]
PTX10K-LC1202-36MR
4x400GbE and 32x100GbE [JNP10K-LC1202]
S-PTX10K-144C-A1-3
SW, PTX10000 14.4T RTU Adv1 Lic, 3-year term, with SW support
S-PTX10K-144C-A2-3
SW, PTX10000 14.4T RTU Adv2 Lic, 3-year term, with SW support
S-PTX10K-144C-P1-3
SW, PTX10000 14.4T RTU Prem1 Lic, 3-year term, with SW support
S-PTX10K-144C-P2-3
SW, PTX10000 14.4T RTU Prem2 Lic, 3-year term, with SW support
S-PTX10K-144C-A1-5
SW, PTX10000 14.4T RTU Adv1 Lic, 5-year term, with SW support
S-PTX10K-144C-A2-5
SW, PTX10000 14.4T RTU Adv2 Lic, 5-year term, with SW support
S-PTX10K-144C-P1-5
SW, PTX10000 14.4T RTU Prem1 Lic, 5-year term, with SW support
S-PTX10K-144C-P2-5
SW, PTX10000 14.4T RTU Prem2 Lic, 5-year term, with SW support
S-PTX10K-144C-A1-P
SW, PTX10K, 14.4T, Adv1, without SW support, perpetual
S-PTX10K-144C-A2-P
SW, PTX10K, 14.4T, Adv2, without SW support, perpetual
S-PTX10K-144C-P1-P
SW, PTX10K, 14.4T, Pre1, without SW support, perpetual
S-PTX10K-144C-P2-P
SW, PTX10K, 14.4T, Pre2, without SW support, perpetual
S-PTX10K-48C-A1-3
SW, PTX10K, 4.8T, Advanced 1, with SW support, 3 year
S-PTX10K-48C-A2-3
SW, PTX10K, 4.8T, Advanced 2, with SW support, 3 year
S-PTX10K-48C-P1-3
SW, PTX10K, 4.8T, Premium 1, with SW support, 3 year
S-PTX10K-48C-P2-3
SW, PTX10K, 4.8T, Premium 2, with SW support, 3 year
S-PTX10K-48C-A1-5
SW, PTX10K, 4.8T, Advanced 1, with SW support, 5 year
S-PTX10K-48C-A2-5
SW, PTX10K, 4.8T, Advanced 2, with SW support, 5 year
S-PTX10K-48C-P1-5
SW, PTX10K, 4.8T, Premium 1, with SW support, 5 year
S-PTX10K-48C-P2-5
SW, PTX10K, 4.8T, Premium 2, with SW support, 5 year
S-PTX10K-48C-A1-P
SW, PTX10K, 4.8T, Adv1, without SW support, perpetual
S-PTX10K-48C-A2-P
SW, PTX10K, 4.8T, Adv2, without SW support, perpetual
S-PTX10K-48C-P1-P
SW, PTX10K, 4.8T, Pre1, without SW support, perpetual
S-PTX10K-48C-P2-P
SW, PTX10K, 4.8T, Pre2, without SW support, perpetual
PTX10000 EXPRESS LINE CARDS:
PTX10K-LC110
30x100GbE/30x40GbE line card [JNP10K-LC1101]
PTX10K-LC1101-IR
30x100GbE/30x40GbE line card [JNP10K-LC1101], IR mode
PTX10K-LC1101-R
30x100GbE/30x40GbE line card [JNP10K-LC1101], R mode
PTX10K-LC1102
36X40GbE/12X100GbE line card [JNP10K-LC1102]
PTX10K-LC1102-IR
36X40GbE/12X100GbE line card [JNP10K-LC1102], IR mode
PTX10K-LC1102-R
36X40GbE/12X100GbE line card [JNP10K-LC1102], R mode
PTX10K-LC1104
6x100GbE/150GbE/200GbE DWDM line card with MACsec [JNP10K-LC1104]
PTX10K-LC1105
30x100GbE/30x40GbE line card with MACsec [JNP10K-LC1105]
PTX10K-LC1105-IR
30x100GbE/30x40GbE line card with MACsec [JNP10K-LC1105], IR mode
PTX10K-LC1105-R
30x100GbE/30x40GbE line card with MACsec [JNP10K-LC1105], R mode
PTX10008 FAN TRAY & CONTROLLER:
JNP10008-FAN-BB
PTX10008/JNP10008 fan, base bundle
JNP10008-FAN
PTX10008/JNP10008 fan
JNP10008FAN
PTX10008/JNP10008 fan tray controller, base bundle
CTRL-BB
PTX10008/JNP10008 fan tray controller
JNP10008-FAN-CTRL
JNP10008 fan, Gen2, base bundle
JNP10008-FAN2-BB
JNP10008 fan, Gen2
JNP10008-FAN2
JNP10008 fan tray controller, Gen2, base bundle
JNP10008-FTC2-BB
JNP10008 fan tray controller, Gen2
PTX10016 FAN TRAY & CONTROLLER:
JNP10016-FAN-BB
PTX10016/JNP10016 fan, base bundle
JNP10016-FAN
PTX10016/JNP10016 fan
JNP10016FANCTRL-BB
PTX10016/JNP10016 fan tray controller, base bundle
JNP10016-FAN-CTRL
PTX10016/JNP10016 fan tray controller
JNP10016-FAN2-BB
JNP10016 fan, Gen2, base bundle
JNP10016-FAN2
JNP10016 fan, Gen2
JNP10016-FTC2-BB
JNP10016 fan tray controller, Gen2, base bundle
JNP10016-FTC2
JNP10016 fan tray controller, Gen2
PTX10000 POWER CABLES:
CBL-PWR2-L6-30P
Power cord, JNP10000 AC2 L6-30P
CBL-PWR2-L6-30P-RA
Power cord, JNP10000 AC2 RA L6-30P
CBL-PWR2-330P6W
Power cord, JNP10000 AC2 IEC309-330P6W
CBL-PWR2-330P6W-RA
Power cord, JNP10000 AC2 RA IEC309-330P6W
CBL-PWR2-332P6W
Power cord, JNP10000 AC2 IEC309-332P6W
CBL-PWR2-332P6W-RA
Power cord, JNP10000 AC2 RA IEC309-332P6W
PTX10000 POWER MODULES:
JNP10K-PWR-AC-BB
PTX10000/JNP10000 2700 W AC power supply, base bundle
JNP10K-PWR-AC2-BB
JNP10000 5000 watts AC/HVDC power supply base bundle
JNP10K-PWR-AC-R
PTX10000/JNP10000 2700 W AC power supply, redundant
JNP10K-PWR-AC2-R
JNP10000 5000 watts AC/HVDC power supply redundant
JNP10K-PWR-AC
PTX10000/JNP10000 2700 W AC power supply
JNP10K-PWR-AC2
JNP10000 5000 watts AC/HVDC power supply
JNP10K-PWR-DC-BB
PTX10000/JNP10000 2500 W DC power supply, base bundle
JNP10K-PWR-DC2-BB
JNP10000 5000 watts DC power supply base bundle
JNP10K-PWR-DC-R
PTX10000/JNP10000 2500 W DC power supply,redundant
JNP10K-PWR-DC2-R
JNP10000 5000 watts DC power supply redundant
JNP10K-PWR-DC
PTX10000/JNP10000 2500 W DC power supply
JNP10K-PWR-DC2
JNP10000 5000 watts DC power supply
PTX10008 FRONT PANELS:
JNP10008-FRPNL-BB
PTX10008/JNP10008 front panel, base bundle
JNP10008-FRNT-PNL
PTX10008/JNP10008 front panel
JNP10008-FRPNL1-BB
PTX10008/JNP10008 front panel with filter, base bundle
JNP10008-FRPNL1
PTX10008/JNP10008 front panel with filter
JNP10008-FLTR
PTX10008/JNP10008 replaceable filter
PTX10016 FRONT PANELS:
JNP10008-FLTR
PTX10008/JNP10008 replaceable filter
JNP10016-FRPNL-BB
PTX10016/JNP10016 front panel, base bundle
JNP10016-FRPNL1-BB
PTX10016/JNP10016 front panel with filter, base bundle
JNP10016-FRPNL1
PTX10016/JNP10016 front panel with filter
JNP10016-FLTR
PTX10016/JNP10016 replaceable filter
Terms of Service
Lightwire Systems buys, sells, and trades new and used networking equipment. Customer acceptance of the equipment sold by Lightwire Systems binds both parties to the following terms and conditions:
QUOTES
Upon request, we will provide you with an written quote. Quoted and actual price/availability/delivery on all equipment may slightly vary due to time elapsed between quote and purchase, market supply/demand conditions, inventory status. We will honor a quote for a minimum of 30 days, please discuss with your client advisor longer quote time is needed.
CANCELLATIONS
Orders once placed may not be canceled without good cause. Please contact your client advisor with any changes and we will do our best to accommodate or address any concerns.
RETURNS & EXCHANGES
If you are not 100% satisfied with your purchase and it is within 30 days of delivery, and the product was sold from existing stock, we will accept the return of the working item in the same condition and packaging it was received subject to a 20% restocking fee. If a product was purchased specifically to fill your order and was not available in our inventory at that time, it is non-returnable. Customer is responsible for any freight charges on all returns.
PACKAGING
We use foam, bubble rap, sturdy boxes and professionally pack all hardware. In the event the item arrives damaged, immediately contact your client advisor. Lightwire Systems will work with the customer to address any issues due to damage during shipping and will work diligently to make sure you have working hardware as soon as possible.
SHIPPING
UPS and FED-EX are our shipping partners of choice, however we’re happy to accommodate other shipping partners per a customer’s request.
SALES TAX
Customers are subject to the sales tax rate per their region. Tax exempt organizations must provide us with their tax number when placing an order or will be charged sales tax.
CONDITION - WARRANTY - EXCHANGE
We sell used, unused in original box, and new equipment. All used hardware is fully tested and guaranteed fully functional before sold and comes with an advanced replacement one-year warranty (advance replacement due to failure will be shipped express to ensure your downtime is minimal). New hardware will come with original manufacturer warranties. Warranty covers DOA equipment or equipment failing to perform to manufacturers specifications. Warranty does not cover misuse and/or damage due to improper installation and/or operation of the equipment. No item can be returned without prior authorization. We will repair, exchange, or refund the equipment under warranty within 5 working days after its receipt at our warehouse. All equipment is subject to prior sale.
Related Products
Call us at +1 415-800-2050 to speak with one of our client advisors, or email us to schedule a time to discuss your project.
