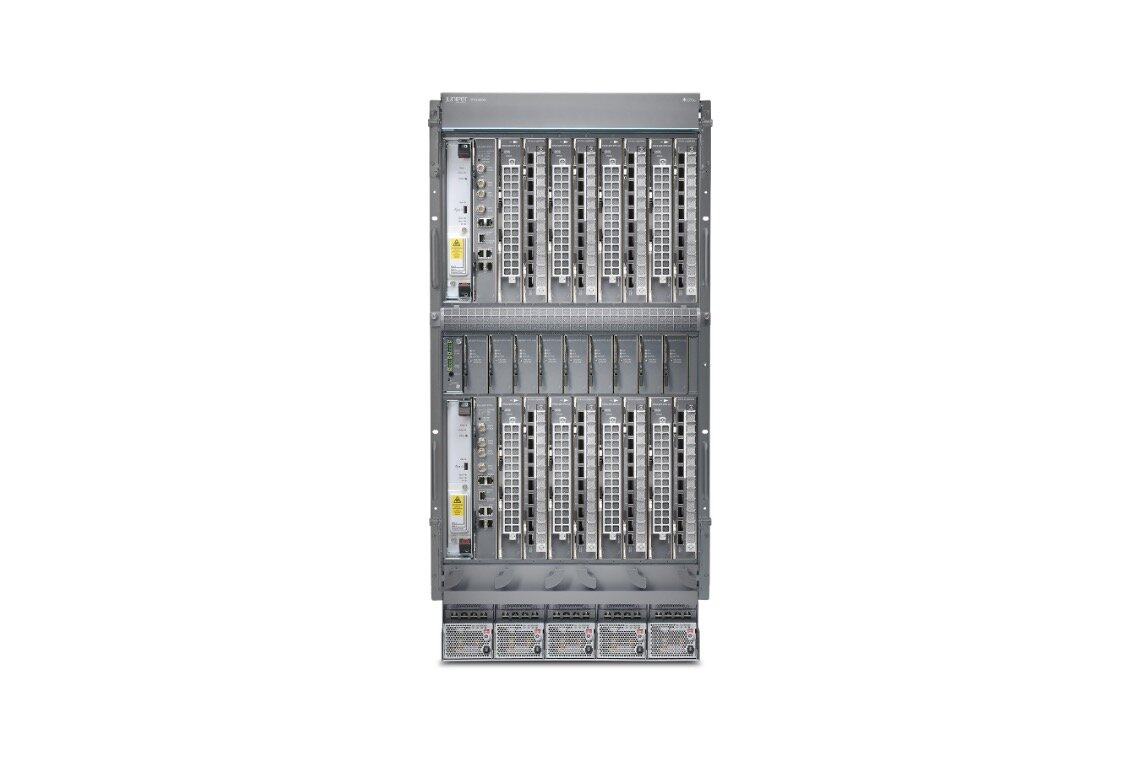

Juniper PTX3000 Router
Increased interactions between people and machines are creating a deluge of traffic, with increasingly unpredictable patterns. These dynamics have intensified the challenge to meet growth with traditional network products and architectures. A new approach, based on both physical and virtual innovations, is required to help service providers stay ahead of growing traffic demands while remaining profitable. Juniper Networks PTX Series Packet Transport Routers with custom ExpressPlus Silicon, built from the ground up with SDN in mind, provide service providers with a Converged Supercore architecture that reduces TCO with highly flexible, high-performance, and deployability innovations.
The PTX3000 Packet Transport Router tightly integrates IP/MPLS and optical transport into core routing. It provides a scalable, high-performance solution optimized for space- and power-constrained environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX3000 variants, parts & licenses.
Increased interactions between people and machines are creating a deluge of traffic, with increasingly unpredictable patterns. These dynamics have intensified the challenge to meet growth with traditional network products and architectures. A new approach, based on both physical and virtual innovations, is required to help service providers stay ahead of growing traffic demands while remaining profitable. Juniper Networks PTX Series Packet Transport Routers with custom ExpressPlus Silicon, built from the ground up with SDN in mind, provide service providers with a Converged Supercore architecture that reduces TCO with highly flexible, high-performance, and deployability innovations.
The PTX3000 Packet Transport Router tightly integrates IP/MPLS and optical transport into core routing. It provides a scalable, high-performance solution optimized for space- and power-constrained environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX3000 variants, parts & licenses.
Increased interactions between people and machines are creating a deluge of traffic, with increasingly unpredictable patterns. These dynamics have intensified the challenge to meet growth with traditional network products and architectures. A new approach, based on both physical and virtual innovations, is required to help service providers stay ahead of growing traffic demands while remaining profitable. Juniper Networks PTX Series Packet Transport Routers with custom ExpressPlus Silicon, built from the ground up with SDN in mind, provide service providers with a Converged Supercore architecture that reduces TCO with highly flexible, high-performance, and deployability innovations.
The PTX3000 Packet Transport Router tightly integrates IP/MPLS and optical transport into core routing. It provides a scalable, high-performance solution optimized for space- and power-constrained environments.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX3000 variants, parts & licenses.
Product Information
In many countries, as well as smaller central offices and lower bandwidth applications, the Juniper Networks PTX3000 Packet Transport Router is the perfect Converged Supercore router. The PTX3000 brings unprecedented capacity in a 22U package that supports 8 Tbps per chassis or 16 Tbps per one standard 19-inch telecommunications rack, all at wire-rate performance. Powered by custom Juniper ExpressPlus Silicon, the PTX3000, like the PTX5000, delivers predictable IP/MPLS packet performance and functionality, eliminating the complex sawtooth packet profile found in elaborate over-engineered NPUs deployed in other core routers.
The PTX3000 is the only Converged Supercore platform that complies with 300 mm ETSI standards for both transport and space-constrained central office environments, making it the most globally deployable core router on the market. It supports up to 8 FPCs, each of which supports one PIC. The PTX3000 can support 80 x 100GbE interfaces in a single chassis, with support for gray and coherent optic technology. The PTX3000 enables service providers to build a Converged Supercore architecture that optimizes LSR, Internet backbone, peering, and optical convergence applications for smaller regional deployments. As such, for the first time, service providers can match traffic demand with optimized core router performance and flexible deployments. With its ultraoptimized form factor, the PTX3000 is ideally positioned for spaceconstrained colocation facilities such as optical transport environments, central office locations in emerging markets where space and power are at a premium, smaller service providers wanting Converged Supercore advantages, and next-generation metro regional networks.
Specs
‣ Maximum weight: 310 lbs (140.61kg)
‣ Mounting: Front or Center Rack Mount
‣ Power system rating: 50 A @ -48 VDC per input
‣ Typical power consumption: 6.3 kW, fully loaded
‣ Operating temperature: 32° to 104° F (0° to 40° C)
/
Variant Product Details
Lightwire Systems offers the following PTX3000 variant options:
PTX3000BASE
Base chassis (sheet metal, 1 x RE, 1 x CB, 2 x horizontal fan tray, craft panel, 3 x PSMs, 9 x SIBs)
Part Numbers & Descriptions
Lightwire Systems offers the following PTX3000 parts & licenses:
PTX3000 ROUTING ENGINES & CRAFT INTERFACE:
RCB-PTX-X6-32G-R
Integrated 2.0 GHz 6 core PTX3K Routing Engine,
control board, and CCG, redundant
RCB-PTX-X6-32G-S
Integrated 2.0 GHz 6 core PTX3K Routing Engine,
control board, and CCG, spare
RCB-CC-R
RCP companion card, redundant
RCB-CC-S
RCP companion card, spare
RE-DUO-C2600-16G-R
Routing Engine - redundant
RE-DUO-C2600-16G-S
Routing Engine – spare
FPD-SFF-PTX-S
Craft Panel – spare
PTX3000 SWITCH FABRIC:
SIB3-SFF-PTX
PTX second generation Small Form Factor Fabric Module
SIB-SFF-PTX-240-R
Switching Board – redundant
SIB-SFF-PTX-240-S
Switching Board – spare
PTX3000 SUPPORTED FPCs:
FPC3-SFF-PTX-1H-IR
PTX3K FPC3 1T for high-scale LSR or peering application (half capacity)
FPC3-SFF-PTX-1H-R
PTX3K FPC3 1T full IP core, no scale restriction (half
capacity)
FPC3-SFF-PTX-1T-IR
PTX3K FPC3 1T for high-scale LSR or peering application
FPC3-SFF-PTX-1T-R
PTX3K FPC3 1T full IP core, no scale restriction
FPC-SFF-PTX-P1-A
Flexible PIC Concentrator (FPC)
PTX3000 Supported PICs
P3-10-U-QSFP28
PTX Series third generation universal
10x100/10x40/40x10 QSFP28 PIC
P1-PTX-2-100G-C-WDM-C
2-port 100G DWDM PIC
P1-PTX-2-100GE-CFP
2 x 100GbE PIC
P1-PTX-2-40GE-CFP
2 x 40GbE PIC
P1-PTX-24-10GE-SFPP
24 x 10GbE (LAN) PIC
P1-PTX-24-10G-W-SFPP
24 x 10GbE (LAN/WAN) PHY PIC
SFF-SLOT-BLNK
FPC Slot filler/blank
SFF-PSM-BLNK
PSM Slot filler/blank
PIC-BLANK-PTX
PIC Slot filler/blank
PTX3000 FAN TRAYS & SPARES:
FAN-SFF-PTX-S
Fan tray – spare
CB-SFF-PTX-R
Control Board – for redundancy
CB-SFF-PTX-S
Control Board – for sparing
PTX3000 AIR FILTER:
FLTR-SFF-PTX-S
Air filter – spare
PTX3000 POWER MODULES:
PSM-SFF-PTX-AC-R
AC Power Supply (single phase) – redundant
PSM-SFF-PTX-AC-S
AC Power Supply (single phase) – spare
PSM-SFF-PTX-DC-R
DC Power Supply – redundant
PSM-SFF-PTX-DC-S
DC Power Supply – spare
