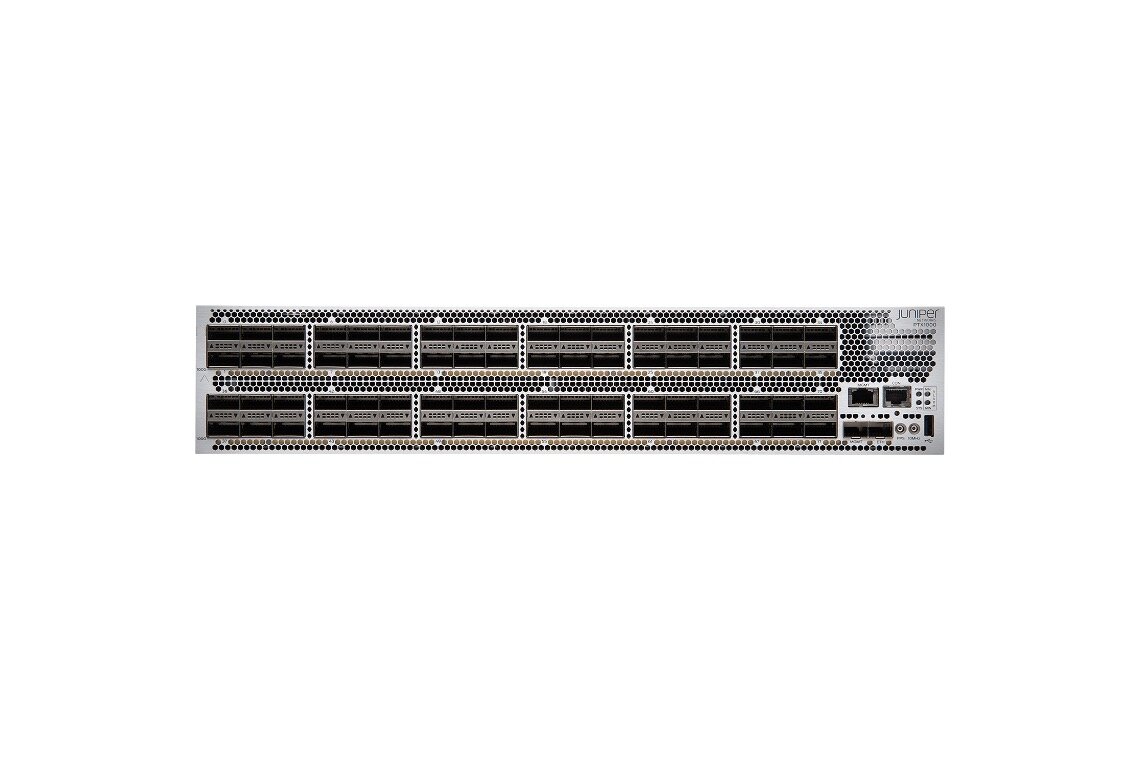

Juniper PTX1000 Router
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX1000 Packet Transport Router is a high-density solution optimized for service provider and high-volume content provider networks. It delivers a rich IP/MPLS feature set with 2.88-Tbps capacity supporting 10GbE, 40GbE, and 100GbE interfaces.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX1000 variants, parts & licenses.
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX1000 Packet Transport Router is a high-density solution optimized for service provider and high-volume content provider networks. It delivers a rich IP/MPLS feature set with 2.88-Tbps capacity supporting 10GbE, 40GbE, and 100GbE interfaces.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX1000 variants, parts & licenses.
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX1000 Packet Transport Router is a high-density solution optimized for service provider and high-volume content provider networks. It delivers a rich IP/MPLS feature set with 2.88-Tbps capacity supporting 10GbE, 40GbE, and 100GbE interfaces.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX1000 variants, parts & licenses.
Product Information
The Juniper Networks® PTX Series Packet Transport Routers transform the core network with physical and virtual innovations that deliver unprecedented scale at the lowest cost per bit. Four fixed-configuration platforms are available: the PTX1000 Packet Transport Router, the industry’s first 2 U packet transport routing device; the PTX10001-36MR Packet Transport Router, a compact, power-optimized 400GbE platform based on custom Triton silicon; the PTX10002 Packet Transport Router, a second-generation device that doubles the density of the PTX1000 with Juniper Networks ExpressPlus™ silicon; and the PTX10003, the industry’s first 3U 400-GbE enabled packet transport routing device. These transport routers give cloud and communication providers the freedom to develop and deliver new virtualized services anywhere in the network with elastic architectures and precise traffic controls, without compromising the service experience.
The PTX1000, with its rich IP/MPLS feature set, lets service providers organically distribute peering points throughout the network without sacrificing performance and deployability—the main contributors to eroding TCO for service providers when peering. The PTX1000 expands the applications scope that the PTX Series architecture addresses, enabling service providers to implement a distributed core architecture for interconnecting growing cloud services. Service providers can distribute peering points to match traffic demand with an optimized core router without sacrificing performance or deployability. The PTX1000 is a first-generation fixed-configuration core router, providing up to 3 million FIB and 10+ million routing information base (RIB) in a 2 U footprint, making it easily deployable in space-constrained Internet exchange locations, remote central offices, and embedded peering points anywhere in the network, including cloud-hosted services.
The PTX1000 operates at 2.88 Tbps in a fixed core router configuration and supports flexible interface configuration options, including 288 10GbE ports via a quad small form-factor pluggable plus transceiver (QSFP+) breakout, 72 40GbE ports via QSFP+, and 24 100GbE ports via QSFP28.
Specs
‣ System throughput: 3 Tbps
‣ Forwarding capacity: Up to 2 Bpps
‣ Port Density: Max. 10GbE: 288; Max. 40GbE: 72; Max. 100GbE: 24
‣ Dimension (WxHxD): 17.4 x 3.46 x 31 in (44.2 x 8.8 x 78.7 cm)
‣ Rack units: 2 U
‣ Weight: 68 lb (31 kg)
‣ CPU: Intel Quad Core Ivy Bridge 2.5 GHz CPU
‣ RAM: 32 Gb SDRAM
‣ SSD: 64 GBx2
‣ Maximum power draw: 1425 W (AC, DC), 4862 BTU/hr
‣ Typical power draw: 1050 W (AC, DC), 3583 BTU/hr
‣ Power supply: 4x1600 watts (AC/DC)
‣ Cooling (front-to-back fan): 3 hot-swappable redundant fans
‣ Packet buffer: 24 Gb
‣ Latency: 2.5 µs within Packet Forwarding Engine (PFE), 5 µs between PFEs
‣ Power Efficiency (watts/Gbps): 0.4
/
Variant Product Details
Lightwire Systems offers the following PTX1000 variant options:
PTX1K-72Q-AC
PTX1000 base system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-72Q-DC
PTX1000 base system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-72Q-AC-IR
PTX1000 LSR/peering system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-72Q-DC-IR
PTX1000 LSR/peering system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-72Q-AC-R
PTX1000 full IP system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-72Q-DC-R
PTX1000 full IP system with 24-port 100GbE QSFP28/72-port 40GbE QSFP+/288-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-AC
PTX1000 base system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-DC
PTX1000 base system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-AC-IR
PTX1000 LSR/peering system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-DC-IR
PTX1000 LSR/peering system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-AC-R
PTX1000 full IP system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-36Q-DC-R
PTX1000 full IP system with 12-port 100GbE QSFP28/36-port 40GbE QSFP+/144-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-AC
PTX1000 base system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-DC
PTX1000 base system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-AC-IR
PTX1000 LSR/peering system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-DC-IR
PTX1000 LSR/peering system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-AC-R
PTX1000 full IP system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables, and 3 fan trays
PTX1K-18Q-DC-R
PTX1000 full IP system with 6-port 100GbE QSFP28/18-port 40GbE QSFP+/72-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables, and 3 fan trays
Part Numbers & Descriptions
Lightwire Systems offers the following PTX1000 parts & licenses:
S-PTX1K-72Q-SCA-UP
PTX1000 scale-up software license to upgrade 72 port system (base to LSR or LSR to full IP)
S-PTX1K-36Q-SCA-UP
PTX1000 scale-up software license to upgrade 36 port system (base to LSR or LSR to full IP)
S-PTX1K-18Q-SCA-UP
PTX1000 scale-up software license to upgrade 18 port system (base to LSR or LSR to full IP)
S-PTX1K-UPG-18Q
PTX1000 software license to add 18 more ports to base system
S-PTX1K-UPG-18Q-IR
PTX1000 software license to add 18 more ports to LSR/peering system
S-PTX1K-UPG-18Q-R
PTX1000 software license to add 18 more ports to full IP system
JPSU-1600W-AC-AFO
PTX1000 1600 W AC power supply
JPSU-1600W-DC-AFO
PTX1000 1600 W DC power supply
PTX1000-FAN-S
PTX1000 fan
JNP-3000W-DC-AFO
DC power supply for JNP10003-160C and JNP10003-80C fixed platforms
