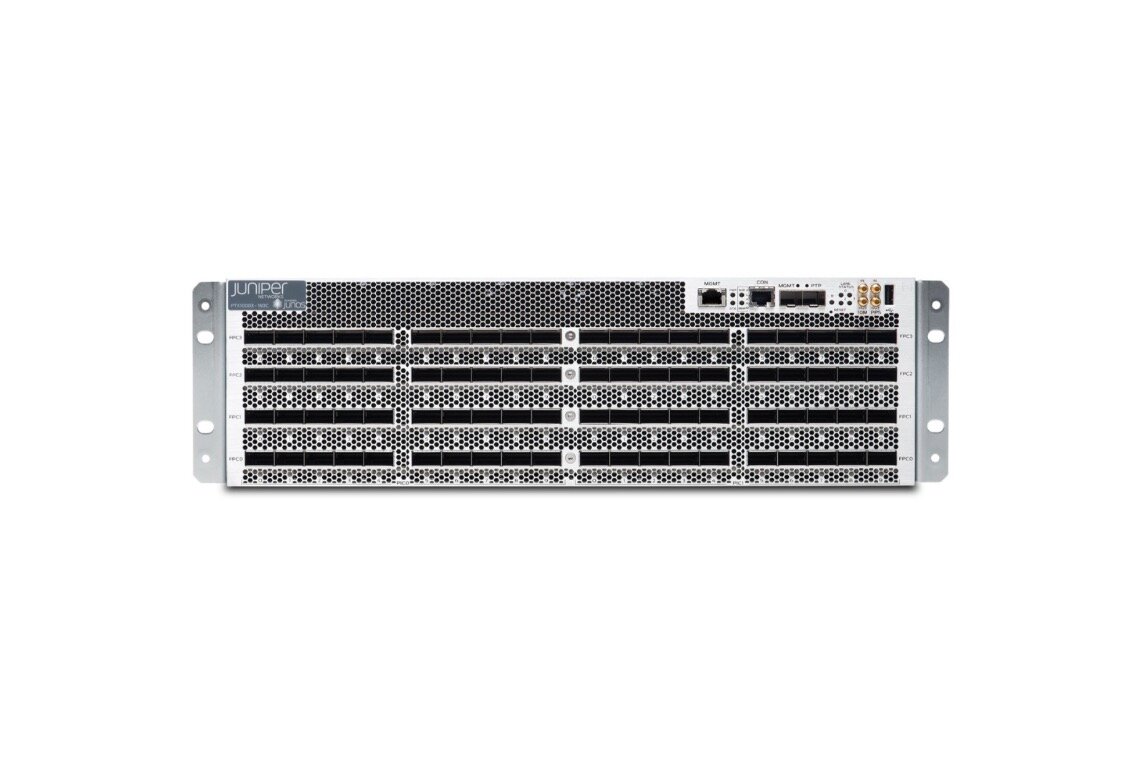

Juniper PTX10003 Router
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX10003 Packet Transport Router offers on-demand scalability for critical core and peering functions. With high-density 100GbE, 200GbE, and 400GbE ports, operators can meet high-volume demands with efficiency, programmability, and performance at scale.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX10003 variants, parts & licenses.
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX10003 Packet Transport Router offers on-demand scalability for critical core and peering functions. With high-density 100GbE, 200GbE, and 400GbE ports, operators can meet high-volume demands with efficiency, programmability, and performance at scale.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX10003 variants, parts & licenses.
Changing market dynamics have intensified the challenge of accommodating growth with traditional products and architectures. Juniper’s secure and automated solutions help cloud-based networks quickly react to these evolving conditions, accelerating service delivery with world-class products and innovative architectural components. PTX Series Packet Transport Routers with custom ExpressPlus and Triton silicon are an integral part of this solution, delivering a massively scalable and efficient core architecture across space- and power-constrained cloud provider, service provider, and enterprise networks, reducing TCO with innovative, highly flexible, high-performance platforms built for the most demanding environments.
The PTX10003 Packet Transport Router offers on-demand scalability for critical core and peering functions. With high-density 100GbE, 200GbE, and 400GbE ports, operators can meet high-volume demands with efficiency, programmability, and performance at scale.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on PTX10003 variants, parts & licenses.
Product Information
The scalable PTX10003 Packet Transport Router delivers critical core routing functions on demand while providing high-density 10GbE, 40GbE, 100GbE, 200GbE, and 400GbE interfaces for distributed core networks and network applications. The router's compact form factor and power efficiency meets the demands of Internet service providers, cloud providers, cable multiple service operators (MSOs), and high-volume content providers. The PTX10003 offers secure transit, peering, and full IP/MPLS and SPRING applications in the data center edge and content delivery network (CDN) core.
The PTX10003 is a fixed-configuration core router featuring a compact, 3 U form factor that is easy to deploy in space-constrained Internet exchange locations, remote central offices, and embedded peering points throughout the network, including cloud-hosted services. It offers up to 4 million FIB, deep buffers, and integrated 100GbE MACsec capabilities.
The PTX10003 uniquely addresses power-constrained environments by providing unprecedented power efficiency of 0.2 watts/Gbps. Two versions of the PTX10003 are available, supporting 8 Tbps and 16 Tbps respectively in a 3 U footprint.
Operating in a fixed core router configuration, the 8 Tbps model features flexible interface configuration options with universal multi-rate QSFP-DD for 100GbE/400GbE to support 160 (QSFP+) 10GbE ports, 80 (QSFP28) 100GbE ports, 32 (QSFP28-DD) 200GbE ports, and 16 (QSFP56-DD) 400GbE ports.
The 16 Tbps model also offers universal multi-rate QSFP-DD for 100GbE/400GbE to support 320 (QSFP+) 10GbE ports, 160 (QSFP28) 100GbE ports, 64 (QSFP28-DD) 200GbE ports, and 32 (QSFP56-DD) 400GbE ports.
Specs
‣ PTX10003 (8T) PTX10003 (16T)
‣ System throughput: 8 Tbps
‣ Forwarding capacity: Up to 5.3 Bpps
‣ Port Density: Max. 10GbE: 160; Max. 40GbE: 40; Max. 100GbE: 80; Max 200GbE: 32;
Max 400GbE: 16
‣ Dimension (WxHxD): 17.4 x 5.25 x 31 in (44.2 x 13.3 x 78.7 cm)
‣ Rack units: 3 U
‣ Weight: 88 lb (40 kg)
‣ CPU: Intel Broadwell CPU with 12 Cores
‣ RAM: 64 Gb SDRAM
‣ SSD: 200 GBx2
‣ Maximum power draw: ~2500 W (AC,DC), 8525 BTU/hr
‣ Power supply: 2x3000 watts (AC/DC)
‣ Cooling (front-to-back fan): 3 hot-swappable redundant fans
‣ Packet buffer: 64 Gb
‣ Latency: 2.5 µs within PFE, 5 us between PFEs
PTX10003 (16T)
‣ System throughput: 16 Tbps
‣ Forwarding capacity: Up to 10.6 Bpps
‣ Port Density: Max. 10GbE: 320; Max. 40GbE: 80; Max. 100GbE: 160; Max 200GbE: 64;
Max 400GbE: 32
‣ Dimension (WxHxD): 17.4 x 5.25 x 31 in (44.2 x 13.3 x 78.7 cm)
‣ Rack units: 3 U
‣ Weight: 110 lb (50 kg)
‣ CPU: Intel Broadwell CPU with 12 Cores
‣ RAM: 64 Gb SDRAM
‣ SSD: 200 GBx2
‣ Maximum power draw: ~4000 W (AC.DC), 13640 BTU/hr
‣ Power supply: 4x3000 watts (AC/DC)
‣ Cooling (front-to-back fan): 5 hot-swappable redundant fans
‣ Packet buffer: 128 Gb
‣ Latency: 2.5 µs within PFE, 5 us between PFEs
‣ Power Efficiency (watts/Gbps): 0.2
/
Variant Product Details
Lightwire Systems offers the following PTX10003 variant options:
PTX10003-160C-AC
PTX10003-160C base system with 160 100GbE ports or 32 400GbE ports, 4 3000W AC power supplies, 4 power cables, and 5 fan trays, with standard tier right-to-use license
PTX10003-160C-DC
PTX10003-160C base system with 160 100GbE ports or 32 400GbE ports, 4 3000W DC power supplies, and 5 fan trays, with standard tier right-to-use license
PTX10003-80C-AC
PTX10003-80C base system with 80 100GbE ports or 16 400GbE ports, 2 3000W AC power supplies, 2 power cables, and 3 fan trays, with standard tier right-to-use license
PTX10003-80C-DC
PTX10003-80C base system with 80 100GbE ports or 16 400GbE ports, 2 3000W DC power supplies, and 3 fan trays, with standard tier right-to-use license
Part Numbers & Descriptions
Lightwire Systems offers the following PTX10003 parts & licenses:
JNP10003-160C-CHAS
JNP10003-160C spare chassis with 160 100GbE ports or 32 400GbE ports
JNP10003-80C-CHAS
JNP10003-80C spare chassis with 80 100GbE ports or 16 400GbE ports
JNP10003-FAN
Fan tray for 3RU 8T and 16T fixed platforms
JNP-3000W-AC-AFO
AC power supply for JNP10003-160C and JNP10003-80C fixed platforms
