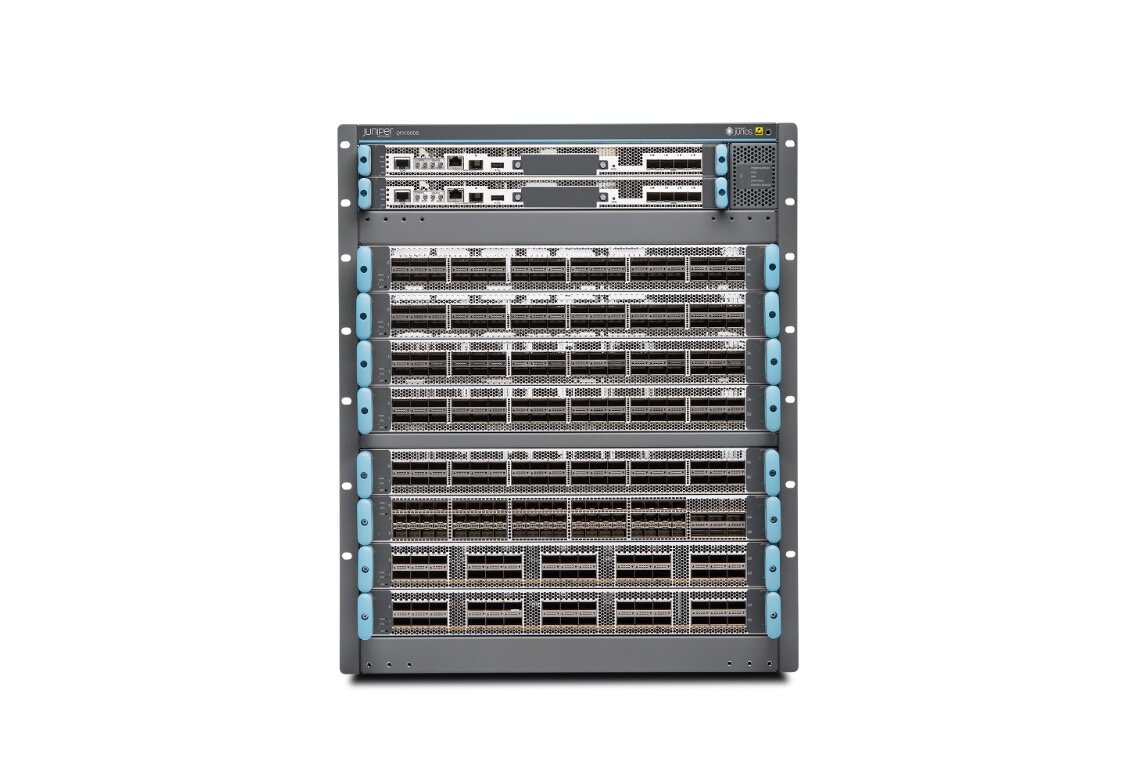

Juniper QFX10008 & QFX10016 Switches
QFX10008 and QFX10016 Switches offer a highly scalable network foundation to support demanding data center, campus, and routing environments. Using our custom silicon Q5 ASICs, these modular switches include deep buffers and 1/10/40/100/200GbE interface options. With up to 96 Tbps throughput and the QFX10000 set of line cards, they provide flexibility and capacity for long-term investment protection.
QFX10008 and QFX10016 Switches have architectural flexibility, so you’ll never be locked into a proprietary solution. They operate in diverse network environments, including spine-and-leaf fabrics and EVPN-VXLAN overlay architectures.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10008 & QFX10016 switches, parts & licenses.
QFX10008 and QFX10016 Switches offer a highly scalable network foundation to support demanding data center, campus, and routing environments. Using our custom silicon Q5 ASICs, these modular switches include deep buffers and 1/10/40/100/200GbE interface options. With up to 96 Tbps throughput and the QFX10000 set of line cards, they provide flexibility and capacity for long-term investment protection.
QFX10008 and QFX10016 Switches have architectural flexibility, so you’ll never be locked into a proprietary solution. They operate in diverse network environments, including spine-and-leaf fabrics and EVPN-VXLAN overlay architectures.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10008 & QFX10016 switches, parts & licenses.
QFX10008 and QFX10016 Switches offer a highly scalable network foundation to support demanding data center, campus, and routing environments. Using our custom silicon Q5 ASICs, these modular switches include deep buffers and 1/10/40/100/200GbE interface options. With up to 96 Tbps throughput and the QFX10000 set of line cards, they provide flexibility and capacity for long-term investment protection.
QFX10008 and QFX10016 Switches have architectural flexibility, so you’ll never be locked into a proprietary solution. They operate in diverse network environments, including spine-and-leaf fabrics and EVPN-VXLAN overlay architectures.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10008 & QFX10016 switches, parts & licenses.
Product Information
The QFX10000 line can be deployed in a number of different network designs and fabrics, including IP fabric with Ethernet VPN (EVPN)-Virtual Extensible LAN (VXLAN) and Juniper MC-LAG for Layer 2 and Layer 3 networks, giving customers complete architectural flexibility. Additionally, the open architecture ensures that customers can innovate on top of Juniper Networks Junos® operating system to accelerate the pace of innovation.
Two QFX10000 modular chassis options are available, providing full deployment flexibility:
‣ QFX10008 Ethernet Switch, an 8-slot, 13 U chassis that supports up to eight line cards
‣ QFX10016 Ethernet Switch, a 16-slot, 21 U chassis that supports up to 16 line cards
Both QFX10000 modular chassis can accommodate any combination of the following QFX10000 line cards:
‣ QFX10000-36Q, a 36-port 40GbE quad small form-factor pluggable plus transceiver (QSFP+) or
12-port 100GbE QSFP28 line card
‣ QFX10000-30C, a 30-port 100GbE QSFP28/40GbE QSFP+ line card
‣ QFX10000-60S-6Q, a 60-port 1GbE/10GbE SFP/SFP+ line card with six-port 40GbE QSFP+ /
two-port 100GbE QSFP28
‣ QFX10000-30C-M, a 30-port 100GbE QSFP28/40GbE QSFP+ MACsec line card
‣ QFX10K-12C-DWDM, a 6-port 200GbE Coherent DWDM MACsec line card
Fully configured, a single QFX10016 chassis can support up to 480 100GbE ports, delivering the industry’s highest line-rate 100GbE port densities in its class. The QFX10000 switch fabric is capable of delivering up to 7.2 Tbps (full duplex) per slot, and the midplane- less orthogonal interconnect architecture ensures system longevity.
Specs
‣ System Throughput:
— QFX10008: 48 Tbps
— QFX10016: 96 Tbps
‣ Forwarding Capacity:
— QFX10008: 16 Bpps
— QFX10016: 32 Bpps
‣ Weight:
— QFX10008: 280 lbs (127 kg) Up to 493 lbs (224 kg)
— QFX10016: 491 lbs (223 kg) Up to 938 lbs (425 kg)
‣ Dimensions:
— QFX10008: 17.4 x 22.55 x 32 (44.2 x 57.3 x 81.3 cm)
— QFX10016: 17.4 x 36.65 x 35 (44.2 x 93 x 88.9 cm)
‣ Rack Units:
— QFX10008: 13 U
— QFX10016: 21 U
‣ MAC Addresses: Up to 1 Million
‣ Jumbo Frames: 9216
‣ Vlans: 4093
‣ Forwarding information base (FIB) (IPv4/IPv6): 2 Million
‣ IPv4 Multicast: Up to 128,000
‣ IPv6 Multicast: Up to 128,000
‣ BGP Neighbors (Premium License): 1024
Variant Product Details
Lightwire Systems offers the following QFX10008/16 Series variants:
QFX10008-REDUND
QFX10008 redundant 8-slot chassis with 2 CBs, 6 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards
QFX10008-REDUND-H
QFX10008 Redundant 8-slot chassis with 2 CBs, 6 HVDC- capable power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards
QFX10008-BASE
QFX10008 Base 8-slot chassis with 1 CB, 3 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards
QFX10008-BASE-H
QFX10008 Base 8-slot chassis with 1 CB, 3 HVDC-capable power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards
QFX10008-REDUND-DC
QFX10008 Redundant 8-slot chassis with 2 CBs, 6 2,500 W DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards
QFX10016-REDUND
QFX10016 Redundant 16-slot chassis with 2 CBs, 10 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards
QFX10016-BASE
QFX10016 Base 16-slot chassis with 1 CB, 5 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards
QFX10016-REDUND-DC
QFX10016 Redundant 16-slot chassis with 2 CBs, 10 2,500 W DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 switch fabric cards
Part Numbers & Descriptions
Lightwire Systems offers the following QFX10008 & QFX 10016 Series parts & licenses:
QFX10000-36Q
QFX10000 36-port 40GbE QSFP+ / 12-port 100GbE QSFP28 line card
QFX10000-30C
QFX10000 30-port 100GbE QSFP28/40GbE QSFP+ line card
QFX10000-30C-M
QFX10000 30-port 100GbE QSFP28/40GbE QSFP+ MACsec line card
QFX10000-60S-6Q
QFX10000 60-port 1/10GbE SFP/SFP+ line card with 6 40GbE QSFP+ / 2 100GbE QSFP28 ports
QFX10K12C-DWDM
QFX10000 1.2 Tbps 6-port 200GbE line rate Coherent DWDM MACsec line card
JNP-QSFP-100G-SR4
QSFP28 100GBASE-SR4 Optics for up to 100 m transmission over parallel multi-mode fiber (MMF)
JNP-QSFP-100G-LR4
QSFP28 100GBASE-LR4 Optics for up to 10 km transmission over serial single-mode fiber (SMF)
JNP-QSFP-100G-PSM4
QSFP28 100GBASE-PSM4 Optics for up to 2 km transmission over parallel SMF
JNP-QSFP-100G-CWDM
QSFP28 100GBASE-CWDM4 Optics for up to 2 km transmission over serial SMF
JNP-QSFP-40GE-IR4
QSFP+ 40GBASE-IR4 40 Gigabit optics, 1,310 nm for up to 2 km transmission on SMF
JNP-QSFP-40G-LR4
QSFP+ 40GBASE-LR4 40 Gigabit optics, 1,310 nm for up to 10 km transmission on SMF
JNP-QSFP-40G-LX4
QSFP+ 40GBASE-LX4 40 Gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber
JNP-QSFP-4X10GE-IR
QSFP+ 40GBASE Optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km)
JNP-QSFP-4X10GE-LR
QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km)
QFX-QSFP-40G-ESR4
QSFP+ 40GBASE-ESR4 40 Gigabit optics, 300 m (400 m) with OM3 (OM4) MMF
QFX-QSFP-40G-SR4
QSFP+ 40GBASE-SR4 40 Gigabit optics, 850 nm for up to 150 m transmission on MMF
QFX-SFP-10GE-LR
SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF
QFX-SFP-10GE-SR
SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF
QFX-SFP-10GE-USR
SFP+ 10-Gigabit Ethernet ultra short reach optics, 850 nm for 10 m on OM1, 2 0 m on OM2, 100 m on OM3 multi-mode fiber
QFX-SFP-1GE-LX
SFP 1000BASE-LX Gigabit-Ethernet optics, 1,310 nm for 10 km transmission on SMF
QFX-SFP-1GE-SX
SFP 1000BASE-SX Gigabit-Ethernet optics, 850 nm for up to 550 m transmission on MMF
QFX-SFP-1GE-T
SFP 1000BASE-T Copper transceiver module for up to 100 m transmission on Cat5
**Please Contact Us for Optics and for Software Feature Licenses
