Juniper QFX5220 Switch
The Juniper Networks® QFX5220 Switch is a next-generation, fixed-configuration spineand-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE*, 100GbE, 50GbE*, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers. QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5220 switches and parts & licenses.
The Juniper Networks® QFX5220 Switch is a next-generation, fixed-configuration spineand-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE*, 100GbE, 50GbE*, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers. QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5220 switches and parts & licenses.
The Juniper Networks® QFX5220 Switch is a next-generation, fixed-configuration spineand-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE*, 100GbE, 50GbE*, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers. QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5220 switches and parts & licenses.
Product Information
The Juniper Networks® QFX5220 Switch is a next-generation, fixed-configuration spine-and-leaf switch. It offers flexible, cost-effective, high-density 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity, and delivers a versatile, future-proofed solution for today’s data centers.
QFX5220 switches support advanced Layer 2, Layer 3, and MPLS features. For large public cloud providers—early adopters of high-performance servers to meet explosive workload growth—the QFX5220 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5220 switch also provides a high radix-native 100GbE lean-spine option at reduced power and a smaller footprint.
Two QFX5220 models are available, supporting different configurations and use cases. Delivering 25.6 Tbps of bandwidth, both models are optimally designed for spine-and-leaf deployments in enterprise, HPC, service provider, and cloud data centers.
‣ QFX5220-32CD: The QFX5220-32CD offers 32 ports in a low-profile 1 U form factor. High-speed ports support a wide variety of port configurations, including 400GbE, 200GbE, 100GbE, 25GbE, 40GbE, and 10GbE. The QFX5220-32CD is equipped with two AC or DC power supplies, providing 1+1 redundancy when all power supplies are present, and six hot-swappable fans offering ports-to-FRUs (AFO) or FRUs-to-ports (AFI) airflow options, providing (5x2+1)+1 redundancy.

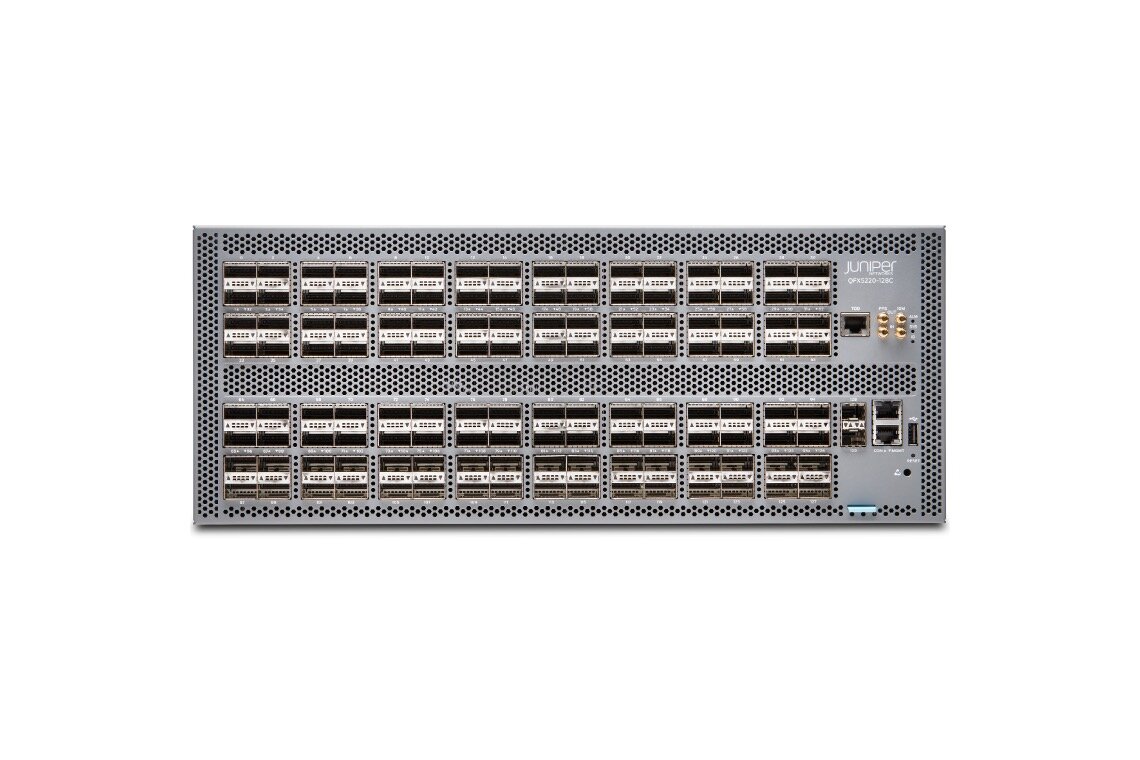

‣ QFX5220-128C: The QFX5220-128C offers 128 ports in a 4 U form factor. The high-speed ports support a wide variety of configurations, including 100GbE and 40GbE. The switch is equipped with four AC or DC power supplies, providing 2+2 redundancy when all power supplies are present, and six hot-swappable ports-to-FRUs (AFO) airflow fans, providing (5x2+1) +1 redundancy.
Both QFX5220 switch models include an Intel XeonD-1500 processor to drive the control plane, which runs the Juniper Networks Junos® OS Evolved operating system software.
Specs
‣ System throughput: Up to 25.6 Tbps (bidirectional)
‣ Forwarding capacity: Up to 8 Bpps
‣ Rack Units: 2 U
‣ Weight:
— QFX5220-32CD: 24.5 lbs/14.1 kg
— QFX5220-128C: 98 lbs/44.4 kg
‣ Dimensions (H x W x D):
— QFX5220-32CD: 17.26 x 1.72 x 21.1 (43.8 x 4.3 x 53.59 cm)
— QFX5220-128C: 17.26 x 6.88 x 29 (43.8 x 17.47 x 73.66 cm)
‣ CPU: Intel Xeon D-1518
‣ Performance Scale:
— MAC addresses per system: 264,000
— VLAN IDs: 3,968
— Number of link aggregation groups (LAGs): 128
— IPv4 route capacity: 380,000
— IPv4 host table capacity: 380,00
— IPv6 route capacity: 130,000
— IPv6 host table capacity: 130,000
— Address Resolution Protocol (ARP) entries: 32,000
— Generic routing encapsulation (GRE) tunnels: 2000
— MPLS labels: 16,000
— Jumbo frame: 9216 bytes
— Traffic mirroring
— Mirroring destination ports per switch: 4
— Maximum number of mirroring sessions: 4
— Mirroring destination VLANs per switch: 4
Variant Product Details
Lightwire Systems offers the following QFX5220 Series variants:
QFX5220-32CD-AFI
QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/
QSFP28 ports, redundant fans, 2 AC power supplies, back-tofront airflow
QFX5220-32CD-AFO
QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/
QSFP28 ports, redundant fans, 2 AC power supplies, front-toback airflow
QFX5220-32CD-D-AFI
QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/
QSFP28 ports, redundant fans, 2 DC power supplies, back-tofront airflow
QFX5220-32CD-D-AFO
QFX5220 (hardware with base software), 32 QSFP-DD/QSFP+/
QSFP28 ports, redundant fans, 2 DC power supplies, front-toback airflow
QFX5220-128C-AFO
QFX5220 (hardware with base software), 128 QSFP+/QSFP28
ports, redundant fans, 4 AC power supplies, front-to-back
airflow
QFX5220-128C-D-AFO
QFX5220 (hardware with base software), 128 QSFP+/QSFP28
ports, redundant fans, 4 DC power supplies, front-to-back
airflow
Part Numbers & Descriptions
Lightwire Systems offers the following QFX5220 Series parts & licenses:
JPSU-1600W-1UACAFI
QFX5220-32CD-AFI 1 U AC power supply unit
JPSU-1600W-1UACAFO
QFX5220-32CD-AFO 1 U AC power supply unit
JPSU-1600W-1UDCAFI
QFX5220-32CD-D-AFI 1 U DC power supply unit
JPSU-1600W-1UDCAFO
QFX5220-32CD-D-AFO 1 U DC power supply unit
QFX5220-32CD-4PRMK
4-Post Rack Mount Kit for QFX5220-32CD
RKMT-4PST-4U
4-Post Rack Mount Kit for QFX5220-128C
QFX5220-32CD-FANAI
Airflow in (AFI) back-to-front airflow fans for QFX5220-32CD
QFX5220-32CD-FANAO
Airflow out (AFO) front-to-back airflow fans for QFX5220-32CD
QFX5220-128C-FANAO
Airflow out (AFO) front-to-back airflow fans for
QFX5220-128C
QFX5220-14I-EMI-DR
QFX5220-128C 14 in. EMI door
**Please Contact Us for Optics and/or MACsec and Flex Software Licenses
