Juniper QFX5100 Switch
The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industry’s most nimble family of switches.
Featuring Topology-Independent In-Service Software Upgrades (TISSU*) and support for L2 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5100 switches and parts & licenses.
The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industry’s most nimble family of switches.
Featuring Topology-Independent In-Service Software Upgrades (TISSU*) and support for L2 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5100 switches and parts & licenses.
The Juniper Networks QFX5100 line of access and aggregation switches delivers low latency, flexible deployment options, and rich Layer 2 and Layer 3 features, making it the industry’s most nimble family of switches.
Featuring Topology-Independent In-Service Software Upgrades (TISSU*) and support for L2 gateway capabilities for bridging between virtualized and bare-metal servers, the QFX5100 is designed for the most demanding, high-performance data center deployments. Highly flexible, the QFX5100 can be deployed in mixed 1GbE, 10GbE, and 40GbE environments within Juniper Virtual Chassis architectures, as well as within industry-standard architectures such as spine and leaf and Layer 3 fabrics.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX5100 switches and parts & licenses.
Product Information
The QFX5100 line includes four compact 1 U models and one 2 U model, each providing wire-speed packet performance, very low latency, and a rich set of Junos OS features. In addition to a high throughput Packet Forwarding Engine (PFE), the performance of the control plane running on all QFX5100 models is further enhanced with a powerful 1.5 GHz dual-core Intel CPU with 8 GB of memory and 32 GB SSD storage.
QFX5100-48S
Compact 1 U 10GbE data center access switch with 48 small form-factor pluggable and pluggable plus (SFP/SFP+) transceiver ports and six quad SFP+ (QSFP+) ports with an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch.
QFX5100-48T
Compact 1 U 10GbE data center access switch with 48 tri-speed (10GbE/1GbE/100 Mbps) RJ-45 ports and six QSFP+ ports with an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch.
QFX5100-24Q

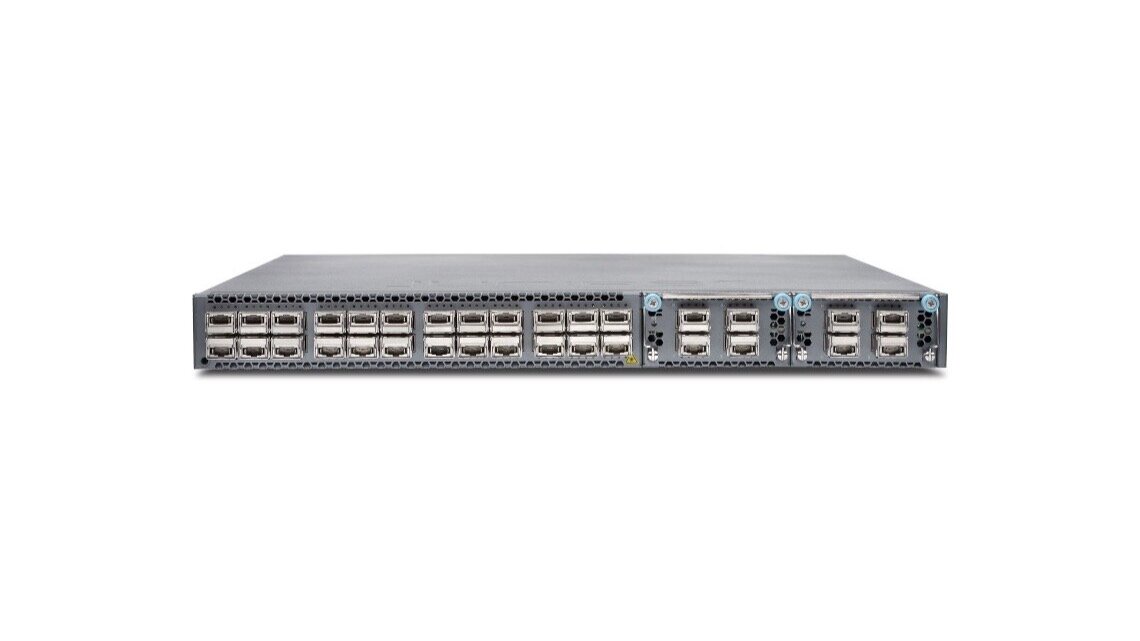

Compact 1 U high-density 40GbE data center access and aggregation switch starting at a base density of 24 QSFP+ ports with the option to scale to 32 QSFP+ ports with two four-port expansion modules. All 32 ports support wire-speed performance with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch.
QFX5100-24Q-AA
Compact 1U high-density data center switch starting with a base density of 24 QSFP+ ports. With the addition of an optional double-wide QFX-PFA-4Q Packet Flow Accelerator (PFA) expansion module, the switch can morph into an intelligent application acceleration system. Alternatively, by installing two four-port 40GbE expansion modules, the QFX5100-24Q-AA can expand to support 32 QSFP+ ports. The switch’s CPU subsystem is enhanced with a quad-core Intel CPU with 32 GB of DRAM; additional storage capacity is provided via an onboard 128 GB solid-state drive. The QFX-PFA-4Q features an Altera Stratix V 320 Gbps FPGA with 24 GB SDRAM (DDR3) for packet memory and 72 MB of quad data-rate static RAM (SRAM) (QDR2+) for low-latency processing. For additional details, see the QFX5100-24Q-AA data sheet.
QFX5100-96S
Compact 2 U high-density 10GbE aggregation switch with 96 SFP+/SFP and eight QSFP+ ports with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch.
For added flexibility, the 40GbE ports on all QFX5100 switches can be used as 4x10GbE ports using QSFP+ to SFP+ direct attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. With splitter cables, the QFX5100-48S supports up to 72 10GbE ports, while the QFX5100-24Q and QFX5100-96S support up to 104 10GbE ports.
Specs
‣ Switching Capacity:
— QFX5100-48S: 1.44 Tbps/1.08 Bpps
— QFX5100-48T: 1.44 Tbps/1.08 Bpps
— QFX5100-24Q: 2.56 Tbps/1.44 Bpps
— QFX5100-24Q-AA: 2.56 Tbps/1.44. Bpps
— QFX5100-96S: 2.56 Tbps/1.44 Bpps
‣ Weight:
— QFX5100-48S: 21.8 lb (9.9 kg)
— QFX5100-48T: 24.8 lb (11.2 kg)
— QFX5100-24Q: 21.6 lb (9.8 kg)
— QFX5100-24Q-AA: 21.6 lb (9.8 kg)
— QFX5100-96S: 32.5 lb (14.74 kg)
‣ Dimensions (H x W x D):
— QFX5100-48S: 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
— QFX5100-48T: 1.72 x 17.36 x 21.47 in (4.37 x 44.09 x 54.54 cm)
— QFX5100-24Q: 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
— QFX5100-24Q-AA: 1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
— QFX5100-96S: 3.46 x 17.36 x 22.44 in (8.8 x 44.09 x 57 cm)
‣ Switching mode: Cut-through and store-and-forward
‣ Front-to-back or back-to-front airflow (for hot aisle/cold aisle deployment)
‣ Management and rear console port connections
‣ Rack Installation Kit: Versatile four post mounting options for 19-in server rack or
datacom rack
‣ Performance Scale:
— MAC addresses per system: 288,0003
— VLAN IDs: 4,096
— Number of link aggregation groups (LAGs): 128
— Number of ports per LAG: 32
— Number of FCoE VLANs/FC Virtual Fabrics: 4,095
— Firewall filters: 4000
— IPv4 unicast routes: 128,000 prefixes; 208,000 host routes; 644 ECMP paths
— IPv4 multicast routes: 104,000
— IPv6 multicast routes: 52,000
— IPv6 unicast routes: 64,000 prefixes
— ARP entries: 48,000
— Jumbo frame: 9,216 bytes
— Spanning Tree Protocol: Multiple Spanning Tree Protocol instances: 64, VLAN
— Spanning Tree Protocol (VSTP) instances: 253
‣ Traffic mirroring:
— Mirroring destination ports per switch: 4
— Maximum number of mirroring sessions: 4
— Mirroring destination VLANs per switch: 4
Variant Product Details
Lightwire Systems offers the following QFX5100 Series variants:
QFX5100-48S-AFI
QFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-48S-AFO
QFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant AC power supplies, front-to-back airflow
QFX5100-48S-DC-AFI
QFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-48S-DC-AFO
QFX5100, 48 SFP+/SFP ports, 6 QSFP ports, redundant fans, redundant DC power supplies, front-to-back airflow
QFX5100-48T-AFI
QFX5100, 48 100M/1G/10G RJ-45 ports, 6 QSFP ports, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-48S-3AFI
QFX5100,48 SFP+/SFP ports, 6 QSFP+ ports, dual SFP/RJ-45 management ports, redundant fans, 2 AC power supplies, back-to-front airflow
QFX5100-48S-3AFO
QFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, dual SFP/RJ-45 management ports, redundant fans, redundant AC power supplies, front-to-back airflow
QFX5100-48S-D-3AFI
QFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, dual SFP/RJ-45 management ports, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-48S-D-3AFO
QFX5100, 48 SFP+/SFP ports, 6 QSFP+ ports, dual SFP/RJ-45 management ports, redundant fans, redundant DC power supplies, front-to-back airflow
QFX5100-48T-AFO
QFX5100, 48 100M/1G/10G RJ-45 ports, 6 QSFP ports, redundant fans, redundant AC power supplies, built-in port-to-PSU airflow
QFX5100-48T-DC-AFI
QFX5100, 48 100M/1G/10G RJ-45 ports, 6 QSFP ports, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-48T-DC-AFO
QFX5100, 48 100M/1G/10G RJ-45 ports, 6 QSFP ports, redundant fans, redundant DC power supplies, front-to-back airflow
QFX5100-24Q-AFI
QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-24Q-AFO QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant power AC supplies. front-to-back airflow
QFX5100-24Q-DC-AFI
QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-24Q-AFO QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant power AC supplies. front-to-back airflow
QFX5100-24Q-DC-AFI
QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-24Q-DC-AFO
QFX5100, 24 QSFP ports, 2 expansion slots, redundant fans, redundant DC power supplies, front-to-back airflow
QFX5100-24Q-3AFI
QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ-45 management ports, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-24Q-3AFO
QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ-45 management ports, redundant fans, redundant AC power supplies, front-to-back airflow
QFX5100-24Q-AA-AFI
QFX5100, 24 QSFP+ ports, double-wide expansion slot, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-24Q-AA-AFO
QFX5100, 24 QSFP+ ports, double-wide expansion slot, redundant fans, redundant AC power supplies, front-to-back airflow
QFX5100-24Q-D-3AFI
QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ-45 management ports, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-24Q-D-3AFO
QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ-45 management ports, redundant fans, redundant DC power supplies, front-to-back airflow
QFX5100-96S-AFI
QFX5100, 96 SFP/SFP+, 8 QSFP+, redundant fans, redundant AC power supplies, back-to-front airflow
QFX5100-96S-AFO
QFX5100, 96 SFP/SFP+, 8 QSFP+, redundant fans, redundant AC power supplies, front-to-back airflow
QFX5100-96S-DC-AFI
QFX5100, 96 SFP/SFP+, 8 QSFP+, redundant fans, redundant DC power supplies, back-to-front airflow
QFX5100-96S-DC-AFO
QFX5100, 96 SFP/SFP+, 8 QSFP+, redundant fans, redundant DC power supplies, front-to-back airflow
Part Numbers & Descriptions
Lightwire Systems offers the following QFX5100 Series parts & licenses:
PSU-650W-AC-AFO
AC 650W PSU, front-to-back airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
JPSU-650W-AC-AFI
AC 650W PSU, back-to-front airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
JPSU-650W-DC-AFO
DC 650W PSU, front-to-back airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
JPSU-650W-DC-AFI
DC 650W PSU, back-to-front airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
JPSU-850W-AC-AFO
AC 850W PSU, front-to-back airflow for QFX5100-96S
JPSU-850W-AC-AFI
AC 850W PSU, back-to-front airflow for QFX5100-96S
JPSU-850W-DC-AFO
DC 850W PSU, front-to-back airflow for QFX5100-96S
JPSU-850W-DC-AFI
DC 850W PSU, back-to-front airflow for QFX5100-96S
QFX5100-FAN-AFI
Back-to-front Airflow Fan Module for QFX5100-96S
QFX5100-FAN-AFO
Front-to-back Airflow Fan Module for QFX5100
QFX5100-EM-BLNK
Blank module for QFX5100
QFX5100-96S-FANAFO
Front-to-back Airflow Fan Module for QFX5100-96S
QFX5100-96S-FANAFI
Back-to-front Airflow Fan Module for QFX5100-96S
**Please Contact Us for Optics and Transceivers
