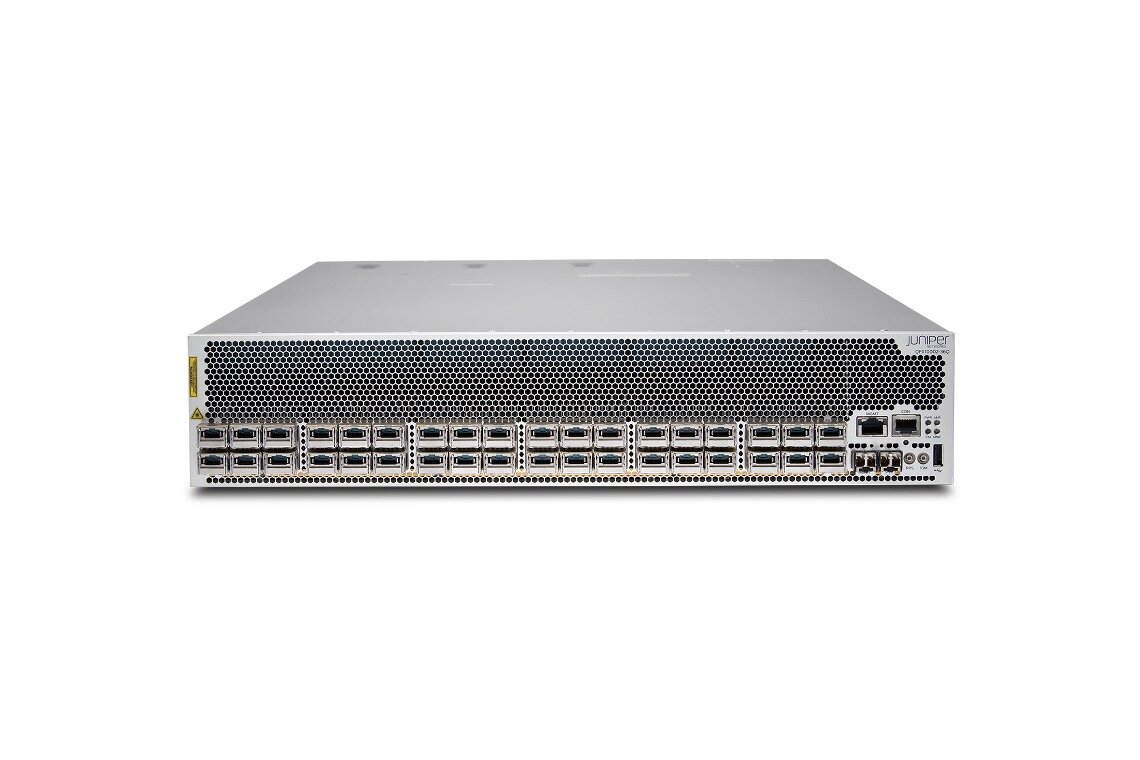

Juniper QFX10002 Switch
The QFX10002 fixed-configuration switches are very dense, highly scalable platforms designed for today’s most demanding data center, campus, and routing environments. They’re loaded with power and functionality, all housed in a compact, 2 U form factor.
Using our custom silicon Q5 ASICs, QFX10002 Switches feature a deep buffer with Hybrid Memory Cube (HMC) to absorb network traffic spikes and reduce application latency. They support 10GbE, 40GbE, and 100GbE in the same platform, providing the flexibility to transition to greater network capacity as traffic demands increase.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10002 switches, parts & licenses.
The QFX10002 fixed-configuration switches are very dense, highly scalable platforms designed for today’s most demanding data center, campus, and routing environments. They’re loaded with power and functionality, all housed in a compact, 2 U form factor.
Using our custom silicon Q5 ASICs, QFX10002 Switches feature a deep buffer with Hybrid Memory Cube (HMC) to absorb network traffic spikes and reduce application latency. They support 10GbE, 40GbE, and 100GbE in the same platform, providing the flexibility to transition to greater network capacity as traffic demands increase.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10002 switches, parts & licenses.
The QFX10002 fixed-configuration switches are very dense, highly scalable platforms designed for today’s most demanding data center, campus, and routing environments. They’re loaded with power and functionality, all housed in a compact, 2 U form factor.
Using our custom silicon Q5 ASICs, QFX10002 Switches feature a deep buffer with Hybrid Memory Cube (HMC) to absorb network traffic spikes and reduce application latency. They support 10GbE, 40GbE, and 100GbE in the same platform, providing the flexibility to transition to greater network capacity as traffic demands increase.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant QFX10002 switches, parts & licenses.
Product Information
Juniper Networks® QFX10002 fixed configuration switches offer 100GbE, 40GbE, and 10GbE options in a 2 U form factor. All switches support quad small form-factor pluggable plus transceiver (QSFP+) and QSFP28 ports for 40GbE and 100GbE speeds, respectively. With support for 10GbE, 40GbE, and 100GbE in a single platform, the QFX10002 switches provide the foundation for today’s data center, delivering long-term investment protection for current and emerging requirements.
Built on custom, Juniper-designed Q5 ASICs, the high-performance, highly versatile QFX10002 switches scale up to 6 Tbps of throughput. These switches offer the industry’s highest 100GbE port density with deep buffers—up to 60 ports in a 2 U fixed form factor. The QFX10002 enables a simple, consolidated network design and allows customers to seamlessly evolve data center networks from existing 10GbE and 40GbE architectures to 100GbE to keep pace with evolving needs.
The QFX10002 switches are members of the QFX10000 line of Ethernet switches, which can be deployed in a number of different designs and fabrics for Layer 2 and Layer 3 networks, including multichassis link aggregation (MC-LAG), Junos Fusion, and EVPN/VXLAN-based configurations on IP fabric underlay. The open architecture ensures customers can build on top of Juniper Networks Junos® operating system to accelerate their pace of innovation. The QFX10000 switches also support Data Center Interconnect (DCI), critical to workload mobility and application availability.
The QFX10002 line includes three fixed 2 U switch models, each providing wire-speed packet performance in 10GbE, 40GbE, or 100GbE speeds. All three switches provide a rich set of Junos OS features. In addition to a high throughput Q5 ASIC, the control plane performance on all QFX10002 switches is further enhanced with a powerful 2.5 GHz quad core Intel CPU and from 16 to 32 GB of SDRAM.
‣ QFX10002-60C: The QFX10002-60C 100GbE switch features 60 QSFP28 ports, 60 QSFP+ 40GbE ports, or 192 QSFP+ 10GbE ports with four redundant 1600 W AC/DC power supplies and three fan trays.
‣ QFX10002-36Q: The QFX10002-36Q 40GbE switch features 36 QSFP+ ports or 12 QSFP28 100GbE ports with two redundant 1600 W AC/DC power supplies and three fan trays.
‣ QFX10002-72Q: The QFX10002-72Q 40GbE switch offers 72 QSFP+ ports or 24 QSFP28 100GbE ports with four redundant 1600 W AC/DC power supplies and three fan trays.
Specs
‣ System throughput:
— QFX10002-36Q: 2.88 Tbps
— QFX10002-72Q: 5.76 Tbps
— QFX10002-60C: 12 Tbps
‣ Forwarding capacity:
— QFX10002-36Q: 1 Bpps
— QFX10002-72Q: 2 Bpps
— QFX10002-60C: 4 Bpps
‣ Weight:
— QFX10002-36Q: 50 lbs.
(23 Kg)
— QFX10002-72Q: 68.6 lbs.
(31 Kg)
— QFX10002-60C: 80.5 lbs.
(36.5 kgs)
‣ Dimensions (H x W x D):
— QFX10002-36Q: 17.4 x 3.46 x 31
— QFX10002-72Q: 17.4 x 3.46 x 31
— QFX10002-60C: 17.4 x 3.46 x 31
‣ MAC Addresses:
— QFX10002-36Q: Up to 256,000; up to 96,000 learned per PFE
— QFX10002-72Q: Up to 512,000; up to 96,000 learned per PFE
— QFX10002-60C: Up to 1 million
‣ Frames: 9216
‣ Vlans: 4000
‣ Forwarding Information base (FIB) (IPv4/IPv6): 2 Million
‣ IPv4 Multicast: Up to 128,000
‣ IPv6 Multicast: Up to 128,000
‣ BGP Neighbors (Premium License): 1024
Variant Product Details
Lightwire Systems offers the following QFX10002 Series variants:
QFX10002-60C
QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+ with 4 1600 W AC power supplies, 4 power cables and 3 fan trays
QFX10002-60C-DC
QFX10002 system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+ with 4 1600 W DC power supplies, 4 power cables and 3 fan trays
QFX10002-72Q
QFX10002 system with 72-port 40GbE QSFP+ / 24-port 100GbE QSFP28 / 288-port 10GbE SFP+ with 4 1600 W AC power supplies and 3 fan trays
QFX10002-36Q
QFX10002 system with 36-port 40GbE QSFP+ / 12-port 100GbE QSFP28 / 144-port 10GbE SFP+ with 2 1600 W AC power supplies and 3 fan trays
QFX10002-72Q-DC
QFX10002 system with 72-port 40GbE QSFP+ / 24-port 100GbE QSFP28 / 288-port 10GbE SFP+ with 4 1600 W DC power supplies and 3 fan trays
QFX10002-36Q-DC
QFX10002 system with 36-port 40GbE QSFP+ / 12-port 100GbE QSFP28 / 144-port 10GbE SFP+ with 2 1600 W DC power supplies and 3 fan trays
Part Numbers & Descriptions
Lightwire Systems offers the following QFX10002 Series parts & licenses:
JPSU-1600W-DC-AFO
QFX10002 1600 W DC power supply
JPSU-1600W-AC-AFO
QFX10002 1600 W AC power supply
QFX10002-FAN
QFX10002 fan tray
JNP10002-FAN1
Fan for JNP10002-60C
JNP10002-60C-CHAS
JNP system with 60-port 100GbE QSFP28 / 60-port 40GbE QSFP+ / 192-port 10GbE SFP+, chassis only
QFX10002-60C-PFL
QFX10002-60C Premium Feature License
QFX10002-60C-AFL
QFX10002-60C Advanced Feature License
QFX10002-60C-LFIB
QFX10002-60C 1 million FIB license
QFX10002-36Q-PFL
QFX10002-36Q Premium Feature License
QFX10002-36Q-AFL
QFX10002-36Q Advanced Feature License
QFX10002-72Q-PFL
QFX10002-72Q Premium Feature License
QFX10002-72Q-AFL
QFX10002-72Q Advanced Feature License
QFX10002-72Q-LFIB
1 million FIB license for QFX10002 72-port 40GbE QSFP+/24-port 100GbE QSFP28 switch
QFX10002-36Q-LFIB
1 million FIB license for QFX10002 36-port 40GbE QSFP+/12-port 100GbE QSFP28 switch
**Please Contact Us for Optics
