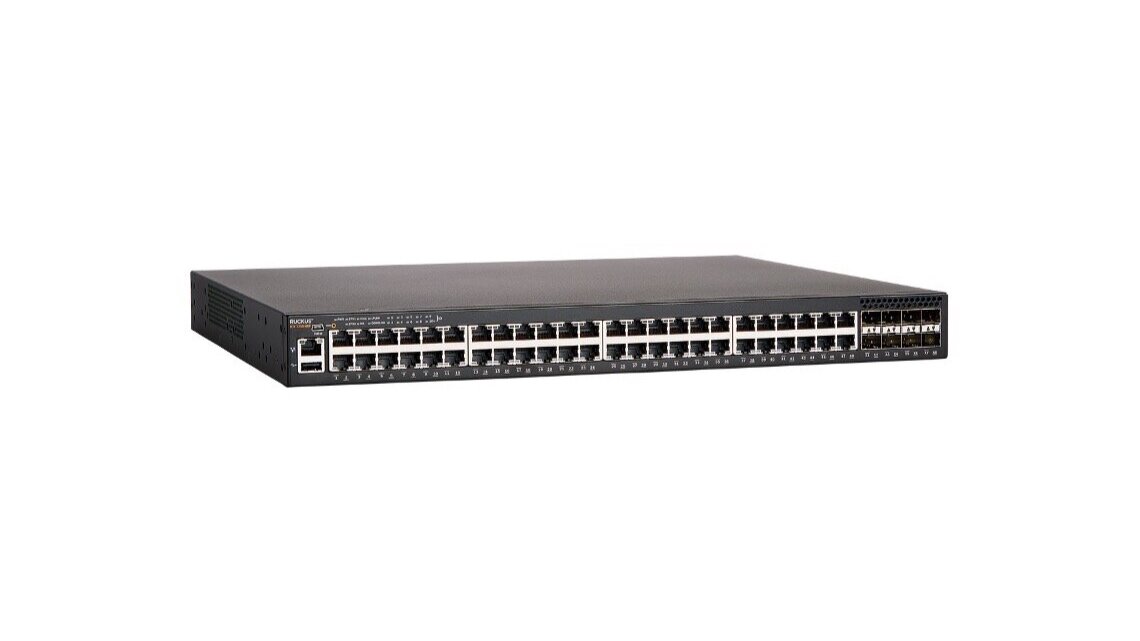

Ruckus ICX 7250 Switch
The Ruckus ICX 7250 switch combines enterprise-class features, manageability and the flexibility and "pay as you grow" scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with 2x10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576x1 GbE) per stack. Ruckus ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE port availability.
The Ruckus ICX 7250 is easy to deploy, manage and integrate into both new and existing networks. Organizations can buy only what they need today and easily scale out as demand grows and new technologies emerge. Optimizing performance based on specific requirements is easy with flexible licensing upgrade which allows users to upgrade from 1 GbE to 10 GbE ports for uplink and stacking. Deployed as a standalone switch, a stack or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7250 switches and Ruckus ICX 7250 parts & licenses.
The Ruckus ICX 7250 switch combines enterprise-class features, manageability and the flexibility and "pay as you grow" scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with 2x10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576x1 GbE) per stack. Ruckus ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE port availability.
The Ruckus ICX 7250 is easy to deploy, manage and integrate into both new and existing networks. Organizations can buy only what they need today and easily scale out as demand grows and new technologies emerge. Optimizing performance based on specific requirements is easy with flexible licensing upgrade which allows users to upgrade from 1 GbE to 10 GbE ports for uplink and stacking. Deployed as a standalone switch, a stack or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7250 switches and Ruckus ICX 7250 parts & licenses.
The Ruckus ICX 7250 switch combines enterprise-class features, manageability and the flexibility and "pay as you grow" scalability of a stackable solution. The switch delivers the performance required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with 2x10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576x1 GbE) per stack. Ruckus ICX 7250 switches also offer an external power supply for failover resiliency, as well as increased PoE port availability.
The Ruckus ICX 7250 is easy to deploy, manage and integrate into both new and existing networks. Organizations can buy only what they need today and easily scale out as demand grows and new technologies emerge. Optimizing performance based on specific requirements is easy with flexible licensing upgrade which allows users to upgrade from 1 GbE to 10 GbE ports for uplink and stacking. Deployed as a standalone switch, a stack or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7250 switches and Ruckus ICX 7250 parts & licenses.
Product Information
The switch has 24-port 10/100/1000 Mbps with 10 GbE dual-purpose uplink/ stacking ports with or without PoE to support wireless mobility and IP communications without the need for additional power outlets or power injectors.
Full Power Support for Connected Edge Devices
The Ruckus ICX 7250 can deliver both power and data across network connections, supporting Power over Ethernet (PoE) standards and providing a single-cable solution for edge devices, such as wireless access points, VoIP phones, video surveillance equipment and VDI thin terminals. Carrying data and power through a single Ethernet wire reduces the number of power receptacles and power adapters while increasing reliability and wiring flexibility.
Energy Efficient Design
The Ruckus ICX 7250 Switch supports the IEEE 802.3az standard for Energy Efficient Ethernet (EEE), reducing power consumption during periods of low utilization. Ports are placed into a low power mode when no data is being transmitted.
Data Center Top-of-Rack Server Connectivity
The Ruckus ICX 7250 is designed to fit in server racks by consuming only one rack unit. In data center environments where most servers are 1 GbE-capable, the Ruckus ICX 7250 provides a cost-effective 1 GbE Top-of-Rack (ToR) switch by simply connecting 1 GbE Network Interface Cards (NICs) in the servers to switch's 1 GbE ports. This configuration uses 10 GbE links to connect to data center aggregation switches.
Enterprise-Class Features Across All Ruckus ICX Switches
The Ruckus ICX 7150 is one of the ICX switch families delivering the enterprise class features for flexibility, scalability and simplified management. Ruckus Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
Flexible Licensing Upgrade
‣ Upgrade from 1 GbE to 10 GbE for uplink and stacking
Market-Leading Stacking Scalability
‣ Up to 12 switches per stack
‣ Up to 10 km using standard optics or cables
Full-Power PoE+ Budget to Power Advanced Edge Devices
‣ Wireless APs and video surveillance equipment
‣ Option for redundant power and incremental PoE budget
Advanced L3 Routing Simplifies Network Design and Reliability
‣ RIP, OSPF, VRRP, PIM, PBR
Campus Fabric Reduces Cost of Operations, Increases Flexibility
‣ Delivers the benefits of a chassis with the flexibility of stackables
‣ Scales to over 1800 ports
Specs
‣ Product Line: Ruckus ICX Series
‣ Spec Model: 7250-48
‣ 48 x 10/100/1000 + 6 x 1 Gigabit Ethernet SFP+ + 2 x 10 Gigabit SFP+
‣ Chassis: Front and side to back
‣ Performance: Forwarding performance: 190 Mpps; Latency: 1.5 µs,
Stacking bandwidth: 80 Gbps; Switching capacity: 256 Gbps
‣ Capacity: QoS hardware queues: 8; Spanning Tree Protocol instances: 254;
Virtual interfaces (VLANs): 4095
‣ Networking:
— Form Factor: Rack-mountable
— Stackable: Stackable
— Max Units In A Stack: 12
— Ports Qty: 48
— Advanced Switching: Layer 3
— Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IPv4 routing,
Static IPv6 routing, VRRP
— MAC Address Table Size: 16000 entries
— Jumbo Frame Support: 9216 bytes
— Manageable: Yes
— Remote Management Protocol: CLI, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3,
Telnet, TFTP
‣ Encryption Algorithm: AES
‣ Authentication Method: Extensible Authentication Protocol (EAP), RADIUS,
Secure Shell v.2 (SSH2), TACACS, TACACS+
‣ Power Device: Type: Internal power supply;
Power Redundancy: Optional;
Power Provided: 135 watt; Nominal Voltage: AC 120/230 V; Frequency Required:
50/60 hertz; Power Consumption Operational: 69.51 watt; Features: Redundant Power System (RPS) connector
‣ Dimensions: 17.3” W x 14.6” D x 1.7” H - 1U
‣ Weight: 10.67 lbs - 1U
‣ Features: 802.1x authentication, Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), BOOTP support, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, GARP VLAN Registration Protocol (GVRP), High Availability, IGMP proxy, IGMP snooping, IPv4 support, IPv6 support, LACP support, Link Fault Signaling (LFS), MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), sFlow, Side to back airflow, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Syslog support, Tagged VLAN, Trunking, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, VLAN support, Weighted Round Robin (WRR) queuing
Variant Product Details
Lightwire Systems offers the following Ruckus ICX 7250 switch variants:
ICX 7250-24
24-Port 10/100/1000 Mbps RJ-45 Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-24P
24-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-48
48-Port 10/100/1000 Mbps RJ-45 Switch with Eight 1 GbE Uplink/Stacking Ports
ICX 7250-48P
48-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight 1 GbE Uplink/Stacking Ports
Part Numbers & Descriptions
Lightwire Systems offers the following Ruckus ICX 7250 switch parts & licenses:
ICX7250-PREM-LIC
ICX7250 L3 Premium Software License
ICX7250-2X10G-LICPOD
ICX7250 2 Port 10 GbE License
ICX7250-8X10G-LICPOD
ICX7250 2 Port to 8 Port 10GbE License
ICX7000-RMK
ICX7250 2-Post Rack Mount
