Ruckus ICX 7450 Switch
The Ruckus ICX 7450 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It offers market-leading stacking density with up to 12 switches (576 1 GbE and 48 1/10 GbE ports) per stack and combines chassis-level performance and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of a stackable solution.
The mid-market stackable switch is one of the first in its class to offer 40 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
In addition, the ICX 7450 is the industry’s first stackable switching solution to combine the performance and flexibility of network switching with the advantages of site-to-site IPsec VPN security to ensure end-to-end data integrity without the need for dedicated encryption appliances.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7450 switches and Ruckus ICX 7450 parts & licenses.
The Ruckus ICX 7450 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It offers market-leading stacking density with up to 12 switches (576 1 GbE and 48 1/10 GbE ports) per stack and combines chassis-level performance and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of a stackable solution.
The mid-market stackable switch is one of the first in its class to offer 40 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
In addition, the ICX 7450 is the industry’s first stackable switching solution to combine the performance and flexibility of network switching with the advantages of site-to-site IPsec VPN security to ensure end-to-end data integrity without the need for dedicated encryption appliances.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7450 switches and Ruckus ICX 7450 parts & licenses.
The Ruckus ICX 7450 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It offers market-leading stacking density with up to 12 switches (576 1 GbE and 48 1/10 GbE ports) per stack and combines chassis-level performance and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of a stackable solution.
The mid-market stackable switch is one of the first in its class to offer 40 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
In addition, the ICX 7450 is the industry’s first stackable switching solution to combine the performance and flexibility of network switching with the advantages of site-to-site IPsec VPN security to ensure end-to-end data integrity without the need for dedicated encryption appliances.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7450 switches and Ruckus ICX 7450 parts & licenses.
Product Information
The Ruckus ICX 7450 is easy to deploy, manage, and integrate into both new and existing networks. Organizations can buy only what they need today, and easily scale out as demand grows and new technologies emerge.
With three modular slots, the ICX 7450 enables organizations to grow their networks when necessary. Organizations can initially deploy 1 GbE or 10 GbE uplink ports and upgrade to 40 GbE ports ondemand with a new, high-speed module.
The ICX 7450 also offers a lowcost entry point. By providing the flexibility of a stackable switch, the ICX 7450 saves organizations from having to invest in a costly chassis upfront and tie up valuable capital. Instead, they can buy a single ICX 7450 Switch to get started and add new ICX 7450 Switches to the stack as their business grows.
Ethernet switch stacking technology makes it possible to stack up to 12 Ruckus ICX 7450 Switches together into a single logical switch using standard QSFP+ or SFP+ stacking ports. This allows the ICX 7450 to deliver a class-leading 960 Gbps of aggregated stacking bandwidth and offer simple and robust expandability for future growth at the network edge.
The unique design of the Ruckus ICX 7450 provides three modular slots, offering up to 12 1/10 GbE SFP/SFP+ ports, 12 10GBASE-T ports, or up to three 40 GbE QSFP+ ports for uplink or stacking. As a result, the ICX 7450 can easily deliver sufficient bandwidth between the edge and aggregation layers to support expanding video traffic, VDI adoption, and highspeed wireless 802.11ac deployment. Additionally, the ICX 7450 delivers high performance across all ports for flawless support of latency-sensitive applications.
Flexible Path to Ultimate Performance
‣ Dual purpose for premium access or aggregation switch
‣ Redundant, load-sharing power supplies enhances availability
‣ Full-power PoE+/PoH budget
‣ IPSec VPN security ensures compliance and data confidentiality
Modular Design for Cost-Effective Upgradeability
‣ 3 ports of 40 GbE
‣ 12 ports of 10 GbE
Multigigabit Support for 802.11ac Wave 2 Deployments
‣ Up to 8x 2.5 GbE ports
Market-Leading Stacking Scalability
‣ Up to 12 switches per stack
‣ Up to 10 km using standard optics or cables
Advanced L3 Routing Delivers Network Design Flexibility
‣ BGP, OSPF, VRRP, PIM, PBR
Campus Fabric Reduces Cost fo Operations, Increases Flexibility
‣ Delivers the benefits of a chassis with the flexibility of stackables
‣ Scales to over 1800 ports
Specs
‣ Product Line: Ruckus ICX Series

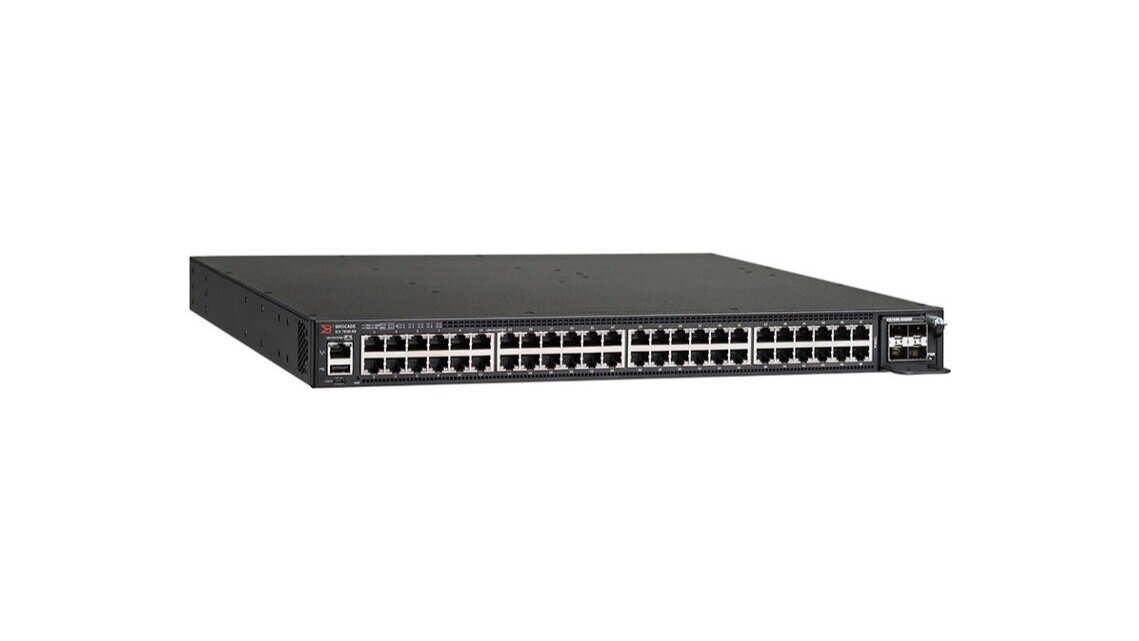

‣ Spec Model: 7450-48
‣ 48 x 10/100/1000
‣ Expansion Slots: 3 (total) / 3 (free) x expansion slot
‣ Performance: Forwarding performance: 250 Mpps; Switching capacity: 336 Gbps
‣ Capacity: IPv4 routes: 16000; IPv6 routes: 3000; Spanning Tree Protocol instances: 254; Virtual interfaces (VLANs): 4096
‣ Networking:
— Form Factor: Rack-mountable
— Stackable: Stackable
— Max Units In A Stack: 12
— Ports Qty: 48
— Advanced Switching: Layer 3
— Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IPv4 routing,
Static IPv6 routing
— MAC Address Table Size: 32000 entries
— Jumbo Frame Support: 9216 bytes
— Manageable: Yes
— Remote Management Protocol: CLI, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3,
Telnet, TFTP
‣ Encryption Algorithm: AES
‣ Authentication Method: Extensible Authentication Protocol (EAP), RADIUS,
Secure Shell v.2 (SSH2), TACACS, TACACS+
‣ Dimensions: 17.3” W x 15.5” D x 1.7” H - 1U
‣ Weight: 14.55 lbs - 1U
‣ Features: Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), BOOTP support, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, GARP VLAN Registration Protocol (GVRP), High Availability, Hot swappable fan, IGMP proxy, IGMP snooping, IPv4 support, IPv6 support, LACP support, Link Fault Signaling (LFS), MAC address filtering, MACsec support, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port based access control, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), sFlow, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Syslog support, Tagged VLAN, Trunking, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, VLAN support, Weighted Round Robin (WRR) queuing
Variant Product Details
Lightwire offers the following Ruckus ICX 7450 switch variants:
ICX 7450-24
24-Port 10/100/1000 Mbps RJ-45 Switch
ICX 7450-24P
24-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight Pre-Assigned Ports Supporting PoH (95 W)
ICX 7450-32ZP
24-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight Pre-Assigned Ports Supporting PoH (95 W) and 8x100/1000 Mbps/2.5 GbE RJ-45 PoE+ Ports
ICX 7450-48
48-Port 10/100/1000 Mbps RJ-45 Switch
ICX 7450-48F
48-Port 100/1000 Mbps SFP Switch
ICX 7450-48P
48-Port 10/100/1000 Mbps RJ-45 PoE+ Switch with Eight Pre-Assigned Ports Supporting PoH (95 W)
Part Numbers & Descriptions
Lightwire Systems offers the following Ruckus ICX 7450 switch parts & licenses:
ICX7400-4X1GF
ICX 7450 4-port 100M/1GbE SFP Module
ICX7400-4X10GF
ICX 7450 4-port 1/10GbE SFP+ Module
ICX7400-4X10GC
ICX 7450 4-port 1/10GbE 10GBase-T Copper Module
ICX7400-1X40GQ
ICX 7450 1-port 40GbE QSFP+ Module
RPS15-E
ICX7450/6610/6650 NON-POE 250W AC PSU exhause airflow
RPS15-I
ICX7450/6610/6650 NON-POE 250W AC PSU, intake airflow
RPS16-E
ICX7450/6610 PoE 1000W AC PSU, exhaust airflow
RPS16-I
ICX7450/6610 PoE 1000W AC PSU, intake airflow
RPS16DC-E
ICX7450/6610/6650 510W DC PSU, exhaust airflow
RPS16DC-I
ICX7450/6610/6650 510W DC PSU, intake airflow
ICX-FAN10-E
ICX 7450/6610 exhaust airflow fan
ICX-FAN10-I
ICX 7450/6610 intake airflow fan
ICX7000-RMK
FRU,RACK MOUNT KIT,2 POST,ICX7750/7450
XBR-R000295
FRU,UNIVERSAL RACK MOUNT KIT,4 POST 24-32 DEPTH RCK,
