Ruckus ICX 7850 Switch
Traditional enterprise networks were architected to utilize chassis systems to deliver reliable, high-speed, and scalable routing capabilities to the campus. With recent advances in network processors these capabilities can be packaged into a more flexible stackable switch design. This opens the door to new network architectures where the core can be distributed across the campus, deploying ports and switching capacity directly where they are needed.
The Ruckus® ICX® 7850 Switch is designed to meet these new challenges. It delivers non-blocking line-rate performance on all ports concurrently, with a switching capacity up to 6.4 Tbps. It supports the next generation Ethernet speeds with 10/25 Gigabit Ethernet at the aggregation and 40/100 Gigabit Ethernet at the core to meet high volume of traffic driving from the edge into the core. It also supports a rich array of routing protocols and delivers a range of high-availability hardware and software features.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7850 switches and Ruckus ICX 7850 parts & licenses.
Traditional enterprise networks were architected to utilize chassis systems to deliver reliable, high-speed, and scalable routing capabilities to the campus. With recent advances in network processors these capabilities can be packaged into a more flexible stackable switch design. This opens the door to new network architectures where the core can be distributed across the campus, deploying ports and switching capacity directly where they are needed.
The Ruckus® ICX® 7850 Switch is designed to meet these new challenges. It delivers non-blocking line-rate performance on all ports concurrently, with a switching capacity up to 6.4 Tbps. It supports the next generation Ethernet speeds with 10/25 Gigabit Ethernet at the aggregation and 40/100 Gigabit Ethernet at the core to meet high volume of traffic driving from the edge into the core. It also supports a rich array of routing protocols and delivers a range of high-availability hardware and software features.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7850 switches and Ruckus ICX 7850 parts & licenses.
Traditional enterprise networks were architected to utilize chassis systems to deliver reliable, high-speed, and scalable routing capabilities to the campus. With recent advances in network processors these capabilities can be packaged into a more flexible stackable switch design. This opens the door to new network architectures where the core can be distributed across the campus, deploying ports and switching capacity directly where they are needed.
The Ruckus® ICX® 7850 Switch is designed to meet these new challenges. It delivers non-blocking line-rate performance on all ports concurrently, with a switching capacity up to 6.4 Tbps. It supports the next generation Ethernet speeds with 10/25 Gigabit Ethernet at the aggregation and 40/100 Gigabit Ethernet at the core to meet high volume of traffic driving from the edge into the core. It also supports a rich array of routing protocols and delivers a range of high-availability hardware and software features.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7850 switches and Ruckus ICX 7850 parts & licenses.
Product Information
The Ruckus® ICX 7850 stackable aggregation switches come in 1/10 GbE and 1/10/25 GbE models. Both come standard with 8-ports of 40/100 GbE for stacking or uplinks. The 1/10 GbE model offers 48x 1/10 GbE ports with MACsec and LRM, the 1/10/25 GbE model offers 48x 1/10/25 GbE ports and 8x 40/100GbE ports for uplinks or stacking. The switches are targeted at demanding enterprise customers who need a high performance, highly reliable aggregation/core switch or as top of the rack switches in the data center.

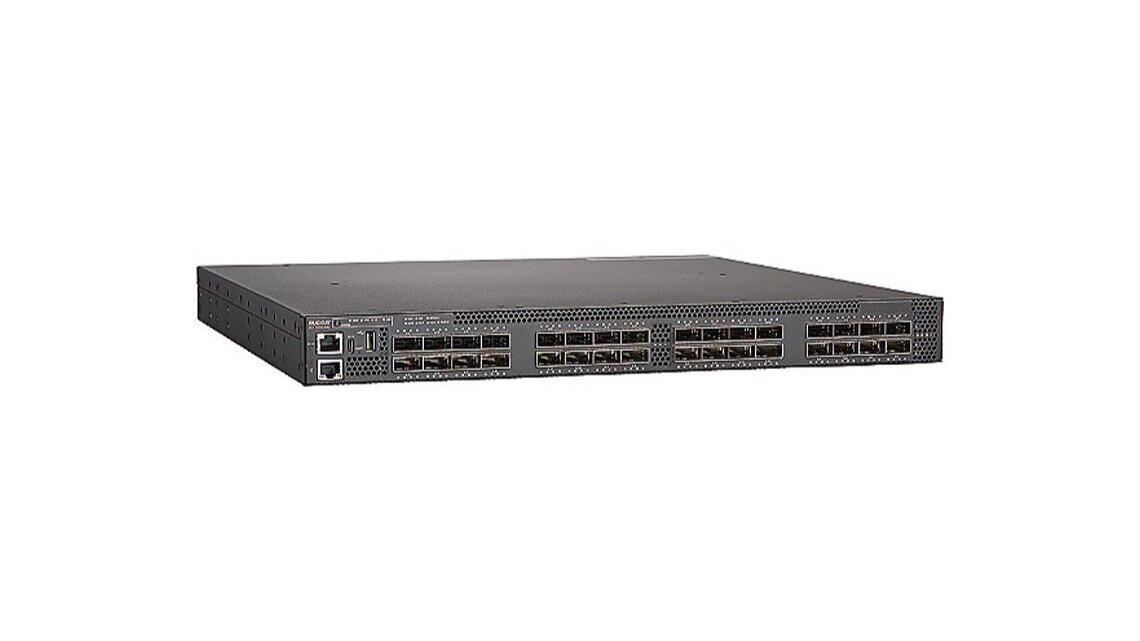

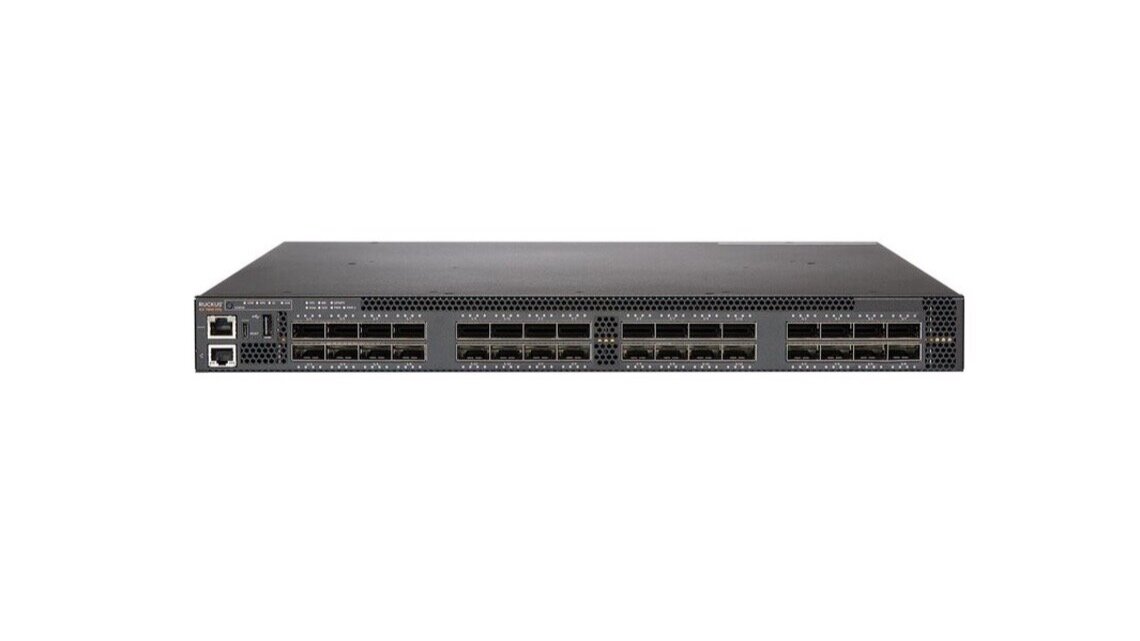

The ICX 7850-32Q aggregation/core switch comes standard with 32 40/100 GbE ports and up to 8 of these ports can be used for stacking. The QSFP28 ports are capable of native 40 GbE or 100 GbE Ethernet, or may be broken out to 4x10 Gbps or 4x25 Gbps links to give up to 128 10/25GbE ports for server aggregation in a Data Center, or switch aggregation in the campus.
Core/Aggregation Switching
‣ Network core layer can be distributed across the campus, deploying ports and switching capacity where they are
needed.
‣ The performance, scalability, and availability of a high-end enterprise-class chassis.
‣ The deployment flexibility of fixed form factor switches
40GbE and 100GbE for Maximum Performance
‣ Up to 32x 40/100 GbE ports per switch.
‣ Up to 8x 100 GbE stacking ports, 1.6 Tbps of stacking bandwidth per switch.
‣ Deliver the performance and scalability required by future generations of wireless access points,
IoT and LTE devices.
Highly Resilient Core Switching
‣ Redundant, hot-swappable power supplies and fans ‣ In-Service Software Upgrades (ISSU)
‣ Multi-Chassis Trunking (MCT) for core failover with load-balancing
‣ Hitless stack insertion and removal

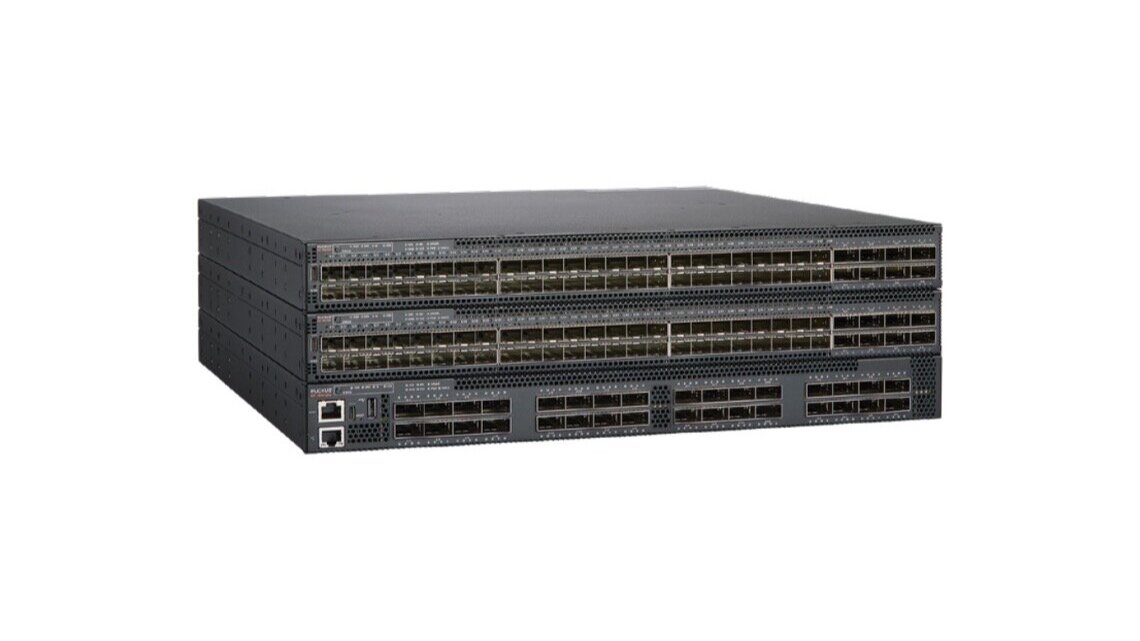

Market-leading Stacking Scalability
‣ Up to 12 switches per stack
‣ Up to 10 km using standard optics or cables
‣ Up to 8x 40/100GbE standard QSFP28 stacking ports
Advanced L3 Routing Delivers Design Flexibility
‣ IPv4 and IPv6
‣ BGP, OSPF, VRRP, PIM, PBR, VRF
Data Center Leaf/Spine Deployment with 25 & 100 GbE
‣ Up to 48x 10/25GbE port per leaf switch for server connectivity
‣ Up to 32x 40/100 GbE ports per spine switch
Security and Data Privacy
‣ MACsec 128-bit and 256-bit data encryption ensurescompliance and data confidentiality
Specs
‣ Product Line: Ruckus ICX Series
‣ Spec Model: 7850-48F
‣ 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28
‣ Chassis:
‣ Performance: Aggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity:
2 Bpps, Switching capacity: 4 Tbps
‣ Capacity: Latency: 0.8 µs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, Priority QoS queues: 10, PVLANs supported: 256,
Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 64
‣ Networking:
— Form Factor: Rack-mountable
— Stackable: Stackable
— Advanced Switching: Layer 3
— Routing Protocol: ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng,
Static IP routing, VRRP
— MAC Address Table Size: 32K entries
— Jumbo Frame Support: 9216 bytes
— Manageable: Yes
‣ Encryption Algorithm: AES
‣ Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
‣ Power Device: Type: Internal power supply;
Hot-Plug: Hot-plug; Power
Redundancy: Yes; Power Redundancy Scheme: 1+1 (with optional power supply);
Max Supported Qty: 2
‣ Weight (Approximate): 20.2 lb - 1U
‣ Dimensions: 17.3" W x 16" D x 1.7" H
‣ Features: 802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP server, DHCP snooping, DHCP support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Flow control, Full duplex capability, IGMP proxy, In-Service Software Upgrade (ISSU), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP support, MAC address authentication, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multi-Chassis Trunking (MCT), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port mirroring, Protected ports, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Secure Copy (SCP), sFlow, SmartZone, SNMP support, Strict Priority (SP), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trivial File Transfer Protocol (TFTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing
Variant Product Details
Lightwire offers the following Ruckus ICX 7850 switch variants:
ICX7850-32Q-E2
Ruckus ICX 7850 with 32× 40/100GbE QSFP28 ports, 2 AC power supplies and 6 fans included, front to back airflow.
Requires ICX7850-PREM-LIC to use advanced L3 features. Optical transceivers sold separately.
ICX7850-48F-E2
Ruckus ICX 7850 with 48x 1/10/25GbE SFP28 and 8x 40/100 QSFP28 ports, 2 AC power supplies and 5 fans included, front to back
airflow.
Requires ICX7850-PREM-LIC to use advanced L3 features. Optical transceivers sold separately.
ICX7850-48FS-E2
Ruckus ICX 7850 with 48x 1/10GbE SFP+ and 8x 40/100 QSFP28 ports, 2 AC power supplies and 5 fans included, front to back
airflow, MACsec.
Requires ICX7850-PREM-LIC to use advanced Layer 3 features and ICX-MACSEC-LIC to use MACsec. Optical transceivers sold
separately.
ICX7850-48FS-E2-RMT3
Ruckus ICX 7850 with 48x 1/10GbE SFP+ and 8x 40/100 QSFP28 ports, 2 AC power supplies and 5 fans included, front to back
airflow, MACsec. 3 years 24x7 remote support included. Requires ICX7850-PREM-LIC to use advanced L3 features and ICX-MACSECLIC to use MACsec. Optical transceivers sold separately.
ICX7850-32Q
Ruckus ICX 7850 with 32× 40/100GbE QSFP28 ports, power supplies and fans sold separately (up to 2 power supplies and 6 fans per
switch). Requires ICX7850-PREM-LIC to use advanced Layer 3 features. Optical transceivers sold separately.
ICX7850-48F
Ruckus ICX 7850 with 48x 1/10/25GbE SFP28 and 8x 40/100 QSFP28 ports, power supplies and fans sold separately (up to 2 power
supplies and 5 fans per switch). Requires ICX7850-PREM-LIC to use advanced L3 features. Optical transceivers sold separately
ICX7850-48FS
Ruckus ICX 7850 with 48x 1/10GbE SFP+ and 8x 40/100 QSFP28 ports, power supplies and fans sold separately (up to 2 power
supplies and 5 fans per switch), MACsec. Requires ICX7850-PREM-LIC to use advanced Layer 3 features and ICX-MACSEC-LIC to use
MACsec. Optical transceivers sold separately.
Part Numbers & Descriptions
Lightwire Systems offers the following Ruckus ICX 7850 switch parts & licenses:
RPS19-E
650W AC power supply, front to back airflow, for the Ruckus ICX 7850 (up to 2 per switch)
RPS19-I
650W AC power supply, back to front airflow, for the Ruckus ICX 7850 (up to 2 per switch)
RPS19DC-E
650W DC power supply, front to back airflow, for the Ruckus ICX 7850 (up to 2 per switch)ICX 7850 650W AC PSU, exhaust airflow,
front to back airflow
RPS19DC-I
650W DC power supply, back to front airflow, for the Ruckus ICX 7850 (up to 2 per switch)ICX 7850 650W AC PSU, intake airflow,
back to front airflow
ICX-FAN12-E
Fan assembly, front to back airflow, for the Ruckus ICX 7850 (up to 5 or 6 per switch depending on switch model)ICX 7850 exhaust
airflow fan, front to back airflow
ICX-FAN12-I
Fan assembly, back to front airflow, for the Ruckus ICX 7850 (up to 5 or 6 per switch depending on switch model)ICX 7850 intake
airflow fan, back to front airflow
ICX7850-PREM-LIC
ICX 7850 advanced L3 License adds support for OSPF, BGP VRRP, PIM, PBR, VRF
ICX-MACSEC-LIC
ICX MACsec license adds support for 128/256 bit MACsec encryption to ICX 7850
