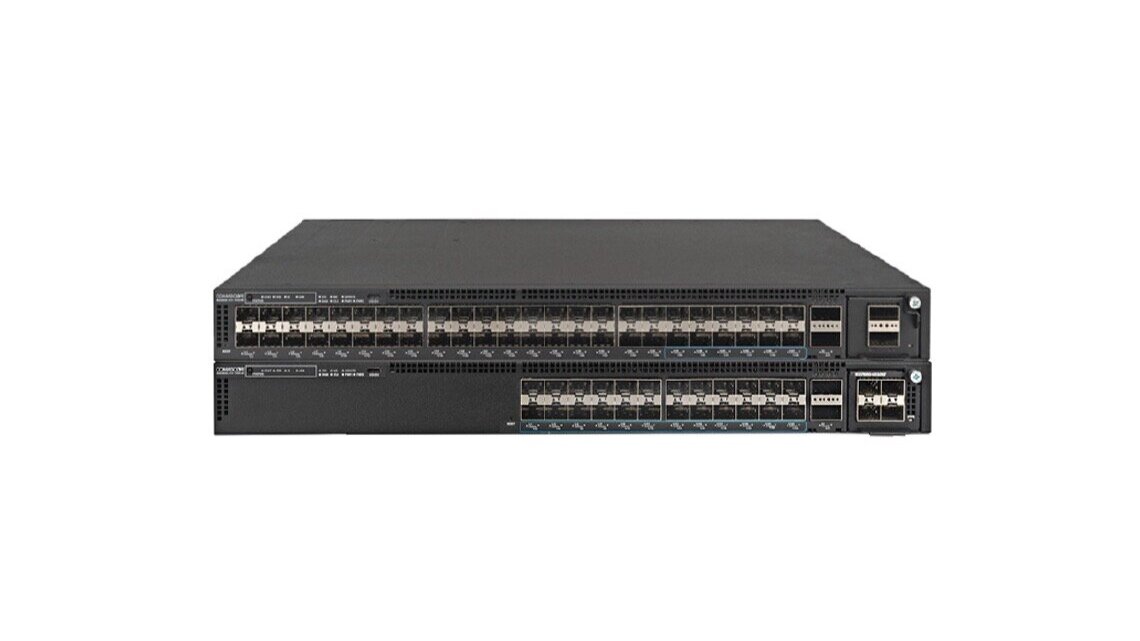

Ruckus ICX 7550 Switch

The Ruckus ICX 7550 series of mid-range stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With high density multigigabit Ethernet ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios.

The ICX 7550 comes in 8 different models that can all be seamlessly stacked together to cover a broad range of deployment scenarios including gigabit or multigigabit network edge and 1/10 gigabit fiber for network aggregation or fiber to the room as well a smart building network edge with a class leading 2000W PoE budget and up to 90W of power delivery per port.

Multigigabit Network Edge
The RUCKUS ICX 7550 multigigabit models come in 24- and 48-port offering class leading multigigabit port density with a mix of 2.5G and 2.5/5/10G ports delivering the ultimate solution for Wi-Fi 6 access points Ethernet connectivity today while providing plenty of future proofing for deploying future generations of Wi-Fi APs.

Gigabit Ethernet Access
To complete the solution, The ICX 7550 Series includes four Gigabit Ethernet models, two with PoE support and two without. These models come in 24- and 48-port versions and can stack with the rest of the ICX 7550 series to offer traditional Gigabit ethernet connectivity for legacy Wi-Fi access points, VoIP phones, printers, laptop and desktop computers.

1/10 GbE Fiber Aggregation
The ICX 7550 fiber models come in 24- and 48-port versions with a mix of 1G and 10G SFP/SFP+ ports offering class leading port density as an entry level 10G aggregation solution for small to mid-size networks. The 24 ports model offers 24x 10GbE ports while the 48 ports offers 36x 1GbE and 12 10GbE SFP/SFP+ ports. For maximum flexibility at the aggregation layer, the ICX 7550 support a broad range of L2/L3 protocols such as RIP, OSFP and BGP.

Support for latest generation PoE standards
Latest generation of Wi-Fi access points comes with greater power requirements to support additional IoT radios and scale to a larger number of users. The ICX 7550 Multigigabit models all support 802.3bt with up to 90W power delivery per port as well as a classleading 2000W PoE budget with two power supplies to maximize the supported number of powered devices. These PoE capabilities make the ICX 7550 ideally suited to provide connectivity and power delivery to the latest generation of smart buildings with PoE powered lighting and LED signage.

Perpetual PoE and Fastboot PoE
All ICX 7550 PoE models support perpetual and fastboot PoE. Perpetual PoE keeps PoE devices powered without interruption when the switch is restarted, for example after a major SW upgrade or for any other reason. Fastboot PoE delivers power to PoE devices before the switch operating system has completed its boot sequence.
‣    PoE+/802.3bt 60W/90W per port
‣    Up to 1666W PoE budget with two power supplies

100 Gigabit Ethernet support for uplink and stacking
To ensure maximum performance and eliminate any network bottleneck considering the class leading multigigabit and 10GbE port density, the 7550 offers up to 3x100 GbE ethernet ports depending on model. Just like the other members of the ICX switch portfolio, the ICX 7550 can use 2 of these 100 GbE ports for stacking over fiber links and over distance up to 10km to maximize deployment flexibility and simplify switch configuration and management.
‣    Up to 3x 100 GbE uplink
‣    Up to 2x 100 Gbps stacking ports

‣    Product Line: Ruckus ICX Series

‣    Spec Model: 7550-48

‣    48 x 10/100/1000 + 2 x 40 Gigabit QSFP+ (uplink/stacking)

‣    Chassis: Front to back airflow

‣    Performance: Aggregate stacking bandwidth: 960 Gbps; Forwarding capacity:
      309 Mpps; Switching capacity: 416 Gbps

‣    Capacity: Maximum ports per trunk: 32; Multicast groups: 8192;
      Priority QoS queues: 48; PVLANs supported: 256; Spanning Tree Protocol
      instances: 512; Trunk groups: 256; Virtual interfaces (VLANs): 4095;
      VRF instances: 128

‣    Networking:
      — Form Factor: Rack-mountable
      — Stackable: Stackable
      — Max Units In A Stack: 12
      — Ports Qty: 48
      — Advanced Switching: Layer 3
      — Routing Protocol: BGP for IPv6, BGP-4, BGP-4+, ECMP, GRE, MSDP, OSPF for IPv6,
          OSPFv2, OSPFv3, Policy-based routing (PBR), RIP-1, RIPng, Static IPv4 routing,
          Static IPv6 routing, VRRPE, VRRPv3
      — Jumbo Frame Support: 12288 bytes
      — Manageable: Yes
      — Remote Management Protocol: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2,
          TFTP

‣    Encryption Algorithm: AES

‣    Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

‣    Power Device: Type: Internal power supply; Hot-Plug: Hot-plug; Power Redundancy:
      Yes; Power Redundancy Scheme: 1+1; Installed Qty: 2; Max Supported: Qty: 2;
      Power Provided: 400 watt; Nominal Voltage: AC 100 - 240 V; Frequency Required:
      50 - 60 hertz; Power Consumption Operational: 65 watt

‣    Dimensions: 17.3” W x 16” D x 1.7” H - 1U

‣    Weight: 13.89 lbs - 1U

‣    Features: 3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
