Ruckus ICX 7750 Switch
The Ruckus ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.

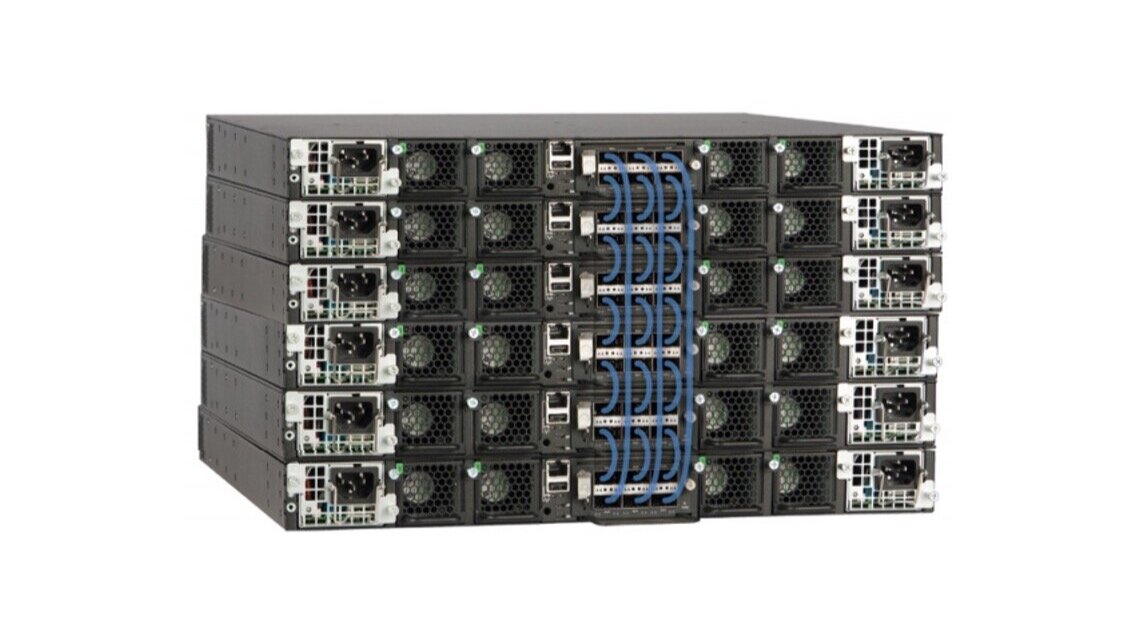

The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7750 switches and Ruckus ICX 7750 parts & licenses.
The Ruckus ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.
The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7750 switches and Ruckus ICX 7750 parts & licenses.
The Ruckus ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.
The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant Ruckus ICX 7750 switches and Ruckus ICX 7750 parts & licenses.
Product Information
The Ruckus® ICX® 7750 switch delivers industry-leading 10/40 GbE port density, advanced high-availability capabilities, and flexible stacking architecture, making it the most robust Ruckus aggregation and core distributed chassis switch offering for enterprise LANs. In addition to rich Layer 3 features, the Ruckus ICX 7750 scales to 12-unit distributed-chassis stacking and serves as the Control Bridge for Ruckus Campus Fabric technology.
Part of the Ruckus ICX family of switches for campus LAN and classic Ethernet data center environments, the Ruckus ICX 7750 switch is a 1U high-performance solution that meets the needs of business-sensitive campus deployments and classic data center environments. With a low latency, cut-through, non-blocking architecture, the Ruckus ICX 7750 provides a cost-effective, robust solution for the most demanding deployments. Deployed as a standalone switch, a stack, or a network fabric, organizations reap the benefits of a flexible platform and the assurance that their investments are protected.
The Ruckus ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.
Performance of Chassis in 1RU
‣ Deployed as aggregation or core solution
‣ Wire-speed, non-blocking performance
Industry-Leading 10/40 GbE Port Density
‣ 32 ports of 40 GbE or 96 ports of 10 GbE
‣ 2.56 Tbps switching capacity
Campus Fabric Reduces Cost of Operations, Increases Flexibility
‣ Delivers the benefits of a chassis with the flexibility of stackables
‣ Scales to over 1800 ports
Increased Reliability and Availability Through Redundancy
‣ Load-sharing, hot-swappable power supplies
‣ Ruckus MCT eliminates single point of failure
Advanced L3 Routing Delivers Network Design Flexibility
‣ OSPF, VRRP, PIM, PBR, BGP, VRRP, VRF
Energy Efficient Use of Power and Cooling Lowers Opex Costs
Specs
‣ Product Line: Ruckus ICX Series
‣ Spec Model: 7750-48F
‣ 48 x 1 Gigabit / 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+
‣ Expansion Slots: 1 (total) / 1 (free) x expansion slot
‣ Performance: Port-to-port latency: 550 ns, Switching capacity: 1.92 Tbps,
Throughput: 1.44 Bpps
‣ Capacity: ACL entries: 4000, IGMP groups: 8192, IP hosts: 131072, IPv4 routes: 131072,
IPv6 routes: 7168, Maximum aggregation groups: 128, Maximum frame size: 10220,
QoS hardware queues per port: 8, Rapid Spanning Tree Protocol instances: 254,
Spanning Tree Protocol instances: 16, Virtual interfaces (VLANs): 4095,
Virtual Routing and Forwarding (VRF) entries: 64
‣ Networking:
— Form Factor : Rack-mountable
— Ports: 48
— Stackable : Stackable
— Advanced Switching : Layer 3
— Routing Protocol : RIP-1, RIP-2, Static IP routing, VRRP
— MAC Address Table Size : 294912 entries
— Jumbo Frame Support : Yes
— Manageable : Yes
‣ Encryption Algorithm: AES, MD5
‣ Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
‣ Power Device: Type: Internal power supply;
Hot-Plug: Hot-plug; Power Redundancy: Optional; Power Redundancy Scheme: 1+1 (with optional power supply);
Installed Qty: 0; Max Supported Qty: 2; Power Consumption Operational: 269 watt
‣ Weight (Approximate): 20.02 lb - 1U
‣ Dimensions: 17.3" W x 16" D x 1.7" H
‣ Features: 12.2MB packet buffer, Access Control List (ACL) support, ARP support, BOOTP support, DDos attack prevention, DHCP support, Flow control, IGMP proxy, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Spanning Tree (PVST), PIM snooping, Port based access control, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP PortFast, STP Root Guard, Strict Priority (SP), Tagged VLAN, Type of Service (ToS), Virtual Routing and Forwarding (VRF), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, Weighted Round Robin (WRR) queuing
/
Variant Product Details
Lightwire offers the following Ruckus ICX 7750 switch variants:
ICX 7750-26Q Switch
26 x 40 GbE QSFP ports and modular interface slot
ICX 7750-48F Switch
48 x 1/10 GbE SFP+ ports, 6 x 40 GbE QSFP ports and modular interface slot
ICX 7750-48C Switch

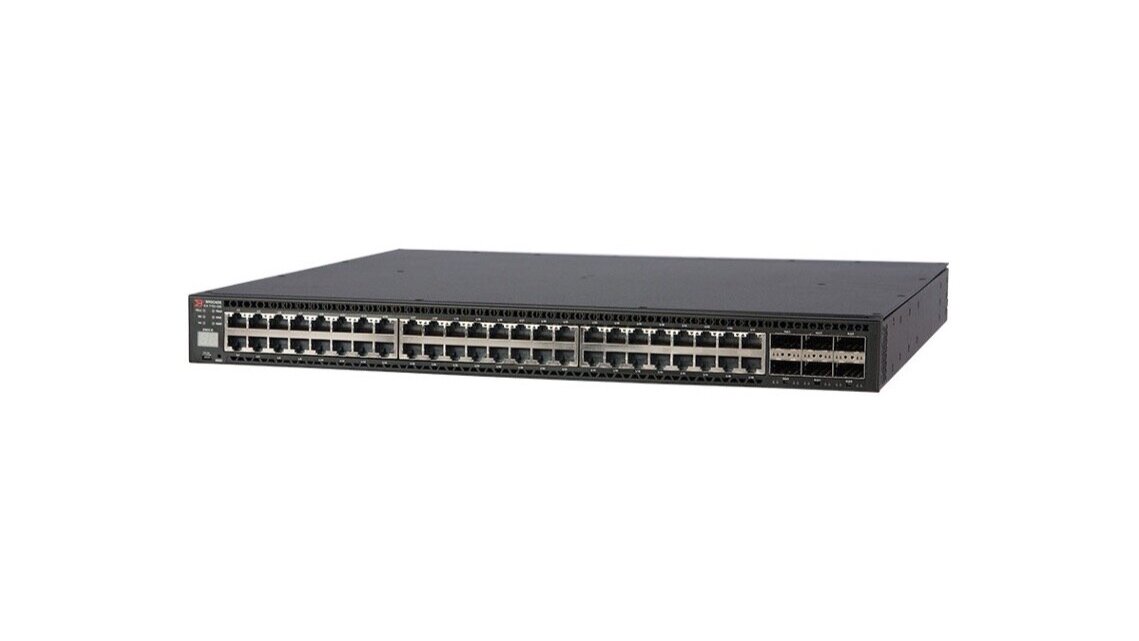

48 x 1/10 GbE RJ-45 10GBASE-T ports, 6 x 40 GbE QSFP ports and modular interface slot
Part Numbers & Descriptions
Lightwire Systems offers the following Ruckus ICX 7750 switch parts & licenses:
ICX7750-26Q
ICX 7750 with 26 40GbE QSFP+ ports, and one modular slot. Base layer 3 software feature set. Requires ICX7750-L3-COE to use advanced L3 features. Power supplies, fans, optional interface modules and optics ordered separately, not included.
ICX7750-48C
ICX 7750 with 48 1/10GbE RJ-45 ports, 6 10/40GbE QSFP+ ports, one modular slot. Base layer 3 software feature set. Requires ICX7750-L3-COE to use advanced L3 features. Power supplies, fans, optional interface modules optics ordered separately
ICX7750-48F
ICX 7750 with 48 10GbE SFP+ ports, 6 10/40GbE QSFP+ ports, one modular slot. Base layer 3 software feature set. Requires ICX7750-L3-COE to use advanced L3 features. Power supplies, fans, optional interface modules, optics ordered separately.
ICX7750-48F-RMT3
ICX 7750 with 48 10GbE SFP+ ports, 6 10/40GbE QSFP+ ports, one modular slot. Base layer 3 software feature set. Requires ICX7750-L3-COE to use advanced L3 features. Power supplies, fans, interface modules, optics ordered separately. 3yr RMT
ICX7750-6Q
ICX7750 six port 40GbE QSFP+ module
ICX7750-FAN-E
Kit of 4 ICX7750 Fan assemblies port side air intake
ICX7750-FAN-E-SINGLE
ICX7750 Fan assembly port side air intake
ICX7750-FAN-I
Kit of 4 ICX7750 Fan assemblies port side air exhaust
ICX7750-FAN-I-SINGLE ICX7750 Fan assembly port side air exhaust
ICX7750-L3-COE
ICX7750 PREMIUM LAYER3 FEATURES CERTIFICATE OF ENTITLEMENT
ICX7750-RMK
FRU,RACK MOUNT KIT,2 POST,ICX7750/7450
