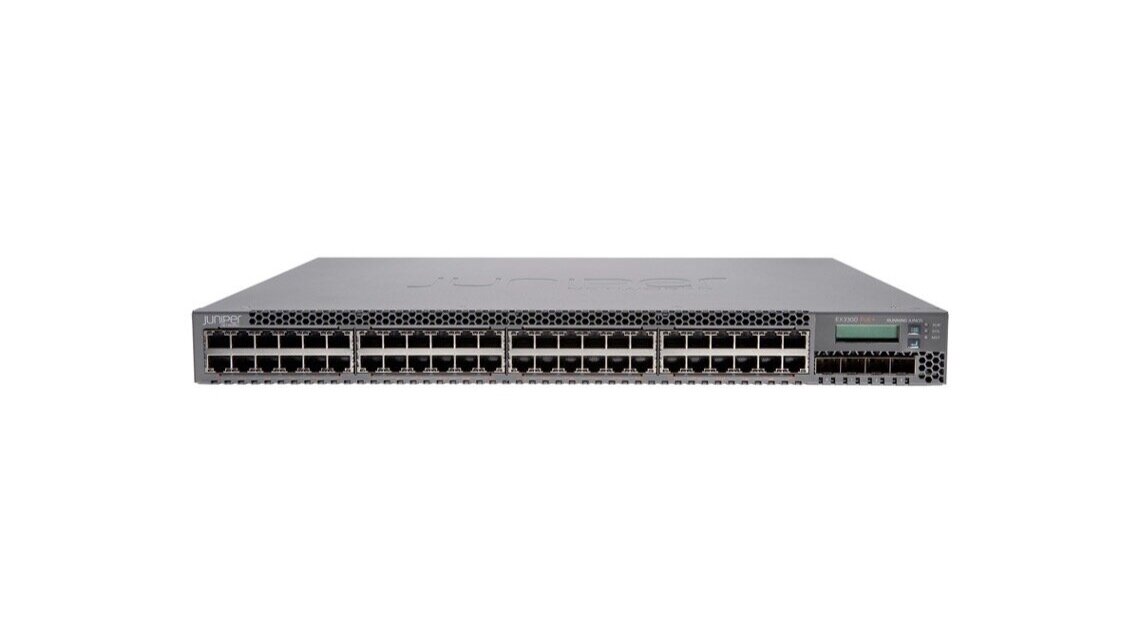

Juniper EX3300 Switch
The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to six interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX3300 switches and EX3300 parts & licenses.
The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to six interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX3300 switches and EX3300 parts & licenses.
The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to six interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant EX3300 switches and EX3300 parts & licenses.
Product Information
Multiple EX3300 options are available, offering 24 and 48 10/100/1000-T access ports and four dual mode (GbE/10GbE) SFP/SFP+ uplink ports, with or without support for standards-based IEEE 802.3af Class 3 Power Over Ethernet (PoE). PoE support enables the EX3300 to support networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points. The EX3300 also supports the 802.3at PoE+ standard, offering additional power for devices such as multiple radio IEEE 802.11n wireless access points.
The EX3300 also offers data center-optimized cooling, with both front-to-back and back-to-front airflow options, making it suitable for GbE data center access deployments. A DC power supply option is also available.
All EX3300 models run the same modular Junos OS control plane feature implementation as other Juniper switches, routers and security devices, to provide a consistent set of features and capabilities across the Juniper network infrastructure.
Juniper Networks EX3300 switch delivers a high-performance, flexible and cost-effective solution for today's most demanding converged data, voice, and video enterprise access environments. It supports Juniper Networks Virtual Chassis technology, allowing up to six switches to be interconnected over uplink ports and managed as a single logical device to deliver a scalable, pay-as-you grow solution for expanding network environments.
The Juniper Networks EX3300 Ethernet Switch with Virtual Chassis technology provides enterprises with the flexibility and ease of management that previously was only available with higher end access switches. The fixed configuration EX3300 supports a number of key features:
Specs
‣ Form Factor: Desktop
‣ Stackable: Stackable
‣ Max Units In A Stack: 6
‣ Ports Qty: 24
‣ Routing Protocol: RIP-1, RIP-2, Static IPv4 routing
‣ MAC Address Table Size: 16K entries
‣ Jumbo Frame Support: 9216 bytes
‣ Remote Management Protocol: HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1,
SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP
‣ Status Indicators: LCD display
‣ Features: ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, DHCP server, DHCP snooping, DiffServ support, DoS attack prevention, Flow control, Front to back airflow, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, Per-VLAN Spanning Tree Plus (PVST+), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP)
support, RARP support, SNTP support, Spanning Tree Protocol (STP) support,
Store and forward, Temperature sensor, Time Domain Reflectometry (TDR),
VLAN Stacking, VLAN support
‣ Capacity : IGMP snooping entries: 3000, Virtual interfaces (VLANs): 4096
‣ Dimensions (W x D x H): 17.2 inch x 12.2 inch x 1.7 inch
‣ Weight: 11.68 lbs
Variant Product Details
Lightwire Systems offers the following EX3300 Series variants:
EX3300 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ uplink ports (optics not included)
EX3300-24P
EX3300 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ uplink ports (optics not included)
EX3300-48T
EX3300 48-port 10/100/1000BASE-T with 4 SFP+ uplink ports (optics not included)
EX3300-48T-BF
EX3300 48-port 10/100/1000BASE-T with 4 SFP+ uplink ports (optics not included), back-to- front cooling
EX3300-24T
EX3300 24-port 10/100/1000BASE-T with 4 SFP+ uplink ports (optics not included)
EX3300-24T-DC
EX3300 24-port 10/100/1000BASE-T with 4 SFP+ uplink ports (optics not included) and internal DC power supply
Part Numbers & Descriptions
Lightwire offers the following EX3300 parts & licenses:
EX3300 Accessories:
EX-RPS-PWR-930-AC
External redundant power system (RPS) for power supply and power feed redundancy; includes one RPS cable and one 930 W AC power supply (shipped separately) EX-4PST-RMK
Adjustable 4-post rack-mount kit for EX2200, EX3200, EX3300, and EX4200 EX-RMK
Rack-mount kit for EX2200, EX3200, EX3300, and EX4200 EX-WMK-BFL EX4200, EX3200, EX3300, and EX2200 wall- mount kit with baffle CBL-EX-PWR-C13-AU
AC power cable, Australia (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-C14
AC power cable, patch cord (10 A/250 V, 2.5 m) for EU only
CBL-EX-PWR-C13-CH
AC power cable, China (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-EU
AC power cable, Europe (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-IT
AC power cable, Italy (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-JP
AC power cable, Japan (12 A/125 V, 2.5 m)
CBL-EX-PWR-C13-KR
AC power cable, Korea (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-SZ
AC power cable, Switzerland (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-UK
AC power cable, UK (10 A/250 V, 2.5 m)
CBL-EX-PWR-C13-US
AC power cable, US (13 A/125 V, 2.5 m)
EX3300 Licenses:
EX-24-EFL
Enhanced Feature License for EX3300-24P, EX3300-24T and EX3300-24T-DC switches includes licenses for IPv4 routing (OSPF v1/v2, IGMP v1/v2/v3, PIM, VRRP, BFD, IPv4 Virtual Router support and Q-in-Q) and IPv6 routing (OSPF v3, VRRP v6, VR support for unicast and filter based forwarding—FBF and PIM)
EX-48-EFL
Enhanced Feature License for EX3300-48P, EX3300-48T and EX3300-48T-BF switches includes licenses for IPv4 routing (OSPF v1/v2, IGMP v1/v2/v3, PIM, VRRP, BFD, IPv4 Virtual Router support and Q-in-Q) and IPv6 routing (OSPF v3, VRRP v6, VR support for unicast and filter based forwarding—FBF, and PIM)
EX-24-AFL
Advanced Feature License for EX3300-24P, EX3300-24T and EX3300-24T-DC switches includes license for BGP/MBGP, Virtual Router running BGP, and IPv6 routing protocols (BGP v6, MBGP). Requires purchase of EFL
EX-48-AFL
Advanced Feature License for EX3300-48P, EX3300-48T and EX3300-48T-BF switches includes license for BGP/MBGP, Virtual Router running BGP, and IPv6 routing protocols (BGP v6, MBGP). Requires purchase of EFL
EX3300 Optics:
EX-SFP-10GE-DAC-1M
SFP+ 10-Gigabit Ethernet Direct Attach Copper(twinax copper cable), 1 m EX-SFP-10GE-DAC-3M
SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 3 m EX-SFP-10GE-DAC-5M
SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 5 m EX-SFP-10GE-DAC-7M
SFP+ 10-Gigabit Ethernet Direct Attach Copper (twinax copper cable), 7 m EX-SFP-10GE-ER
SFP+ 10GBASE-ER 10-Gigabit Ethernet Optics, 1,550 nm for 40 km transmission on SMF EX-SFP-10GE-LR
SFP+ 10GBASE-LR 10-Gigabit Ethernet Optics, 1,310 nm for 10 km transmission on single-mode fiber-optic (SMF) EX-SFP-10GE-LRM
SFP+ 10-Gigabit Ethernet LRM Optics, 1,310 nm for 220 m transmission on multimode fiber-optic (MMF) EX-SFP-10GE-SR
SFP+ 10GBASE-SR 10-Gigabit Ethernet Optics, 850 nm for up to 300 m transmission on MMF EX-SFP-10GE-USR
SFP+ 10-Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber EX-SFP-1GE-LX
SFP 1000BASE-LX Gigabit Ethernet Optics, 1,310nm for 10 km transmission on SMF EX-SFP-1GE-LX40K
SFP 1000BASE-LX Gigabit Ethernet Optics, 1,310nm for 40 km transmission on SMF EX-SFP-1GE-SX
SFP 1000BASE-SX Gigabit Ethernet Optics, 850nm for up to 550 m transmission on MMF EX-SFP-1GE-LH
SFP 1000BASE-LH Gigabit Ethernet Optics, 1,550nm for 70 km transmission on SMF EX-SFP-1GE-T
SFP 10/100/1000BASE-T Copper Transceiver Module for up to 100 m transmission on Category 5 EX-SFP-GE10KT13R14
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,310 nm/Rx 1,490 nm for 10 km transmission on single strand of SMF EX-SFP-GE10KT13R15
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,310 nm/Rx 1,550 nm for 10 km transmission on single strand of SMF EX-SFP-GE10KT14R13
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,490 nm/Rx 1,310 nm for 10 km transmission on single strand of SM EX-SFP-GE10KT15R13
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,550 nm/Rx 1,310 nm for 10 km transmission on single strand of SMF
EX-SFP-GE40KT13R15
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,310 nm/Rx 1,550 nm for 40 km transmission on single strand of SMF
EX-SFP-GE40KT15R13
SFP 1000BASE-BX Gigabit Ethernet Optics, Tx 1,550 nm/Rx 1,310 nm for 40 km transmission on single strand of SMF
