Juniper ACX7100 Router
The Juniper Networks® ACX7100 Series is designed to help operators achieve their capital, operational, and user experience goals. The ACX7100 offers industry-leading power efficiency in a compact form factor. It delivers 4.8 Tbps of ASIC forwarding capacity, cloud-inspired native port speeds that include 400GbE quad small form-factor pluggable transceiver (QSFP56-DD) interfaces, and Media Access Control Security (MACsec) options—making it ideal for metro high-end aggregation, large enterprise, and top-of-rack, spine-leaf data center applications.
Combined with the power of Junos® OS Evolved and the Juniper Paragon Automation Portfolio, the ACX7100 is fully equipped to help operators realize their capital and operational objectives while thriving in the 5G, IoT, and cloud era. Platform capabilities include: deep buffers; a full complement of Layer 2/Layer 3 and MPLS protocols and features; advanced programmability, telemetry, and network slicing technologies enabling dynamic service creation; and the ability to seamlessly integrate with emerging distributed edge compute architectures. Designed for metro, large enterprise, and data center use cases, the ACX7100 is also a foundational building block of an IP services fabric in a Juniper Cloud Metro solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX7100 variants, parts & licenses.
The Juniper Networks® ACX7100 Series is designed to help operators achieve their capital, operational, and user experience goals. The ACX7100 offers industry-leading power efficiency in a compact form factor. It delivers 4.8 Tbps of ASIC forwarding capacity, cloud-inspired native port speeds that include 400GbE quad small form-factor pluggable transceiver (QSFP56-DD) interfaces, and Media Access Control Security (MACsec) options—making it ideal for metro high-end aggregation, large enterprise, and top-of-rack, spine-leaf data center applications.
Combined with the power of Junos® OS Evolved and the Juniper Paragon Automation Portfolio, the ACX7100 is fully equipped to help operators realize their capital and operational objectives while thriving in the 5G, IoT, and cloud era. Platform capabilities include: deep buffers; a full complement of Layer 2/Layer 3 and MPLS protocols and features; advanced programmability, telemetry, and network slicing technologies enabling dynamic service creation; and the ability to seamlessly integrate with emerging distributed edge compute architectures. Designed for metro, large enterprise, and data center use cases, the ACX7100 is also a foundational building block of an IP services fabric in a Juniper Cloud Metro solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX7100 variants, parts & licenses.
The Juniper Networks® ACX7100 Series is designed to help operators achieve their capital, operational, and user experience goals. The ACX7100 offers industry-leading power efficiency in a compact form factor. It delivers 4.8 Tbps of ASIC forwarding capacity, cloud-inspired native port speeds that include 400GbE quad small form-factor pluggable transceiver (QSFP56-DD) interfaces, and Media Access Control Security (MACsec) options—making it ideal for metro high-end aggregation, large enterprise, and top-of-rack, spine-leaf data center applications.
Combined with the power of Junos® OS Evolved and the Juniper Paragon Automation Portfolio, the ACX7100 is fully equipped to help operators realize their capital and operational objectives while thriving in the 5G, IoT, and cloud era. Platform capabilities include: deep buffers; a full complement of Layer 2/Layer 3 and MPLS protocols and features; advanced programmability, telemetry, and network slicing technologies enabling dynamic service creation; and the ability to seamlessly integrate with emerging distributed edge compute architectures. Designed for metro, large enterprise, and data center use cases, the ACX7100 is also a foundational building block of an IP services fabric in a Juniper Cloud Metro solution.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX7100 variants, parts & licenses.
Product Information
Emerging 5G, IoT, and low-latency virtualized edge services offer network operators a transformational opportunity to deliver new applications and services efficiently and securely at cloud scale. The ACX7100 Series sets new benchmarks for capacity, density, and low latency in the ACX family of access and aggregation routers.
The ACX7100 Router comes in two models, each equipped to address the challenges and opportunities of the 5G, IoT, and cloud era:

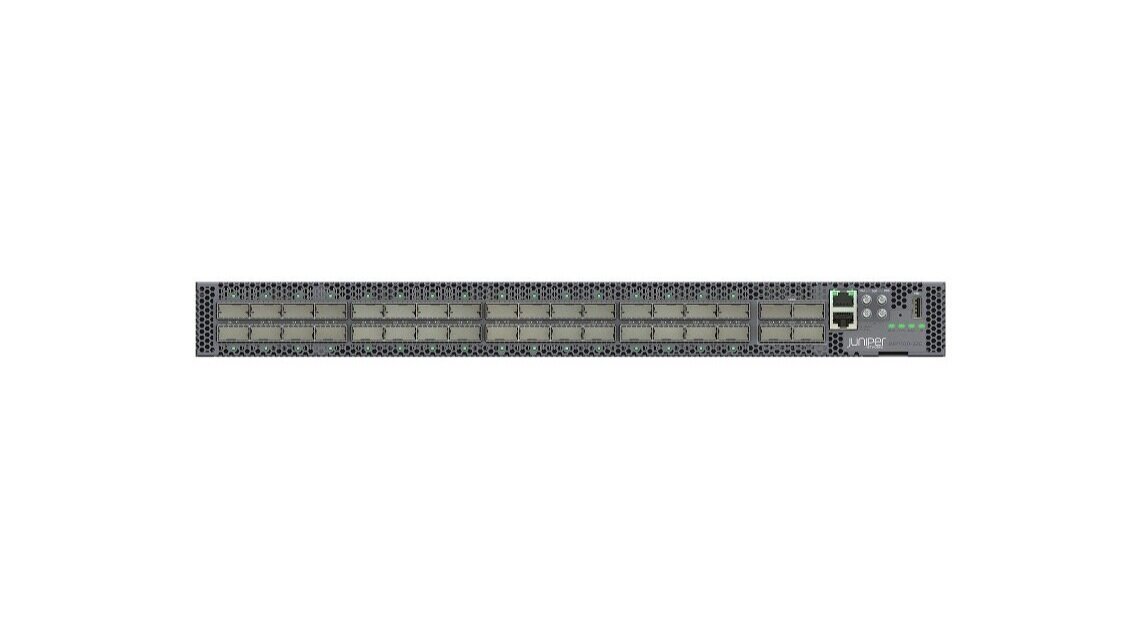

‣ ACX7100-32C: The ACX7100-32C provides full duplex ASIC throughput of 4.8 Tbps in a 1 U fixed platform designed for applications that require dense fan-out in a small, power-efficient footprint. It supports 32 ports of 100GbE and 4 ports of 400GbE QSFP56-DD, including MACsec support on all ports.
‣ ACX7100-48L: The ACX7100-48L provides full duplex ASIC throughput of 4.8 Tbps in a 1 U fixed platform designed for applications that require dense fan-out in a small, power-efficient footprint. It supports cloud-inspired service rates, and port-by-port configuration of native 10GbE (SFP+), 25GbE (SFP28), and 50GbE (SFP56) on all 48 service ports, including 6 ports of 400GbE QSFP56-DD for granular aggregation in metro, large enterprise, and data center applications.
ACX7100 platforms provide investment protection to operators. Juniper incorporates an innovative circuit board design to deliver groundbreaking performance, increased system memory for enhanced scaling, and cooling innovations that enable the use of cutting-edge pluggable transceiver technologies. Efficient cooling within these 1 U platforms enables ZR/ZR+ pluggable transceiver technology to be fully deployed on all 100GbE and 400GbE ports simultaneously, delivering industry-leading flexibility and capacity. Integrated port variety, density, and flexibility provide previously unattainable levels of scale and long-term transformation in a fixed form factor.
Specs
— ACX7100-48L: 4.775 Tbps
— ACX7100-32C: 4.8 Tbps
‣ Interface support:
— ACX7100-48L: 48x 10GE/25GE/50GE (SFP56), 6x 400GE (QSFP56-DD)
— ACX7100-32C: 32x 100GE (QSFP-DD), 4x 400GE (QSFP56-DD)
‣ Dimensions (W x H x D):
— ACX7100-48L: 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)
— ACX7100-32C: 17.36 x 1.75 x 23.42 in (44.09 x 4.45 x 59.49 cm)
‣ Weight:
— ACX7100-48L: 26.9 lbs. /12.22 kg
— ACX7100-32C: 28.0 lbs. /12.70 kg
‣ Power (AC):
— ACX7100-48L: -48 VDC through -60 VDC
— ACX7100-32C: -48 VDC through -60VDC
‣ Power (DC):
— ACX7100-48L: 115/240 VAC
— ACX7100-32C: 115/240 VDC
‣ Power draw:
— ACX7100-48L, Typical: 270W (without optics)
Maximum: 620W (without optics)
— ACX7100-32C, Typical: 500W (without optics)
Maximum: 960W (without optics)
‣ Humidity:
— ACX7100-48L: 5% through 90% non-condensing
— ACX7100-32C: 5% through 90% non-condensing
‣ Operating temperature:
— ACX7100-48L: Operating (0-40C), Short Term (0-55C) GR-63 NEBS-L3
— ACX7100-32C: Operating (0-40C), Short Term (0-55C) GR-63 NEBS-L3
/
Variant Product Details
Lightwire Systems offers the following ACX7100 variant options:
ACX7100-48L-AC-AI
ACX7100 chassis with 48 SFP56 / 6 QSFP56-DD
multirate ports, AC PSU, AFI
ACX7100-48L-AC-AO
ACX7100 chassis with 48 SFP56 / 6 QSFP56-DD
multirate ports, AC PSU, AFO
ACX7100-48L-DC-AI
ACX7100 chassis with 48 SFP56 / 6 QSFP56-DD
multirate ports, DC PSU, AFI
ACX7100-48L-DC-AO
ACX7100 chassis with 48 SFP56 / 6 QSFP56-DD
multirate ports, DC PSU, AFO
ACX7100-32C-AC-AO
ACX7100 chassis with 32 QSFP28 / 4 QSFP56-DD
multirate ports, AC PSU, AFO
ACX7100-32C-DC-AO
ACX7100 chassis with 32 QSFP28 / 4 QSFP56-DD
multirate ports, DC PSU, AFO
Part Numbers & Descriptions
Lightwire Systems offers the following ACX7100 parts & licenses:
Contact us for specific parts and license requests.
