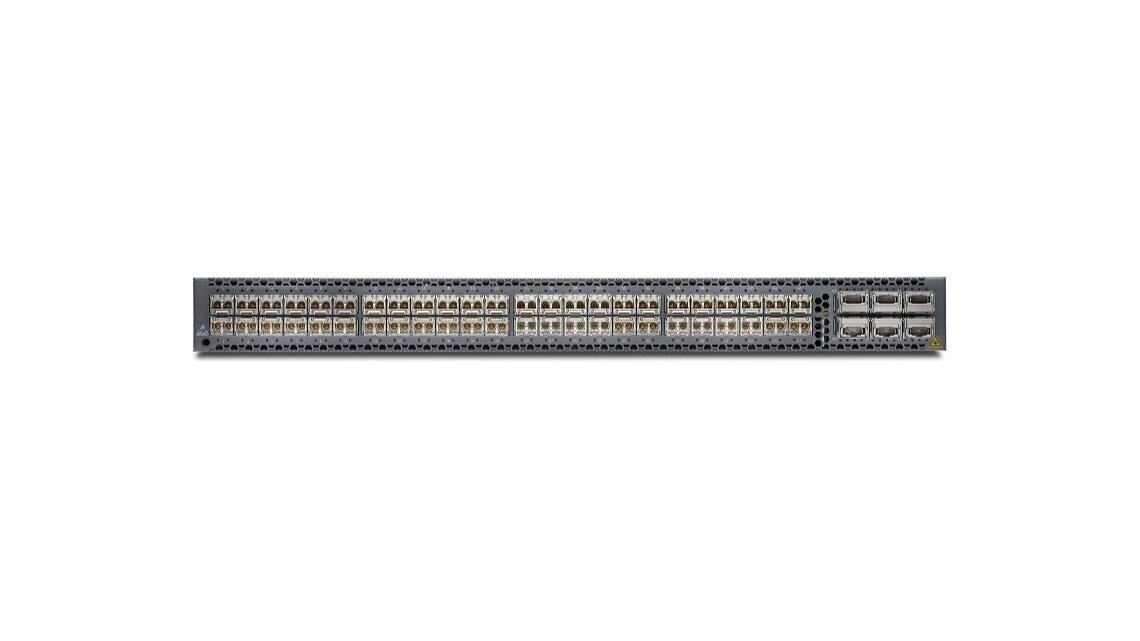

Juniper ACX5000 Router
The ACX5000 line of routers are high-performance, high-port-density, metro aggregation routers ideal for metro Ethernet access and aggregation deployments in Carrier Ethernet networks. The innovative design helps service providers build high-density, high-performance infrastructures where rack space and cooling are limited.
Built to handle 1GbE/10GbE capacity and density, ACX5000 routers feature 40GbE interfaces for network-to-network interface (NNI) uplinks and full support of E-Line, E-LAN, E-Tree, E-Access, and IP/IP VPN services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX5000 variants, parts & licenses.
The ACX5000 line of routers are high-performance, high-port-density, metro aggregation routers ideal for metro Ethernet access and aggregation deployments in Carrier Ethernet networks. The innovative design helps service providers build high-density, high-performance infrastructures where rack space and cooling are limited.
Built to handle 1GbE/10GbE capacity and density, ACX5000 routers feature 40GbE interfaces for network-to-network interface (NNI) uplinks and full support of E-Line, E-LAN, E-Tree, E-Access, and IP/IP VPN services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX5000 variants, parts & licenses.
The ACX5000 line of routers are high-performance, high-port-density, metro aggregation routers ideal for metro Ethernet access and aggregation deployments in Carrier Ethernet networks. The innovative design helps service providers build high-density, high-performance infrastructures where rack space and cooling are limited.
Built to handle 1GbE/10GbE capacity and density, ACX5000 routers feature 40GbE interfaces for network-to-network interface (NNI) uplinks and full support of E-Line, E-LAN, E-Tree, E-Access, and IP/IP VPN services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX5000 variants, parts & licenses.
Product Information
The Juniper Networks ACX5000 line of Universal Metro Routers is a response to a shift in metro network architectures where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX5000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX5000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX5000 line also provides high capacity, scalability, and a packet optical transport layer, while delivering industry-leading performance with a wide range of port densities and interface types.
Juniper Networks ACX Series Universal Metro Routers offer a wide range of metro solutions, including the ACX5048 and ACX5096:
‣ ACX5048: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
‣ ACX5096: The ACX5048 provides full duplex throughput of 1.44 Tbps in a 1 U platform. Built to handle 1GbE/10GbE capacity and density, it supports 48 1GbE/10GbE and six 40GbE interfaces, making it ideal for Metro Ethernet access and aggregation deployments with full support of E-Line, E-LAN, E-Tree, and E-Access, as well as IP/IP VPN services.
Specs
‣ Dimensions (W x H x D):
— ACX5048: 17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm)
— ACX5096: 17.36 x 3.46 x 22.44 in (44.09 x 8.8 x 57 cm)
‣ Weight(lb/kg) fully configured:
— ACX5048: 21.8 lb (9.9 kg)
— ACX5096: 32.5 lb (14.74 kg)
‣ Power (DC): -36 to -72 VDC power
‣ Power (AC): 110-240 VAC
‣ Maximum power draw:
— ACX5048: ~350 W (with optical SFPs)
— ACX5096: ~550 W (with optical SFPs)
‣ Operating temperature: 32° to 104° F (0° to 40° C)
‣ Humidity: 5%-90% RH noncondensing
/
