Juniper ACX4000 Router
ACX Series Universal Access Routers bring operational intelligence to the access and aggregation layers, providing the option to deploy Ethernet or IP/MPLS infrastructure. High-precision synchronization technology, industry-leading security, and high availability features enhance QoE, while extensive OAM, built-in advanced SLA management, and zero touch deployment capabilities reduce TCO. ACX Series platforms address a variety of service provider use cases—including mobile backhaul, residential and business access, and metro Ethernet aggregation—as well as enterprise use cases for power utilities, oil and gas, mining, transportation, and defense and public safety industries.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX4000 variants, parts & licenses.
ACX Series Universal Access Routers bring operational intelligence to the access and aggregation layers, providing the option to deploy Ethernet or IP/MPLS infrastructure. High-precision synchronization technology, industry-leading security, and high availability features enhance QoE, while extensive OAM, built-in advanced SLA management, and zero touch deployment capabilities reduce TCO. ACX Series platforms address a variety of service provider use cases—including mobile backhaul, residential and business access, and metro Ethernet aggregation—as well as enterprise use cases for power utilities, oil and gas, mining, transportation, and defense and public safety industries.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX4000 variants, parts & licenses.
ACX Series Universal Access Routers bring operational intelligence to the access and aggregation layers, providing the option to deploy Ethernet or IP/MPLS infrastructure. High-precision synchronization technology, industry-leading security, and high availability features enhance QoE, while extensive OAM, built-in advanced SLA management, and zero touch deployment capabilities reduce TCO. ACX Series platforms address a variety of service provider use cases—including mobile backhaul, residential and business access, and metro Ethernet aggregation—as well as enterprise use cases for power utilities, oil and gas, mining, transportation, and defense and public safety industries.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX4000 variants, parts & licenses.
Product Information

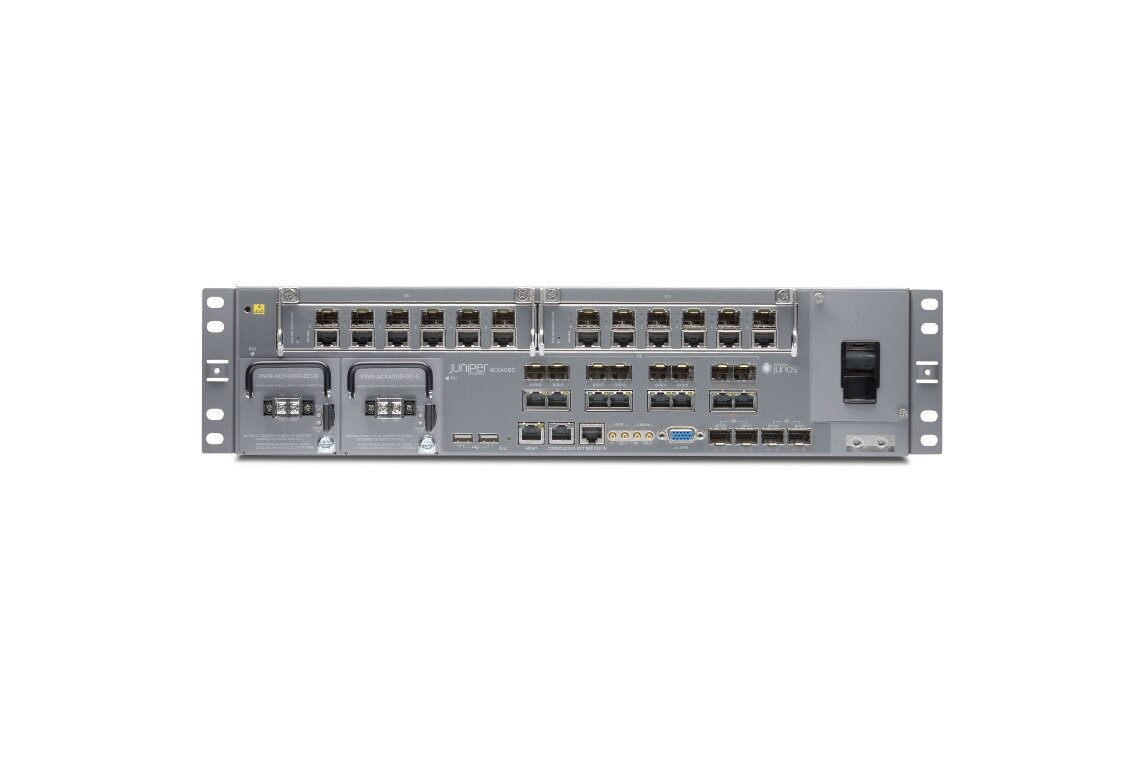

The ACX4000 Universal Metro Router is a 2.5U, actively cooled access router that is environmentally hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.
The ACX4000 has two modular interface card (MIC) slots that can house 16 T1/E1 ports, six GbE copper/fiber combination ports, or four CHOC3/STM-1 ports, creating a mobile access platform versatile enough for any deployment. Besides two MIC slots, the platform also provides a number of fixed ports that include 2 x 10GbE, 2 x GbE SFP, or 8 x GbE combination (copper/fiber).
‣ ACX4000: The 2.5 U ACX4000 offers two Modular Interface Card (MIC) slots that can house 16 T1/E1 ports, 6 GbE copper/fiber combination ports, or 4 CHOC3/STM-1 ports. The platform also provides a number of fixed ports that include 2x10GbE, 2xGbE SFP, or 8xGbE copper/fiber combination. It is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers.
Specs
‣ Dimensions (W x H x D): 17.5 x 4.35 x 9.25 in (44.5 x 11 x 23.5 cm)
‣ Weight(lb/kg) fully configured: 23.8 lb (10.82 kg) (Fully configured with two power supply units, two MICs)
‣ Power (DC): -48 V nominal or -60 V telco nominal or +24 VDC nominal
‣ Power (AC): 90 to 240 VAC
‣ Maximum power draw: 150 W (w/o MICs); 45 W for each MIC; 65 W for each PoE++ port
‣ Operating temperature: -40° to 149° F (-40° to 65° C)
‣ Humidity: 95% RH noncondensing
/
Variant Product Details
Lightwire Systems offers the following ACX4000 variant options:
ACX4000-DC
ACX4000 modular unit, 2x10GbE SFP+, 8xGbE combo (copper/fiber) with PoE++ on two ports, 2xGbE SFP, 2.5 U, ETSI 300, redundant DC power, temperature hardened, Junos OS, two configurable MIC slots (optics sold separately)
ACX4000-AC
ACX4000 modular unit, 2x10GbE SFP+, 8xGbE combo (copper/fiber) with PoE++ on two ports, 2xGbE SFP, 2.5 U, ETSI 300, redundant AC power, temperature hardened, Junos OS, two configurable MIC slots (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following ACX4000 parts & licenses:
Contact us for specific parts and license requests.
