Juniper ACX6000 Router
The ACX6000 line of Universal Metro Routers directly addresses evolving metro network architectures that extend operational intelligence from the service provider edge to the access network. The ACX6000 line bridges the complexity between packet optical transport and the IP/MPLS networking layer by collapsing both domains into a seamless, multilayer solution. From there, it delivers a single-pane-of-glass view into network operations.
The ACX6000 line is optimized for disaggregated and open-line architectures. It combines packet-optical convergence, 100GbE client interfaces, and 100/200 Gbps line-side interfaces to address a wide variety of use cases. Among these are business, cable Distributed Access Architectures (DAA), residential fiber, mobile backhaul, and enterprise applications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX6000 variants, parts & licenses.
The ACX6000 line of Universal Metro Routers directly addresses evolving metro network architectures that extend operational intelligence from the service provider edge to the access network. The ACX6000 line bridges the complexity between packet optical transport and the IP/MPLS networking layer by collapsing both domains into a seamless, multilayer solution. From there, it delivers a single-pane-of-glass view into network operations.
The ACX6000 line is optimized for disaggregated and open-line architectures. It combines packet-optical convergence, 100GbE client interfaces, and 100/200 Gbps line-side interfaces to address a wide variety of use cases. Among these are business, cable Distributed Access Architectures (DAA), residential fiber, mobile backhaul, and enterprise applications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX6000 variants, parts & licenses.
The ACX6000 line of Universal Metro Routers directly addresses evolving metro network architectures that extend operational intelligence from the service provider edge to the access network. The ACX6000 line bridges the complexity between packet optical transport and the IP/MPLS networking layer by collapsing both domains into a seamless, multilayer solution. From there, it delivers a single-pane-of-glass view into network operations.
The ACX6000 line is optimized for disaggregated and open-line architectures. It combines packet-optical convergence, 100GbE client interfaces, and 100/200 Gbps line-side interfaces to address a wide variety of use cases. Among these are business, cable Distributed Access Architectures (DAA), residential fiber, mobile backhaul, and enterprise applications.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX6000 variants, parts & licenses.
Product Information
Juniper Networks ACX6000 line of Universal Metro Routers responds to a shift in metro network architectures, where the access and aggregation layers are extending operational intelligence from the service provider edge to the access network. The ACX6000 line simplifies access and aggregation architectures by eliminating unnecessary layers and network overlays, dramatically reducing CapEx and OpEx. Based on architectural simplification and cost reduction, the ACX6000 line gives service providers and enterprises the ability to adopt a true universal metro paradigm. The ACX6000 line also provides high capacity, scalability, and a secure packet optical transport layer while delivering industry leading performance with a wide range of port densities and interface types.
The ACX6000 line includes two models, each targeted at different applications:

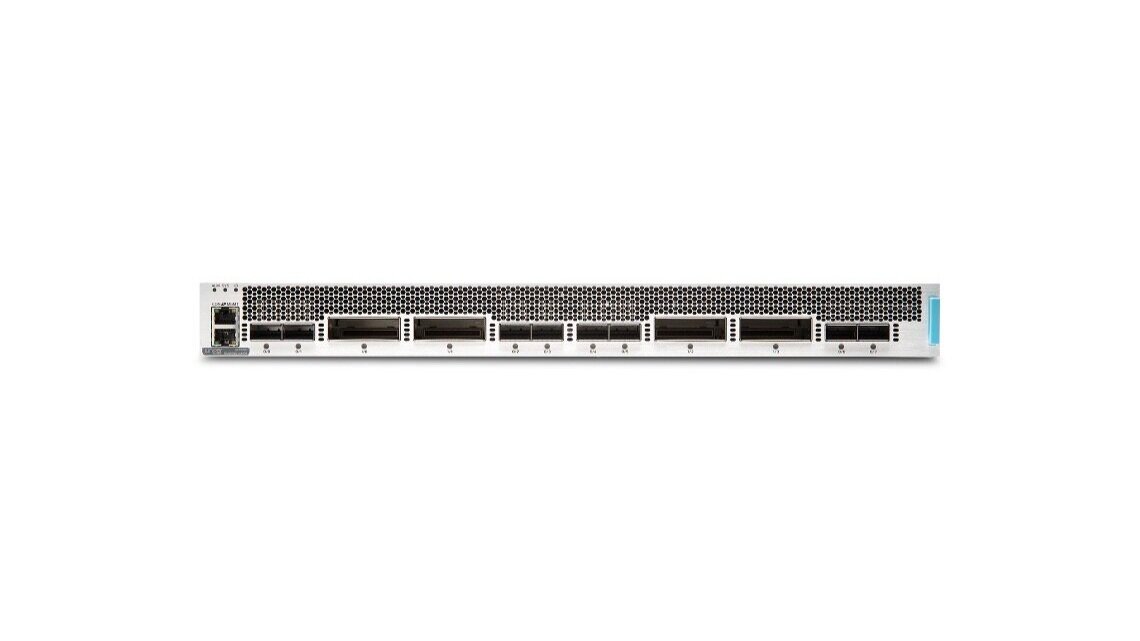

‣ ACX6160: The ACX6160 Universal Metro Router is an optical transport that provides full OpenROADM-compatible transponder support for metro packet optical transport applications in a 1 U platform. As a pure transparent transponder, the ACX6160 supports eight quad small form-factor pluggable transceiver QSFP28 100GbE/OTU4 client interfaces and four 100 Gbps/200 Gbps CFP2-DCO line-side interfaces. OpenROADM-compatible APIs provide fully compliant third-party controller support along with HG-FEC-compliant interfaces, enabling true interoperable transponder functionality.
‣ ACX6360: The ACX6360 Universal Metro Router allows operators to seamlessly collapse secure packet optical transport layers and IP/MPLS networking layers into a single platform. Powered by the latest Juniper Networks ExpressPlus™ silicon running at 3.6 Tbps, the ACX6360 supports 20 QSFP28 100GbE interfaces and eight 100 Gbps/200 Gbps CFP2-DCO interfaces, providing a secure IEEE 802.1AE/802.1X industry-compliant 256AES MACsec-encrypted solution for pervasive security across IP and optical.
Specs
‣ Dimensions (W x H x D):
— ACX6160: 17.36 x 1.72 x 24.40 in (44.09 x 4.37 x 61.98 cm)
— ACX6160: 17.36 x 1.72 x 24.40 in (44.09 x 4.37 x 61.98 cm)
‣ Weight(lb/kg) fully configured:
— 24 lb (10.9 kg)
— 30 lb (13.6 kg)
‣ Power (DC):
— -40 to -72 VDC power
— -40 to -72 VDC power
‣ Power (AC):
— 100-240 VAC
— 100-240 VAC
‣ Maximum power draw:
— 500 W (with optical small form-factor pluggable transceivers)
— 756 W (with optical SFP transceivers)
‣ Operating temperature:
— 32° to 104° F (0° to 40° C)
— 32° to 104° F (0° to 40° C)
‣ Humidity:
— 5%-90% RH noncondensing
— 5%-90% RH noncondensing
/
Variant Product Details
Lightwire Systems offers the following ACX6000 variant options:
ACX6160-T-AC
ACX6160 Optical Transport, supports 8x100GbE QSFP28/QSFP+
client ports, 4x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant AC power supplies, front-to-back
airflow
ACX6160-T-DC
ACX6160 Optical Transport, supports 8x100GbE QSFP28/QSFP+
client ports, 4x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant DC power supplies, front-to-back
airflow
ACX6360-OR-AC
ACX6360 Optical Router configuration, 20x100GbE QSFP28/QSFP+
client ports, 8x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant AC power supplies, front-to-back
airflow
ACX6360-OR-DC
ACX6360 Optical Router configuration, 20x100GbE QSFP28/QSFP+
client ports, 8x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant DC power supplies, front-to-back
airflow
ACX6360-OX-AC
ACX6360 Optical Transport configuration, 20x100GbE QSFP28/QSFP
& client ports, 8x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant AC power supplies, front-to-back
airflow
ACX6360-OX-DC
ACX6360 Optical Transport configuration, 20x100GbE QSFP28/QSFP
& client ports, 8x100/200G CFP2-DCO pluggable DWDM optics,
redundant fans and redundant DC power supplies, front-to-back
Part Numbers & Descriptions
Lightwire Systems offers the following ACX6000 parts & licenses:
Contact us for specific parts and license requests.
