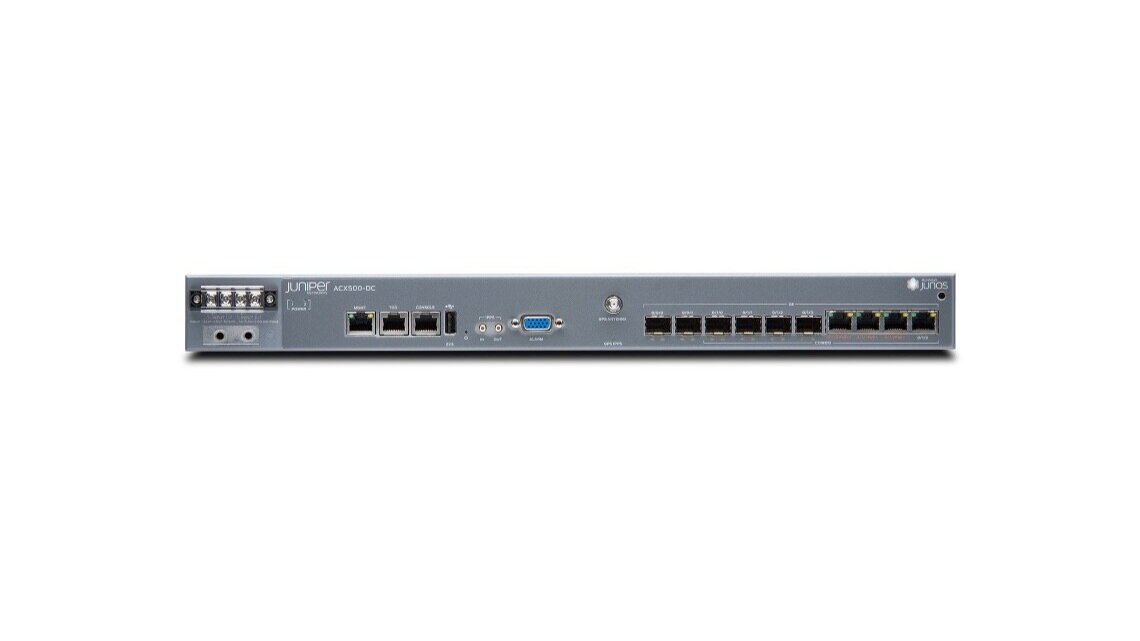

Juniper ACX500 Router
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX500 is a family of small-form-factor, hardened, fanless routers with integrated GPS receiver and security features. Available in indoor and outdoor models, they are ideal for small-cell LTE-Advanced mobile backhaul deployments, utilities, and railways.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX500 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX500 is a family of small-form-factor, hardened, fanless routers with integrated GPS receiver and security features. Available in indoor and outdoor models, they are ideal for small-cell LTE-Advanced mobile backhaul deployments, utilities, and railways.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX500 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The ACX500 is a family of small-form-factor, hardened, fanless routers with integrated GPS receiver and security features. Available in indoor and outdoor models, they are ideal for small-cell LTE-Advanced mobile backhaul deployments, utilities, and railways.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX500 variants, parts & licenses.
Product Information
The ACX500 is a family of small-form-factor, hardened, fanless routers that deliver up to 60-Gbps of throughput. They come with integrated software-enabled GPS receivers and support a rich set of security, timing, and synchronization features. The ACX500 routers have been certified for indoor and outdoor use for utilities and railways. They are ideal for small-cell, LTE-Advanced mobile backhaul deployments, as well as industrial environments.
The temperature-hardened ACX500 indoor model provides four copper 10/100/1000-Mbps ports and two fiber 1-Gbps ports, while the environmentally hardened ACX500-O and ACX500-O-PoE outdoor models provide three copper ports and three fiber ports. Both the ACX500 and the ACX500-O-PoE support Power over Ethernet Plus Plus (PoE++) with a power budget of 80 watts.
‣ ACX500: The ACX500 is a small form factor, hardened fanless router that delivers up to 60 Gbps throughput. It is ideal for small cell, LTE-Advanced mobile backhaul deployments, as well as use cases in the industrial environment. An ACX500-O version is available for outdoor deployment.
Specs
‣ Dimensions (W x H x D):
— ACX500: 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
— ACX500-O: 10 x 12.3 x 4.3 in (25.4 x 31.2 x 10.9 cm)
— ACX500-O-POE: 9.58 x 15.68 x 4.68 in (24.3 x 39.8 x 11.9 cm)
‣ Weight(lb/kg) fully configured:
— ACX500-DC: 8.6 lb (3.9 kg)
— ACX500-AC: 9.26 lb (4.2 kg)
— ACX500-O-DC: 11 lb (5 kg)
— ACX500-O-AC: 11.68 lb (5.3 kg)
— ACX500-O-POE-DC: 13.66 lb (6.2 kg)
— ACX500-O-POE-AC: 14.33 lb (6.5 kg)
‣ Power (DC): -48 V nominal or -60 V telco nominal or +24 VDC nominal
‣ Power (AC): 90 to 240 V
‣ Maximum power draw: 65 W + PoE power (80 W) (ACX500); 55 W (ACX500-O);
55 W + PoE power (80 W) (ACX500-O-POE)
‣ Operating temperature: -40° to 149° F (-40° to 65° C)
‣ Humidity: 95% RH noncondensing
/
Variant Product Details
Lightwire Systems offers the following ACX500 variant options:
ACX500-AC
ACX500 indoor unit 2x1GbE (SFP) + 4x1GbE (combo) with single AC power supply, 1 U, temperature hardened, passive cooling, rack mounting options, PoE support, Junos OS
ACX500-DC
ACX500 indoor unit 2x1GbE (SFP) + 4x1GbE (combo) with single DC power supply, 1 U, temperature hardened, passive cooling, rack mounting options, PoE support, Junos OS
ACX500-O-AC
ACX500 outdoor unit 3x1GbE (SFP) + 3x1GbE (Cu) with single AC power supply, IP65-compliant for outdoor installation, pole/wall mounting options, no Power over Ethernet (PoE) support, Junos OS
ACX500-O-DC
ACX500 outdoor unit 3x1GbE (SFP) + 3x1GbE (Cu) with single DC power supply, IP65-compliant for outdoor installation, pole/wall mounting options, no PoE support, Junos OS
ACX500-O-POE-AC
ACX500 outdoor unit 3x1GbE (SFP) + 3x1GbE (Cu) with single AC power supply, IP65-compliant for outdoor installation, pole/wall mounting options, PoE support, Junos OS
ACX500-O-POE-DC
ACX500 outdoor unit 3x1GbE (SFP) + 3x1GbE (Cu) with single DC power supply, IP65-compliant for outdoor installation, pole/wall mounting options, PoE support, Junos OS
Part Numbers & Descriptions
Lightwire Systems offers the following ACX500 parts & licenses:
Contact us for specific parts and license requests.
