Juniper ACX2200 Router
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The compact and versatile ACX2200 provides a fixed port configuration that includes 16 TDM (T1/E1) interfaces, eight copper GbE interfaces with PoE++ (65 W) capability on two ports, two GbE small form-factor pluggable transceiver (SFP) ports, and two 10 GbE SFP+ ports.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX2200 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The compact and versatile ACX2200 provides a fixed port configuration that includes 16 TDM (T1/E1) interfaces, eight copper GbE interfaces with PoE++ (65 W) capability on two ports, two GbE small form-factor pluggable transceiver (SFP) ports, and two 10 GbE SFP+ ports.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX2200 variants, parts & licenses.
ACX Series Universal Access Routers are a family of next-generation access routers that address the new network imperatives with up to three times the total throughput of competitive solutions. These routers provide a seamless, end-to-end service delivery platform that can grow and adapt to changing subscriber expectations and traffic demands.
The compact and versatile ACX2200 provides a fixed port configuration that includes 16 TDM (T1/E1) interfaces, eight copper GbE interfaces with PoE++ (65 W) capability on two ports, two GbE small form-factor pluggable transceiver (SFP) ports, and two 10 GbE SFP+ ports.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on ACX2200 variants, parts & licenses.
Product Information

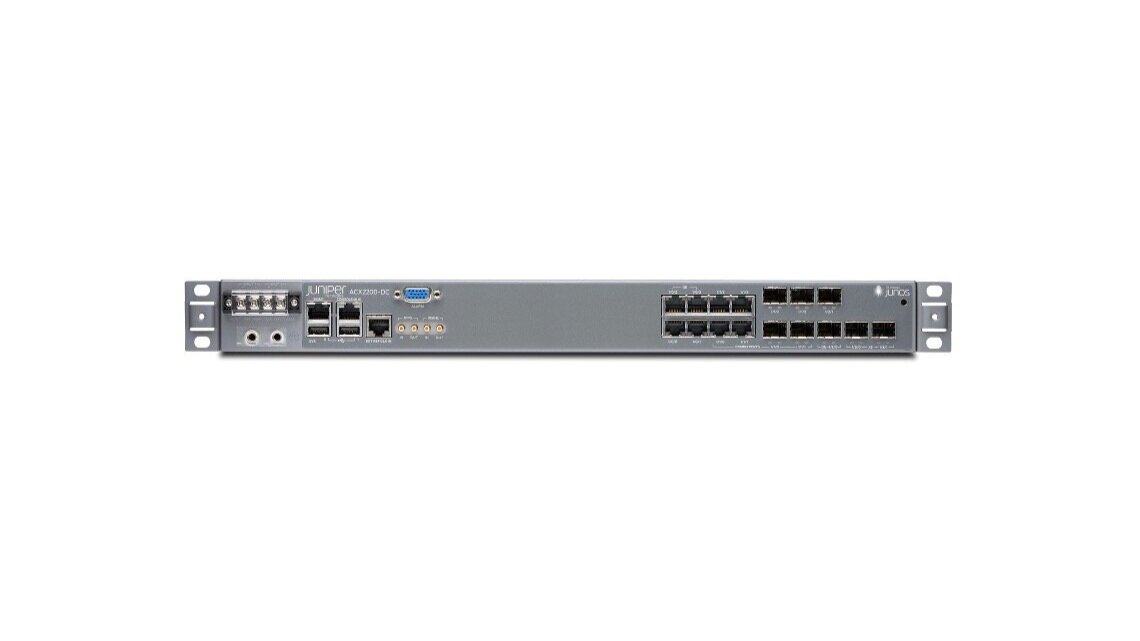

The ACX2200 Universal Metro Router is a compact, Ethernet-only, environmentally hardened router with fanless passive cooling. It has a fixed-port configuration that includes four copper 10/100/1000-Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports, making it ideal for IP-RAN deployments.
A built-in service engine makes the ACX2200 fully customizable and future-proofed for LTE-Advanced and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.
‣ ACX2200: The ACX2200 is a compact, Ethernet only, environmentally hardened router with fanless passive cooling and a fixed-port configuration featuring four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports, making it ideal for IP-RAN deployments.
Specs
‣ Dimensions (W x H x D): 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
‣ Weight(lb/kg) fully configured: 8.3 lb (3.77 kg)
‣ Power (DC): -48 V nominal or -60 V telco nominal or +24 VDC nominal
‣ Power (AC): 90 to 240 VAC for ACX2100- AC only
‣ Maximum power draw: 70 W (ACX2000); 60 W (ACX2100-AC); 80 W (ACX2100-DC)
‣ Operating temperature: -40° to 149° F (-40° to 65° C) full featured
‣ Humidity: 95% RH noncondensing
/
Variant Product Details
Lightwire Systems offers the following ACX2200 variant options:
ACX2200-DC
ACX2200 unit, 2x10GbE SFP+, 4xGbE copper, 4xGbE combination (copper or fiber), 2xGbE SFP, 1 U, ETSI 300, redundant DC power, temperature hardened, passively cooled, Junos OS (optics sold separately)
ACX2200-AC
ACX2200 unit, 2x10GbE SFP+, 4xGbE copper, 4xGbE combination (copper or fiber), 2xGbE SFP, 1 U, ETSI 300, redundant AC power, temperature hardened, passively cooled, Junos OS (optics sold separately)
Part Numbers & Descriptions
Lightwire Systems offers the following ACX2200 parts & licenses:
Contact us for specific parts and license requests.
