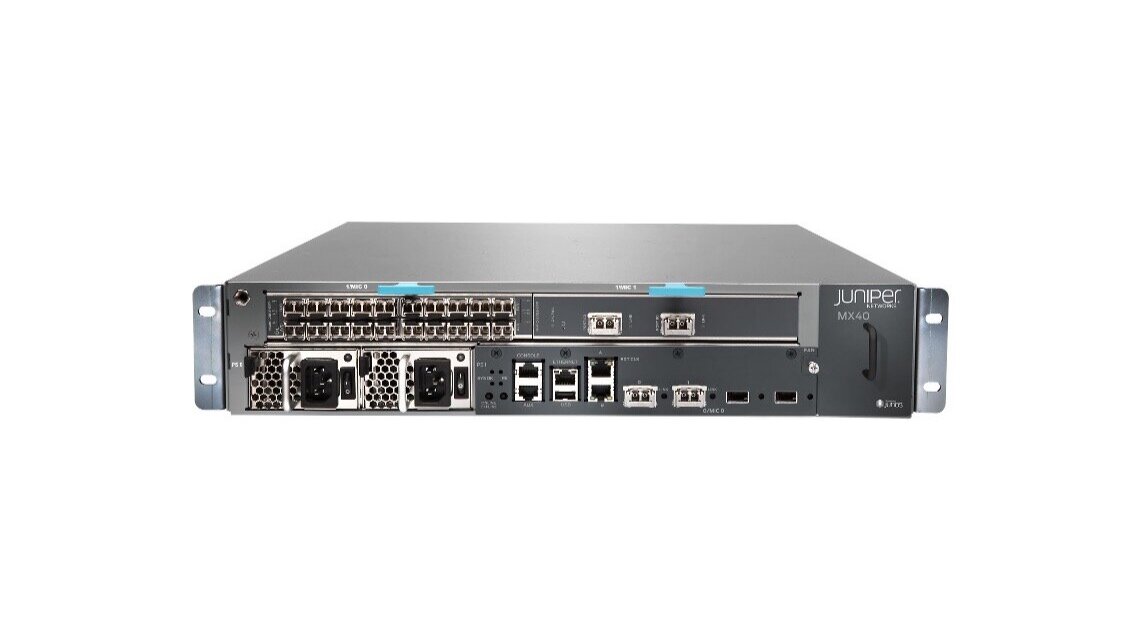

Juniper MX40 Router
The compact, agile, and full-featured MX40 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with built-in 10GbE ports and Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot for dedicated service support.
The MX40 is also software upgradeable to deliver 60 Gbps throughput, increased port density, and services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale as needed, while minimizing upfront costs.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX40 routers and MX40 parts & licenses.
The compact, agile, and full-featured MX40 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with built-in 10GbE ports and Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot for dedicated service support.
The MX40 is also software upgradeable to deliver 60 Gbps throughput, increased port density, and services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale as needed, while minimizing upfront costs.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX40 routers and MX40 parts & licenses.
The compact, agile, and full-featured MX40 Universal Routing Platform is ideally suited for enterprise and service provider applications, and is optimized for space- and power-constrained facilities. It is equipped with built-in 10GbE ports and Modular Interface Card (MIC) slots that permit flexible network connectivity, and a MS-MIC slot for dedicated service support.
The MX40 is also software upgradeable to deliver 60 Gbps throughput, increased port density, and services. This investment protecting approach enables customers to increase bandwidth, subscriber, and services scale as needed, while minimizing upfront costs.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX40 routers and MX40 parts & licenses.
Product Information
The SDN-ready MX40 3D Universal Edge Router is a flexible, full featured MX Series solution for managed services and enterprise applications. It is equipped with two user-configurable MIC slots for flexible network connectivity, two fixed 10GbE ports, and an additional MIC slot in the rear to support a multiservice card for virtualized network services such as Carrier Grade NAT (CGNAT), stateful firewall, and IPsec.
With a software upgrade that increases port capacity and performance, the MX40 is upgradeable to an MX80. This enables customers to minimize upfront capital investment while ensuring investment protection that accommodates future growth requirements.
Long-Term Investment Protection
Increase scale through 80 Gbps and add services via simple software upgrade for nondisruptive platform evolution and long-term investment protection.
SDN-Ready
Seamless integration with SDN controllers like Juniper Networks Contrail enables elastic service delivery, simplified operations, and service differentiation.
Service Agility
Ability to incorporate services inline and via MS-MIC provides new revenue opportunities in business and residential markets.
Compact Design
At 2 U, the full-featured MX40 is an ideal choice for space- and power-constrained facilities.
Specs
‣ System capacity: 60 Gbps
‣ Switch fabric capacity per slot: N/A
‣ DPCs and/or MPCs per chassis: Two MIC slots and two 10GbE interfaces enabled;
separately purchased upgrade licenses permit use of up to two additional 10GbE
interfaces.
‣ Chassis per rack: 24
‣ Dimensions: (W x H x D) Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm)
‣ Maximum weight: 30 lb/13.7 kg
‣ Mounting: Front or center
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
‣ Humidity: 5 to 90 percent noncondensing
‣ Altitude: No performance degradation to 13,000 ft/4,000 m
/
Variant Product Details
Lightwire Systems offers the following MX40 variants:
MX40BASE-T
MX40 Chassis with Timing Support - Includes dual power supplies, 2 empty MIC slots, 2x10G fixed ports, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately.
MX40-T-AC
MX40 AC Chassis with Timing Support - Includes Dual Power Supplies, 2 Empty MIC Slots, 2x10G Fixed Ports, JUNOS, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN Licenses, Power Supply Cable to be ordered separately, Mid-Rangius.
MX40-T-DC
MX40 DC Chassis with Timing Support - Includes Dual Power Supplies, 2 Empty MIC Slots, 2x10G Fixed Ports, JUNOS, S-MX80-ADV-R, S-MX80 -Q & S-ACCT-JFLOW-IN Licenses, Power Supply Cable to be ordered separately.
Part Numbers & Descriptions
Lightwire Systems offers the following MX40 parts:
CHAS-MX40-T-S
MX40 spare chassis with timing support
MX40-T-AC
MX40 AC chassis with timing support - includes dual power supplies, 2 empty MIC slots, 2x10G fixed ports, Junos, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately
MX40-T-DC
MX40 DC chassis with timing support - includes dual power supplies, 2 empty MIC slots, 2x10G fixed ports, Junos, S-MX80-ADV-R, S-MX80-Q & S-ACCT-JFLOW-IN-5G licenses. Power-supply cable to be ordered separately
MX-40-80-UPG
Software upgrade for MX40 to MX80
FANTRAY-MX80-S
Fan Tray for MX80, Spare, MX80
FLTR-KIT-MX80-S
Filter Kit for MX80, Spare, MX80
MX80-SEPTUM-S
MX80 Septum for use with 1/2 height MICs, Spare
PWR-BLANK-MX80
MX80 Power Blank Cover, Spare, MX80
PWR-MX80-AC-S
MX80 AC Power Supply
PWR-MX80-DC-S
MX80 DC Power Supply
