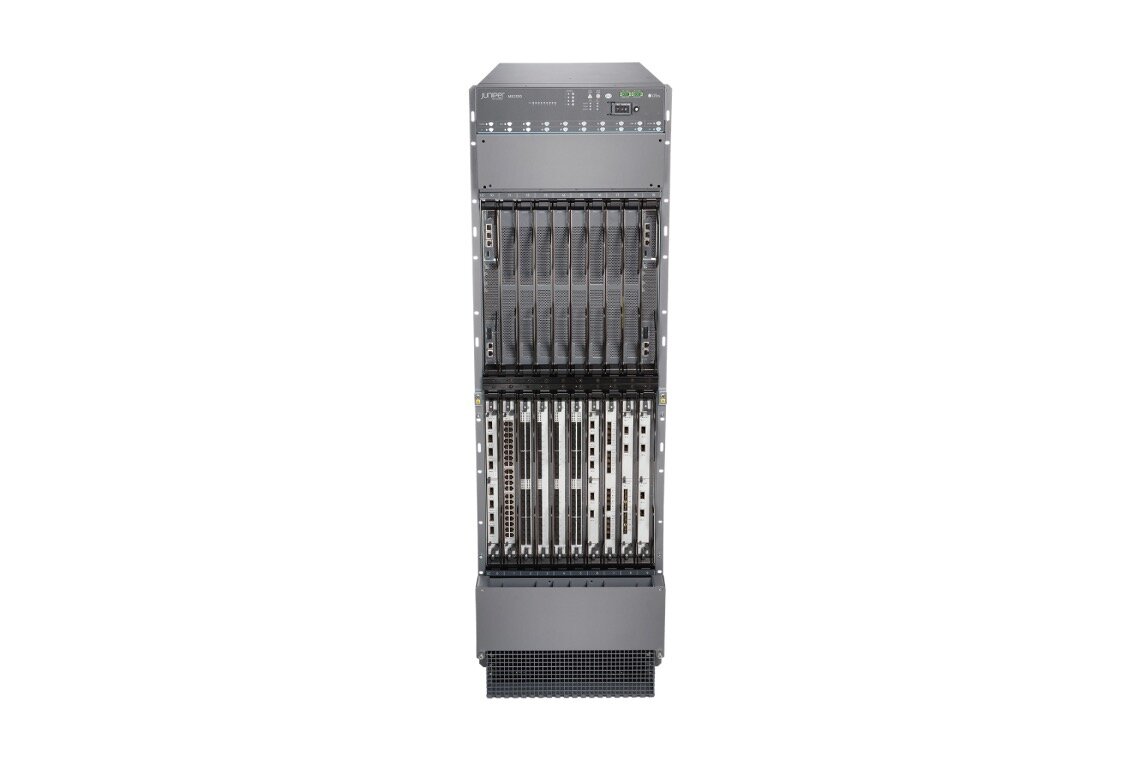

Juniper MX2010 Router
The SDN-ready MX2010 Universal Routing Platform is a high-capacity, carrier-grade platform that helps service providers and cloud operators address long-term traffic, subscriber, and services growth.
With the Modular Port Concentrator 11E (MPC11E) line card, the MX2010 delivers 40 Tbps of throughput in support of 400 100GbE interfaces, 160 200GbE interfaces, or 80 400GbE interfaces in a single chassis. Ultra-high performance and density make the MX2010 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. The MX2010 also addresses the stringent requirements of mobile services with sophisticated timing and virtualization capabilities.
The MX2010 provides the highest levels of network availability with a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while allowing you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2010 routers and MX2010 parts & licenses.
The SDN-ready MX2010 Universal Routing Platform is a high-capacity, carrier-grade platform that helps service providers and cloud operators address long-term traffic, subscriber, and services growth.
With the Modular Port Concentrator 11E (MPC11E) line card, the MX2010 delivers 40 Tbps of throughput in support of 400 100GbE interfaces, 160 200GbE interfaces, or 80 400GbE interfaces in a single chassis. Ultra-high performance and density make the MX2010 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. The MX2010 also addresses the stringent requirements of mobile services with sophisticated timing and virtualization capabilities.
The MX2010 provides the highest levels of network availability with a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while allowing you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2010 routers and MX2010 parts & licenses.
The SDN-ready MX2010 Universal Routing Platform is a high-capacity, carrier-grade platform that helps service providers and cloud operators address long-term traffic, subscriber, and services growth.
With the Modular Port Concentrator 11E (MPC11E) line card, the MX2010 delivers 40 Tbps of throughput in support of 400 100GbE interfaces, 160 200GbE interfaces, or 80 400GbE interfaces in a single chassis. Ultra-high performance and density make the MX2010 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. The MX2010 also addresses the stringent requirements of mobile services with sophisticated timing and virtualization capabilities.
The MX2010 provides the highest levels of network availability with a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while allowing you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2010 routers and MX2010 parts & licenses.
Product Information
The SDN-ready MX2000 line of 3D Universal Edge Routers are true cloud-grade networking platforms that help network operators of all types achieve their business goals by combining unparalleled performance, reliability, and security with a programmable, software-centric design at massive scale including line-rate encryption capabilities. Simply put, the MX2000 routers offer the system capacity, linerate port density, and serviceoriented design that network operators need to thrive today and in the future.
Switch Fabric Board
Switch Fabric Boards (SFBs) create a highly scalable and resilient “all-active” centralized switch fabric that delivers up to 2 Tbps of fullduplex switching capacity to each MPC slot in an MX2000 router.
Control Board and Routing Engine
Dual redundant Control Board and Routing Engines (CB-REs) run the 64-bit Junos OS and support routing protocol processing, router interface control, and control plane functions such as chassis component, system management, and user access to the router. These processes run on top of a kernel that interacts with the Packet Forwarding Engine (PFE) on Modular Port Concentrators (MPCs) via dedicated high-bandwidth management channels, providing a clean separation of the control and forwarding planes.
Power
The MX2000 power and thermal subsystems use advanced technology to optimize power efficiency without sacrificing scale or features. The power subsystem has a highly resilient architecture for full power supply and power cable feed redundancy. MX2000 routers are available with -48 V DC or AC power (in Delta or Wye 3-phase configuration), and allow power to be added to the rack as needed.
Modular Port Concentrators
Modular Port Concentrators (MPCs) provide comprehensive routing, switching, inline services, subscriber management, and advanced hierarchical quality of service (HQoS) to address the widest set of network and service applications. Some MPCs provide network connectivity directly; others host Modular Interface Cards (MICs) that allow users to mix-and-match interfaces.
Junos Operating System
Junos is a reliable, high-performance, modular network operating system that is supported across all of Juniper Networks physical and virtual routing, switching, and security platforms, reducing the cost, complexity, and resources required to implement and maintain the network. With secure programming interfaces, the Juniper Extension Toolkit and versatile scripting support, and integration with popular orchestration frameworks, Junos OS offers flexible options for continuous delivery and DevOps style management that helps service providers of all types unlock more value from the network.
Specs
‣ System capacity: 40 Tbps
‣ Switch fabric capacity per slot 4 Tbps
‣ Dense Port Concentrators (DPCs) and/or
‣ Modular Port Concentrators (MPCs) per chassis 10 (MPC only)
‣ Chassis per rack 1
‣ Dimensions (W x H x D) 19.0 x 59.50 x 36.20 in (48.26 x 151.13 x 91.95 cm)
‣ Maximum weight 1,000 lbs / 453.6 kg
‣ Mounting Four-post rack
‣ Power options AC/DC: -40 to -72 V DC 100-240 V AC
‣ Operating temperature 32° to 115° F (0° to 46° C) at sea level
‣ Humidity 5 to 90 percent noncondensing
‣ Altitude No performance degradation to 13,000 ft/4000 m
/
Variant Product Details
Lightwire Systems offers the MX2010 variant options:
MX2010-BASE-AC
10 slot MX2010 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, AC power
MX2010-BASE-DC
10 slot MX2010 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, DC power
MX2010-PREMIUM-AC
10 slot MX2010 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, AC power
MX2010-PREMIUM-DC
10 slot MX2010 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, DC power
CHAS-BP-MX2010-S
10 slot MX2010 chassis with backplane installed, spare
MX2010-PREMIUM2-AC
10 slot MX2010 premium 2 chassis with optimized AC power
MX2010-PREMIUM2-DC
10 slot MX2010 premium 2 chassis with optimized DC power
Part Numbers & Descriptions
Lightwire Systems offers the following MX2010 parts:
CHAS-BP-MX2010-S
10 slot MX2010 chassis with backplane installed, spare
