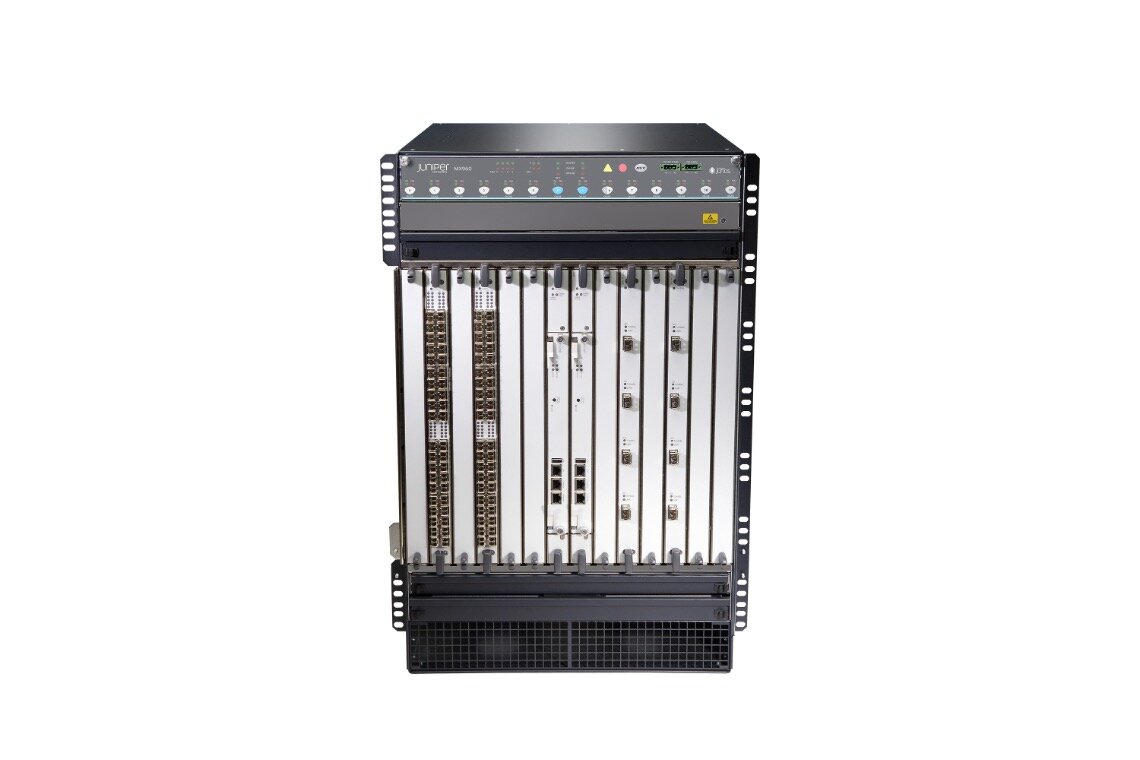

Juniper MX960 Router
The SDN-enabled MX960 Universal Routing Platform has been proven in the world’s largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
The high-performance MX960 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for Flexible Ethernet (FlexE), a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway (BNG) functions, along with integrated routing, switching, and security services.
Powered by Junos OS and the programmable Juniper Penta silicon, the MX960 is deployed in mission-critical service provider and enterprise networks worldwide. It helps network operators prepare their networks—and their businesses—to react quickly to ever-changing market conditions in the cloud era.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX960 routers and MX960 parts & licenses.
The SDN-enabled MX960 Universal Routing Platform has been proven in the world’s largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
The high-performance MX960 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for Flexible Ethernet (FlexE), a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway (BNG) functions, along with integrated routing, switching, and security services.
Powered by Junos OS and the programmable Juniper Penta silicon, the MX960 is deployed in mission-critical service provider and enterprise networks worldwide. It helps network operators prepare their networks—and their businesses—to react quickly to ever-changing market conditions in the cloud era.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX960 routers and MX960 parts & licenses.
The SDN-enabled MX960 Universal Routing Platform has been proven in the world’s largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
The high-performance MX960 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for Flexible Ethernet (FlexE), a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway (BNG) functions, along with integrated routing, switching, and security services.
Powered by Junos OS and the programmable Juniper Penta silicon, the MX960 is deployed in mission-critical service provider and enterprise networks worldwide. It helps network operators prepare their networks—and their businesses—to react quickly to ever-changing market conditions in the cloud era.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX960 routers and MX960 parts & licenses.
Product Information
The MX960 router is powered by the Trio chipset and Junos OS, Juniper’s high-performance operating system for advanced routing and switching. This router gives service providers the ability to offer the widest range of business and residential applications and services, including high-speed transport and VPN services, next-generation broadband multiplay services, and high-volume Internet data center internetworking.
The router provides 14 slots that can be populated with up to 12 Dense Port Concentrators (DPCs) or Modular Port Concentrators (MPCs), six Flexible PIC Concentrators (FPCs), and two Switch Control Boards (SCBs). The MX960 increases system availability with hardware redundancy options for the SCBs, Routing Engines (REs), fan trays, and power supplies. Powerful switching and security features deliver unmatched flexibility and reliability to support advanced services and applications.
The MX960 Ethernet router separates control and forwarding functions to provide maximum scale and intelligent service delivery capabilities. All MX Series 3D Universal Edge Routers are optimized for Ethernet services and provide support for multiservice interfaces (FR/ATM) to help transition legacy services to Ethernet. And they address a wide range of deployments, architectures, port densities, and interfaces, in both service provider and enterprise environments.
The MX960 router is 16 rack units (RU) tall, and three routers can be stacked in a single floor-to-ceiling rack for increased port density per unit of floor space.
Specs
‣ System capacity: Up to 12 Tbps
‣ Switch fabric capacity per slot: Up to 1.5 Tbps
‣ DPCs and/or MPCs per chassis: Up to 11
‣ Chassis per rack: 3
‣ Dimensions: (W x H x D) 17.37 x 27.75 x 28 in (total depth includes standard
cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm)
‣ Maximum weight: 334 lb / 151.6 kg
‣ Mounting: Front or center
‣ Power options: AC/DC: -40 to -72 V DC 100-240 V AC
‣ Operating temperature: 0–104°F (0–40°C) at 6000 feet
‣ Humidity: 5 to 90 percent non-condensing
‣ Altitude: No performance degradation to 13,000 ft/4,000 m
/
Variant Product Details
Lightwire Systems offers the following MX960 variants:
MX960BASE3-ACMX960 14 Slot Base 3 Chassis with AC Power Supply
MX960BASE-AC
MX960 14 Slot Base Chassis with 2 Fan Trays, 3 AC Power Supplies, 2 SCB, 1 RE
MX960BASE3-AC-ECM
MX960 14 Slot Base 3 Chassis with AC Power Supply and Extended Cable Manager
MX960BASE-AC-ECM
MX960 14 Slot Base Chassis with AC Power Supplies and Extended Cable Manager
MX960BASE3-DC
MX960 14 Slot Base 3 Chassis with DC Power Supply
MX960BASE-DC
MX960 14 Slot Base Chassis with 2 Fan Trays, 2 DC Power Supplies, 2 SCB, 1 RE
MX960BASE3-DC-ECM
MX960 14 Slot Base 3 Chassis with DC Power Supply and Extended Cable Manager
MX960BASE-DC-ECM
MX960 14 Slot Base Chassis with DC Power Supplies and Extended Cable Manager
MX960-PREMIUM2-AC
MX960 14 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, AC Power
MX960-PREMIUM2-DC
MX960 14 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, DC Power
MX960-PREMIUM2-AC-ECM
MX960 14 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, AC Power and Extended Cable Manager
MX960-PREMIUM2-DC-ECM
MX960 14 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, DC Power and Extended Cable Manager
MX960-PREMIUM3-AC
MX960 14 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, AC Power
MX960-PREMIUM3-DC
MX960 14 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, DC Power
MX960-PREMIUM3-AC-ECM
MX960 14 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, AC Power and Extended Cable Manager
MX960-PREMIUM3-DC-ECMMX960
14 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, DC Power and Extended Cable Manager
Part Numbers & Descriptions
Lightwire Systems offers the following MX960 parts:
MX960 with installed backplane, Enhanced Cable Manager
CHAS-BP3-MX960-S
MX960 with installed backplane, Spare
CRAFT-MX960-S
MX960 Craft Interface Panel, Spare
ECM-MX960
MX960 Enhanced Cable Manager, Spare
FFANTRAY-MX960-BB
MX960 Fantray, configurable option in base bundle
FFANTRAY-MX960-HC-BB
MX960 High Capacity fantray (upper or lower), configurable option in base bundle
FFANTRAY-MX960-HC-S
MX960 High Capacity fantray (upper or lower), Spare
FFANTRAY-MX960-S
MX960 Fantray (upper or lower), Spare
FFILTER-MX960-BB
MX960 Filter tray for fantray, configurable option in base bundle
FFILTER-MX960-HC-BB
MX960 Filter tray for high-capacity fantray, configurable option in base bundle
FFILTER-MX960-HC-S
MX960 Filter tray for high-capacity fantray, Spare
FFILTER-MX960-S
MX960 Filter tray for fantray, Spare
FLTR-KIT-MX960-S
MX960 Air Filter, Spare
MX960-ACOUSTIC-CVR-S
Front cover for MX960 RE/SCB/DPC area and upper fan tray
MX960-PREM3AC-ECM
MX960 AC Premium Fully Redundant "Built to Stock" System with three Switch control board (SCBE), dual RE-S-1800X4-16G, redundant ACPower and Fan trays, and Extended Cable Manager
MX960-PREM3DC-ECM
MX960 DC Premium Fully Redundant "Built to Stock" System with three Switch control board (SCBE), dual RE-S-1800X4-16G, redundant DCPower and Fan trays, and Extended Cable Manager
MX960-PREMIUM-AC
Base system with redundant RE-2000, SCB, and power
MX960-PREMIUM-AC-ECM
Base system with redundant RE-2000, SCB, power, Enhanced Cable Manager
MX960-PREMIUM-DC
Base system with redundant RE-2000, SCB, and power
MX960-PREMIUM-DC-ECM
Base system with redundant RE-2000, SCB, power, Enhanced Cable Manager
MX960-PREMIUM2-AC
MX960 Premium Bundle with redundant components, AC Power
MX960-PREMIUM2-AC-ECM
MX960 AC Premium System with redundant components, AC Power, and Extended Cable Manager
MX960-PREMIUM2-DC
MX960 Premium Bundle with redundant components, DC Power
MX960-PREMIUM2-DC-ECM
MX960 DC Premium System with redundant components, DC Power, and Extended Cable Manager
MX960-PREMIUM3-AC
MX960 Premium Bundle with redundant components, AC Power
MX960-PREMIUM3-AC-ECM
MX960 AC Premium System with redundant components, AC Power, and Extended Cable Manager
MX960-PREMIUM3-DC: MX960 Premium Bundle with redundant components, DC Power
MX960-PREMIUM3-DC-ECM
MX960 DC Premium System with redundant components, DC Power, and Extended Cable Manager
MX960BASE-AC
Chassis, Midplane, RE, 2-SCB, AC PEM
MX960BASE-AC-ECM
Chassis, Midplane, RE, 2-SCB, AC PEM, Enhanced Cable Manager
MX960BASE-DC
Chassis, Midplane, RE, 2-SCB, 2 DC PEM
MX960BASE-DC-ECM
Chassis, Midplane, RE, 2-SCB, 2 DC PEM, Enhanced Cable Manager
MX960BASE3-AC
MX960 Base Bundle, AC power
MX960BASE3-AC-ECM
MX960 Base Bundle, AC Power, and Extended Cable Manager
MX960BASE3-DC
MX960 Base Bundle, DC power
MX960BASE3-DC-ECM
MX960 Base Bundle, DC Power, and Extended Cable Manager
PKG-MX960-ECM-S
Shipping container for MX960 with enhanced cable manager, spare
PKG-MX960-S
MX960 Shipping Container, Spare
PWR-BLANK-MX960
MX960 Power Blank Cover, Spare
PWR-FAN-MX960-AC-HC-U
MX960 High Capacity power/cooling upgrade kit. Includes 4x 4100W AC PSU, 2x High Capacity fantray, 1x High Capacity filter tray
PWR-MX960-4100-AC-BB
4100W AC Power Supply, configurable option in base bundle (Note: AC power cords are sold separately)
PWR-MX960-4100-AC-R
4100W AC Power Supply, Redundant, (Note: AC power cords are sold separately)
PWR-MX960-4100-AC-S
4100W AC Power Supply, Spare (Note: AC power cords are sold separately)
PWR-MX960-4100-DC-BB
4100W DC Power Supply, configurable option in base bundle
PWR-MX960-AC-BB
MX960 AC Power Entry Module, configurable option in base bundle
PWR-MX960-AC-R
AC Power Entry Module, Redundant, (Note: AC power cords are sold separately)
PWR-MX960-AC-S
MX960 Power Entry Module AC, Spare
PWR-MX960-DC-BB
MX960 DC Power Entry Module, configurable option in base bundle
PWR-MX960-DC-R
DC Power Entry Module, Redundant
PWR-MX960-DC-S
MX960 Power Entry Module DC, Spare
