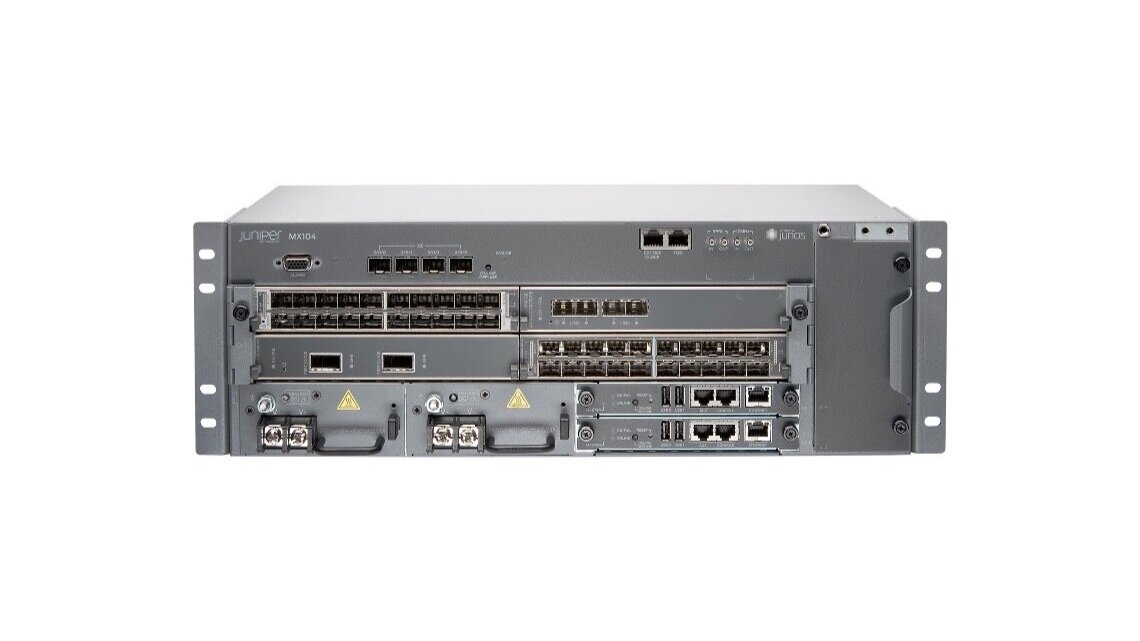

Juniper MX104 Router
The SDN-ready MX104 Universal Routing Platform is a modular, highly redundant, and full-featured platform built for space- and power-constrained service provider and enterprise facilities.
The MX104 offers 80 Gbps of capacity, a redundant control plane for high availability, as well as four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized network services. Optimized for mobile applications and central office deployments, the MX104 is also ETSI 300 compliant, environmentally hardened for deployment in outside cabinets and remote terminals, and supports advanced timing features.
Powered by Junos OS and the programmable Trio chipset, the MX104 shares the same advanced routing, switching, security, and service features that are available in large MX Series platforms, including support for a wide range of L2/L3 VPN services and advanced broadband network gateway functions.
Deployed in mission-critical service providers and enterprise networks worldwide, the MX104 helps network operators transform their networks—and their businesses—to thrive in our hyper-connected world.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX104 routers and MX104 parts & licenses.
The SDN-ready MX104 Universal Routing Platform is a modular, highly redundant, and full-featured platform built for space- and power-constrained service provider and enterprise facilities.
The MX104 offers 80 Gbps of capacity, a redundant control plane for high availability, as well as four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized network services. Optimized for mobile applications and central office deployments, the MX104 is also ETSI 300 compliant, environmentally hardened for deployment in outside cabinets and remote terminals, and supports advanced timing features.
Powered by Junos OS and the programmable Trio chipset, the MX104 shares the same advanced routing, switching, security, and service features that are available in large MX Series platforms, including support for a wide range of L2/L3 VPN services and advanced broadband network gateway functions.
Deployed in mission-critical service providers and enterprise networks worldwide, the MX104 helps network operators transform their networks—and their businesses—to thrive in our hyper-connected world.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX104 routers and MX104 parts & licenses.
The SDN-ready MX104 Universal Routing Platform is a modular, highly redundant, and full-featured platform built for space- and power-constrained service provider and enterprise facilities.
The MX104 offers 80 Gbps of capacity, a redundant control plane for high availability, as well as four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized network services. Optimized for mobile applications and central office deployments, the MX104 is also ETSI 300 compliant, environmentally hardened for deployment in outside cabinets and remote terminals, and supports advanced timing features.
Powered by Junos OS and the programmable Trio chipset, the MX104 shares the same advanced routing, switching, security, and service features that are available in large MX Series platforms, including support for a wide range of L2/L3 VPN services and advanced broadband network gateway functions.
Deployed in mission-critical service providers and enterprise networks worldwide, the MX104 helps network operators transform their networks—and their businesses—to thrive in our hyper-connected world.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX104 routers and MX104 parts & licenses.
Product Information
Modular design
The MX104 provides four MIC slots for flexible configuration options required to support various applications. The modular design and flexibility provided by these slots also enables a pay as-you-grow model that provides optimal cost configuration based on traffic growth projections.
Redundant routing engines
The MX104 supports hot-pluggable redundant Routing Engines (REs) for control plane redundancy. The RE provides the control plane functions, runs Junos OS, and handles all routing protocol processes as well as the software processes that control the router's interfaces, chassis components, system management, and user access to the router.
Edge services capability
The MX104 features Juniper's award winning Junos Trio ASIC with a full set of edge services typical of the MX series family. These services include full Layer 2 and Layer 3 VPNs for business edge applications, as well as Dynamic Host Configuration Protocol (DHCP), subscriber management, and multicast support for residential edge applications. In fact, through Junos Trio and Junos OS, the MX104 acts as a full-featured broadband network gateway (BNG) in a compact form factor that is ideal for distributed BNG deployments.
Integrated timing
The MX104 incorporates highly scalable and reliable hardware based timing technology that meets the strictest LTE requirements for frequency and phase synchronization. Providing an accurate timing reference is one of the most significant technical and operational challenges for deployment of LTE radio access technology. MX104 supports Synchronous Ethernet (SyncE) for frequency as well as Precision Timing Protocol (PTP) for both frequency and phase synchronization. Furthermore, the MX104 allows SyncE and PTP to be used in a hybrid mode for the highest level of frequency and phase accuracy required for LTE-Advanced. Thus, the MX104 is an ideal choice for the aggregation of mobile backhaul traffic.
Specs
‣ System capacity: 80 Gbps and 1 Million IPv4 routes.
‣ Rack units: 3.5
‣ 4 MIC slots; Four 10-Gigabit Ethernet 10Gbe interfaces (Maximum 8);
Two Routing Engine Slots
‣ Chassis per rack: 12
‣ Dimensions (W x H x D): Chassis: 17.22 x 9.46 x 6.09 in (43.7 x 24 x 15.47 cm)
‣ Maximum weight: 32 lb/14.2 kg
‣ Mounting: Front or center
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: -40° to 149° F (0° to 46° C) at sea level
‣ Humidity: 5 to 90 percent non-condensing
‣ Altitude: No performance degradation to 13,000 ft / 4,000 m
/
Variant Product Details
Lightwire Systems offers the following MX104 variants:
MX104-T
MX104 Chassis with 4 Microphone Slots, 4X10GE x
MX104-PREM-T
MX104 premium bundle, 4 MIC slots, 2 Power supply, 2 REs, JUNOS, TAA
MX104-AC
Includes 4 MIC Slots, 4x10GE XFP Built-in Ports (License required for activation), AC Power Supply, Fan Tray w/Filter, Packet Forwarding Engine & Routing Engine.
MX104-DC
Includes 4 MIC Slots, 4x10GE XFP Built-in Ports (License required for activation), DC Power Supply, Fan Tray w/Filter, Packet Forwarding Engine & Routing Engine.
MX104-40G-AC-BNDL
MX104 AC Chassis Promotional Bundle with 40G Throughput -
Includes 40G throughput, 2x10G built-in ports, 1 service MIC slot, 1 interface MIC slot, redundant AC power supply. Software licenses included :JUNOS, ADV-R2,JFLOW-5G
MX104-40G-DC-BNDL
MX104 DC Chassis Promotional Bundle with 40G Throughput - Includes 40G throughput, 2x10G built-in ports, 1 service MIC slot, 1 interface MIC slot, redundant DC power supply. Software licenses included :JUNOS, ADV-R2,JFLOW-5G
MX104-80G-AC-BNDL
MX104 AC Chassis Promotional Bundle with 80G Throughput - Includes 80G throughput, 4x10G built-in ports, 4 MIC slots, redundant AC power supply. Software licenses included :JUNOS, ADV-R2,JFLOW-5G
MX104-80G-DC-BNDL
MX104 DC Chassis Promotional Bundle with 80G Throughput - Includes 80G throughput, 4x10G built-in ports, 4 MIC slots, redundant DC power supply. Software licenses included :JUNOS, ADV-R2,JFLOW-5G
MX104-MX5-AC
MX104 AC Chassis Promotional Bundle with MX5 Equivalent - Includes MX5 equivalent, 20G throughout, 20x1GE MIC, 1 S-MIC slot, redundant AC power supply. Software licneces included: JUNOS, ADV-R,JFLOW-5G.
MX104-MX5-DC
MX104 DC Chassis Promotional Bundle with MX5 Equivalent - Includes MX5 equivalent, 20G throughout, 20x1GE MIC, 1 S-MIC slot, redundant DC power supply. Software licneces included: JUNOS, ADV-R,JFLOW-5G.
Part Numbers & Descriptions
Lightwire Systems offers the following MX104 parts & licenses:
MX104-T
MX104 Chassis with 4 Microphone Slots, 4X10GE x
MX104-PREM-T
MX104-Premium Bundle, 4 MIC slots, 2 Power Supplies, 2 Routing Engines
MX104-SEPTUM-S
Septum for use with 1/2 height MICs
CHAS-MX104-S
MX104 Chassis Spare
PWR-MX104-AC-BB
MX104 AC Power Supply, Base Bundle
PWR-MX104-AC-R
MX104 AC Power Supply
PWR-MX104-AC-S
MX104 AC Power Supply, Spare, Altius-MX104
PWR-MX104-DC-BB
MX104 DC Power Supply, Base Bundle
PWR-MX104-DC-R
MX104 DC Power Supply
PWR-MX104-DC-S
MX104 DC Power Supply
RE-S-BLANK-MX104
RE Blank Cover
S-MX104-ADD-2X10GE
Upgrade License to Activate 2x10GE P2&3
S-MX104-ADV-R1
L3 license -256K Routes Support
S-MX104-ADV-R2
L3 license-Full scale
S-MX104-Q
License to Support per VLAN Queuing
S-MX104-SA-FP
Subscriber Management Feature Pack
S-MX104-SSM-FP
Subscriber Service Management Feature Packet License (RADIUS/SRC Based Service Activation and Deactivation) Per-Service Accounting Features for Subscribers
S-MX104-UPG-2X10GE
Upgrade License to Activate 2x10GE Fixed Ports on MX104
S-MX104-UPG-4X10GE
Upgrade License to Activate 4x10GE Fixed Ports
