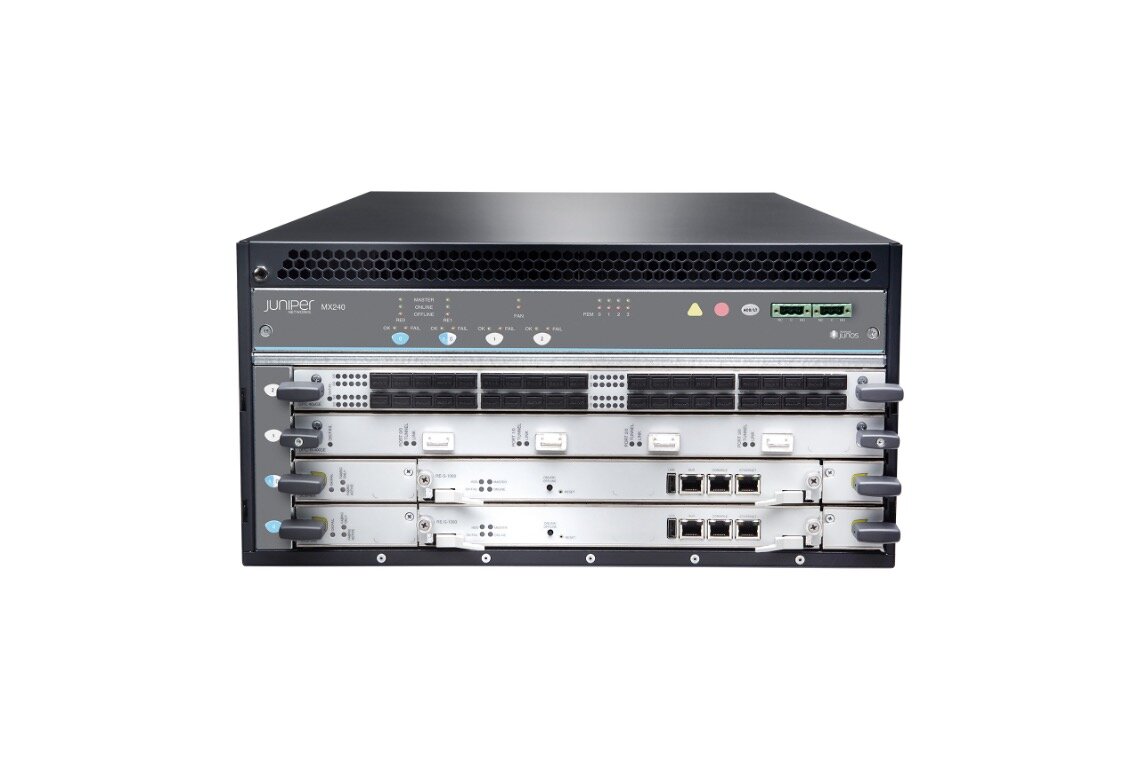

Juniper MX240 Router
The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.
At just five rack units (5 U), the MX240 is a compact, modular platform offering up to 3 Tbps of system capacity with the MPC10E line card, ideal for space-constrained environments. It concurrently supports high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity. The MX240 also supports Flexible Ethernet (FlexE), sophisticated timing capabilities, Junos fusion technology, and Juniper's Virtual Chassis technology, which help streamline network design and operation.
The high-performance MX240 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway functions, along with integrated routing, switching, and security services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX240 routers and MX240 parts & licenses.
The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.
At just five rack units (5 U), the MX240 is a compact, modular platform offering up to 3 Tbps of system capacity with the MPC10E line card, ideal for space-constrained environments. It concurrently supports high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity. The MX240 also supports Flexible Ethernet (FlexE), sophisticated timing capabilities, Junos fusion technology, and Juniper's Virtual Chassis technology, which help streamline network design and operation.
The high-performance MX240 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway functions, along with integrated routing, switching, and security services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX240 routers and MX240 parts & licenses.
The SDN-enabled MX240 Universal Routing Platform offers high performance, scale, and investment protection for a wide variety of service provider and enterprise applications. Those include business and residential broadband services and high-volume data center internetworking.
At just five rack units (5 U), the MX240 is a compact, modular platform offering up to 3 Tbps of system capacity with the MPC10E line card, ideal for space-constrained environments. It concurrently supports high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity. The MX240 also supports Flexible Ethernet (FlexE), sophisticated timing capabilities, Junos fusion technology, and Juniper's Virtual Chassis technology, which help streamline network design and operation.
The high-performance MX240 is packed with highly scalable routing, switching, security, and service features that enable revenue-generating applications, network consolidation, and service convergence. Key features include support for a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway functions, along with integrated routing, switching, and security services.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX240 routers and MX240 parts & licenses.
Product Information
The high-performance MX240 is packed with highly scalable routing, switching, security, and service features that enable revenue generating applications, network consolidation, and service convergence. Key features include support for a wide range of L2/L3 VPN services and advanced broadband network gateway functions, along with integrated routing, switching, and security services.
Powered by Junos OS and the programmable Trio chipset, the MX240 is deployed in mission critical service providers and enterprise networks worldwide, helping network operators transform their networks—and their businesses—to thrive in our hyper-connected world.
Investment-Protecting Scale
Scales through 3 Tbps, with support for 6 400GbE interfaces and 30 100GbE interfaces, to provide long-term investment protection.
SDN Enabled
Seamless integration with standards-based SDN controllers such as the Contrail Cloud Platform makes the MX240 an ideal anchor point for service chains that include physical and virtual elements.
Space Efficient
Excellent ratio of size to capacity and density brings new efficiency to a variety of applications.
Service Integration
Integrates a wide set of services—including carrier-grade NAT (CGNAT), stateful firewall, and deep packet inspection—to address the widest range of applications as well as efficient network and service consolidation.
Built-In Encryption
Powered by best-in-class Juniper Penta silicon, the MX240 has embedded MACsec and IPsec encryption with no sacrifice in performance.
Threat Intelligence at the Edge
SecIntel, Juniper’s security intelligence feed, helps you identify and block malicious traffic through policies that you configure on the MX router to cover command-and-control (C&C) servers as well as custom whitelists and blacklists.
Specs
‣ System capacity: Up to 3 Tbps
‣ Switch fabric capacity per slot: Up to 1.5 Tbps
‣ DPCs and/or MPCs per chassis: 2
‣ Chassis per rack: 9
‣ Dimensions (W x H x D): 17.45 x 8.71 x 27.75 in (total depth includes standard
cable manager measurements) (44.32 x 22.12 x 70.49 cm)
‣ Maximum weight: 130 lbs/59 kg
‣ Mounting: Front or center
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: 0-104°F (0-40°C) at 6,000 feet
‣ Humidity: 5 to 90 percent noncondensing
‣ Altitude: No performance degradation to 13,000 ft/4,000 m
/
Variant Product Details
Lightwire Systems offers the following MX240 variants:
MX240 4 Slot Base Chassis with 1 AC Power Supply
MX240BASE-AC-LOW
MX240 4 Slot Base Chassis with 2 AC Power Supplies, 1 SCB
MX240BASE3-DC
MX240 4 Slot Base 3 Chassis with DC Power Supply
MX240BASE-DC
MX240 4 Slot Base Chassis with 1 Fan Tray, 1 DC Power Supply, 1 SCB
MX240BASE3-ACH
MX240 4 Slot Base 3 Chassis with Highline AC Power
MX240BASE3-ACL
MX240 4 Slot Base 3 Chassis with Lowline AC Power
MX240-PREMIUM2-AC-HIGH
MX240 4 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, Highline AC Power
MX240-PREMIUM2-AC-LOW
MX240 4 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, Lowline AC Power
MX240-PREMIUM2-DC
MX240 4 Slot Premium 2 Chassis with Midplane, Redundant Routing Engine, SCBEs, DC Power
MX240-PREMIUM3-ACH
MX240 4 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, Highline DC Power
MX240-PREMIUM3-ACL
MX240 4 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, Lowline DC Power
MX240-PREMIUM3-DC
MX240 4 Slot Premium 3 Chassis with Enhanced Midplane, Redundant Routing Engine, SCBEs, DC Power
Part Numbers & Descriptions
Lightwire Systems offers the following MX240 parts & licenses:
CBL-MX-CLK-PPS
Clock Cable for Enhanced MX Switch Control Board to allow BITS/GPS inputs.
CHAS-BP-MX240-S
MX240 with installed backplane, Spare
CRAFT-MX240-S
MX240 Craft Interface Panel, Spare
FFANTRAY-MX240-BB
MX240 Fantray, configurable option in base bundle
FANTRAY-MX240-HC-BB
MX240 High Capacity fantray, configurable option in base bundle
FFANTRAY-MX240-HC-S
MX240 High Capacity fantray, Spare
FANTRAY-MX240-S
MX240 Fantray, Spare
FLTR-KIT-MX240-S
MX240 Air Filter, Spare
MIC-BLANK
MX MIC Blank Cover, Spare
MX240-AC-CMPC1-B
MX240BASE-AC-HIGH, MPC1-3D-R-B, MIC-3D-20XGE-SFP, MIC-3D-2XGE-XFP; configurable RE, SCB, and PEM
MX240-AC-SVCMPC-B
MX240BASE-AC-HIGH, MPC1-3D-R-B, MIC-3D-20XGE-SFP, MIC-3D-2XGE-XFP, MS-DPC; configurable RE, SCB, and PEM
MX240-DC-CMPC1-B
MX240BASE-DC, MPC1-3D-R-B, MIC-3D-20XGE-SFP, MIC-3D-2XGE-XFP; configurable RE, SCB, and PEM
MX240-PREM3-AC
MX240 AC Premium Fully Redundant "Built to Stock" System with dual Switch control board (SCBE), dual RE-S-1800X4-16G, redundant AC Power and Fan trays
MX240-PREM3-DC
MX240 DC Premium Fully Redundant "Built to Stock" System with dual Switch control board (SCBE), dual RE-S-1800X4-16G, redundant DC Power and Fan trays
MX240-PREMIUM-AC-HIGH
Base System with redundant RE-2000, SCB, and power (2 AC PEMs)
MX240-PREMIUM-AC-LOW
Base System with redundant RE-2000, SCB, and power (4 AC PEMs)
MX240-PREMIUM-DC
Base System with redundant RE-2000, SCB, and power (2 DC PEMs)
MX240-PREMIUM2-AC-HIGH
MX240 Premium Bundle with redundant components, Highline AC power
MX240-PREMIUM2-AC-LOW
MX240 Premium Bundle with redundant components, Lowline AC power
MX240-PREMIUM2-DC
MX240 Premium Bundle with redundant components, DC power
MX240-PREMIUM3-ACH
MX240 Premium Chassis Bundle with Enhanced Midplane. Also includes redundant RE, redundant SCB-E, redundant Highline AC Power
MX240-PREMIUM3-ACL
MX240 Premium Chassis Bundle with Enhanced Midplane. Also includes redundant RE, redundant SCB-E, redundant Lowline AC Power
MX240-RR-AC-B
MX240 route reflector AC bundle
MX240-RR-DC-B
MX240 route reflector DC bundle
MX240BASE-AC-HIGH
Chassis, Midplane, 1 RE, 1SCB, 1 AC PEM
MX240BASE-AC-LOW
Chassis, Midplane, 1 RE, 1 SCB, 2 AC PEMs
MX240BASE-DC
Chassis, Midplane, 1 RE, 1 SCB, 1 DC PEM
PKG-MX240-S
MX240 Shipping Container, Spare
PWR-FAN-MX240-ACH-HC-U
MX480 High Capacity power/cooling high-line upgrade kit. Includes 2x 2520W AC PSU, 1x High Capacity fantray
PWR-FAN-MX240-ACL-HC-U
MX480 High Capacity power/cooling low-line upgrade kit. Includes 4x 1450W AC PSU, 1x High Capacity fantray
PWR-FAN-MX240-DC-HC-U
MX240 High Capacity power/cooling upgrade kit. Includes 2x 2400W DC PSU, 1x High Capacity fantray
PWR-MX480-1200-AC-BB
1200W AC Power Entry Module, 3 are included in MX480BASE units
PWR-MX480-1200-AC-R
1200W AC Power Entry Module, Redundant, (Note: AC power cords are sold separately)
PWR-MX480-1200-AC-S
MX480 1200W Power Entry Module AC, Spare
PWR-MX480-1600-DC-BB
1600W DC Power Entry Module, 2 are included in MX480BASE units
PWR-MX480-1600-DC-R
1600W DC Power Entry Module, Redundant
PWR-MX480-1600-DC-S
MX480 1600W Power Entry Module DC, Spare
PWR-MX480-2400-DC-BB
2400W DC Power Supply, configurable option in base bundle
PWR-MX480-2400-DC-R
2400W DC Power Supply, Redundant
PWR-MX480-2400-DC-S
2400W DC Power Supply, Spare
PWR-MX480-2520-AC-BB
2520W AC Power Supply, configurable option in base bundle (Note: AC power cords are sold separately)
PWR-MX480-2520-AC-R
2520W AC Power Supply, Redundant (Note: AC power cords are sold separately)
PWR-MX480-2520-AC-S
2520W AC Power Supply, Spare (Note: AC power cords are sold separately)
RE-S-1300-2048-BB
Routing engine with 1300MHz processor and 2GB memory - included in BASE chassis price
RE-S-1300-2048-R
Routing engine with 1300MHz processor and 2GB memory, Redundant
RE-S-1300-2048-S
Routing engine with 1300MHz processor and 2GB memory, Spare
RE-S-1300-2048-WW-S
Routing engine with 1300MHz processor and 2GB memory, Spare (JUNOS WW)
RE-S-2000-4096-BB
Routing engine with 2000MHz processor and 4GB memory, Base Bundle
RE-S-2000-4096-R
Routing engine with 2000MHz processor and 4GB memory, Redundant
RE-S-2000-4096-S
Routing engine with 2000MHz processor and 4GB memory, Spare
RE-S-2000-4096-UPG-BB
Upgrade from RE-1300-2048-BB to RE-2000-4096 on MX960BASE system - Partially included in Base
RE-S-2000-4096-WW-S
Routing engine with 2000MHz processor and 4GB memory, Spare (JUNOS WW)
RE-S-BLANK
MX RE Blank Cover, Spare
SCB-MX960-BB
MX Switch Control Board, 2 are included in MX960BASE chassis price
SCB-MX960-R
Switch Control Board, MX960, Redundant
SCB-MX960-S
Switch Control Board, MX960, Spare
SCBE-MX-BB
Enhanced MX Switch Control Board
SCBE-MX-R
Enhanced MX Switch Control Board
SCBE-MX-S
Enhanced MX Switch Control Board
