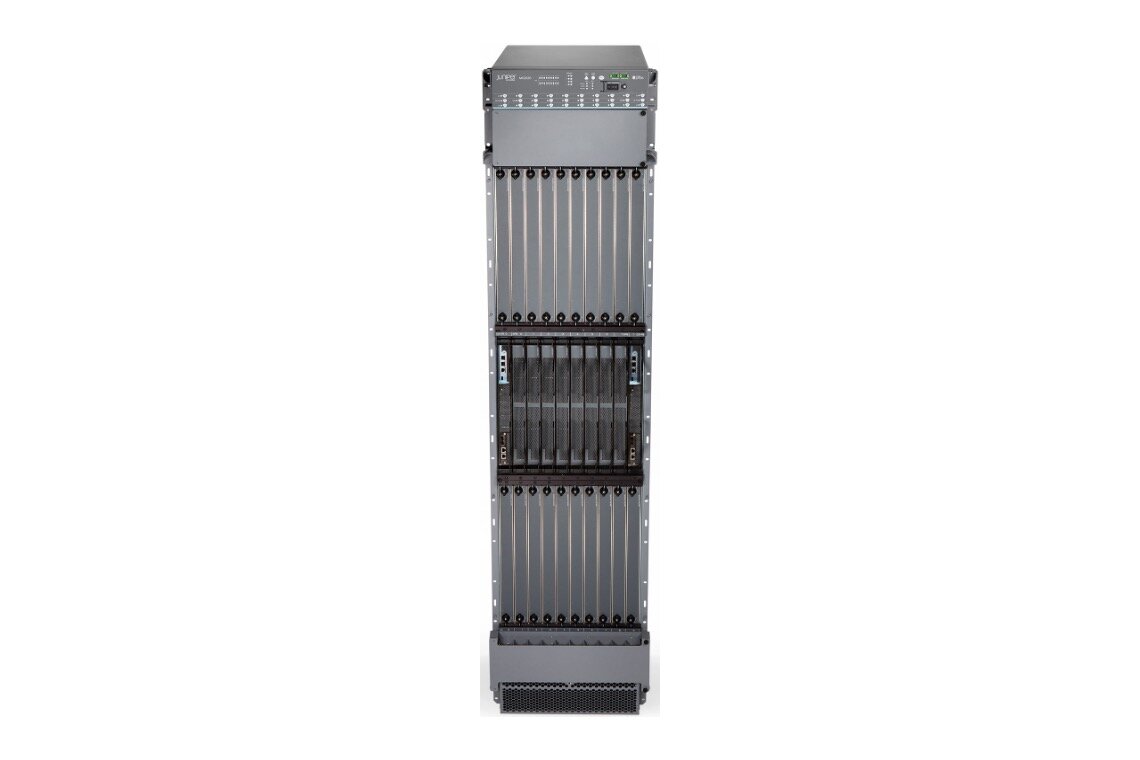

Juniper MX2020 Router
The SDN-ready MX2020 Universal Routing Platform is the industry’s highest-capacity edge router. It delivers 80 Tbps of system capacity and supports up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces in a single chassis when used with the Modular Port Concentrator 11E (MPC11E) line card.
Ultra-high performance and density make the MX2020 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. Additionally, the MX2020 supports sophisticated timing and virtualization capabilities that meet the stringent requirements of mobile services.
The MX2020 provides the highest levels of network availability and a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while enabling you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2020 routers and MX2020 parts & licenses.
The SDN-ready MX2020 Universal Routing Platform is the industry’s highest-capacity edge router. It delivers 80 Tbps of system capacity and supports up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces in a single chassis when used with the Modular Port Concentrator 11E (MPC11E) line card.
Ultra-high performance and density make the MX2020 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. Additionally, the MX2020 supports sophisticated timing and virtualization capabilities that meet the stringent requirements of mobile services.
The MX2020 provides the highest levels of network availability and a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while enabling you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2020 routers and MX2020 parts & licenses.
The SDN-ready MX2020 Universal Routing Platform is the industry’s highest-capacity edge router. It delivers 80 Tbps of system capacity and supports up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces in a single chassis when used with the Modular Port Concentrator 11E (MPC11E) line card.
Ultra-high performance and density make the MX2020 ideal for a wide variety of edge, core, and converged edge and core applications, including business VPNs, next-generation broadband multiplay, and high-volume Internet and data center internetworking. Additionally, the MX2020 supports sophisticated timing and virtualization capabilities that meet the stringent requirements of mobile services.
The MX2020 provides the highest levels of network availability and a comprehensive set of resiliency features that include N+1 fabric redundancy, control plane redundancy, N+N power feed redundancy, and N+1 power supply module redundancy. In addition, Virtual Chassis technology supports chassis-level redundancy while enabling you to manage two routers as a single element.
Contact us with any questions or for a quote at +1 415-800-2050 or sales@lightwiresystems.com.
*See below for additional information on variant MX2020 routers and MX2020 parts & licenses.
Product Information
The SDN-ready MX2000 line of 3D Universal Edge Routers are true cloud-grade networking platforms that help network operators of all types achieve their business goals by combining unparalleled performance, reliability, and security with a programmable, software-centric design at massive scale including line-rate encryption capabilities. Simply put, the MX2000 routers offer the system capacity, linerate port density, and serviceoriented design that network operators need to thrive today and in the future.
High Scale and Density
Provides 80 Tbps of system capacity and support for up to 800 100GbE interfaces, 320 200GbE interfaces, or 160 400GbE interfaces.
Nonstop Service Availability
Combines support for the carrier-grade Junos operating system, with a fully redundant architecture for uninterrupted service availability under any network conditions.
Broad Range of Applications
Addresses core, edge, and converged edge and core applications with its ultra-high density and performance; applications include residential and business services, Data Center Interconnect, SDN gateway, services routing, and many others.
Long-Term Investment Protection
Delivers outstanding scale for long-term traffic growth as well as an upgrade path for existing MX Series users, with support for the same MPCs as the MX2010, MX2008, MX960, MX480, and MX240 Universal Routing Platforms.
Advanced Power Design
Power-saving features on the MX2020 help contain OpEx and maintain exceptional efficiency.
Simple Hardware Upgrades Allows you to introduce new hardware into the MX2020 platform without having to upgrade Junos OS, preventing costly downtime.
Specs
‣ System capacity: 80 Tbps
‣ Switch fabric capacity per slot: 4 Tbps
‣ Dense Port Concentrators (DPCs) and/or Modular Port Concentrators (MPCs)
per chassis: 20 (MPC only)
‣ Chassis per rack: 1
‣ Dimensions: (W x H x D) 19.0 x 78.75 x 36.20 in (48.26 x 200 x 91.95 cm)
‣ Maximum weight: 1,500 lbs / 680 kg
‣ Mounting: Four-post rack
‣ Power options: AC/DC: -40 to -72 VDC 100-240 VAC
‣ Operating temperature: 32° to 115° F (0° to 46° C) at sea level
‣ Humidity: 5 to 90 percent noncondensing
‣ Altitude: No performance degradation to 13,000 ft/4000 m
/
Variant Product Details
Lightwire Systems offers the MX2020 variants and premium packages:
MX2020-BASE-AC
20 slot MX2020 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, AC power
MX2020-BASE-DC
20 slot MX2020 chassis, base bundle with 1 Routing Engine, SFBs, fan trays, DC power
MX2020-PREMIUM-AC
20 slot MX2020 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, AC power
MX2020-PREMIUM-DC
20 slot MX2020 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, DC power
CHAS-BP-MX2020-S
20 slot MX2020 chassis with backplane installed, spare
MX2020-PREMIUM2-AC
10 slot MX2020 premium 2 chassis with optimized AC power
MX2020-PREMIUM2-DC
0 slot MX2020 premium 2 chassis with optimized DC power
Part Numbers & Descriptions
Lightwire Systems offers the following MX2020 parts:
CHAS-BP-MX2020-S
20 slot MX2020 chassis with backplane installed, spare
MX2020-PREMIUM2-AC
10 slot MX2020 premium 2 chassis with optimized AC power
MX2020-PREMIUM2-DC
0 slot MX2020 premium 2 chassis with optimized DC power
